8.1.- LABORATOIRE MODULAIRE DE MÉCANIQUE DES FLUIDES

L'hydraulique est la branche de la science qui traite des propriétés mécaniques des fluides et la mécanique des fluides est la base de l'hydraulique. EDIBON tente de répondre, de manière simple et pratique, à la demande académique d'enseignement et d'apprentissage des bases de la Mécanique des Fluides. À cette fin, il dispose d'un système flexible et modulaire pour l'apprentissage de la mécanique des fluides de base.

Voir plus

Avec la série de modules proposés, les élèves réalisent des expériences qui leur montrent clairement les lois de l'hydraulique. Grâce à ces expériences, les étudiants acquièrent une expérience de l'utilisation des instruments et outils hydrauliques de manière naturelle, agréable et simple.

Les équipements du laboratoire de mécanique des fluides permettent aux étudiants de réaliser des caractérisations des fluides, des mesures et du contrôle de l'écoulement des fluides, d'étudier les principaux phénomènes et principes qui régissent la mécanique des fluides, et de connaître les représentations des équipements largement utilisés dans l'industrie.

Voir les produits
PRODUITS DE LABORATOIRE MODULAIRE DE MÉCANIQUE DES FLUIDES
Affichage 1-30 de 43 article(s)
BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA
  • LIFLUBA
Available
8.1.7.- MACHINES HYDRAULIQUES: TURBINES
LIFLUBA

Laboratoire Intégré de Mécanique des Fluides de Base:

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

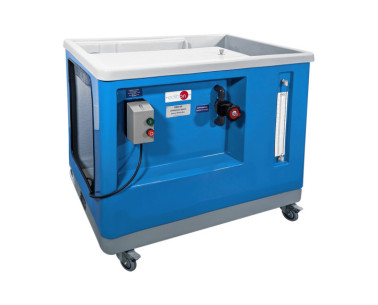

HYDRAULICS BENCH - FME00
Available
8.1.1.- UNITÉS DE BASE
FME00

Banc Hydraulique

Accessoire de LIFLUBA
Unit for the study of fluid behaviour, hydraulic theory and the properties of fluid mechanics. It is formed by a movable hydraulics bench used to hold a wide variety of modules, which allow the student to experiment with the problems presented by...
BASIC HYDRAULIC FEED SYSTEM - FME00/B
Available
8.1.1.- UNITÉS DE BASE
FME00/B

Source d'Alimentation Hydraulique de Base

Accessoire de LIFLUBA
The Basic Hydraulic Feed System, "FME00/B", designed by EDIBON is a service unit for different Fluid Mechanics Units as: "FME" type modules, Fluid Friction in Pipes Unit "AFT", etc., increasing the equipment profitability.
FLOW OVER WEIRS - FME02
Available
8.1.2.- MESURE
FME02

Passage sur Déversoirs

Accessoire de LIFLUBA
The Flow over Weirs, "FME02", designed by EDIBON, allows to study the flow characteristics trough a rectangular and "V" shaped neckline.This module has many elements that are used in combination with the Hydraulics Bench (FME00):A special...

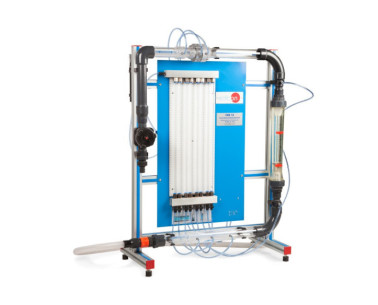

FLOW METER DEMONSTRATION - FME18
Available
8.1.2.- MESURE
FME18

Démonstration de Systèmes de Mesure de Flux

Accessoire de LIFLUBA
The Flow Meter Demonstration, "FME18", designed by EDIBON, allows through 3 different flow measurement accessories: Venturi tube, orifice plate and a variable area meter installed in series in the unit, the study to find the flow rate of the fluid...
TRANSPARENT VORTEX FLOW METER - FME30
Available
8.1.2.- MESURE
FME30

Débimètre à effet Vortex

Accessoire de LIFLUBA
The Transparent Vortex Flow Meter, "FME30", designed by EDIBON allows to perform studies and experiments of different volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit...

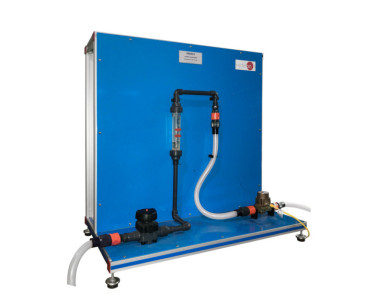

VORTEX FLOW METER - FME30/I
Available
8.1.2.- MESURE
FME30/I

Débitmètre à Vortex

Accessoire de LIFLUBA
The Vortex Flowmeter, "FME30/I", designed by EDIBON, allows to perform different studies and experiments of various volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit includes...

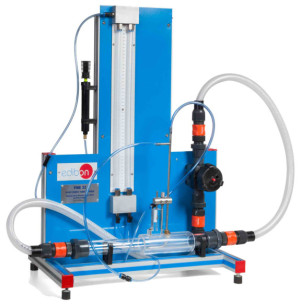

STATIC PITOT TUBE - FME32
Available
8.1.2.- MESURE
FME32

Tube de Pitot Statique

Accessoire de LIFLUBA
The Static Pitot Tube, "FME32", designed by EDIBON, allows to analyze the change in flow rate inside a pipe.The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.This tube is...

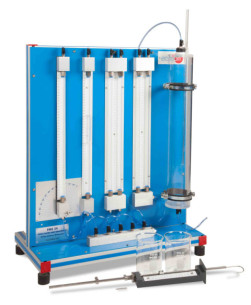

FLUID STATICS AND MANOMETRY - FME34
Available
8.1.2.- MESURE
FME34

Statique des Fluides et Manométrie

Accessoire de LIFLUBA
The Fluid Statics and Manometry, "FME34", designed by EDIBON, allows the study of static fluids and manometry providing the user with an introduction in the behavior of liquids under hydrostatic conditions (fluids at standstill) and the...

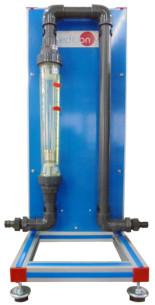

ROTAMETER - FME36
Available
8.1.2.- MESURE
FME36

Débitmétre

Accessoire de LIFLUBA
The Rotameter, "FME36", designed by EDIBON is a variable area flowmeter with floater. This type of flowmeter can be used for flow measurements in almost any environment.The operation mode of this type of flowmeter is based on the fact that if a...
DATA ACQUISITION SYSTEM AND SENSORS - BDAS
Available
8.1.7.- MACHINES HYDRAULIQUES: TURBINES
BDAS

Système d'Acquisition de Données et Capteurs

Accessoire de LIFLUBA
BDAS is designed to monitor the measurements of each module type "FME" from a computer.This system can monitor any module, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...

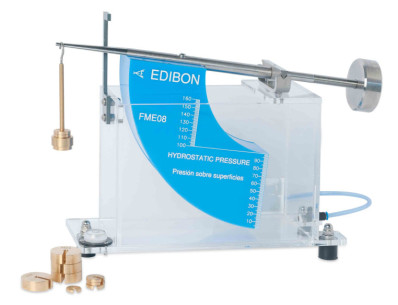

HYDROSTATIC PRESSURE - FME08
Available
8.1.3.- HYDROSTATIQUE
FME08

Pression Hydrostatique (sur les Surfaces)

Accessoire de LIFLUBA
The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...
METACENTRIC HEIGHT DEMOSTRATION - FME11
Available
8.1.3.- HYDROSTATIQUE
FME11

Démonstration de Hauteur Métacentrique

Accessoire de LIFLUBA
The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...
PASCAL'S PRINCIPLE DEMONSTRATION - FME33
Available
8.1.3.- HYDROSTATIQUE
FME33

Démonstration du Principe de Pascal

Accessoire de LIFLUBA
The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...

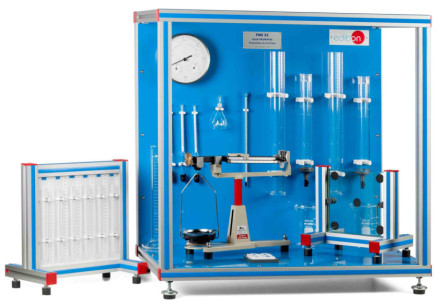

FLUID PROPERTIES - FME35
Available
8.1.3.- HYDROSTATIQUE
FME35

Propriétés des Fluides

Accessoire de LIFLUBA
The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior (capillarity, density and relative density (specific gravity), buoyancy (Archimedes principle), viscosity,...
JET IMPACT ON SURFACES - FME01
Available
8.1.4.- HYDRODYNAMIQUE
FME01

Impact du Jet sur les Surfaces

Accessoire de LIFLUBA
The Jet Impact on Surfaces unit, "FME01", designed by EDIBON, allows to obtain experimental force measurements exerted by a jet on different surfaces and to compare the values with the theoretical results.The unit consists of a cylindrical tank...

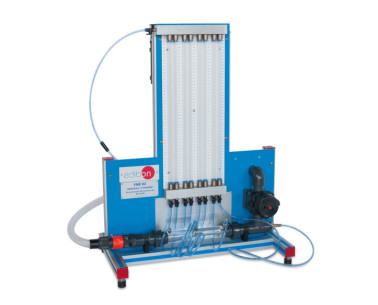

BERNOULLI'S THEOREM DEMONSTRATION - FME03
Available
8.1.4.- HYDRODYNAMIQUE
FME03

Démonstration du Théorème de Bernoulli

Accessoire de LIFLUBA
The Bernoulli's Theorem Demonstration unit, "FME03", designed by EDIBON is mainly composed of a circular section pipe with the shape of a truncated cone, transparent and with seven pressure taps that allows to measure, simultaneously, the static...
ORIFICE DISCHARGE - FME04
Available
8.1.4.- HYDRODYNAMIQUE
FME04

Décharge par Orifice

Accessoire de LIFLUBA
The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.The unit consists of a...
FREE AND FORCED VORTEX - FME14
Available
8.1.4.- HYDRODYNAMIQUE
FME14

Tourbillon Libre et Forcé

Accessoire de LIFLUBA
The Forced and Free Vortex unit, "FME14", designed by EDIBON, allows the study of the fluid rotation in relation to an axis and the study of circular flow at changing velocities.The unit has a cylindrical and transparent deposit with two inlet...
ORIFICE AND FREE JET FLOW - FME17
Available
8.1.4.- HYDRODYNAMIQUE
FME17

Unité de Jet et Orifice

Accessoire de LIFLUBA
The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.The unit consists of a...

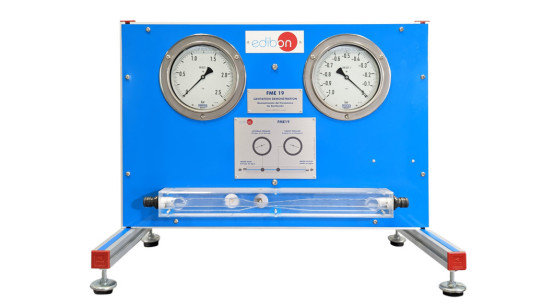

CAVITATION PHENOMENON DEMONSTRATION - FME19
Available
8.1.4.- HYDRODYNAMIQUE
FME19

Démonstration de la Cavitation

Accessoire de LIFLUBA
The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.It includes...
VENTURI, BERNOULLI AND CAVITATION UNIT - FME22
Available
8.1.4.- HYDRODYNAMIQUE
FME22

Unité de Venturi, Bernoulli et Cavitation

Accessoire de LIFLUBA
The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.This unit is designed for demonstrating some practical possibilities with...
OSBORNE REYNOLDS' DEMONSTRATION - FME06
Available
8.1.5.- VISUALISATION DE FLUX
FME06

Démonstration Osborne Reynolds

Accessoire de LIFLUBA
The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, allows the study of the laminar, transitional and turbulent regime of a liquid by associating them with the respective Reynolds variable.The unit consists of a cylindrical tank...

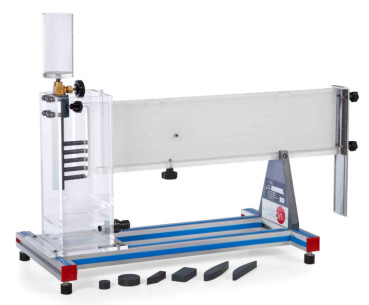

FLOW VISUALIZATION IN CHANNELS - FME09
Available
8.1.5.- VISUALISATION DE FLUX
FME09

Visualisation d'Écoulement en Canaux

Accessoire de LIFLUBA
The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).The unit consists of a transparent...
LAMINAR FLOW DEMONSTRATION - FME20
Available
8.1.5.- VISUALISATION DE FLUX
FME20

Démonstration d'Écoulement Laminaire

Accessoire de LIFLUBA
The Laminar Flow Demostration unit, "FME20", designed by EDIBON, allows a complete study of the bi-dimensional problems associated with laminar flow. Thanks to an efficient system of dye injection we can observe the different models of flow. It...
FLOW CHANNEL, LENGHT: 1 M - FME25
Available
8.1.5.- VISUALISATION DE FLUX
FME25

Canal d´Écoulement, 1m long

Accessoire de LIFLUBA
The Flow Channel, lenght: 1 m, "FME25", designed by EDIBON, allows to study of the water behavior flowing through a channel.It basically consists of a channel of rectangular cross section with transparent walls, through which water flows.It has a...
