The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

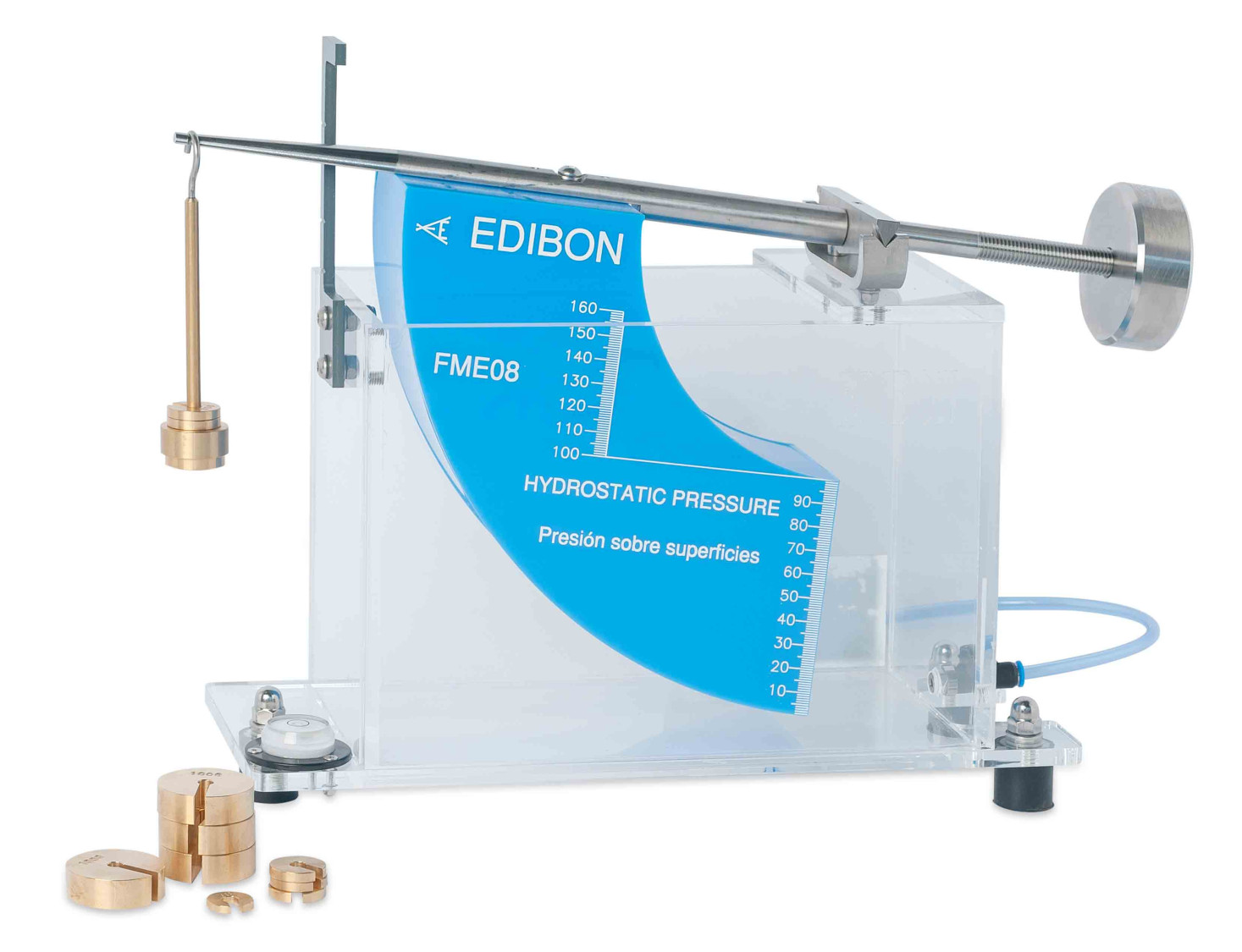

This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.

When the quadrant is immersed in the water tank, the force acting on the flat, rectangular front surface will create a moment with relation to the support axis.

The tilting arm incorporates a pan and an adjustable counterweight.

The tank has adjustable legs that determine its correct leveling.

It has a drain valve.

The level reached by the water in the tank is indicated on a graduated scale.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Determination of the center of pressures with an angle of 90°, partially submerged.
  2. Determination of the resultant force with an angle of 90°, partially submerged.
  3. Determination of the center of pressures, angle <> 90° partially submerged.
  4. Determination of the equivalent force with an angle <>90° partially submerged.
  5. Determination of the center of pressures with an angle of 90° totally submerged.
  6. Determination of the resultant force with an angle of 90° totally submerged.
  7. Determination of the center of pressures, angle <>90° totally submerged.
  8. Determination of the resultant force, angle <>90° totally submerged.
  9. Balance of momentum.
