9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE

Certain environmental conditions are needed in many life situations, for example, in an industrial environment, a house or a greenhouse. According to the requirements, the air parameters can be modified with the aid of specific equipment.

Voir plus

Under normal conditions, the air has a mass content of around 23% oxygen, 76% nitrogen and 1% gases and vapors. Among the gases and vapors the most important is water vapor. Although its proportion is very small, it is very importance in the rate of evaporation of wet surfaces and materials.

The air conditioning and ventilation systems modify air humidity and other parameters, such as temperature and pressure.

As the air parameters are modified, water heating systems are used to obtain specific conditions.

In the everyday life, water can be heated for sanitation purposes (bathrooms, showers) and for other cleaning purposes or for heating. According to its later use, the water is conditioned with a heating system.

Sanitary water can be prepared in two ways:

    • By storage: hot water is stored in a tank for the intended uses.
    • By instantaneous heating: water flows through a coil heated directly by a flame or heat exchanger.

A heating system raises or maintains the air temperature. It consists of three parts:

    • A heat generation system: it can be a fuel boiler, a system operated by heating elements or another system.
    • A distribution system: pipes through which hot water or air flows.
    • An emission system: radiators, grilles, specific supply elements.

Any of the water heating methods, regardless of the use, must be evaluated, since the energy efficiency variability is very large.

Voir les produits
PRODUITS DE CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
Affichage 1-21 de 21 article(s)
WATER HEATERS TRAINING UNIT - WHT
  • WHT
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
WHT

Water Heaters Training Unit

The Water Heater Training Unit, “WHT”, allows demonstrating the operation of three types of water heaters. The unit has three heaters, two of them commercial one with electronic ignition and one in millivolt, and a residential gas heater without...
AIR CONDITIONING LABORATORY UNIT - TAAB
  • TAAB
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
TAAB

Unité de Climatisation de Laboratorie

The Air Conditioning Laboratory Unit, "TAAB", has been designed to study the change of the air conditions and the refrigeration circuit. The unit consists of a testing tunnel made in stainless steel, in which there have installed two windows....
RECIRCULATING AIR CONDITIONING UNIT - TARB
  • TARB
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
TARB

Unité de Climatisation (Recirculation)

L’Unité de Climatisation pour Laboratoire (Recirculation), “TARB”, a été conçu pour étudier, outre le changement des conditions de l’air, le circuit frigorifique, en plaçant de manière stratégique des capteurs de température, des manomètres et des...
AUTOMOBILE AIR CONDITIONING UNIT - TAAU
  • TAAU
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
TAAU

Entraineur de Climatisation Automobile

The Automobile Air Conditioning Unit, "TAAU", consists, basically, of a compressor driven through a belt by a motor that simulates the engine of a car. The number of revolutions of the engine and, therefore, the compressor, can be adjusted with a...

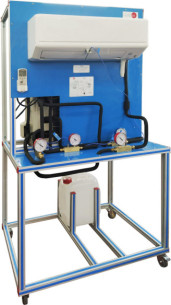

SPLIT AIR CONDITIONER UNIT - TACS
  • TACS
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
TACS

Équipement de Climatisation avec Split

L'unité de climatisation à deux blocs (split), "TACS", conçue par EDIBON, permet d'étudier le fonctionnement d'un Climatiseur à deux blocs avec fonction de pompe à chaleur, qui permet le chauffage ou le refroidissement et ses différents modes de...

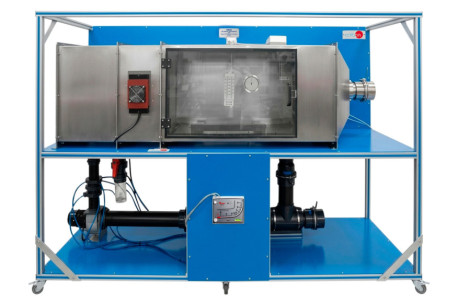

AIR HUMIDITY MEASUREMENT UNIT - TMHA
  • TMHA
Available
9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
TMHA

Équipement de Mesure d'Humidité de l'Air

The Air Humidity Measurement Unit, “TMHA”, enables the differences in accuracy between different instruments to measure the air relativehumidity. It also includes a fan to show the effects of airflow on the different instruments.A mobile metallic...

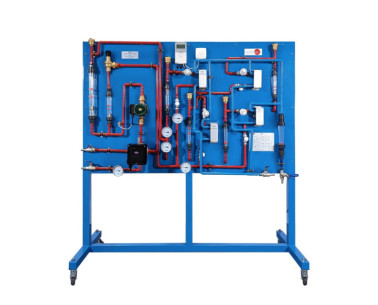

HEATING SYSTEM TRAINING UNIT - THST
  • THST
Available
9.10.3.- INSTALLATIONS ET MAINTENANCE
THST

Équipement de Formation de Chauffage

The Heating System Training Unit, "THST", has been designed to study central heating systems. The unit simulates a central heating system. For that purpose, it is made up of four radiators with a thermostatic valve each. This valve controls the...

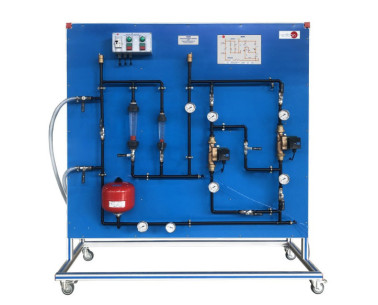

CIRCULATING PUMPS TRAINING UNIT - TCPT
  • TCPT
Available
9.10.3.- INSTALLATIONS ET MAINTENANCE
TCPT

Circulating Pumps Training Unit

The Circulation Pumps Training Unit, "TCPT", is a unit of experimentation of sanitary and heating techniques that allows studying the operation of circulating pumps, both connected in series and in parallel.It consists of a pipe circuit with two...

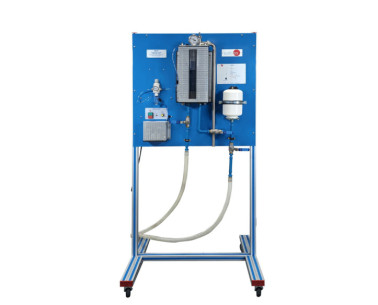

EXPANSION VESSEL TRAINING UNIT - TEVT
  • TEVT
Available
9.10.3.- INSTALLATIONS ET MAINTENANCE
TEVT

Expansion Vessel Training Unit

The Expansion Vessel Training Unit, "TEVT", is a test unit for sanitary and heating techniques that allows studying the operation of an expansion vessel. It also allows studying the pressure – volume characteristic curve of it.The aim element of...

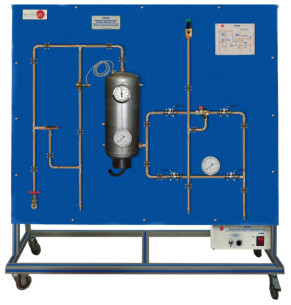

PRESSURE VESSEL AND SAFETY FEATURES TRAINING UNIT - TPVST
  • TPVST
Available
9.10.3.- INSTALLATIONS ET MAINTENANCE
TPVST

Pressure Vessel and Safety Features Training Unit

The Pressure Vessel and Safety Features Training Unit, “TPVST”, is an experimentation of sanitary and heating techniques unit that allows studying the safety elements of a heating system with a pressure tank.It consists of a circuit of pipes for...
