8.1.4.- HYDRODYNAMIQUE

PRODUITS DE HYDRODYNAMIQUE
Affichage 1-9 de 9 article(s)
BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA
  • LIFLUBA
Available
8.1.7.- MACHINES HYDRAULIQUES: TURBINES
LIFLUBA

Laboratoire Intégré de Mécanique des Fluides de Base:

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...
IMPACT OF A JET - FME01|
Available
8.1.4.- HYDRODYNAMIQUE
FME01

Impact d´un Jet

Accessoire de LIFLUBA
The module consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water...
BERNOULLI'S THEOREM DEMONSTRATION - FME03|
Available
8.1.4.- HYDRODYNAMIQUE
FME03

Démonstration du Théorème de Bernoulli

Accessoire de LIFLUBA
Bernoulli’s Theorem Demonstration module is mainlycomposed of a circular section conduit with shape of atruncated cone, transparent and with seven pressure taps tomeasure, simultaneously, the static pressure of each section.All the pressure taps...

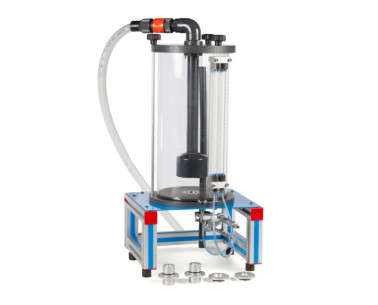

ORIFICE DISCHARGE - FME04|
Available
8.1.4.- HYDRODYNAMIQUE
FME04

Décharge par Orifice

Accessoire de LIFLUBA
The module consists of a transparent cylindrical tank that is fed from thetop by the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System(FME00/B). The water flows through an interchangeable mouthpiece (aset of 5 mouthpieces is supplied,...
FREE AND FORCED VORTEX - FME14|
Available
8.1.4.- HYDRODYNAMIQUE
FME14

Tourbillon Libre et Forcé

Accessoire de LIFLUBA
The module has a cylindrical and transparent deposit with two inlet pipes diametrically opposed, slightly inclined to produce a whirl. This deposit has an outlet in the center of its base, where 3 mouthpieces with orifices of different...
UNITÉ DE JET ET ORIFICE - FME17|UNITÉ DE JET ET ORIFICE - FME17
Available
8.1.4.- HYDRODYNAMIQUE
FME17

Unité de Jet et Orifice

Accessoire de LIFLUBA
The module consists of a cylindrical methacrylate tank that enables to maintain a constant level and that is fed by the Hydraulics Bench (FME00) or by the Basic Hydraulic Feed System (FME00/B). Two nozzles with orifices of different diameters...
CAVITATION PHENOMENON DEMONSTRATION - FME19|
Available
8.1.4.- HYDRODYNAMIQUE
FME19

Démonstration de la Cavitation

Accessoire de LIFLUBA
The module consists of a rectangular transversal section Venturi-pipe, with transparent wall for a better observation of the Cavitation Phenomenon. It includes a manometer and a vacuum meter that are respectively connected to the inlet section...
UNITÉ DE VENTURI, BERNOULLI ET CAVITATION - FME22|UNITÉ DE VENTURI, BERNOULLI ET CAVITATION - FME22
Available
8.1.4.- HYDRODYNAMIQUE
FME22

Unité de Venturi, Bernoulli et Cavitation

Accessoire de LIFLUBA
This module is designed for demonstrating some practical possibilities with the Venturi’s tube. This Venturi is made of transparent methacrylate for a better visualization. It consist of a circular transverse section Venturi tube with 6 taps...
SYSTÈME D'ACQUISITION DE DONNÉES ET CAPTEURS - BDAS
Available
8.1.7.- MACHINES HYDRAULIQUES: TURBINES
BDAS

Système d'Acquisition de Données et Capteurs

Accessoire de LIFLUBA
BDAS is designed to monitor the measurements of each module type "FME" from a computer.This system can monitor any module, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...
