7.3.- INGÉNIERIE DES MATÉRIAUX

Materials engineering is the scientific and industrial branch responsible for making an industrial interpretation of materials science. Anthropologically, the different stages of human development have been classified according to the materials used in the manufacture of tools (Stone Age, Bronze Age, etc.). Thus, the development of humanity is intimately linked to the study of new materials.

Voir plus

During the last 200 years, discoveries about materials, so revealing as the contribution of Gibbs, have been made. He demonstrated the existence of a relationship between the properties of a material and its structure. These discoveries have allowed the development of new materials, such as graphene, and the investigation of new fields, such as nanomaterials or nanotechnology.

A huge number of tests have been carried out to reach that level of development, including mechanical bending tests, hardness tests (Rockell, Brinell, Vickers, Martens), torsion tests, tensile test (toughness and resilience), tensile testing (creep), shear testing, as well as chemical tests (thermal treatments, internal structures, etc.). Likewise, materials can be classified as:

    • Metals (ferrous and non-ferrous)
    • Ceramics
    • Polymers (thermoplastics, thermosetting plastics and elastomers)
    • Composite materials

The applications of these advances are evident in different industrial areas, such as the automotive, electronic, aerospace, aeronautic and biomedical ones, thus giving to materials engineering the importance it has in today's society.

Voir les produits
Matériels Associés
PRODUITS DE INGÉNIERIE DES MATÉRIAUX
Affichage 1-26 de 26 article(s)

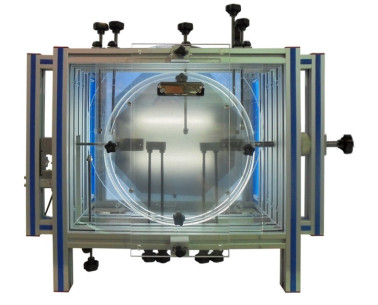

PHOTOELASTICITY UNIT - EFO
  • EFO
Available
14.1.7.- PHOTOÉLASTICITÉ ET MESURE DE DÉFORMATION
EFO

Équipement de Photoélasticité

Unit for photoelasticity practices, illustrating the subjects of the Photoelasticity theory, the Elasticity theory, Strength of Materials, andStructure theory.It is very suitable for the introduction and study of photoelasticity: optical elements,...

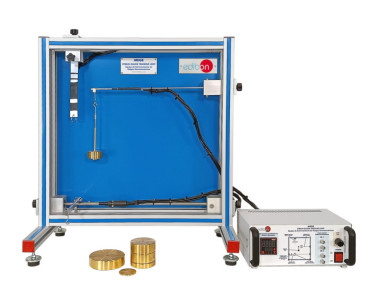

STRAIN GAUGE TRAINING UNIT - MEGE
  • MEGE
Available
14.1.7.- PHOTOÉLASTICITÉ ET MESURE DE DÉFORMATION
MEGE

Équipement de Formation sur la Jauge de Contrainte

The Strain Gauge Training Unit (MEGE) provides an introduction to the fundamentals of measurement with strain gauges, to compare how resistance strain gauges work and how they measure strains in different structures (torsion, tension and bending...
UNIVERSAL MATERIAL TESTING UNIT - EEU/20KN
  • EEU/20KN
Available
7.3.2.1.- TEST MÉCANIQUE
EEU/20KN

Équipement d' Essai Universel

The Universal Material Testing Unit, "EEU/20KN", is a didactic bench-top universal material testing unit. It is distinguished by its rigid construction, accurate control and a precise hydraulic system to apply loads of up to 20 kN, which enables...
BRINELL HARDNESS TESTING UNIT - EEDB
  • EEDB
Available
7.3.2.1.- TEST MÉCANIQUE
EEDB

Équipement pour l'Essai de Dureté Brinell

The Brinell Hardness Testing Unit, "EEDB", is a hardness tester that determines Brinell hardness in metals, hard alloys, tempered steels, etc. Besides, it can be used with other materials, such as rigid plastics, bakelite, etc.A penetrating ball...
CREEP TESTING UNIT - EEFCR
  • EEFCR
Available
7.3.2.1.- TEST MÉCANIQUE
EEFCR

Équipement pour l'Essai de Fluage

The Creep Testing Unit ,EEFCR, for the creep testing is mounted on a structure of aluminum profiles which a painted steel panel is supported on.The EEFCR unit is designed to carry out experiments on specimens of plastic materials. Due to the...
FATIGUE TESTING UNIT - EEF
  • EEF
Available
7.3.2.1.- TEST MÉCANIQUE
EEF

Unité d'Essai de Fatigue

The Fatigue Testing Unit, "EEF", designed by EDIBON, allows to study the fatigue strength of the materials. For that purpose, fatigue tests are performed with different materials and notches.Optionally, with the additional recommended element Set...

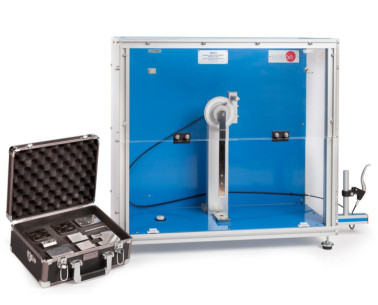

CHARPY AND IZOD IMPACT TESTING UNIT - EEICI
  • EEICI
Available
7.3.2.1.- TEST MÉCANIQUE
EEICI

Équipement pour l'Essai des Impacts Charpy et Izod

The Charpy and Izod Impact Testing Unit “EEICI” consists of a pendulum supported on bearings with an arm of 330 mm long and a fastening system in the initial position of the test. The suitable hammer either for Charpy or Izod test is screwed to...
UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- TEST MÉCANIQUE
MUP

Équipement de Flambage Universelle

The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- TEST MÉCANIQUE
MFLT

Équipement de Flambage

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...
TORSION AND BEND UNIT - MTP
  • MTP
Available
7.3.2.1.- TEST MÉCANIQUE
MTP

Équipement de Torsion et de Flexion

The Torsion and Bend Unit, "MTP", is a combined apparatus for the demonstration of both torsion and bend to be used in the laboratory or as a complement of the theoretical study about torsion and bend. Its size and weight facilitate its transport...
TORSION UNIT - MTB
  • MTB
Available
7.3.2.1.- TEST MÉCANIQUE
MTB

Équipement de Torsion

To perform the tests a metallic rod is fastened by clamps and subjected to the testing force. Force is gradually applied on the rod toobserve the elastic tension generated. The force moment or torque is applied by a dynamometer with a lever....
TENSILE TESTER UNIT - MTTU
  • MTTU
Available
7.3.2.1.- TEST MÉCANIQUE
MTTU

Équipement de Testeur de Traction

With the Tensile Tester Unit, "MTTU", tensile test can be performed. A specimen made of different materials is subjected to an increasing axial tensile stress till failure. This unit allows the user to perform tensile tests with different...
DEFLECTION OF CURVED BARS UNIT - MDB
  • MDB
Available
7.3.2.1.- TEST MÉCANIQUE
MDB

Équipement de Déviation des Barres Incurvées

The Deflection of Curved Bars Unit “MDB” consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...
BEAM DEFLECTION UNIT - MFV
  • MFV
Available
7.3.2.1.- TEST MÉCANIQUE
MFV

Unité de Déviation en Poutres

This unit has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and the cross section on the...
SHEAR FORCE AND BENDING MOMENTUM UNIT - MMF
  • MMF
Available
7.3.2.1.- TEST MÉCANIQUE
MMF

Équipement Force de cisaillement et de Moment de Flexion

The Shear Force and Bending Momentum Unit “MMF” is formed by an aluminum and steel structure that allows us to perform a mechanicalstudy of different structures.An articulated structure makes it possible to convert the application of one vertical...
BELL CASTING BASIC TRAINING SET - MCAM
  • MCAM
Available
7.3.3.1.- FONDERIE
MCAM

Fonderie, Ensemble basique de Modèle de Cloche

Didactic case for the study of foundry fundamentals.Introduction to sand casting: student experiments with three different patterns (bell, anvil and anchor).Operations of ramming up of the moulding sand, melting of the metal, pouring, forming and...
FOUNDRY, BUILDING-UP TRAINING SET 1 - MCLA
  • MCLA
Available
7.3.3.1.- FONDERIE
MCLA

Fonderie: Ensemble 1 de Formation de Construction

Didactic case for the study of foundry fundamentals.Operations of ramming up of the moulding sand, melting of the metal, pouring, forming and fettling can be performed step by step.Practice of melting, unmelting and foundry with irregular and...
