FME22 Unité de Venturi, Bernoulli et Cavitation

8.1.4.- HYDRODYNAMIQUE

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

Complete FME22 Unit

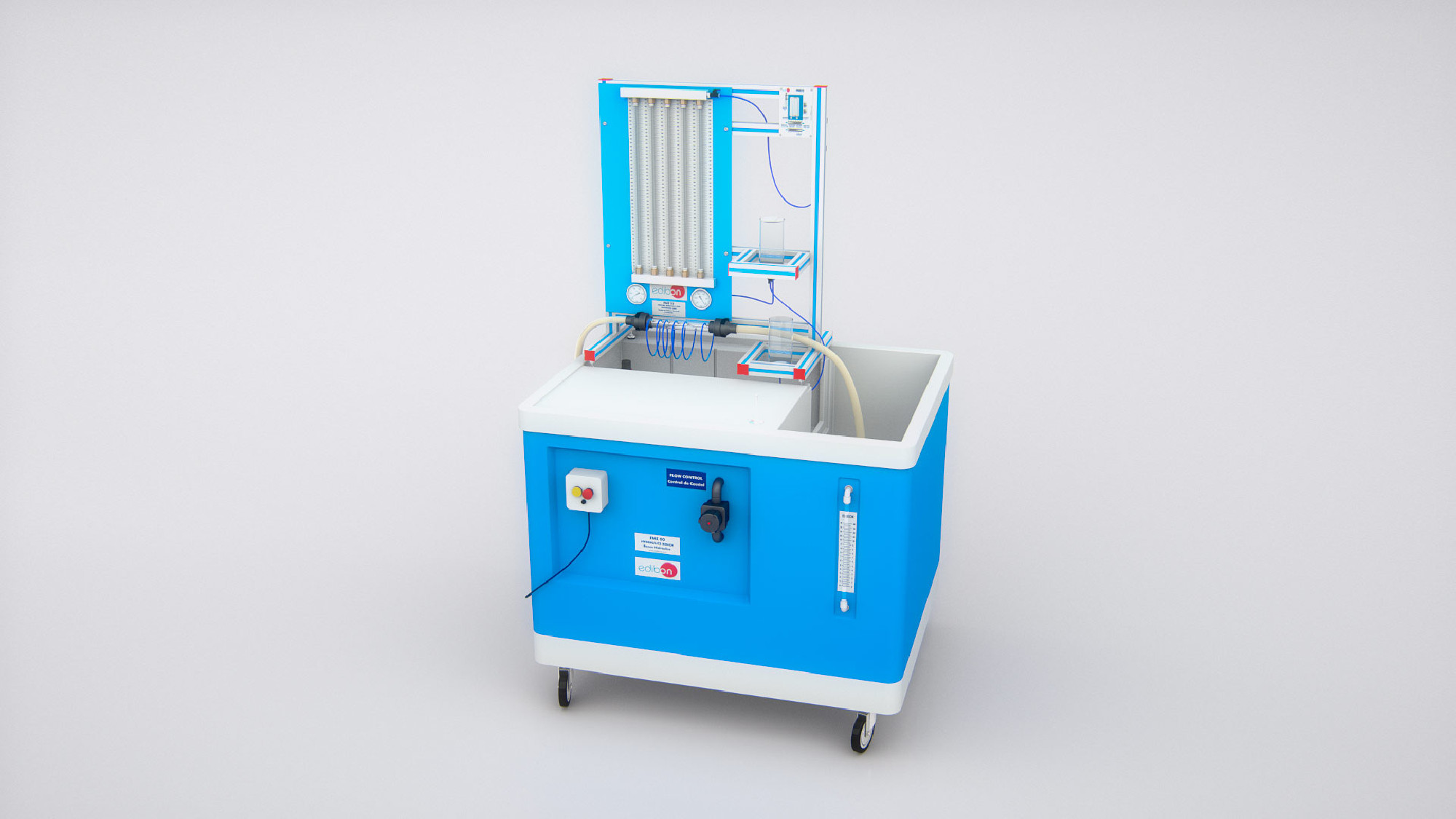

FME22 Unit with service unit FME00

SYSTEMES INNOVANTS

This module is designed for demonstrating some practical possibilities with the Venturi’s tube.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

8TV

Laboratoire de Mécanique des Fluides pour l'enseignement Technique et Professionnel

8HE

Laboratoire de Mécanique des Fluides pour l'enseignement Supérieur

NOUVELLES LIÉES

Description Générale

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.

This unit is designed for demonstrating some practical possibilities with the Venturi’s tube. This Venturi is made of transparent methacrylate for a better visualization.

It consist of a circular transverse section Venturi tube with six taps (Divergent/Convergent). Being transparent, it gives a better visualization of the cavitation phenomenon.

It includes a manometer and a vacuum gauge, as well as five manometric tubes.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

How to fill the manometric tubes.
Flow calculation.
Determination of the exact section in Venturi’s tube. Bernoulli’s theorem study.
Cavitation study.
Pressure reduction in a tank.
Aspiration pump.
Aspiration pump for mixing two liquids.
Using for air and water mixing.
