14.1.6.- MÉCANIQUE DES STRUCTURES

PRODUITS DE MÉCANIQUE DES STRUCTURES
Affichage 1-19 de 19 article(s)
UNIT FOR STUDYING FORCES IN A JIB CRANE - MFPG
  • MFPG
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MFPG

Équipement d'Étude de Forces en Grues Fixes

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central forcesystem based on the example of a crane jib.The unit represents a planar central force system in which multiple...
SUSPENSION BRIDGE UNIT - MVS
  • MVS
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MVS

Unité de Pont Suspendu

The Suspension Bridge Unit "MVS" consists of a deck and two parallel main cables that simulate a suspension bridge and allow the studyof stress in the main cables.The deck of the bridge is simulated by a light alloy beam that is held by both...
PARABOLIC ARCH UNIT - MARP
  • MARP
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MARP

Unité d'Arc Parabolique

The Parabolic Arch Unit “MARP” contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...
THREE-HINGED ARCH UNIT - MART
  • MART
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MART

Unité d'Arc à Trois Articulations

The Three-Hinged Arch Unit “MART” allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...
UNIT FOR STUDYING FORCES IN AN OVERDETERMINATE TRUSS - MFCS2
  • MFCS2
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MFCS2

Équipement d'Étude de Forces dans Treillis Hyperstatiques

The Unit for studying Forces in an Overdeterminate Truss, “MFCS2”, allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane...
UNIT FOR STUDYING DEFORMATION OF TRUSSES - MFCS3
  • MFCS3
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MFCS3

Équipement d'Étude de la Déformation dans Treillis

The Unit for studying Deformation of Trusses, “MFCS3”, allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...
TWO HINGED ARCH UNIT - MFL
  • MFL
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MFL

Unité de Deux Arches Articulées

One of the main problems in the study of loads distribution on horizontal beams is related to vertical loads. Such loads, transverse to the beam direction, can generate bendings, with the consequent breaking risk. The greatest advantage of arched...
PORTAL FRAME UNIT - MPO
  • MPO
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MPO

Unité de Structure en Portique

The Portal Frame Unit "MPO" allows to perform vertical deflection and horizontal deflection measurements in a fixed rectangular portalframes.To carry out the deflection tests, a series of loads with different weight must be applied to the...

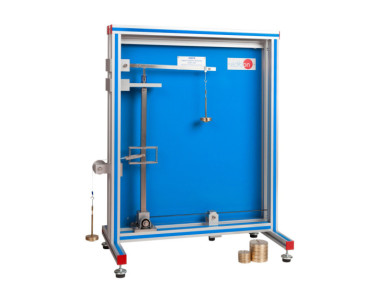

SIMPLE STABILITY PROBLEMS STUDY UNIT - MEPE
  • MEPE
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MEPE

Équipement d'Etude de Problèmes de Stabilité Simples

The Simple Stability Problems Study Unit, "MEPE", has been designed to study the stability of a bar subjected to buckling by obtaining the critical load in different configurations.The unit consists of two bars of same length connected by a...
THIN CYLINDER UNIT - MCD
  • MCD
Available
14.1.5.- TRIBOLOGIE (FRICTION)
MCD

Équipement de Cylindre Mince

The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...
UNSYMMETRICAL CANTILEVER UNIT - MVV
  • MVV
Available
14.1.6.- MÉCANIQUE DES STRUCTURES
MVV

Équipement de Porte à Faux Asymétrique

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.A loading head, located at the upper end of the column, can rotate...
DEFLECTION OF CURVED BARS UNIT - MDB
  • MDB
Available
7.3.2.1.- TEST MÉCANIQUE
MDB

Équipement de Déviation des Barres Incurvées

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...
BEAM DEFLECTION UNIT - MFV
  • MFV
Available
7.3.2.1.- TEST MÉCANIQUE
MFV

Unité de Déviation en Poutres

This unit has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and the cross section on the...
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- TEST MÉCANIQUE
MFLT

Équipement de Flambage

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...
UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- TEST MÉCANIQUE
MUP

Équipement de Flambage Universelle

The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
SHEAR FORCE AND BENDING MOMENTUM UNIT - MMF
  • MMF
Available
7.3.2.1.- TEST MÉCANIQUE
MMF

Équipement Force de cisaillement et de Moment de Flexion

The Shear Force and Bending Momentum Unit “MMF” is formed by an aluminum and steel structure that allows us to perform a mechanicalstudy of different structures.An articulated structure makes it possible to convert the application of one vertical...
