The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).

Voir description générale

NOUVELLES LIÉES

Description Générale

The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).

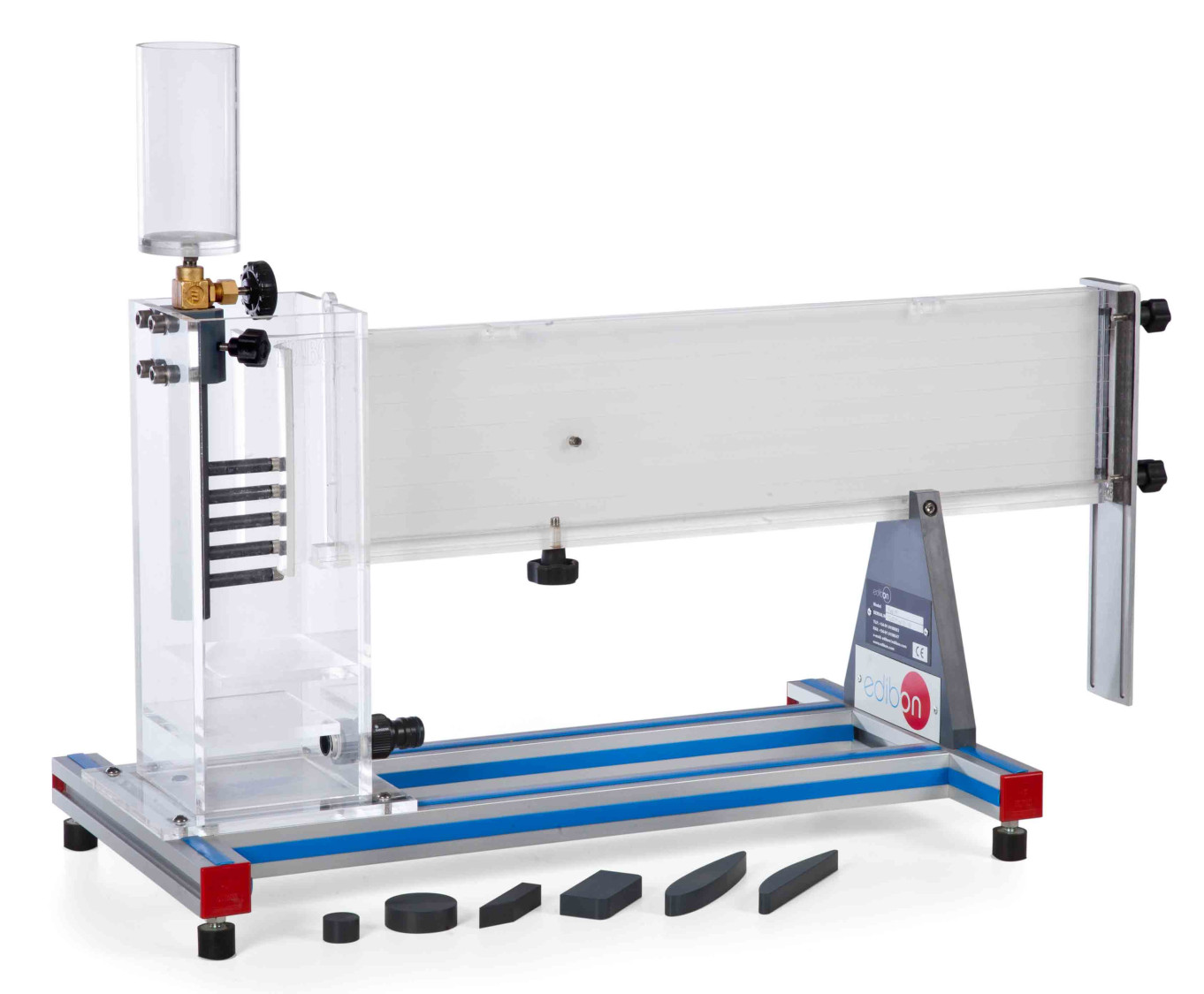

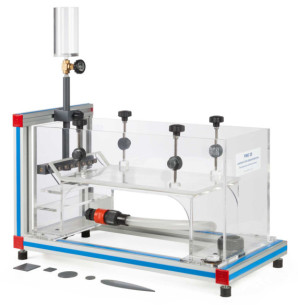

The unit consists of a transparent methacrylate channel with an overflow pipe on top and an adjustable plate in the discharge end. This plate allows for regulating the flow level.

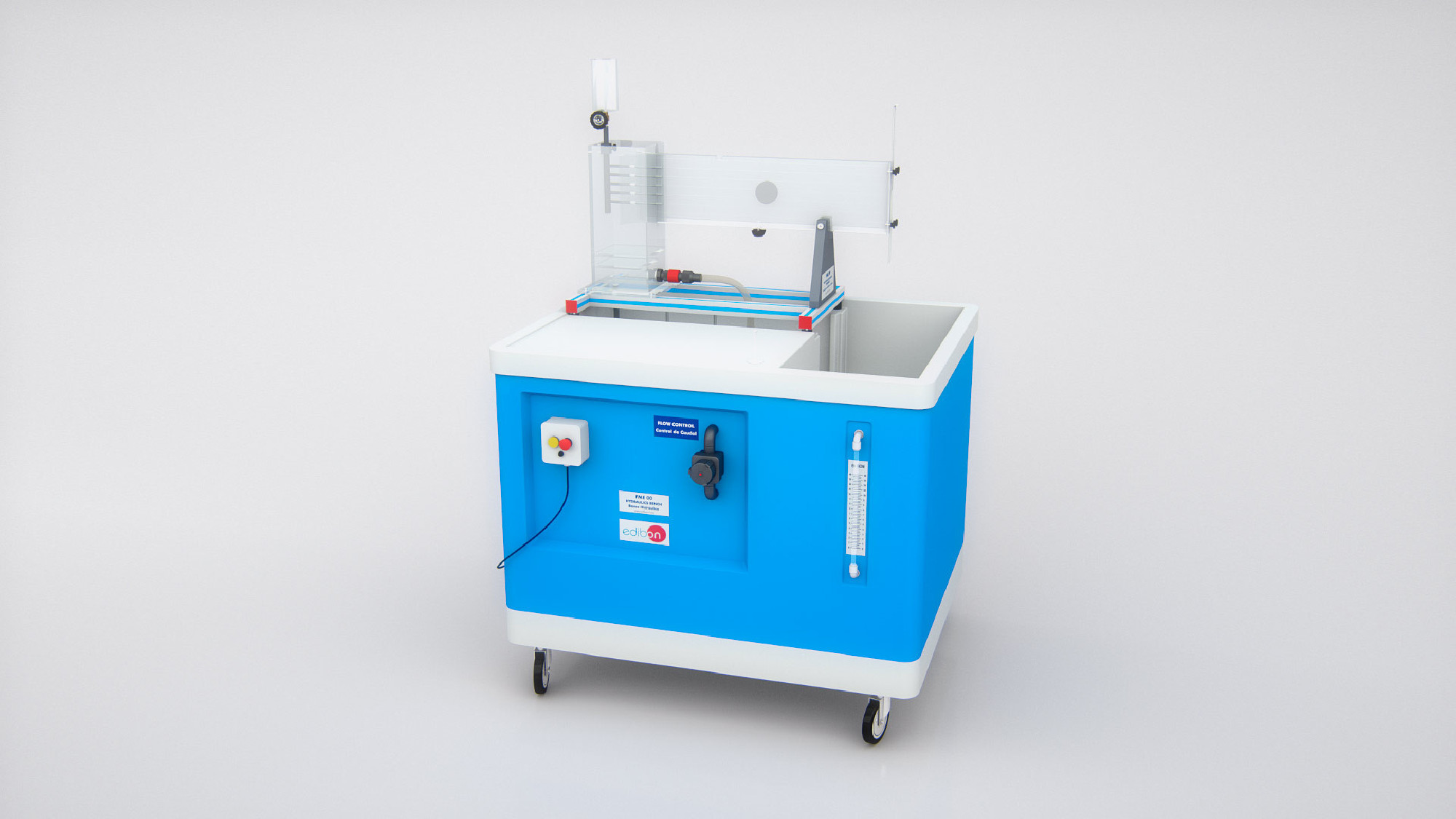

The water is supplied to the channel by the pulse mouth of the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B), by means of a flexible pipe, passes through a damping tank that eliminates the turbulences.

It has a colouring injection system consisting of a tank, a flow control valve and some needles that allow a better visualization of the flow around the different hydrodynamic models, which have to be placed in the middle of the channel.

Unit levelling through adjustable feet.

Several hydrodynamic models are given to study the flow around them.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Leakage of liquids by thin-wall weirs.
  2. Liquid leakage by thick-wall weirs.
  3. Models with wing profile submerged in a fluid current.
  4. Circular models submerged in a fluid current.
  5. Demonstration of the phenomenon associated to the flow in open channels.
  6. Visualization of the flow lines around different submerged hydrodynamic models.
