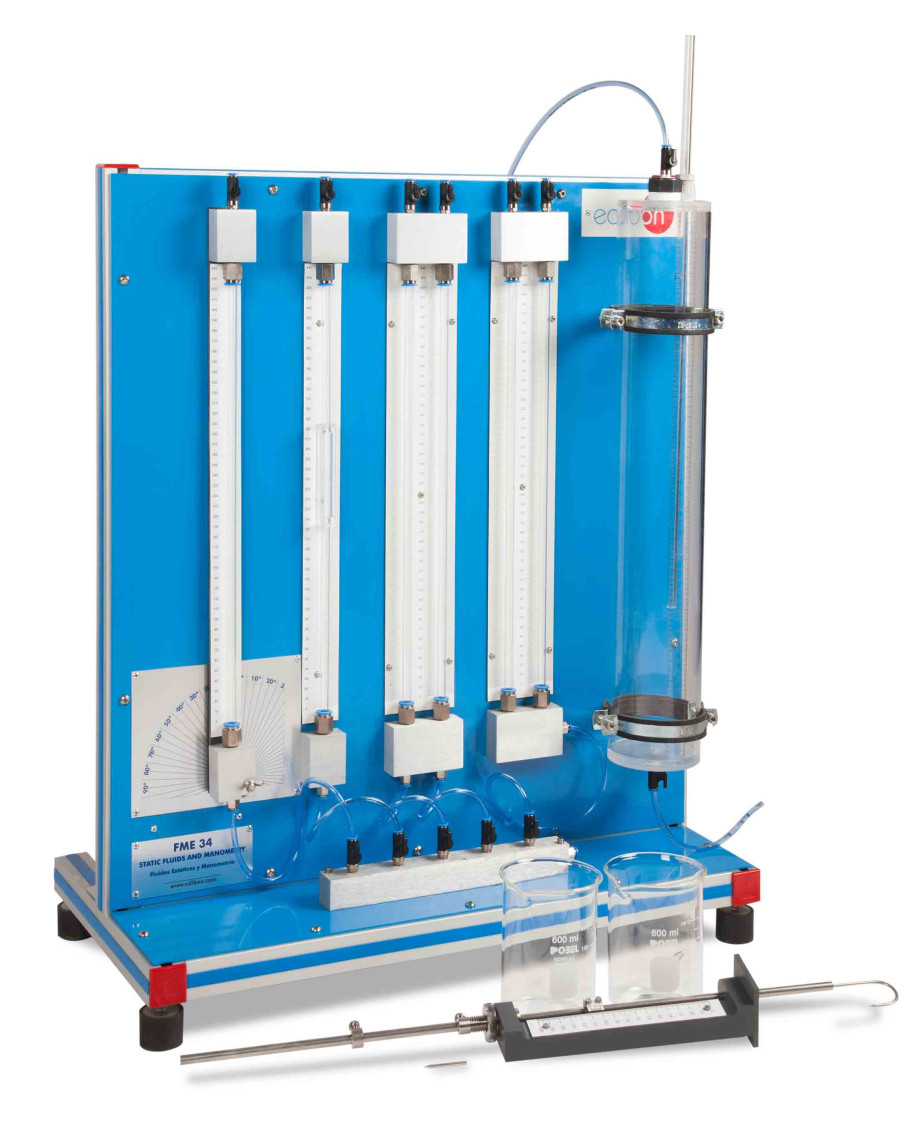

FME34 Statique des Fluides et Manométrie

FLUID STATICS AND MANOMETRY - FME34

SYSTEMES INNOVANTS

The Fluid Statics and Manometry, "FME34", designed by EDIBON, allows the study of static fluids and manometry providing the user with an introduction in the behavior of liquids under hydrostatic conditions (fluids at standstill) and the application of those principles in the measurement of pressure using different manometric tubes.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Fluid Statics and Manometry, "FME34", designed by EDIBON, allows the study of static fluids and manometry providing the user with an introduction in the behavior of liquids under hydrostatic conditions (fluids at standstill) and the application of those principles in the measurement of pressure using different manometric tubes.

This allows the user to demonstrate the properties of Newtonian fluids and to understand a wide range of fundamental principles before studying fluids in movement.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. To study the basic principles of hydrostatics and to demonstrate the behaviour of liquids at rest.
  2. To use manometer tubes to measure differential pressure.
  3. To use a manometer tube to measure head.
  4. To use a "U" tube manometer to measure pressure differences in a gas (air over liquid).
  5. To use a U-shaped manometer for determining the differential pressure.
  6. To use liquids with different densities to change the "U" tube manometer sensitivity.
  7. To use an inverted pressurized ‘U’ tube manometer to measure pressure differences in a liquid.
  8. To use an inclined manometer with different inclinations.
  9. Level measurement using Vernier hook and point gauge.
  10. To measure the liquid level using a scale.
  11. Demonstrating that the level of a free surface is not affected by the size or shape of the tube.
  12. Use of a piezometric tube to measure pressure.
  13. Observing the effect of a liquid in motion (losses due to friction).
