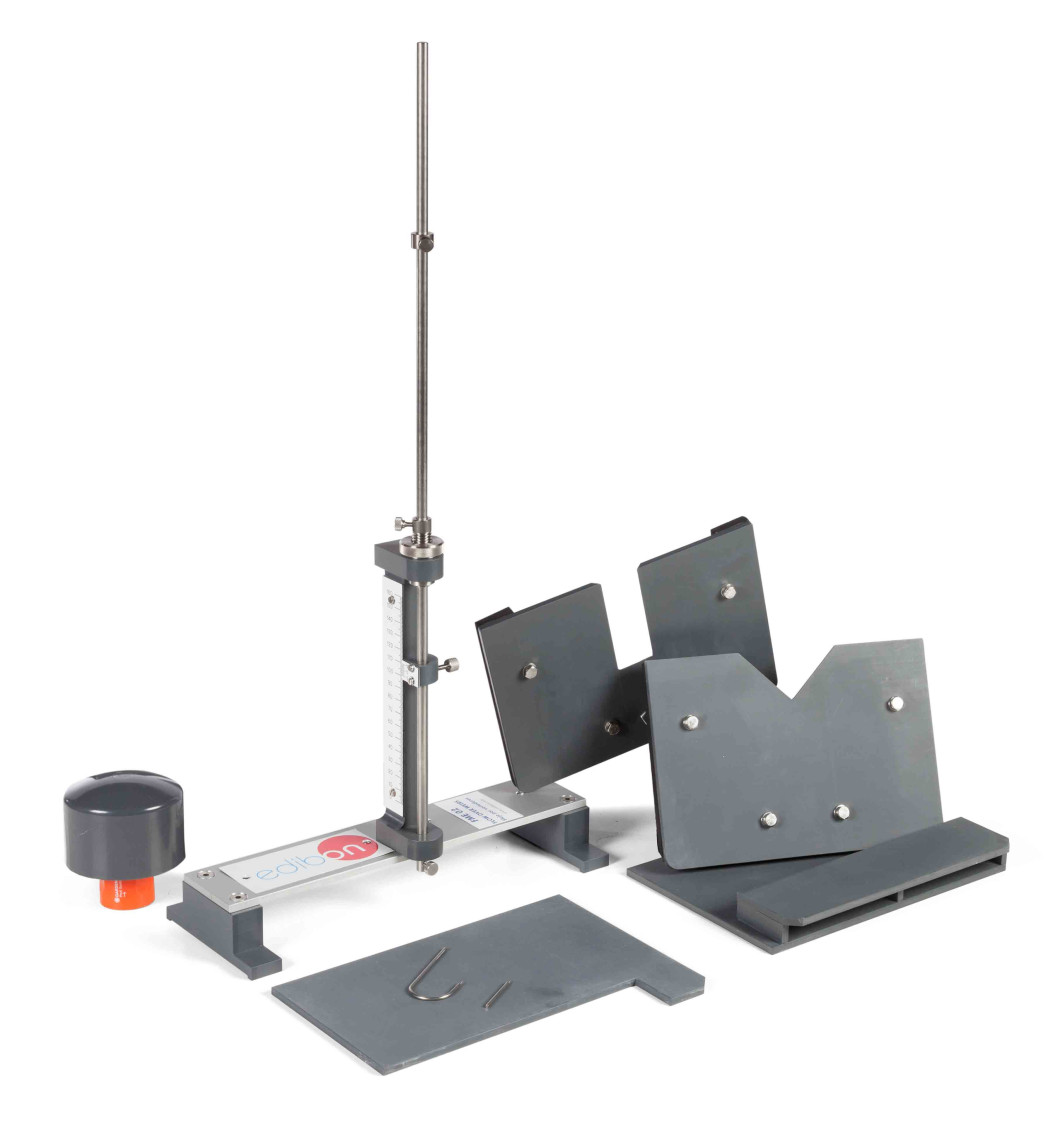

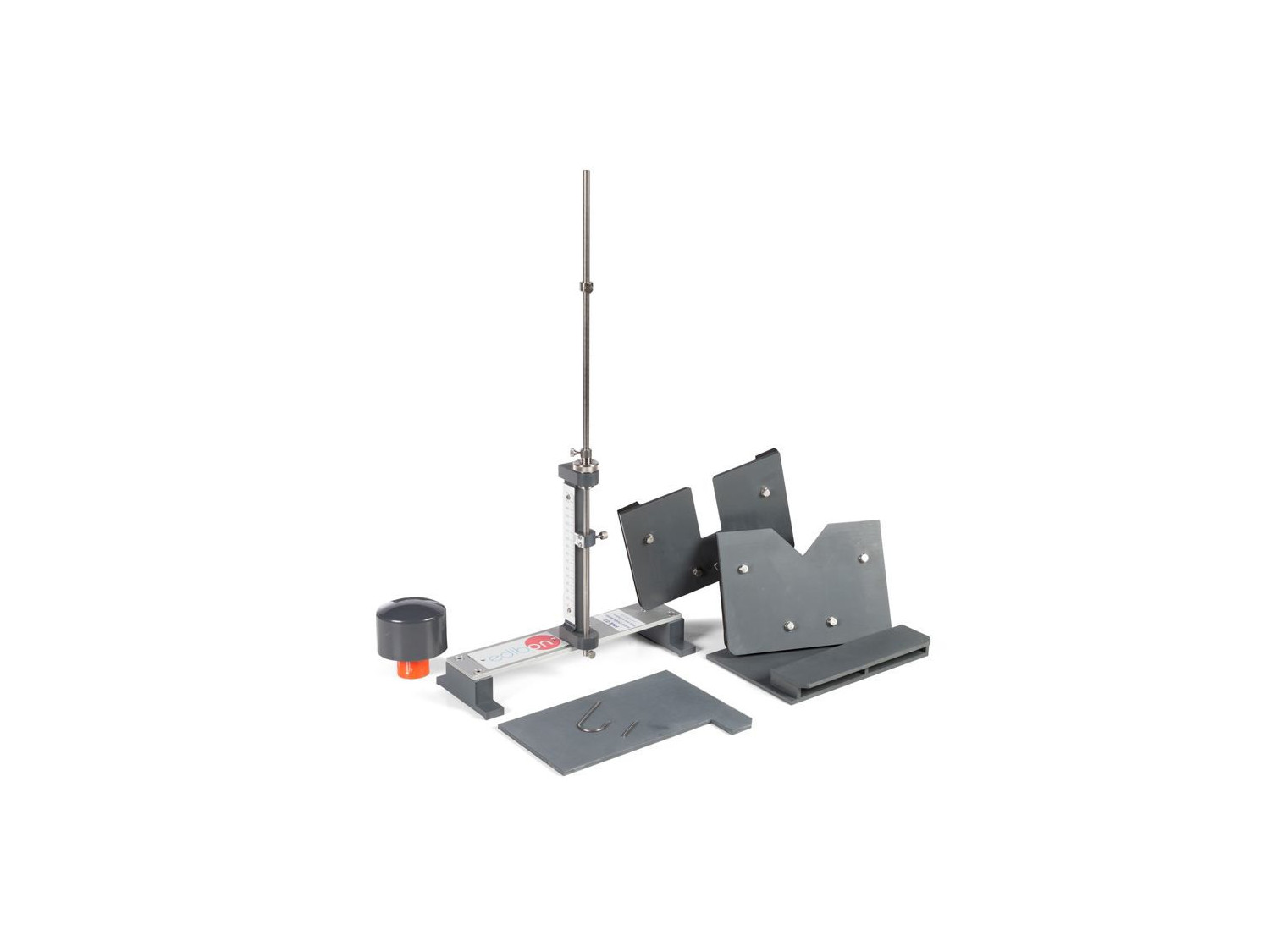

The Flow over Weirs, "FME02", designed by EDIBON, allows to study the flow characteristics trough a rectangular and V-shape neckline.

Voir description générale

NOUVELLES LIÉES

Description Générale

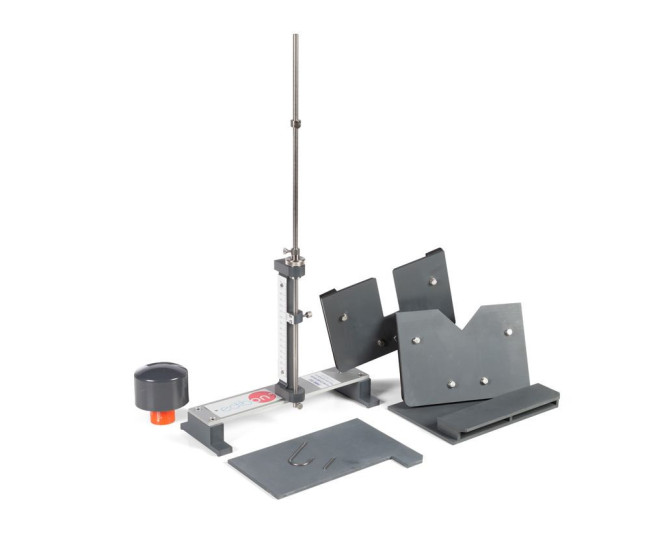

The Flow over Weirs, "FME02", designed by EDIBON, allows to study the flow characteristics trough a rectangular and "V" shaped neckline.

This module has many elements that are used in combination with the Hydraulics Bench (FME00):

A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).

Two soothing screens that, together with the previous element, provide a slow current in the channel.

A level meter consisting of a "nonius" adjusted to a mast, where the heights are pointed out on a caliber coupled to it.

A small hook or point is attached to the bottom of the mast to carry out the measures.

Two drains (a rectangular neckline and a V-shape) are attached to the final part of the channel of the Hydraulics Bench (FME00).

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the flow characteristics through a weir with a rectangular neckline, made on a thin wall.
  2. Study of the flow characteristics through a weir with a V-shape neckline, made on a thin wall.
