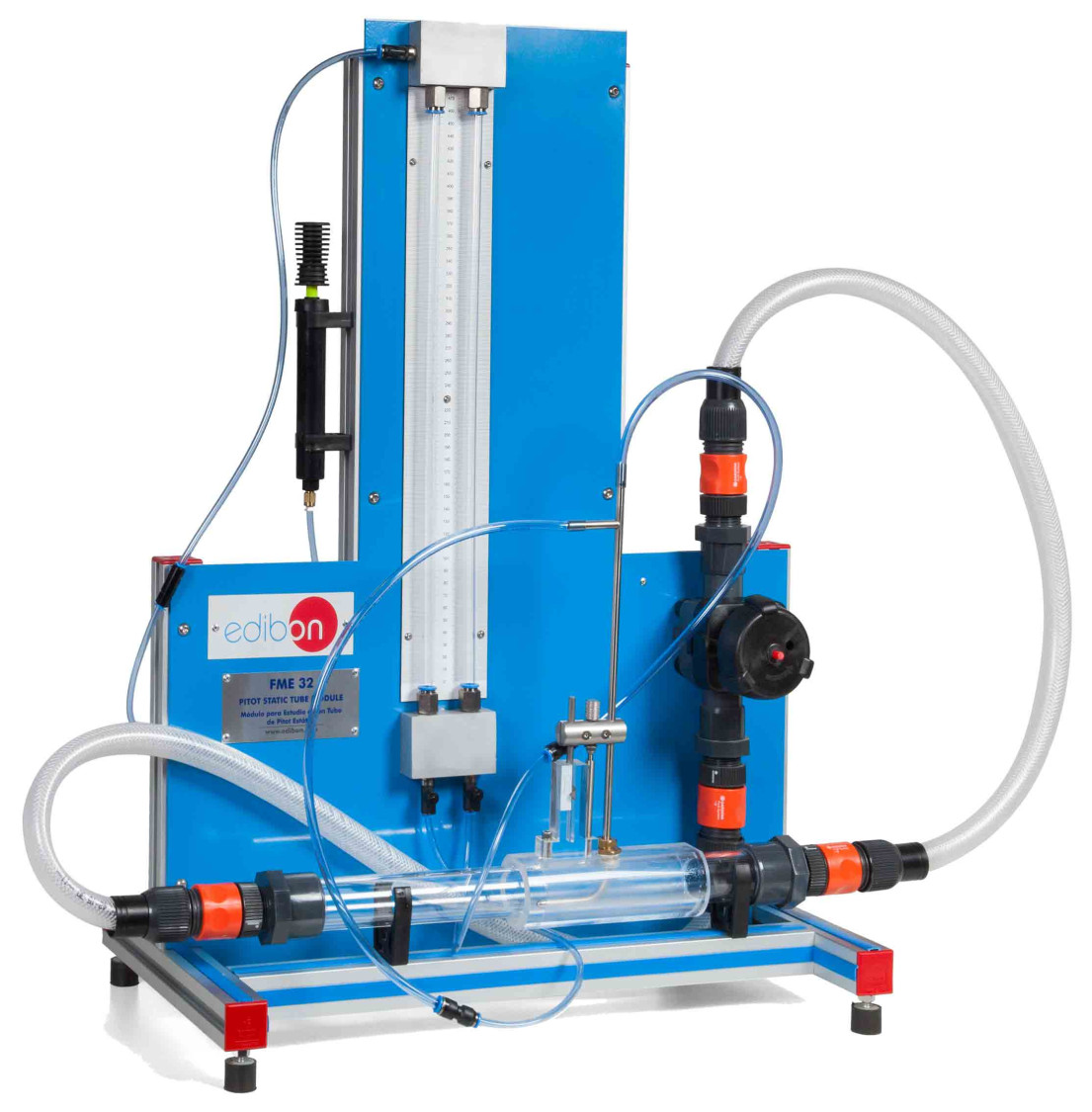

Complete FME32 Unit

STATIC PITOT TUBE - FME32

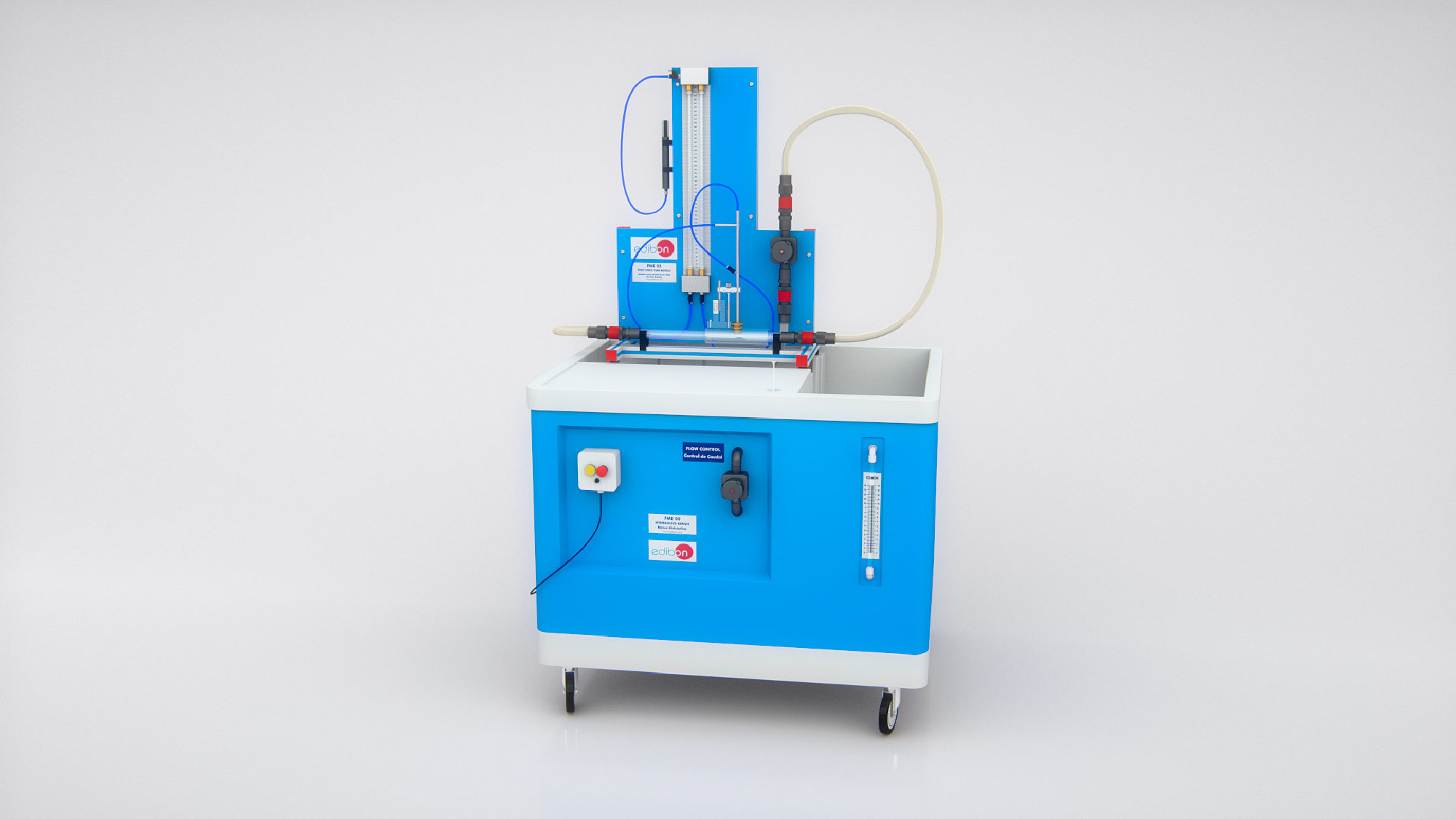

FME32 Unit with service unit FME00

STATIC PITOT TUBE - FME32
STATIC PITOT TUBE - FME32

SYSTEMES INNOVANTS

NOUVELLES LIÉES

Description Générale

The Static Pitot Tube, "FME32", designed by EDIBON, allows to analyze the change in flow rate inside a pipe.

The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.

This tube is connected to manometers via hoses.

The position of the measuring head relative to the bottom edge of the tube can be measured on a scale.

The water supply can come from the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the function of a pitot static tube.
  2. To use a pitot static tube.
  3. Determination of tube flow speed profiles.
  4. Demonstration that the flow speed is proportional to the pressure difference between the total pressure and the static pressure.
  5. Error determination in flow measurements using the Pitot tube as measurement instrument.
  6. Factor Cd determination in the Pitot tube.
