EEDB Unité pour l'Essai de Dureté Brinell

7.3.2.1.- TEST MÉCANIQUE 14.1.8.- ESSAIS MÉCANIQUES

SYSTEMES INNOVANTS

The Brinell Hardness Testing Unit, "EEDB" allows Brinell hardness measurement on different materials.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV

Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel

7HE

Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

Description Générale

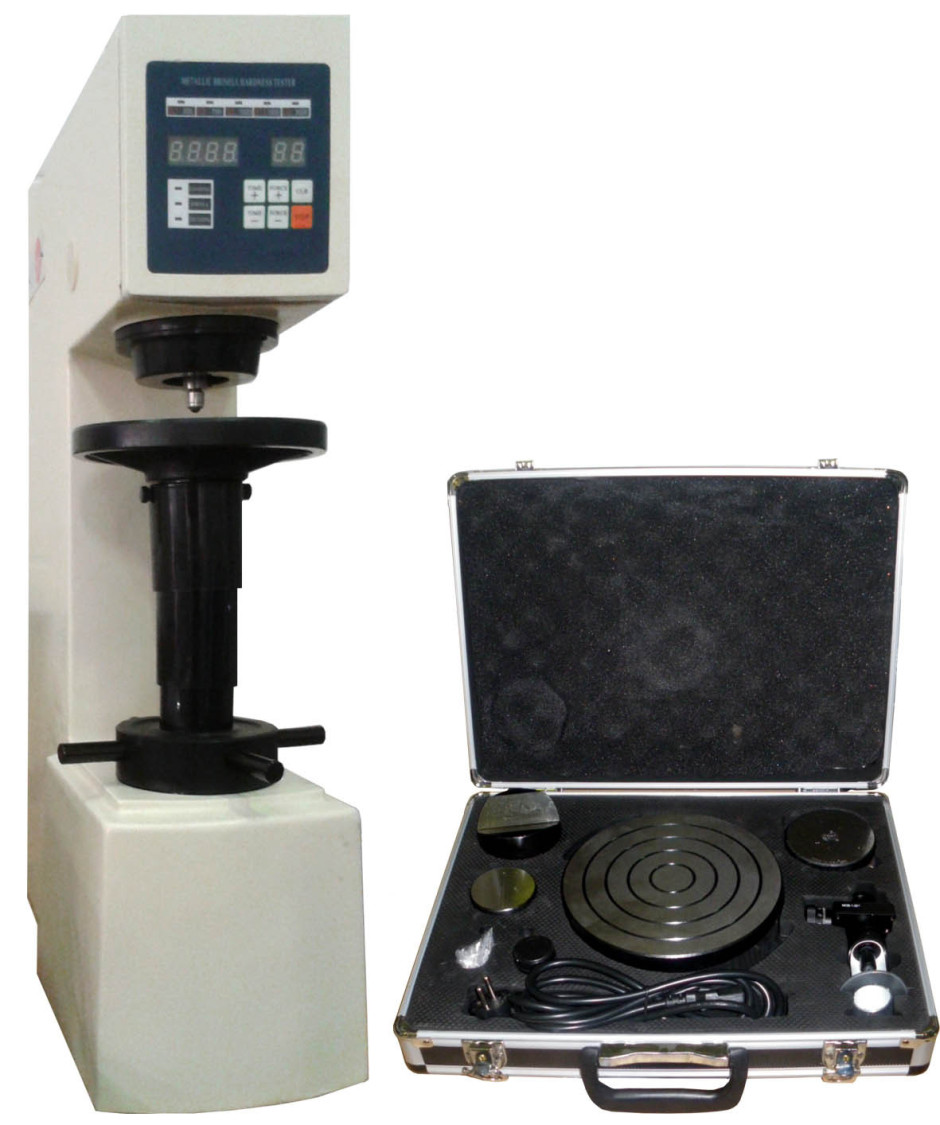

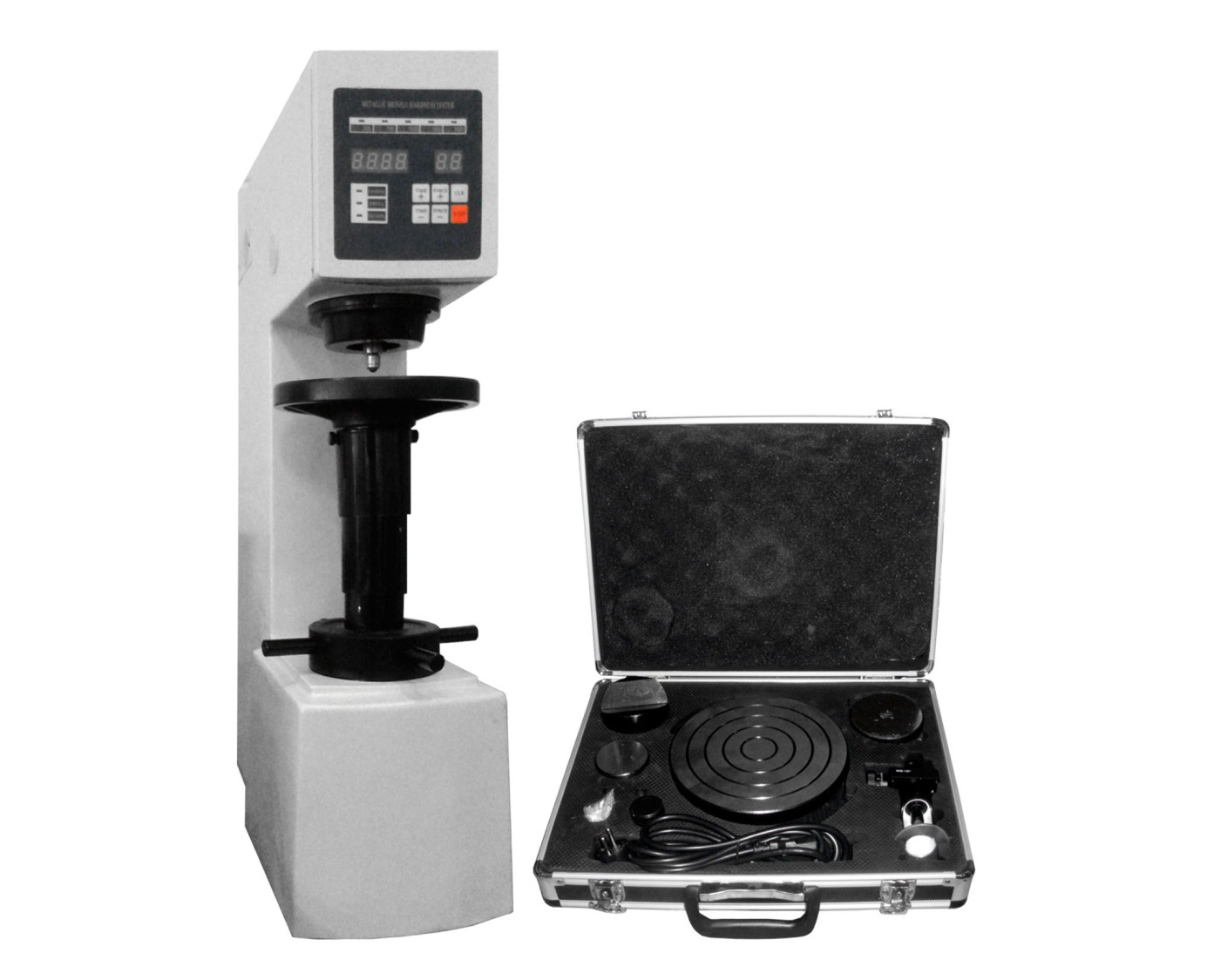

The Brinell Hardness Testing Unit, "EEDB", is a hardness tester that determines Brinell hardness in metals, hard alloys, tempered steels, etc. Besides, it can be used with other materials, such as rigid plastics, bakelite, etc.

A penetrating ball of specific diameter is used in the Brinell hardness test to press the surface of the test piece with a specific force. After the test force is held for a determined time, such test force is removed and the average diameters of the indentations on the surface of the specimen are measured with a microscope.

Brinell hardness number is obtained by dividing the force of the test multiplied by the area of the spherical shape marked by the indenter by the diameter of the indentation printed on the specimen.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

To learn how to use the instrumentation to perform hardness tests.
Study and familiarization with Brinell hardness test equipment.
Brinell hardness measurement on different materials.
To observe the behaviur of diverse materials under different loads applied.
To know the types of standard test pieces for these types of tests.
To know the types of standard indenters for these types of tests.
