TARB Unité de Climatisation (Recirculation)
SYSTEMES INNOVANTS
L'objectif de l'Unité de Climatisation (Recirculation), "TARB", est d'initier l'étudiant à l'univers complexe des installations de climatisation, ainsi que d'étudier et d'améliorer ses connaissances dans ce domaine et déterminer les paramètres optimaux pour le fonctionnement de l'équipement en fonction des exigences environnementales (humidité, chaleur...), température et réfrigération, etc.
NOUVELLES LIÉES
Description Générale
L'Unité de Climatisation (Recirculation), "TARB", a été conçu pour étudier, outre le changement des conditions de l'air, le circuit frigorifique, en plaçant de manière stratégique des capteurs de température, des manomètres et des débitmètres qui nous permettent d'étudier le cycle frigorifique et de quantifier la capacité de l'installation frigorifique l'unité d'évaporation et de condensation.
Permet le fonctionnement avec de l'air frais et de l'air de recirculation.

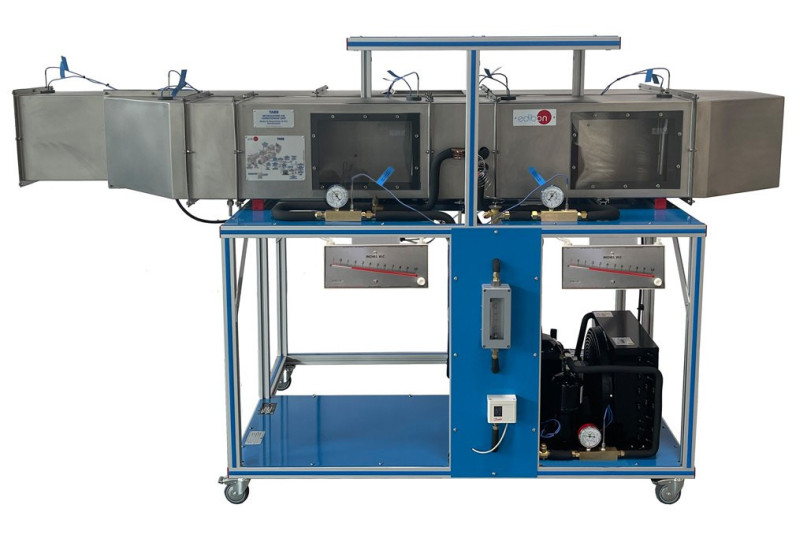

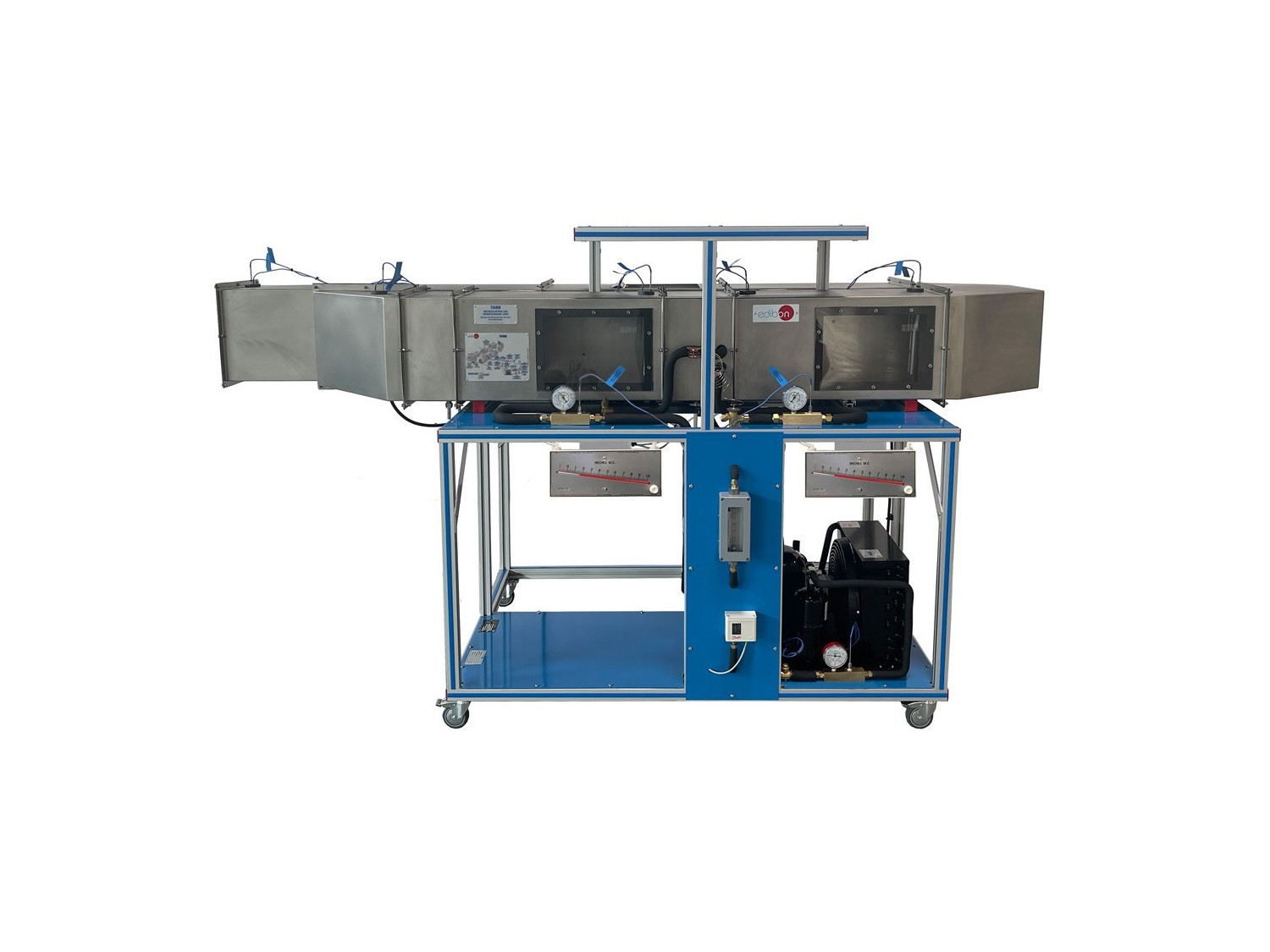

L'équipement se compose essentiellement d'un tunnel d'essai en acier inoxydable avec quatre fenêtres (visières). À l'intérieur dispose d'un ventilateur axial, de deux résistances chauffantes, l'une à l'entrée de l'unité d'évaporation 2000 W et l'autre à la sortie de l'unité d'évaporation 1000 W. Le tunnel est complété par cinq hygromètres placés stratégiquement le long du tunnel. Ces hygromètres sont composés de deux éléments sondes de température (bulbe humide et sec).
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Mise en évidence de l'échauffement des processus de l'air, refroidissement, humidification, de déshumidification, de recirculation et de mélange.
- Détermination de l'efficacité de la résistance de préchauffage.
- Effet de préchauffage d'une climatisation.
- Etude du processus de déshumidification.
- Bilan matières dans l'évaporateur.
- Bilan énergétique dans l'évaporateur.
- Effet de la surchauffe.
- Détermination expérimentale de la capacité calorifique spécifique de l'air.
- Etude du processus de déshumidification d'un processus de recyclage.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Carte Psychrométrique.
- Utilisation de la carte Psychrométrique.
- Détermination du flux d'air.
- Exemple de détermination des propriétés de l'air.
- Propriétés de R-513a.
- Diagramme de pression-enthalpie du fluide frigorigène R-513a.
- Recirculation de démonstration et "adiabatique" mélange de deux courants d'air dans les différents états.
- L'obtention de la courbe de rendement du générateur de vapeur.
- Bilan énergétique dans le générateur de vapeur.
