MARP Unité d'Arc Parabolique
SYSTEMES INNOVANTS

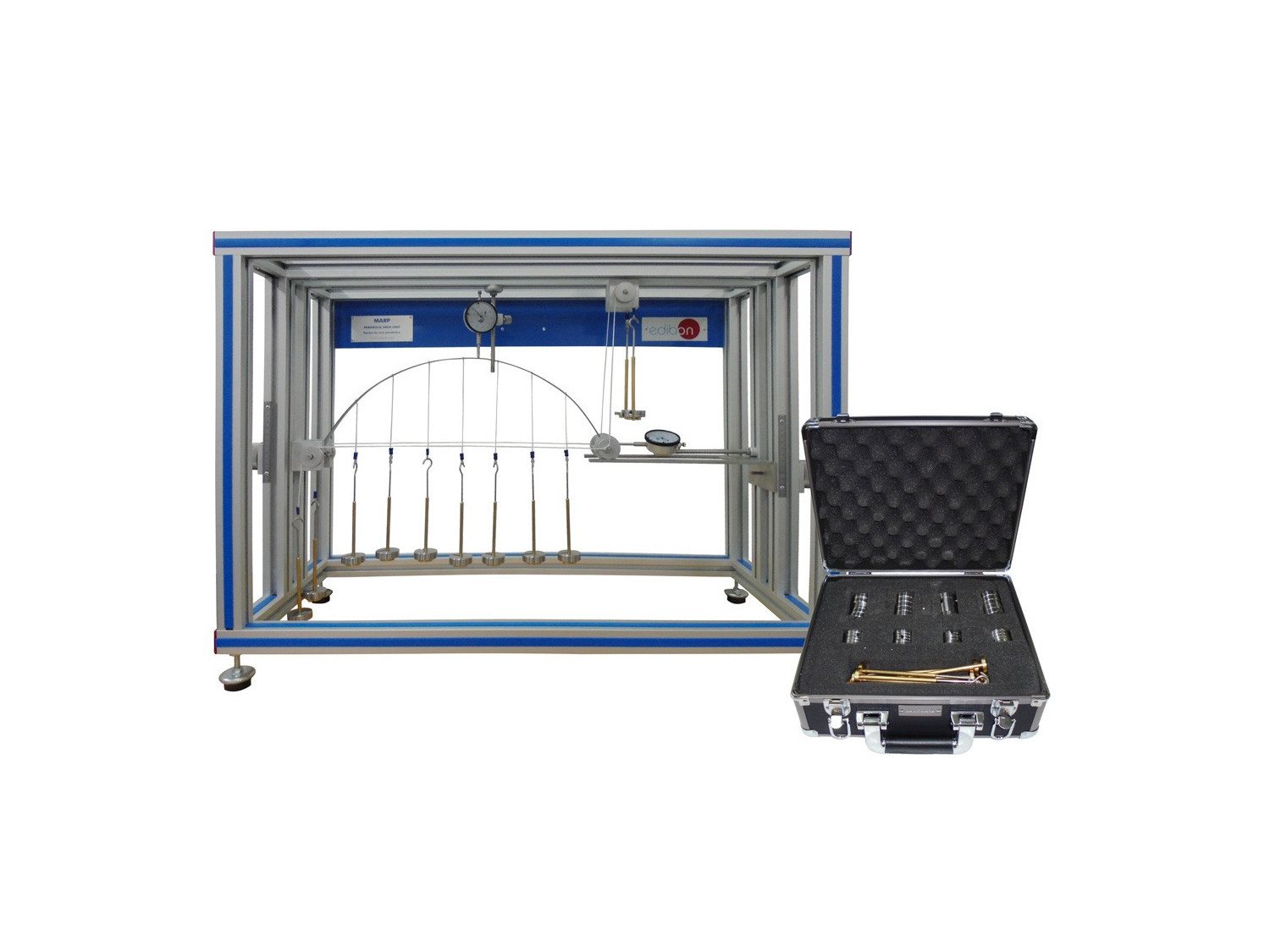

L'Unité d'Arc Parabolique, "MARP", contient un arc articulé préformé, qui peut être soumis à des charges ponctuelles ou uniformément réparties par au moyen de sept câbles (cordons) uniformément répartis avec des suspensions.
Expansions
NOUVELLES LIÉES
Description Générale
L'Unité d'Arc Parabolique, "MARP", contient un arc articulé préformé, qui peut être soumis à des charges ponctuelles ou uniformément réparties par au moyen de sept câbles (cordons) uniformément répartis avec des suspensions.
L'un des supports de l'arc est fixe, tandis que l'autre peut être fixe ou mobile dans le sens horizontal. Lorsque les deux supports sont fixes, on étudiera les conditions hyperstatiques de l'arc (1 degré de liberté), tandis que si l'un des supports est mobile, on analysera les conditions isostatiques de l'arc (0 degré de liberté).
Pour fixer le support mobile, de façon à ce qu'il fonctionne comme un support fixe, un jeu de poids est utilisé pour annuler le déplacement horizontal et un autre jeu de poids pour équilibrer la réaction verticale du support.
Pour mesurer la déformation de l'arc sous charge, l'unité dispose de deux comparateurs, l'un qui mesure le déplacement horizontal du support libre et l'autre qui mesure la flexion de l'arc.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Etude des principes mécaniques d'un arc parabolique.
- Différences entre un arc isostatique et un arc hyperstatique.
- Analyse de l'arc sous charge :
- Mesure des déformations.
- Mesure des réactions des appuis dans l'arc hyperstatique.
- Influence d'une charge ponctuelle ou d'une charge uniformément répartie sur les réactions à l'appui et sur la déformation de l'arc.
- Evaluation de la relation entre la charge appliquée et le déplacement horizontal.
- Comparaison du déplacement horizontal avec les valeurs théoriques.
- Analyse de la poussée horizontale.
