ACCELERATION OF GEARED SYSTEM UNIT - MAE

SYSTEMES INNOVANTS

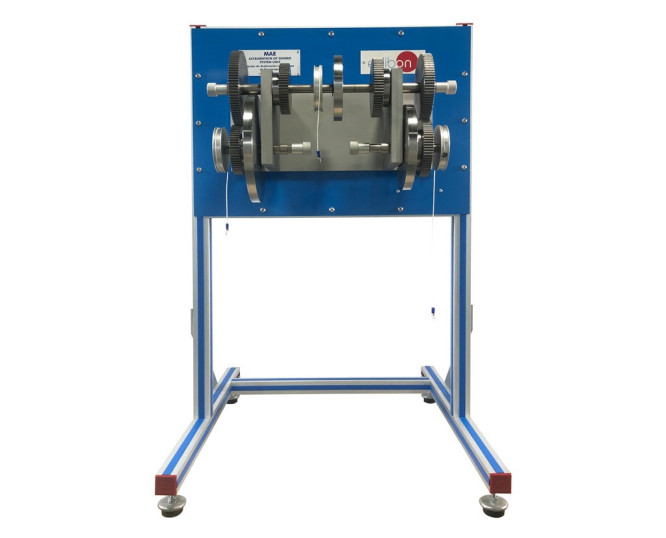

The Acceleration of Geared Systems Unit "MAE" allows to perform tests to calculate the moment of inertia of a gear train system.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

NEW Basic Mechanics course

NEW Basic Mechanics course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

The Acceleration of Geared Systems Unit "MAE" allows to perform tests to calculate the moment of inertia of a gear train system.

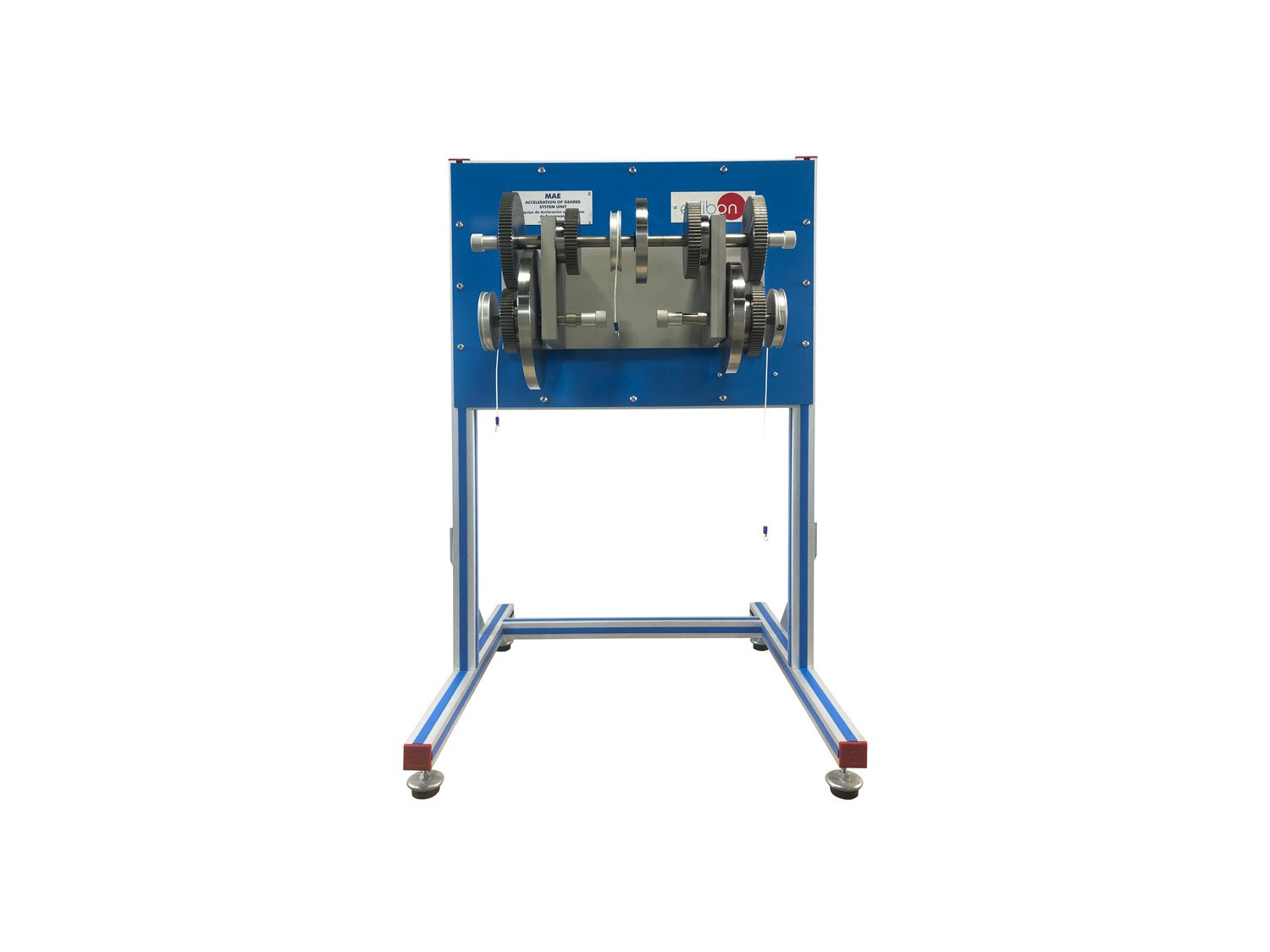

The MAE unit includes six gears. Two of them can have another position in the shafts to vary the gear ratio, allowing to obtain a different moment of inertia and, therefore, to accelerate the system.

Additionally, there are three masses of inertia, one per shaft. The position of these discs will modify the total moment of inertia and the acceleration of the system too.

There is one pulley in each shaft. Different masses are hung from these pulleys to observe how the acceleration of the gear system varies.

Depending on the position from which the mass is hung, the acceleration of the gears and the moment of inertia, will be modified.

To be able to calculate the total moment of inertia and the acceleration of the system, it is neccessary to know the time required by the mass hung from the pulley to travel a given distance.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Determination of the moment of inertia of a gear system under different arrangements.
  2. Determination of the moment of inertia of a gear system with one, two or three shafts.
  3. Determination of the minimum mass required to accelerate a gear system with one, two or three shafts.
  4. Comparison of the experimental and theoretical moment of inertia.
  5. Study of the gear ratio of the shafts when different moments or force couples are applied to the system.
  6. Determination of the acceleration of the system.
