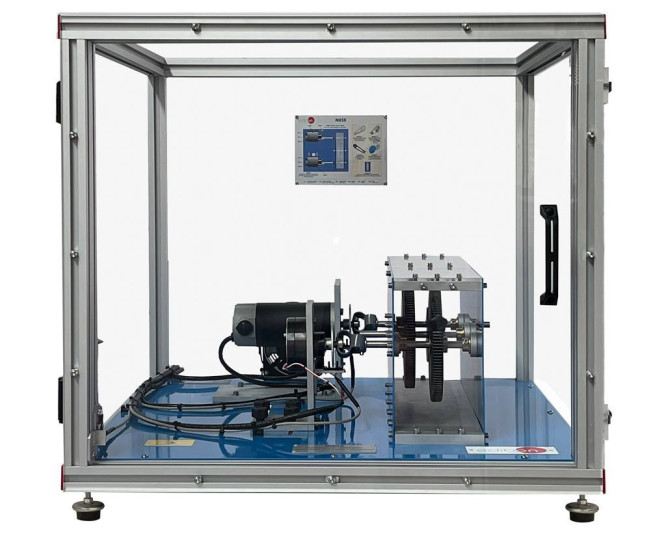

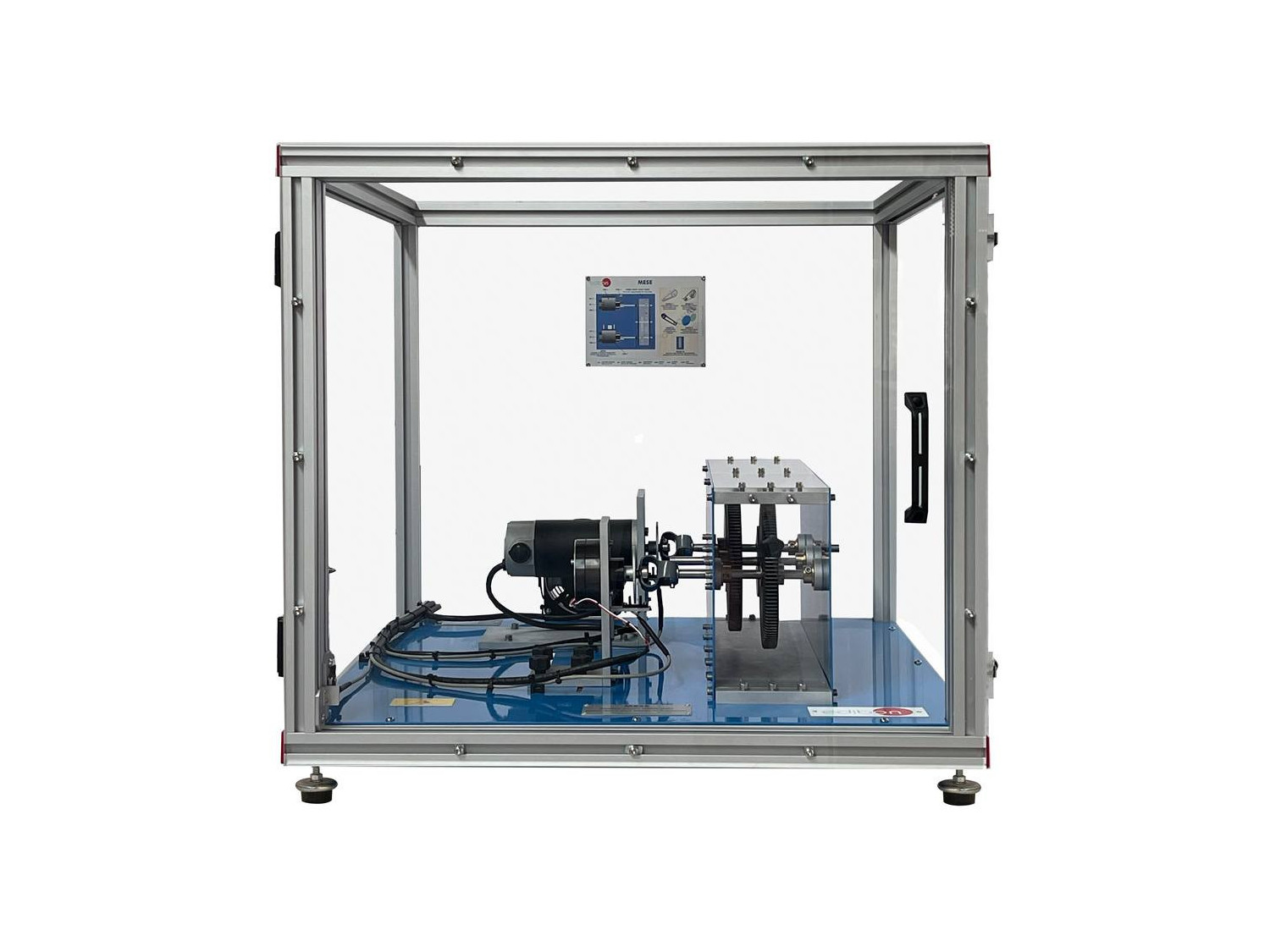

The Geared Study Drive Unit, "MESE", has been designed to dynamically study different gears, including a standard three shaft gear trainfor study, which can be modified with a simple setting to obtain a simple transmission.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Geared Study Drive Unit, "MESE", has been designed to dynamically study different gears, including a standard three shaft gear trainfor study, which can be modified with a simple setting to obtain a simple transmission.

For the dynamic study the transmission under study will be arranged and the motor that provides power to the input of the transmission andthe dynamometer brake located at the output of the transmission to provide the braking force at the output will be activated.

The motor connected at the input of the transmission regulates the rotation speed, the dynamometer brake connected at the output of thetransmission uses the electromagnetic braking effect and the hysteresis to work at a constant torque regardless the input speed and load.

The sensors, located in the motor and the dynamometer brake, measure the speed and torque of the input and output shafts and, therefore,their power. The performance and efficiency of the transmission under study will be obtained with those data.

The couplings for the transmission, motor and dynamometer brake are quick and easy, flexible clamps are used. The unit is properlyventilated to avoid overheating problems. To avoid contact with the unit in operation, it’s protected while allowing the student to observethe process.

There are other additional recommended elements (not included) in the Geared Study Drive Unit, "MESE", for the study of other gears,such as Toothed Belt Drive, "MESE/1", Round Belt Drive, "MESE/2", Chain Drive, "MESE/3" and Helical Gear Drive, "MESE/4".

Additionally, the Statics and Inertia Test Module, "MESE/SI", studies the angular acceleration and the static efficiency. The static studycan be carried out thanks to a set of weights used to apply rotation forces to the shaft of an inertia flywheel included or to the gear trainof the Geared Study Drive Unit, "MESE". The "MESE/SI" module includes a sensor for measuring angular acceleration. Thus, inertia isexperimentally studied.

The Statics and Inertia Test Module, "MESE/SI", is an independent accessory that does not require the Geared Study Drive Unit, "MESE"to carry out the practical exercises. Although this unit would provide the three-axle gear train, to expand its functionality and increasepractical possibilities.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of simple and compound gear systems.
  2. Dynamic study, efficiency and speed of simple gear trains.
  3. Dynamic study, efficiency and speed of compound gear trains.
  4. Characteristics of the gear systems.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Study of different types of drives.
  2. Dynamic study, efficiency and speed of different types ofdrives.
  3. Study of the angular speed of the drive systems (included theaccessory MESE/SI).
  4. Static study of the gear systems (included the accessoryMESE/SI).
  5. Study of inertia flywheels (included the accessory MESE/SI).
  6. Experimental calculation of inertia and mass moments(included the accessory MESE/SI).
  7. Study of toothed belt drives (included the accessory MESE/1).
  8. Study of round belt drives (included the accessory MESE/2).
  9. Study of chain drives (included the accessory MESE/3).
  10. Study of helical gear drives (included the accessory MESE/4).
  11. Comparison of different gear systems (included the accessoryMESE/4).
  12. Several other exercises can be done and designed by the user.
