PFTC Filtre à Tambour, Contrôlé par Ordinateur (PC)
SYSTEMES INNOVANTS

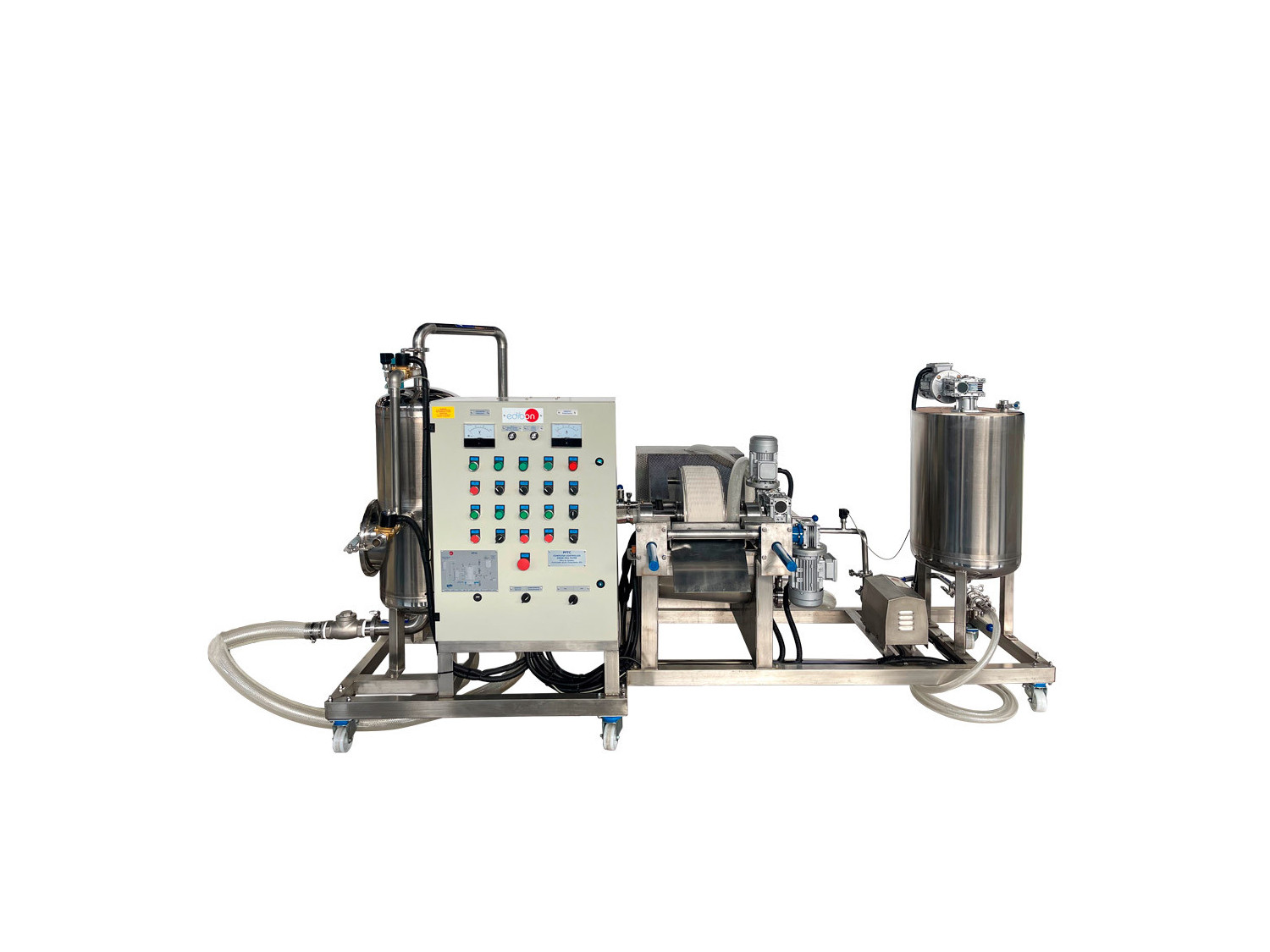

The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with suspended solids and sludges of wide variety and composition.
Expansions
NOUVELLES LIÉES
Description Générale

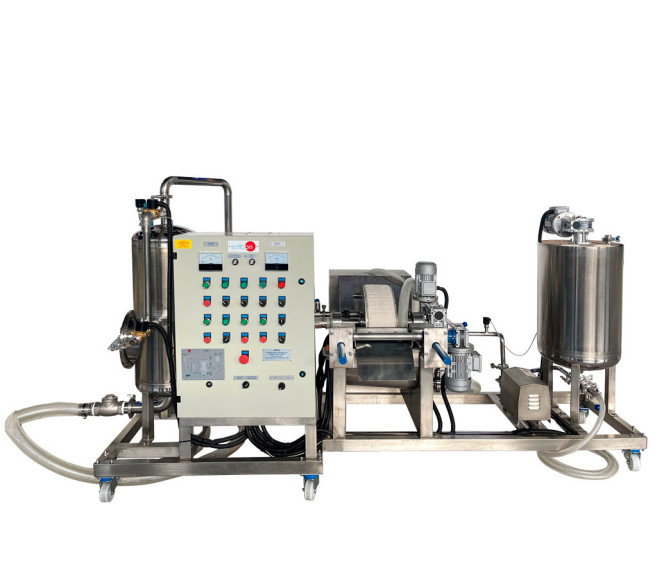

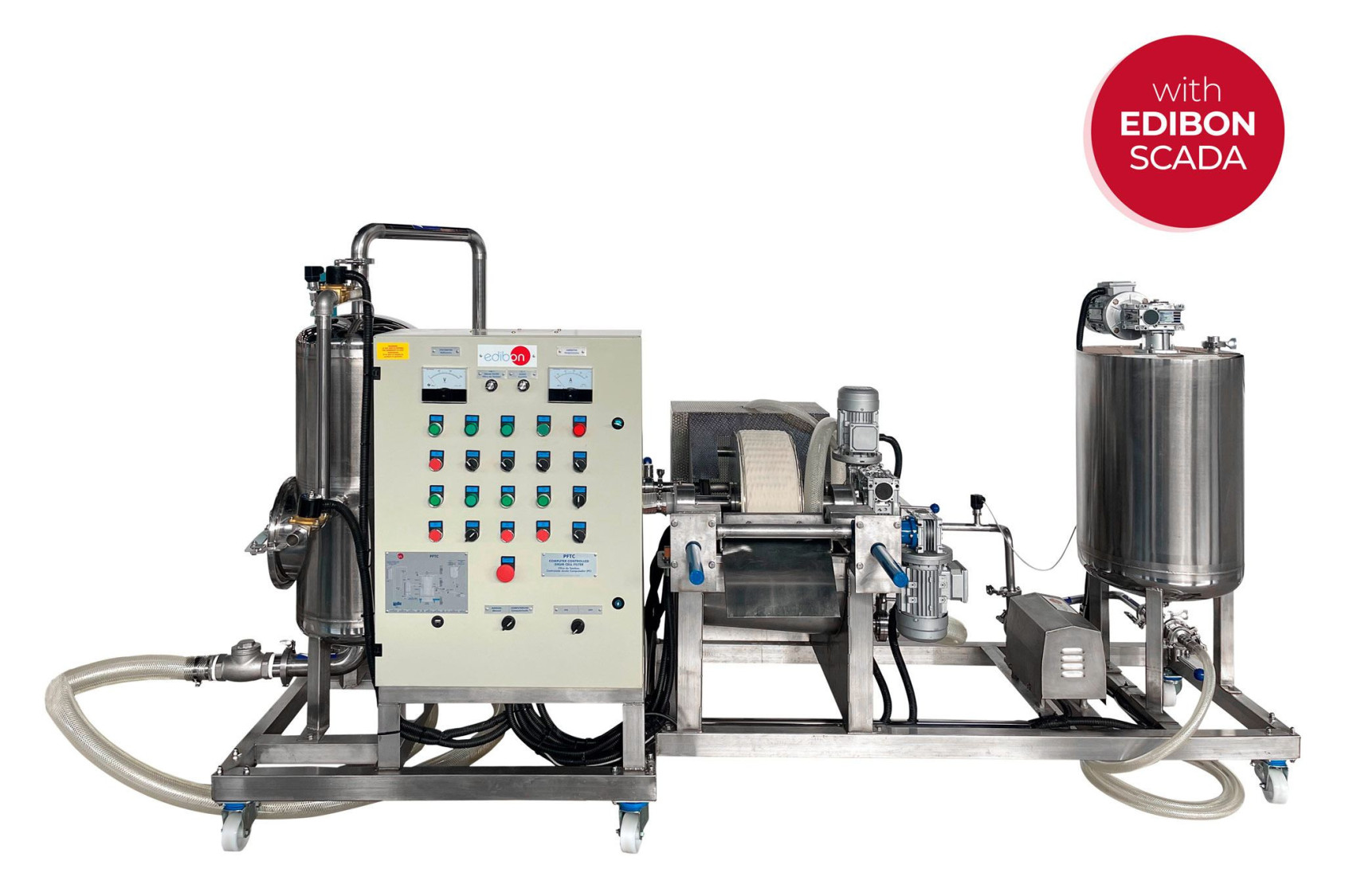

The Computer Controlled Drum Cell Filter, "PFTC", is a unit designed to observe the operation of a filtering drum that acts on a liquid with suspended solids. This drum cell filter allows investigate the filtration of multiple solutions with suspended solids and sludges of wide variety and composition.

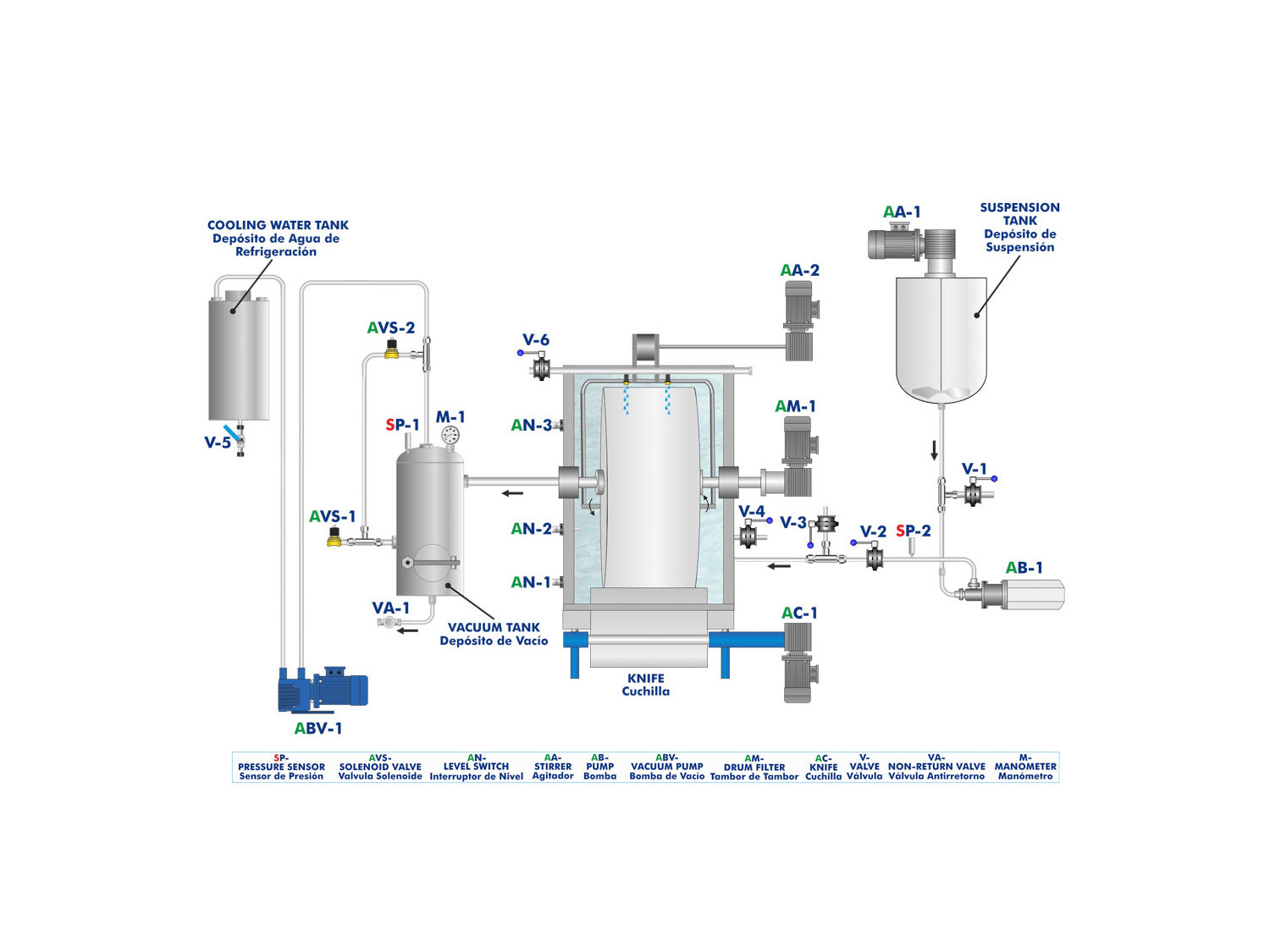

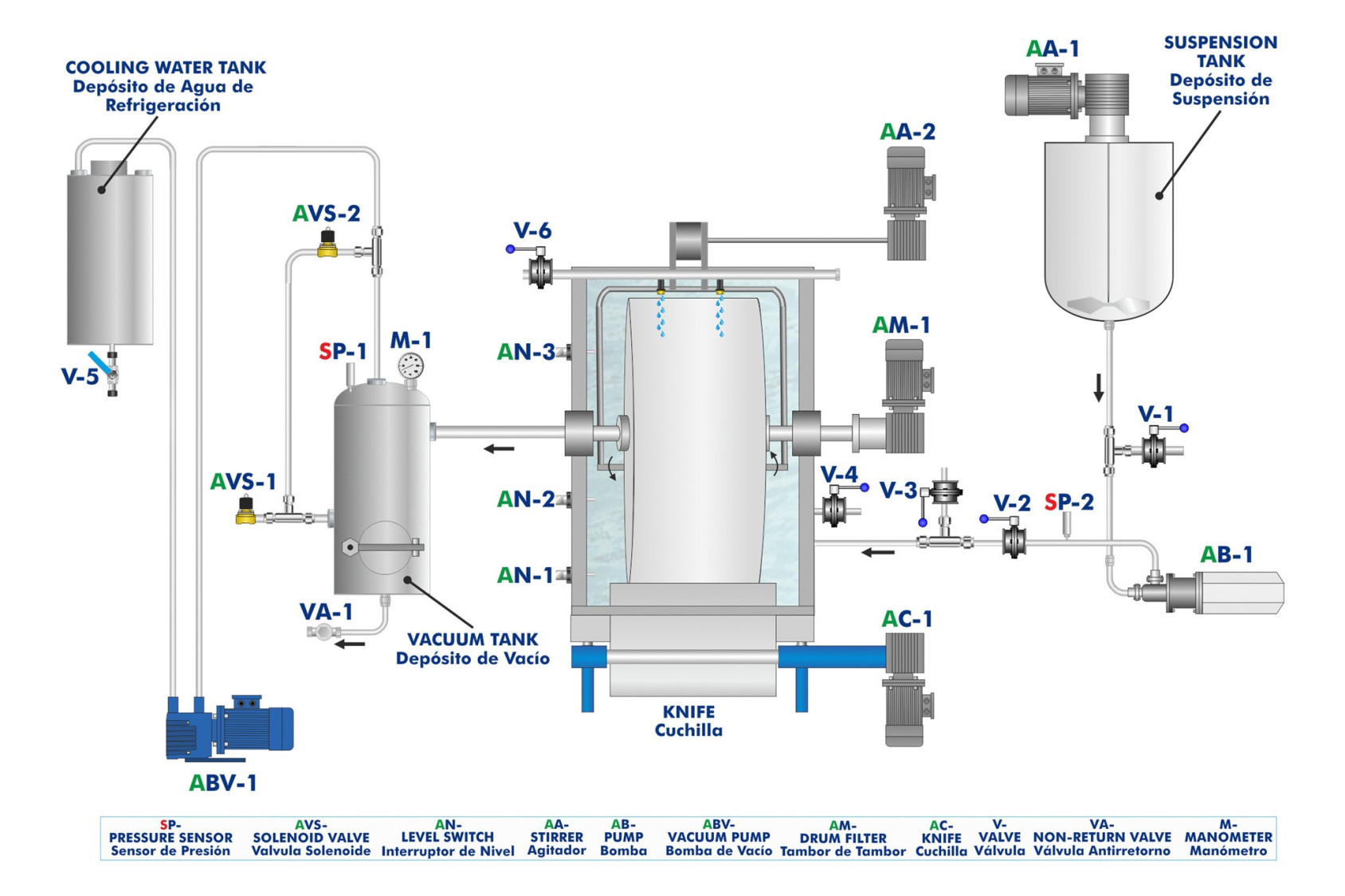

Water with suspended solids is introduced in the system. A computer controlled pump impels the fluid towards the drum tank. A sensor measures the pressure of the fluid before being introduced into the tank.

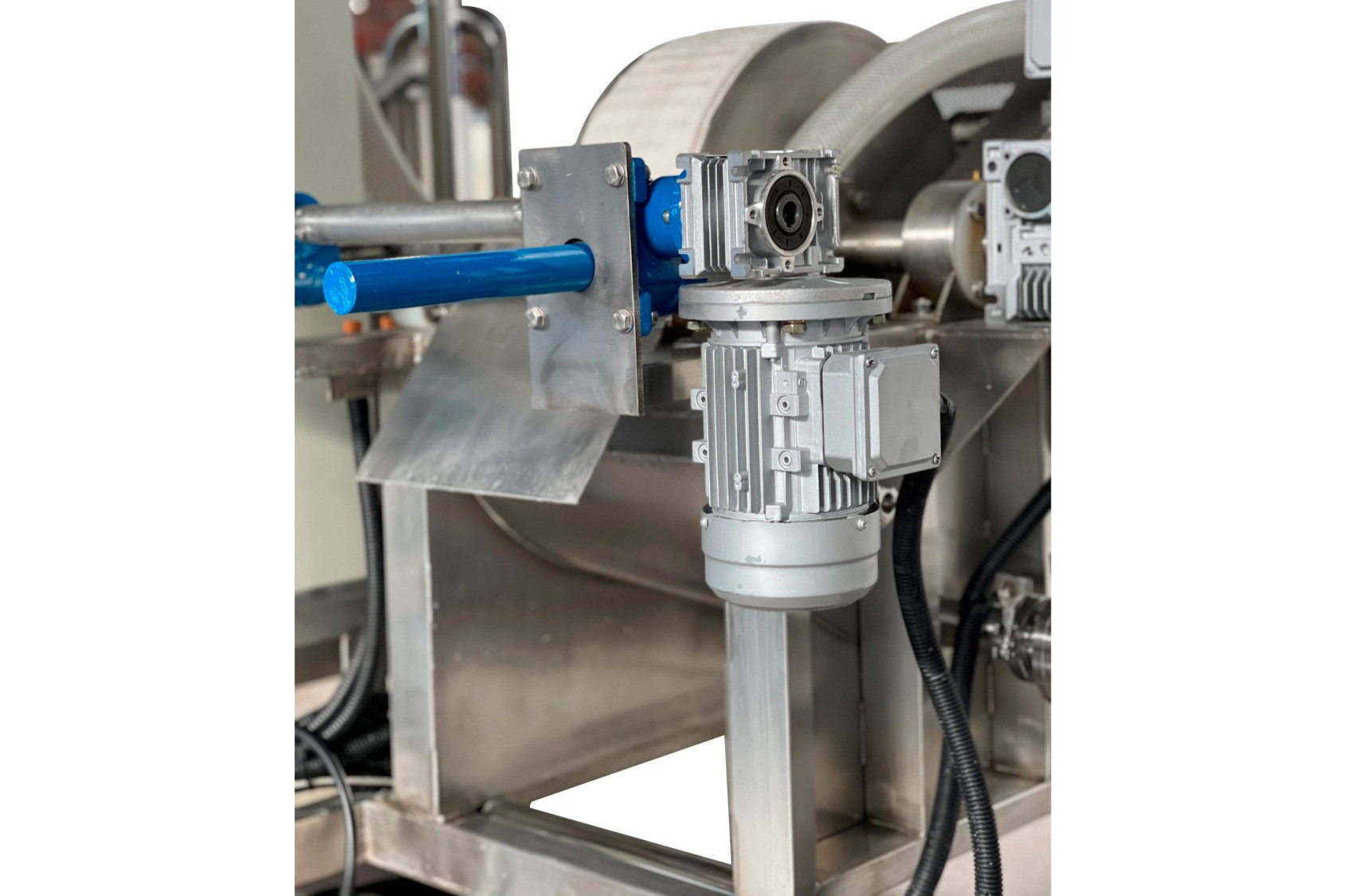

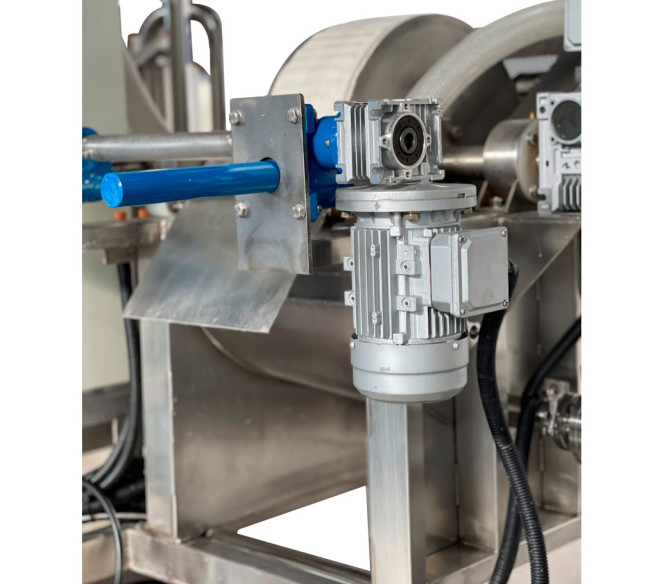

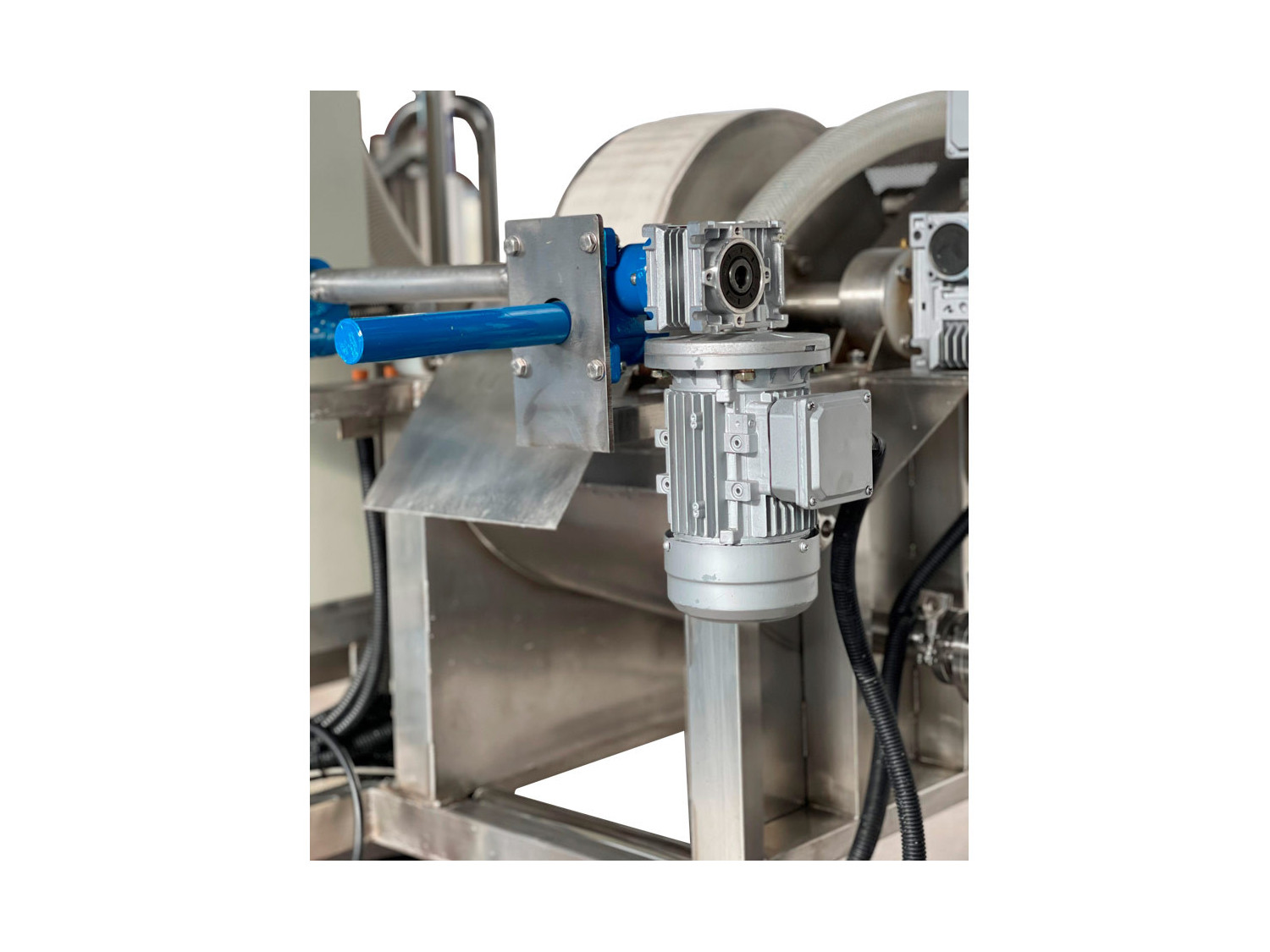

There is a stirrer in this tank to keep water mixed with the suspended particles. The rotary drum is covered by a filtering cloth, so the part immersed in the tank filters the water. Thus, clean water passes through the cloth and the suspended particles remain in the drum surface. Therefore, when the drum rotates the layer of suspended particles becomes a cake and it is cut before entering the tank again. This tank has some level switches to keeps the water volume constant.
The cake is formed by applying vacuum on the inside of the drum by means of a computer controlled vacuum pump and a vacuum reservoir controlled by two solenoid valves.
When the cake is cut, it falls into a collecting tank and the filtered water passes into the vacuum tank.
The vacuum tank, feed tank and drum tank have valves for emptying when necessary.

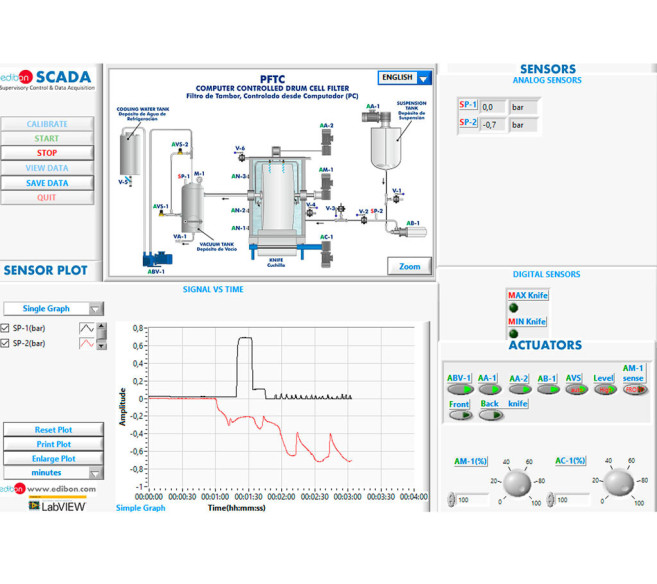

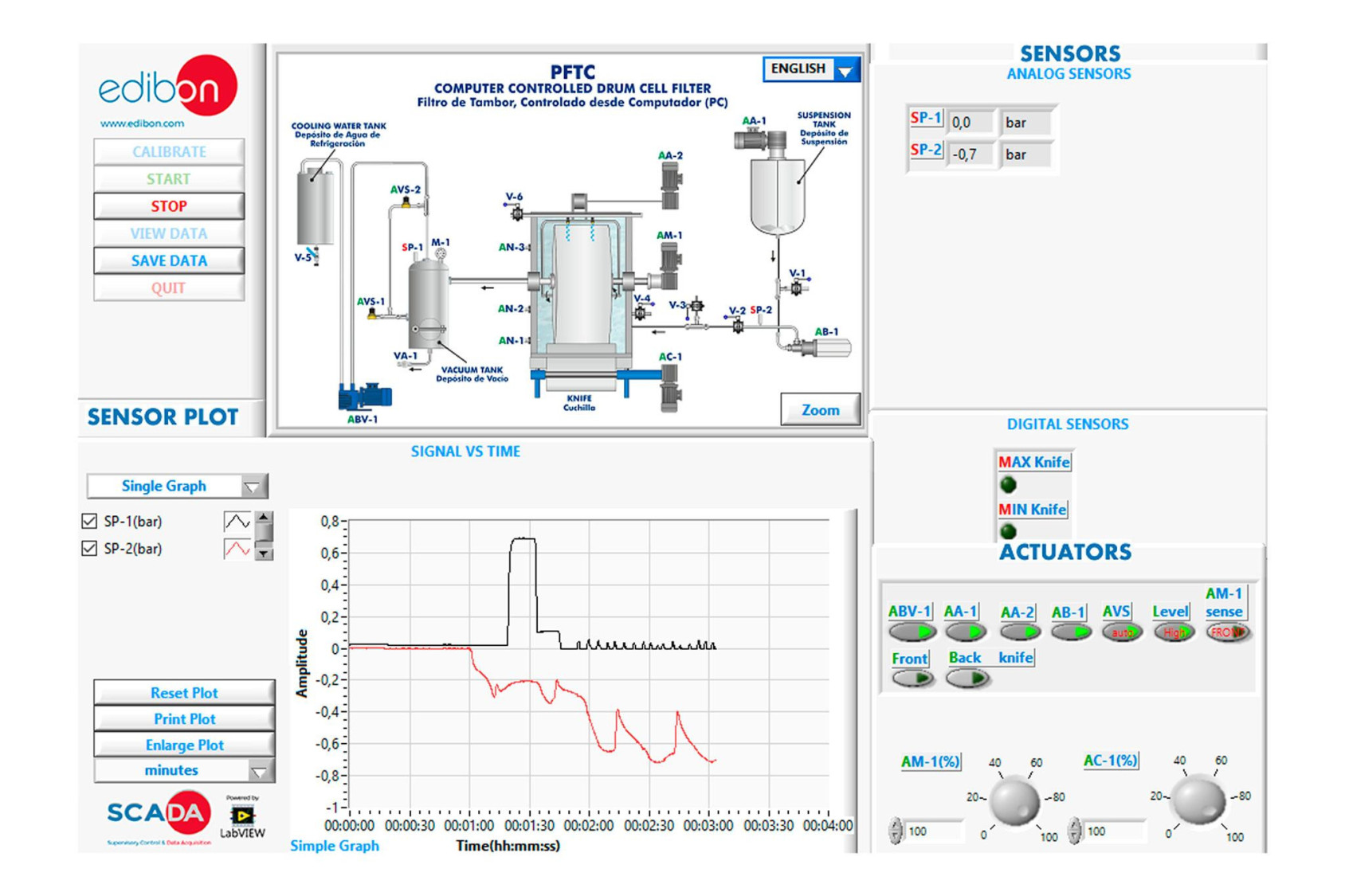

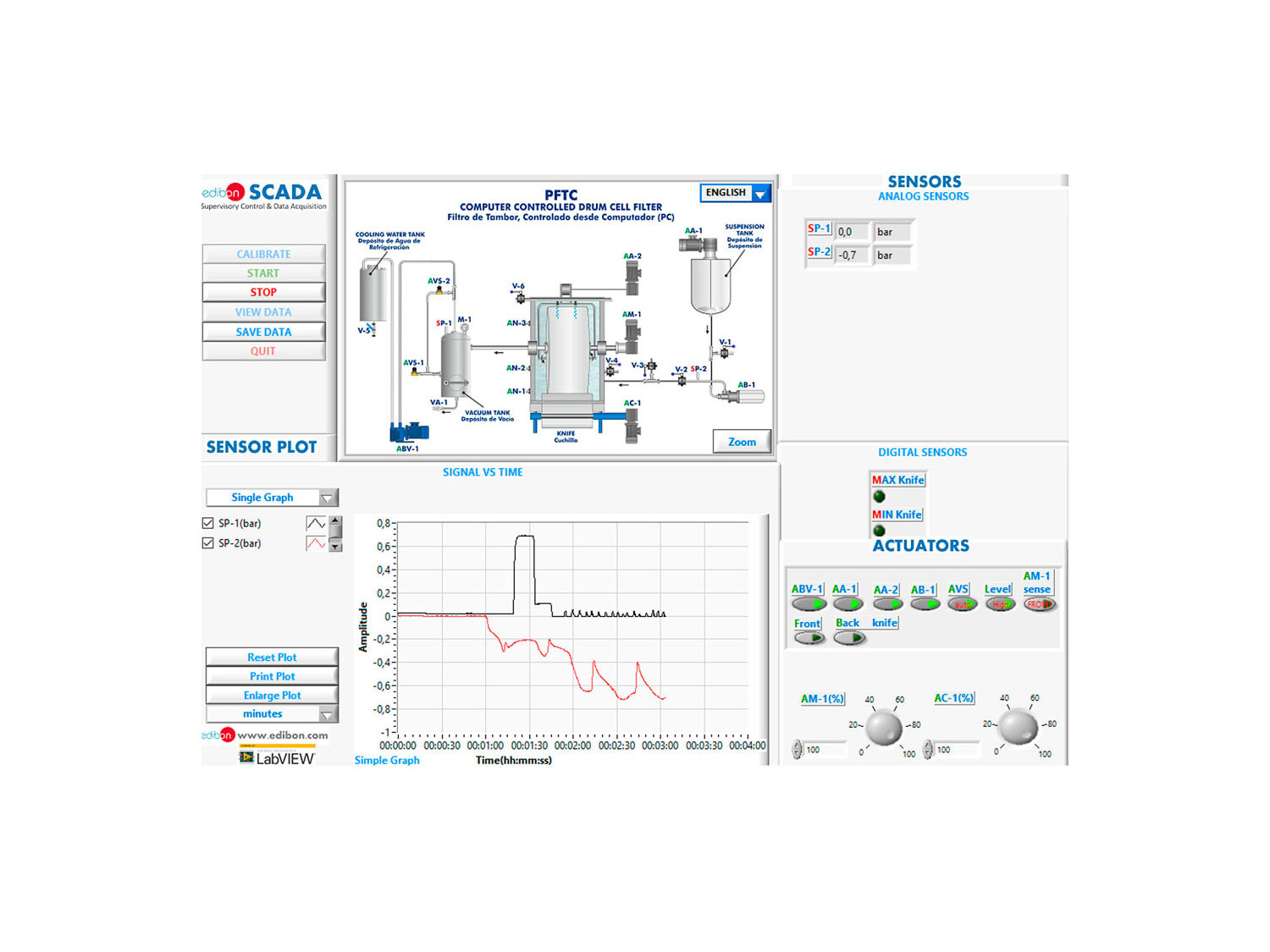

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Study of the suspended solids' filtration process and understanding of a drum filter mechanism.
- Study of the filtering cake formation with Darcy’s law.
- Observation of the volumetric and mass flows and the thickness of the filtering cake.
- Variation of the mass and thickness of the cake depending on the filtering volume.
- Variation of the mass and thickness of the cake depending on the drum revolutions.
- Mass balance depending on the suspension stirring speed.
- Mass balance depending on the stirring speed in the drum tank.
- Sensors calibration.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc,in real time.
- The Computer Control System with SCADA allows a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Control of the PFTC unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the PFTC unit process.
- By using PLC-PI additional 19 more exercises can be done.
- Several other exercises can be done and designed by the user.
EQUIPEMENT COMPLEMENTAIRE
ÉNERGIE
SCS/60/CTS
The Computer Controlled and Touch Screen 60 l Semicontinuous Centrifugal Separator, "SCS/60/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.The unit consists of a tubular centrifuge, a...
ÉNERGIE
SCS/1000/CTS
Séparateur Centrifuge Semi-continu de 1000 L, Contrôlé depuis Ordinateur (PC) et Écran Tactile
The Computer Controlled and Touch Screen 1000 l Semicontinuous Centrifugal Separator, "SCS/1000/CTS", is able to show, for further research and study, the obtaining of lignin from lignocellulosic biomass.The unit consists of a tubular centrifuge,...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
TFUC
Unité de Filtration Continue et Discontinue, Contrôlée par Ordinateur (PC)
This filtration unit has been designed to study the filtration process with two different types of filters. On one hand, there is a vertical plate filter consisting of nylon plates with a diameter of 5 microns, used to filter a known concentration...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
TFUB
Unité de Filtration Continue et Discontinue

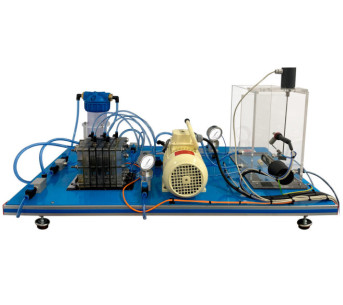

The Continuous and Batch Filtration Unit, "TFUB", has been designed to study the filtration process with two different types of filters. On one hand, there is a vertical plate filter consisting of nylon plates with a diameter of 5 microns, used to...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
AFPMC
Filtre-Presse à Plaques et Cadres, Contrôlé par Ordinateur (PC)
Le Filtre-presse à Plaques et à Cadres, Contrôlé par Ordinateur, "AFPMC", a été conçu pour étudier les processus de filtration et de clarification à l'aide d'un filtre-presse dans lequel le nombre de cadres et le type de toile filtrante peuvent...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
EFLPC
Unité de Filtration à Lit Profond, Contrôlée par Ordinateur (PC)
The Computer Controlled Deep Bed Filter Unit, "EFLPC", allows us to filter a fluid in order to eliminate particles in suspension, to have it in more adequate conditions for its subsequent use or consumption.The pump takes raw water from one of the...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
EFLP
Unité de Filtration à Lit Profond
L'Unité de Filtration à Lit Profond, "EFLP", nous permet de filtrer un fluide afin d'éliminer les particules en suspension, pour l'avoir dans des conditions plus adéquates pour son utilisation ou sa consommation ultérieure.La pompe prend l'eau...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
ESED
Unité pour l´Étude de la Sédimentation

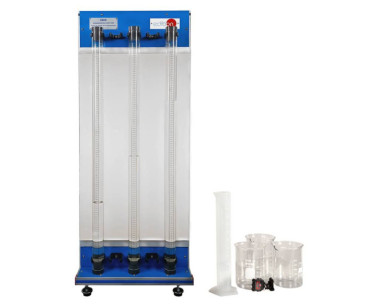

L'Unité pour l´Étude de la Sédimentation, "ESED", conçu par EDIBON, permet d'étudier et de comparer les processus de sédimentation de plusieurs suspensions simultanément.Il est constitué de cinq cylindres de sédimentation en méthacrylate montés...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
PDSC
Réservoir de Sédimentation, Contrôlé par Ordinateur (PC)

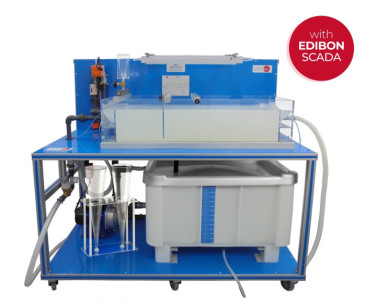

Le Réservoir de Sédimentation, Contrôlé par Ordinateur (PC), "PDSC", est une unité d'enseignement, conçue par EDIBON, pour démontrer le processus de sédimentation et de se familiariser avec le principe de sédimentation de particules discrètes dans...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
PDS
Réservoir de Sédimentation

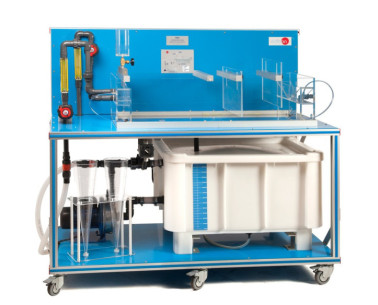

The Sedimentation Tank, "PDS", is a teaching unit, designed by EDIBON, to demonstrate the sedimentation process and to familiarize with the settling principle of discrete particles settling into a tank. It will also allow to study the hydraulic...
11.1.11.- FILTRATION, SÉDIMENTATION ET MÉLANGE
PDFDC
Réservoir de Filtration et Drainage, Contrôlé par Ordinateur (PC)

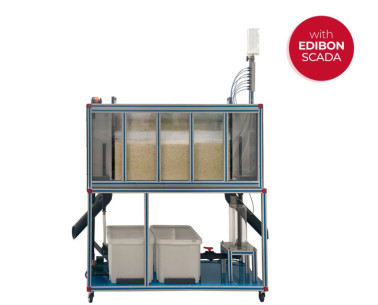

Le Réservoir de Filtration et Drainage, Contrôlé par Ordinateur (PC), "PDFDC", est une unité conçue pour la démonstration pratique, la visualisation et l'étude expérimentale de l'écoulement à travers des milieux perméables et des écoulements dans...
