AEL-ACRL Application des Moteurs AC à Réluctance Triphasée

4.3.2.1.- MOTEURS ÉLECTRIQUES AC ET GÉNÉRATEURS

SYSTEMES INNOVANTS

The AC Three-Phase Reluctance Motors Application, "AEL-ACRL", has been designed is to study the storage of the working principle and the main industrial operations fulfilled with three-phase reluctance motors.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

What is Industry 4.0?

What is Industry 4.0?

Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lire plus

Description Générale

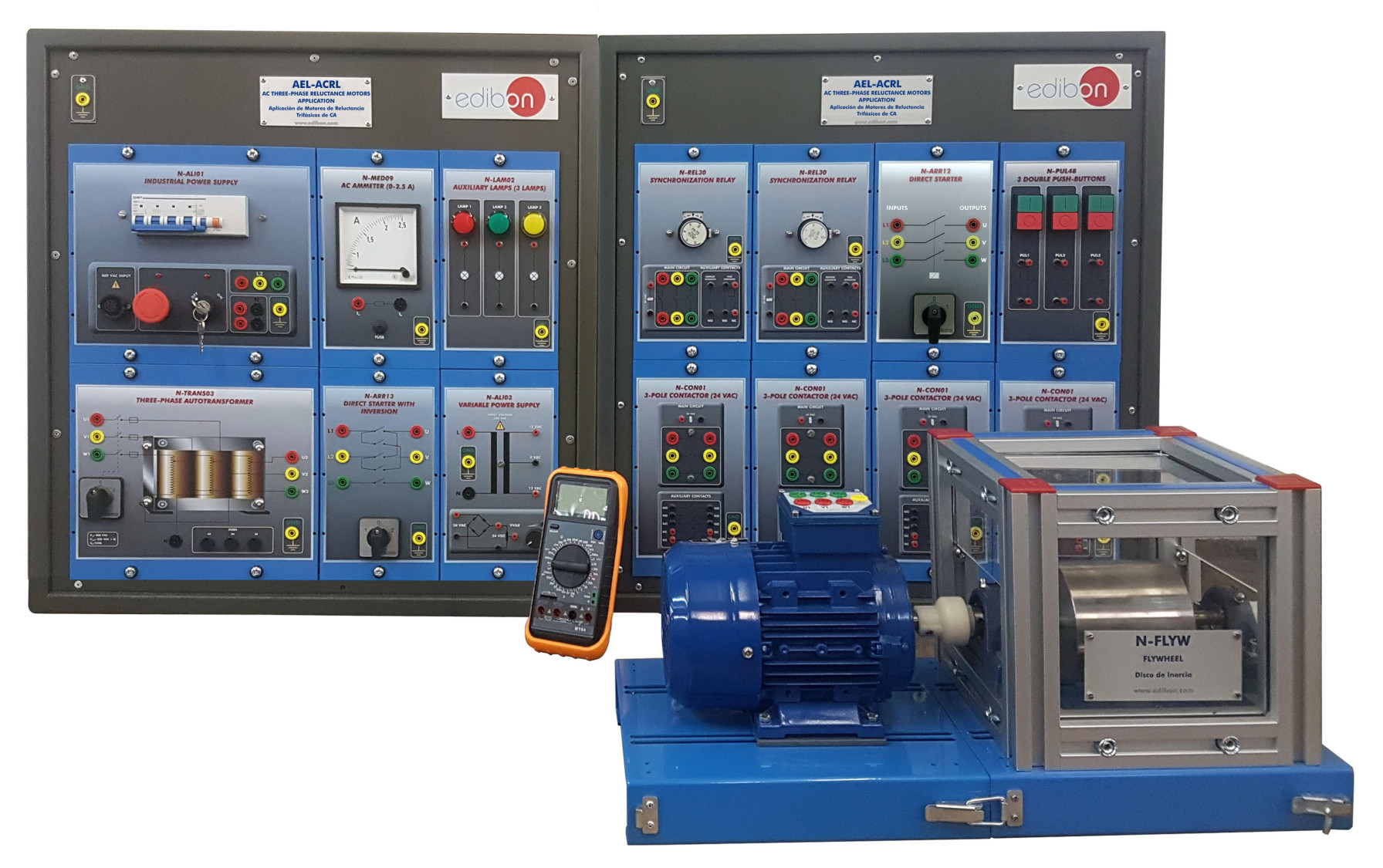

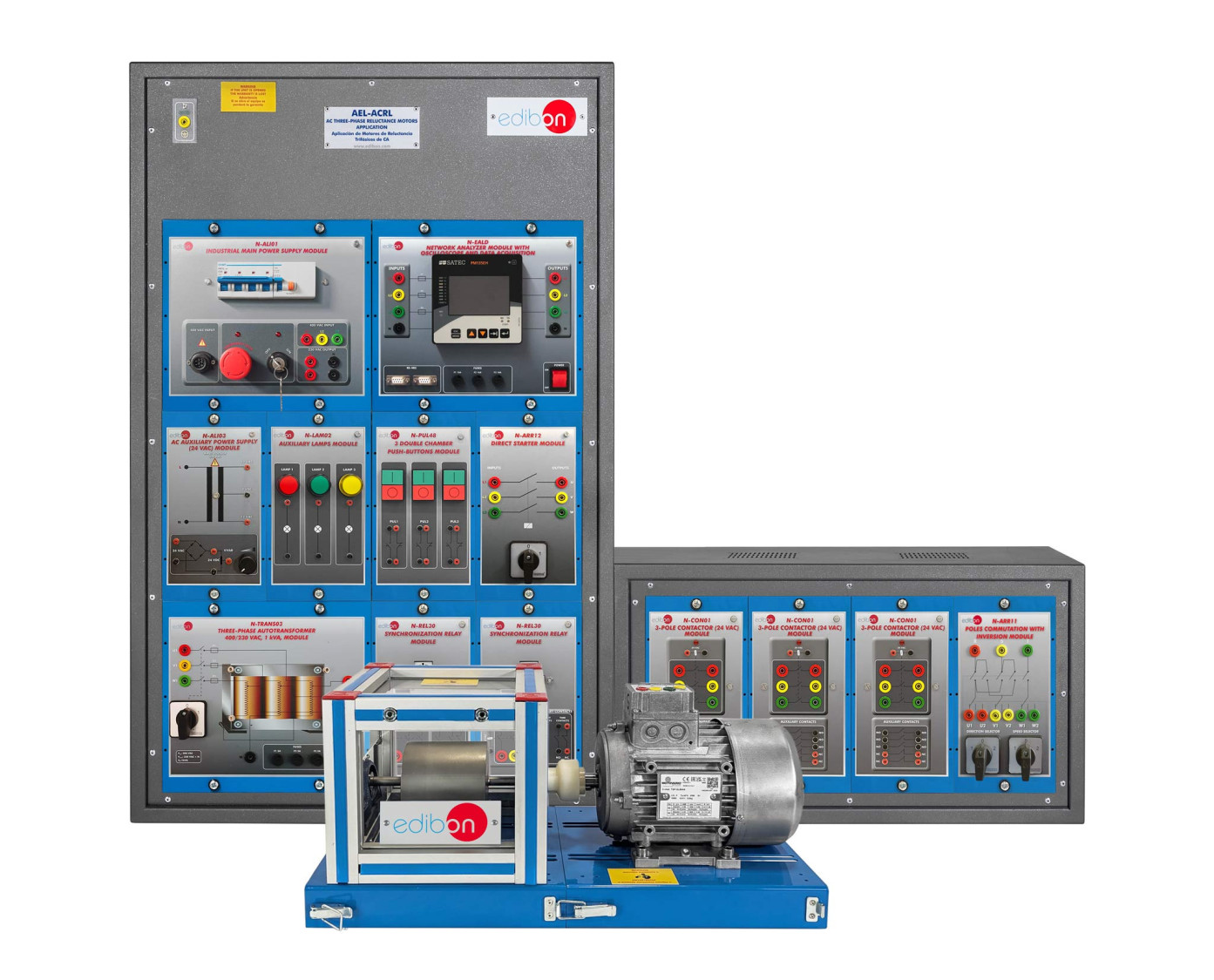

The AC Three-Phase Reluctance Motors Application, "AEL-ACRL", has been designed is to study the storage of the working principle and the main industrial operations fulfilled with three-phase reluctance motors.The "AEL-ACRL" allows the user to learn and carry out different manual or automatic starting and operation methods for these type of electric machines. For that purpose, the application includes (in adittion to a three-phase reluctance motor) a series of contactors, push-buttons, timers, light indicators and different type of starters. A flywheel is also included, whose aditional objective is to study the storage of the motor mechanical energy.

It is recommended to acquire a series of analog and digital meters to be able to monitor the electrical and mechanical paremeters of the reluctance motor.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Direct starting of the AC Three-Phase Reluctance Motor.
  2. Soft starting of the AC Three-Phase Reluctance Motor.
  3. Starting and inversion of the rotation direction of the AC Three-Phase Reluctance Motor.
  4. Control logic circuit for the direct starting with interlocking of the AC Three-Phase Reluctance Motor.
  5. Control logic circuit for the soft starting of the AC Three-Phase Reluctance Motor.
  6. Control logic circuit for the starting and inversion of the rotation direction of the AC Three-Phase Reluctance Motor.
  7. Control logic circuit for the automatic direct starting of the AC Three-Phase Reluctance Motor.
  8. Control logic circuit for the automatic soft starting of the AC Three-Phase Reluctance Motor.
  9. Control logic circuit for the automatic starting and inversion of the rotation direction.
  10. Measurement of the electrical and mechanical parameters of the three-phase reluctance motor with no load.
  11. Measurement of the electrical and mechanical parameters of the three-phase reluctance motor coupled to the flywheel.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several other exercises can be done and designed by the user.
