# TSCR Unité de Circuit de Réfrigération par Compression

## SYSTEMES INNOVANTS

The Simple Compression Refrigeration Circuit Unit "TSCR" allows a clear visualization of all the processes of a compression refrigeration system and the directly tangible observation of the heat exchangers cooling and heating.

Voir description générale

## Description Générale

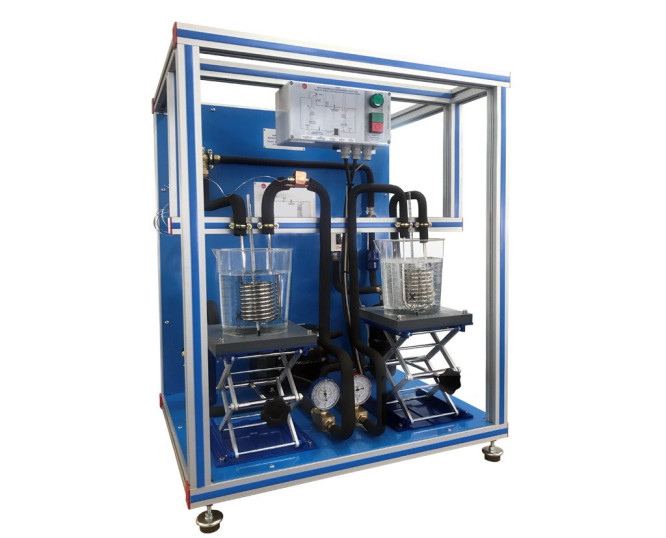

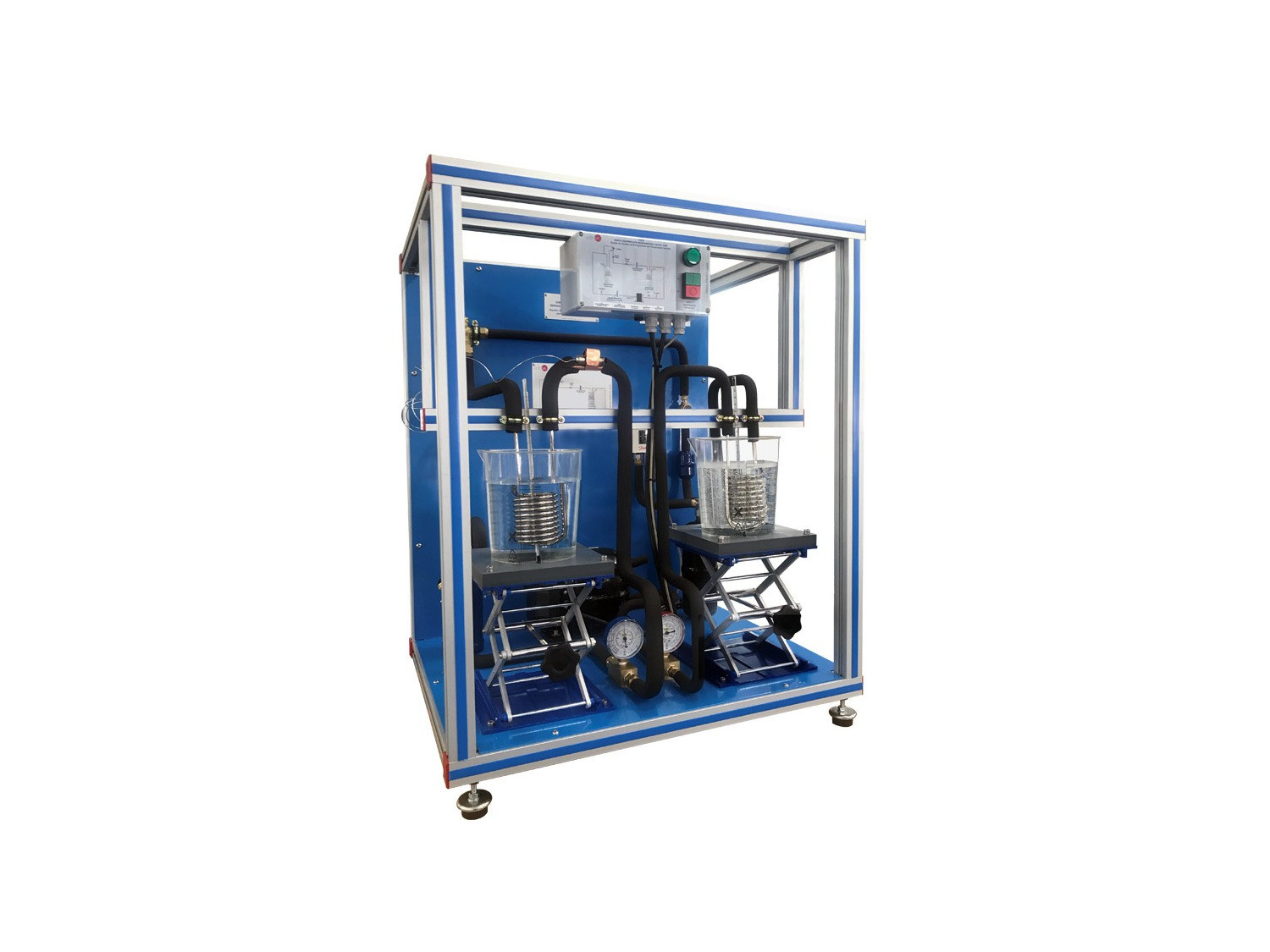

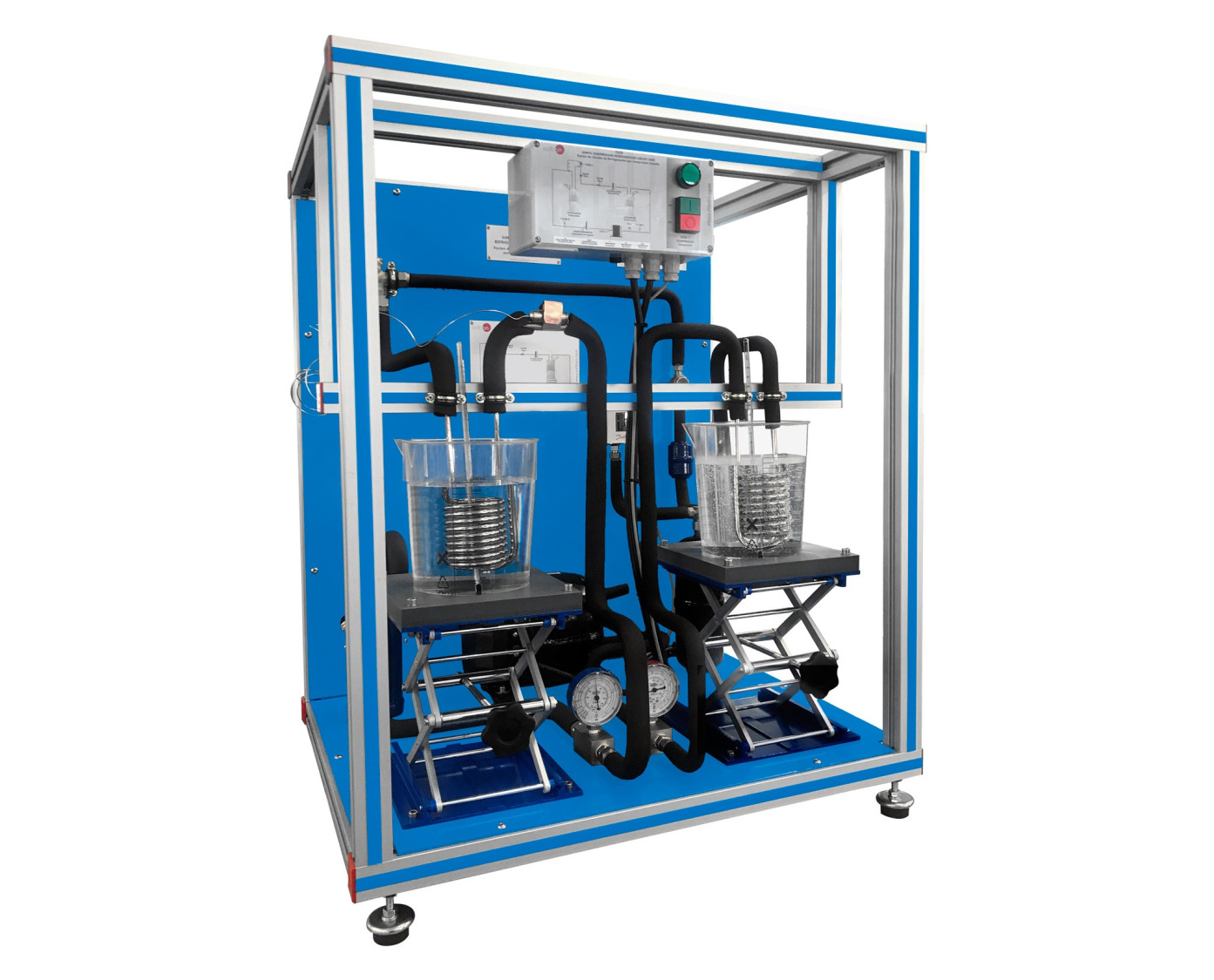

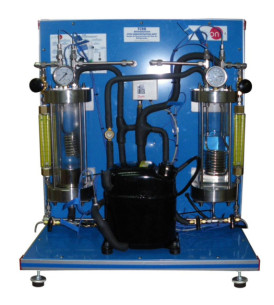

The Simple Compression Refrigeration Circuit Unit "TSCR" represents the typical compression refrigeration system with compressor.

The evaporator and the condenser have been designed as a copper pipe coil immersed in a water-filled tank, which simulates the environment.

There is a thermostatic expansion valve working as expansion element and the aggregate state of the refrigerant can be visualized through a sight glass located before the expansion valve.

To make energy balances and calculate the amount of heat removed in the evaporator by the cold water or the amount of heat discharged in the condenser by the hot water to the environment there are:

• Two thermometers that measure the water temperature in the tanks.
• Two manometers that indicate the system pressures in the high and low pressure sides. The evaporation temperature of the refrigerant is indicated in an additional scale in the manometer.

As safety element, the unit includes a pressure switch, which stops the compressor if pressure is high.

## Des exercices et pratiques guidées

### EXERCICES GUIDÉS INCLUS DANS LE MANUEL

1. Demonstration of the vapor compression refrigeration cycle/ heat pump and visualization of the most important processes.
2. Analysis of the basic essentials of a compression refrigeration system.
3. Identification and study of the main components of a compression refrigeration system:
• Compressor.
• Evaporator.
• Condenser.
• Expansion valve.
1. Study of the relationship between pressure and boiling point of a liquid.
2. Energy balance.
3. Learning about the main factors that can affect the refrigeration system performance.

### PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

1. Properties of the R-513a refrigerant.
2. Enthalpy-pressure diagram for the R-513a refrigerant.
