MEC Unité d'Étude de Boite de Vitesse Automatique

OVERDRIVE UNIT - MEC

SYSTEMES INNOVANTS

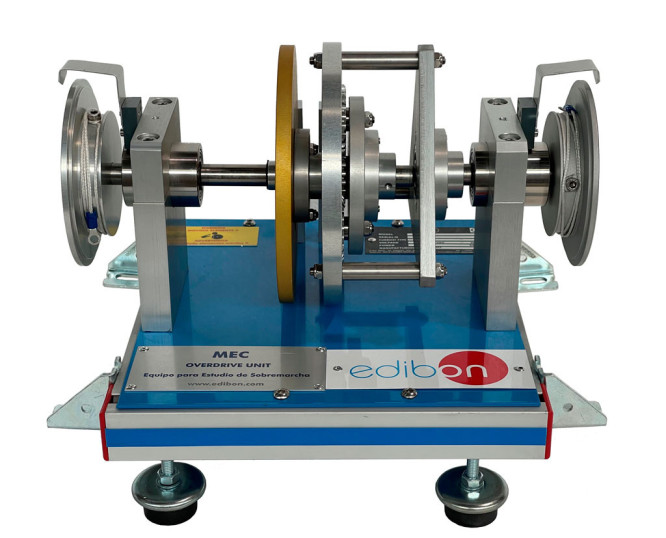

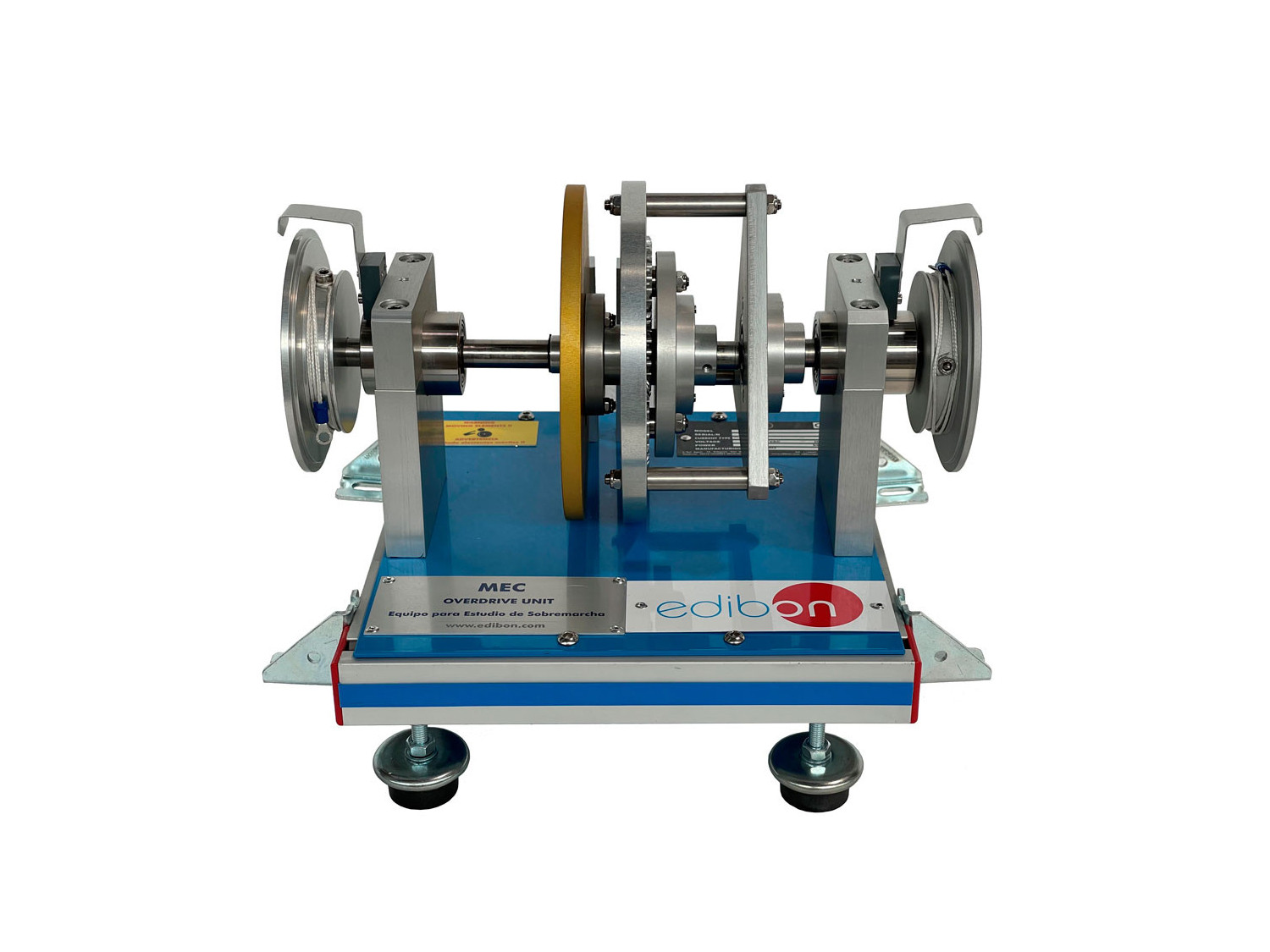

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

Voir description générale

Description Générale

The Overdrive Unit, "MEC", includes a set of epicyclical gears that represent an application of a simple epicyclic arrangement of the type used in a motor vehicle overdrive.

A simple epicyclic set consists of:

  • Sun gear that rotates together with the input shaft.
  • Planet gears whose carrier can rotate.
  • Ring gear that rotates together with the output shaft.

In the "MEC" unit the power reaches the epicyclic gear through the central sun gear, that is to say, the input shaft is joined to the central sun pinion and the output power is obtained at the output shaft because it is joined to the ring.

This unit allows the student to study the reduction ratios of overdrive, as well as torque conversion.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. To study the overdrive speed.
  2. To demonstrate the operation of an epicyclic gears system to obtain the overdrive speed.
  3. To determine the angular displacement at the input and output and to compare it with the overdrive reduction ratio calculated.
  4. To determine the minimum effort required at the input to raise a load at the output in an overdrive reduction ratio.
  5. Power transmission: checking the ratio between input torque and output torque for an overdrive reduction ratio.
