TPC Turbine Pelton, Contrôlée par Ordinateur (PC)
The Computer Controlled Pelton Turbine, "TPC", designed by EDIBON, consists of a small scale impulse turbine, perfect for large heads and small flow rates. In practice, Pelton turbines are used, for example, to activate synchronous alternators, where they work at a constant number of revolutions.

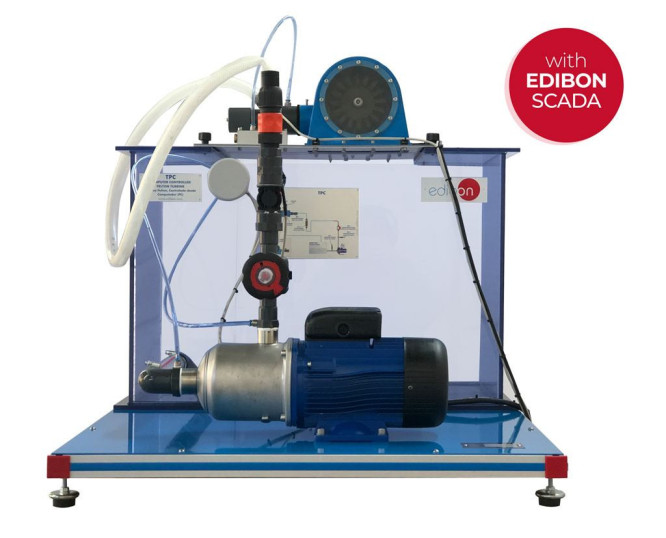

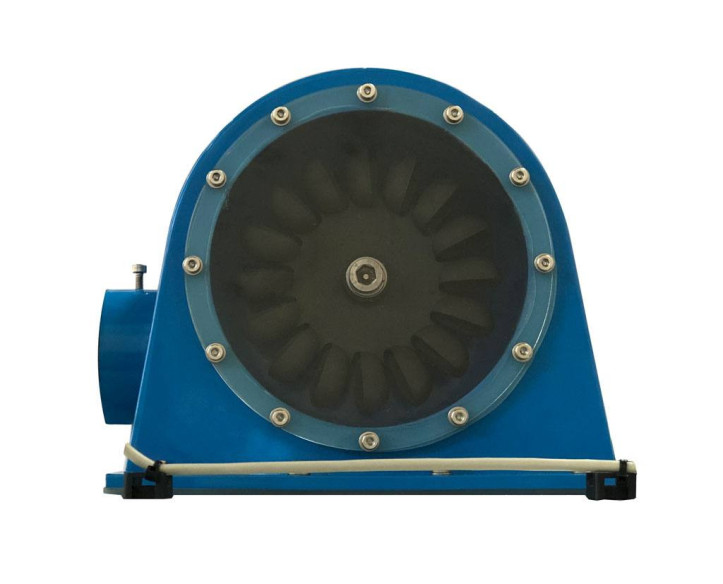

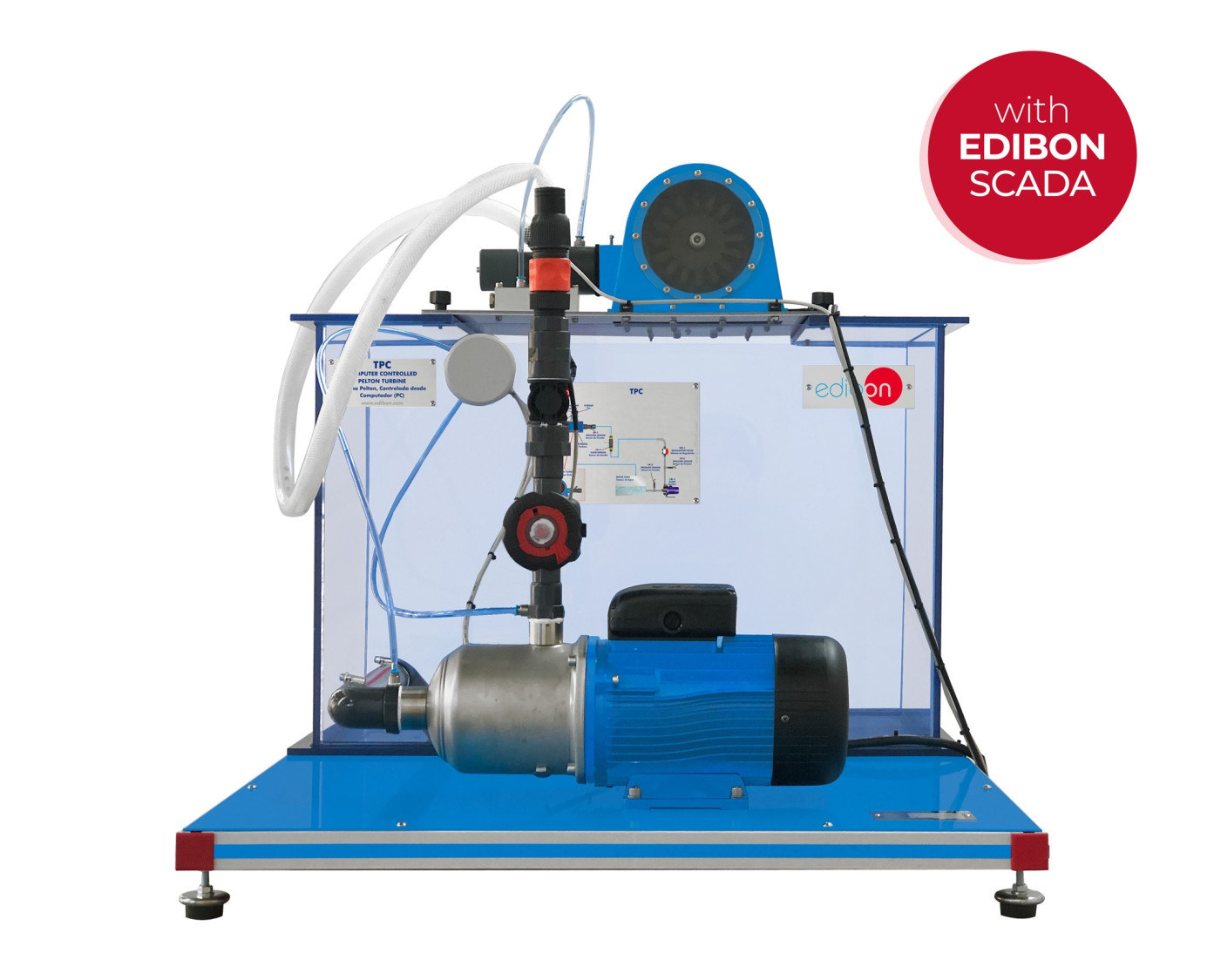

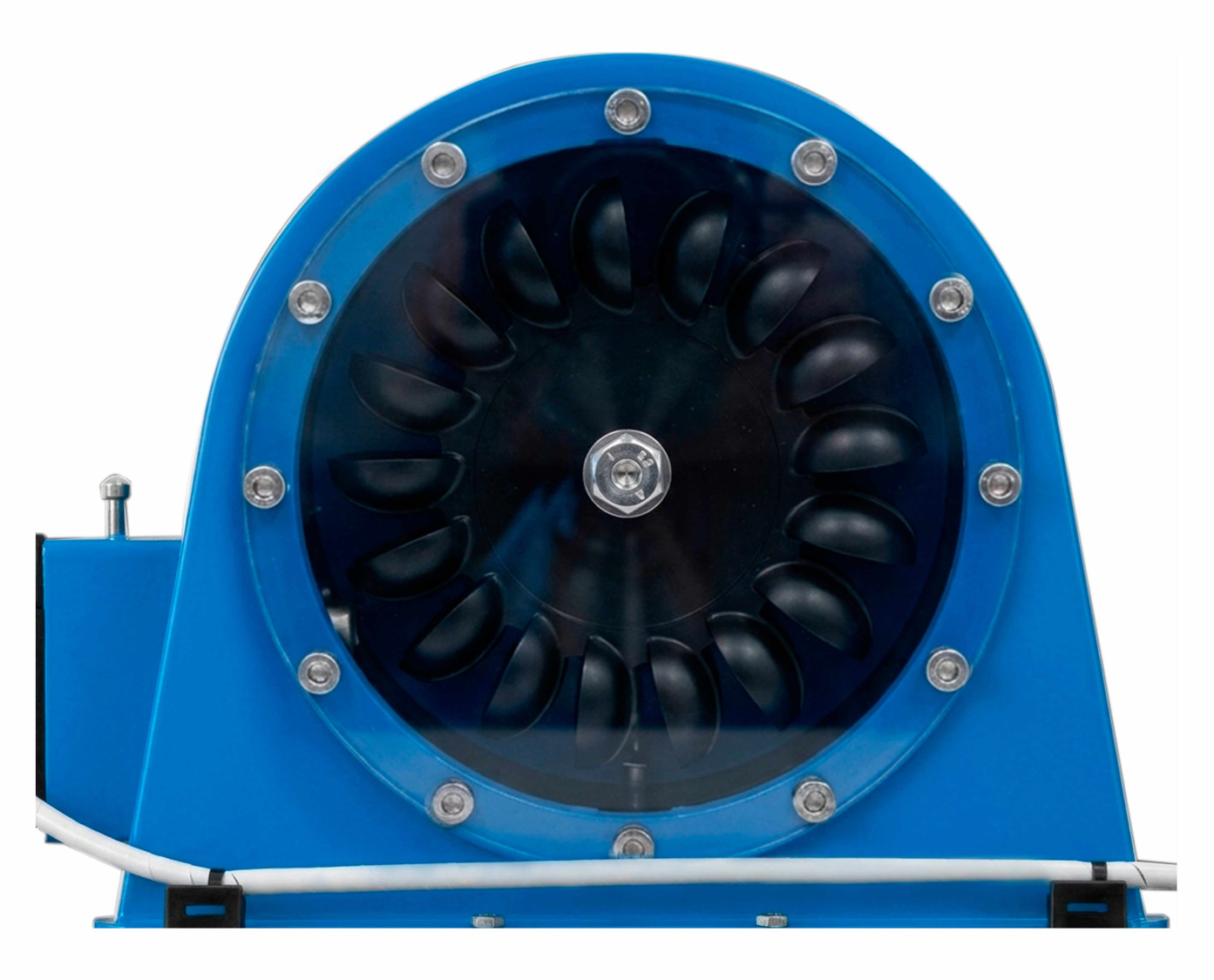

The Pelton Turbine, Computer Controlled (PC), "TPC", consists of a small-scale Pelton turbine, with a valve that allows the flow to be regulated. The turbine includes a PELTON runner with 16 buckets, which can be clearly seen through the turbine’s transparent casing.
In order to raise the fluid, it has a computer controlled pump that enables the impelled flow to pass through the turbine, in which part of its energy is left, causing the turbine to turn, overcoming the external resistance caused by an electromagnetic brake. This computer controlled brake makes it possible to vary the braking load on the turbine.

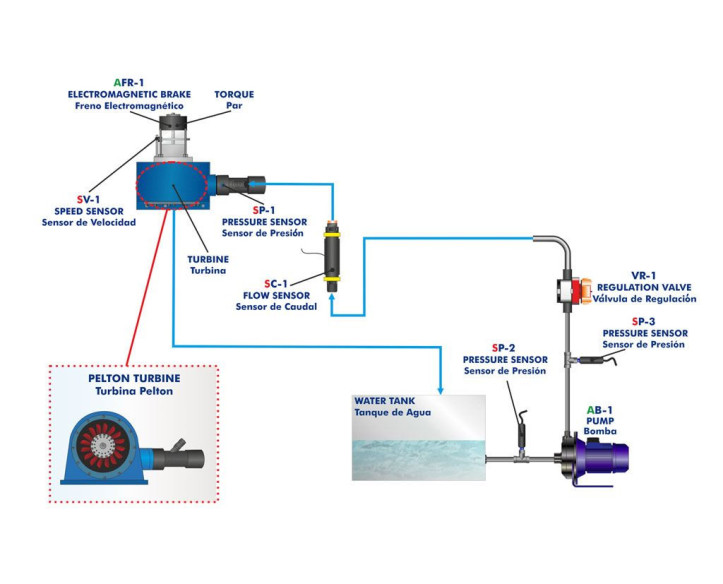

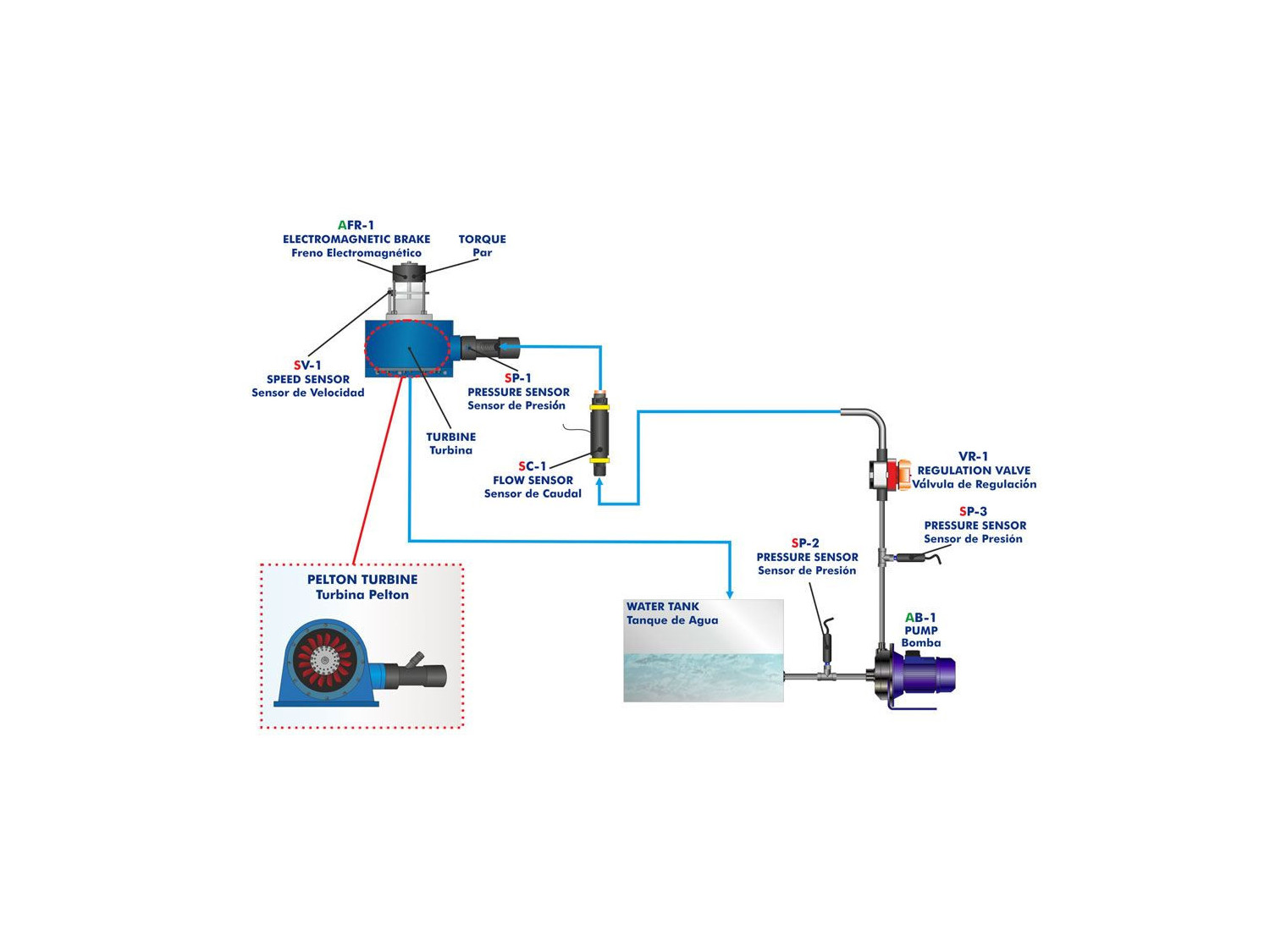

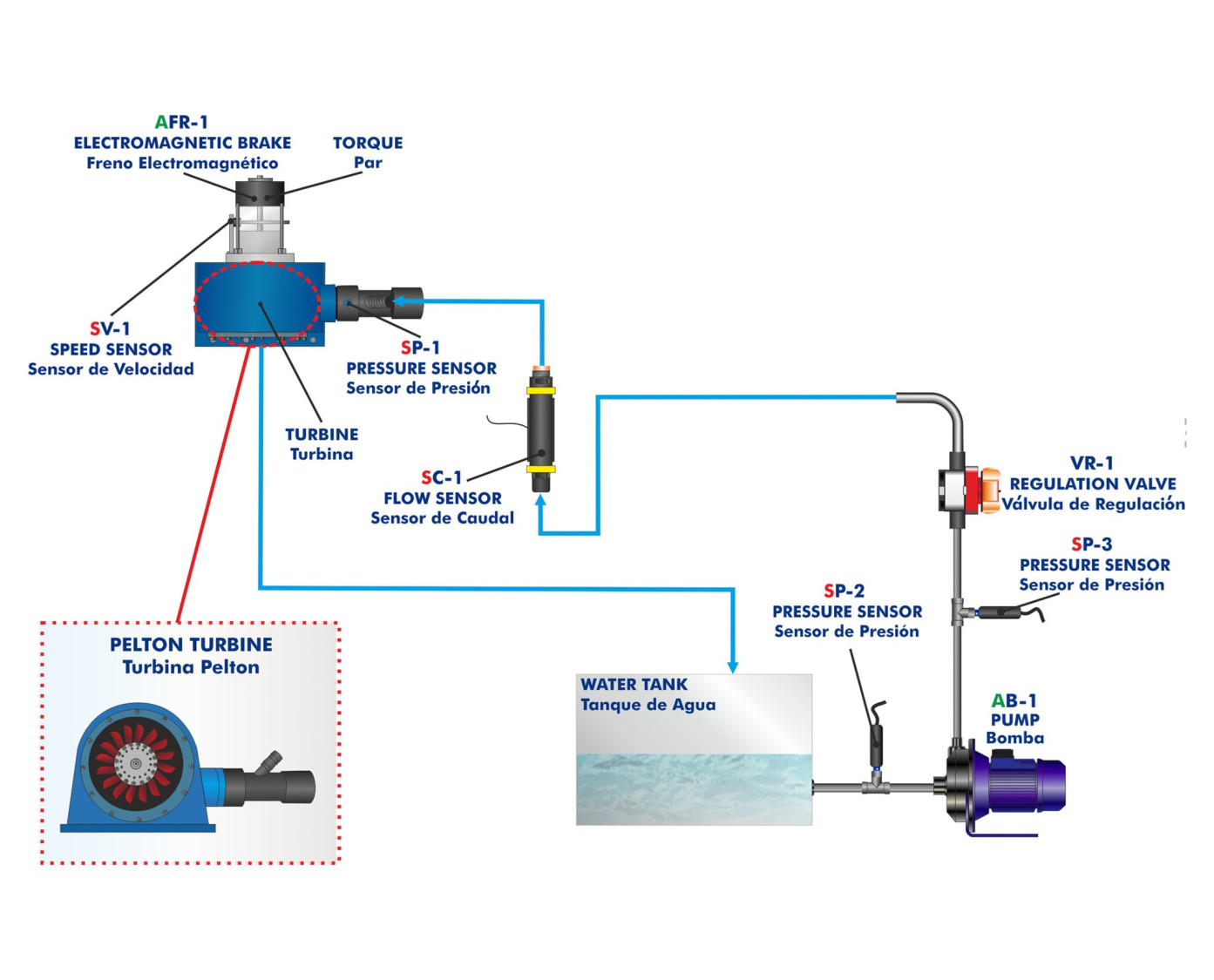

In addition, the unit is equipped with a pressure sensor placed at the turbine water inlet which measures the inlet pressure, a flow sensor to measure the turbine water inlet flow, an optical sensor which determines the speed of the turbine shaft and has two pressure sensors at the pump inlet and outlet, in order to obtain its characteristic curve.
The pump-turbine group has a tank and a pipes system which allow to work constantly with recirculated fluid to avoid the indiscriminate water consumption.

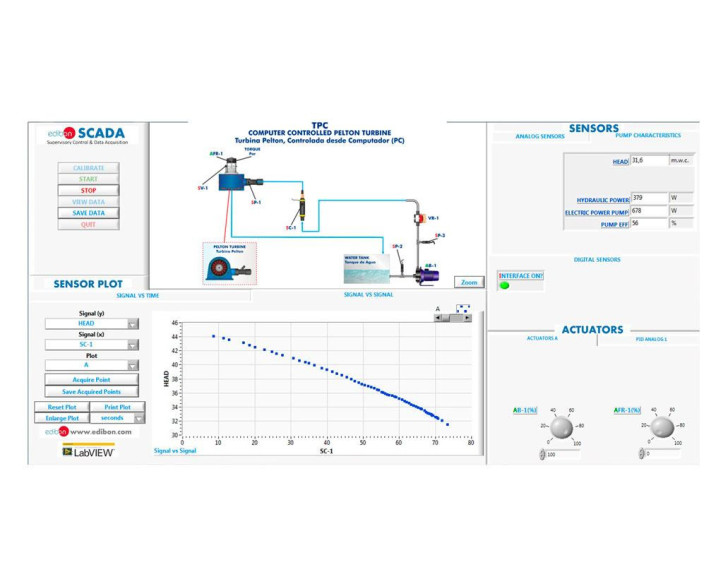

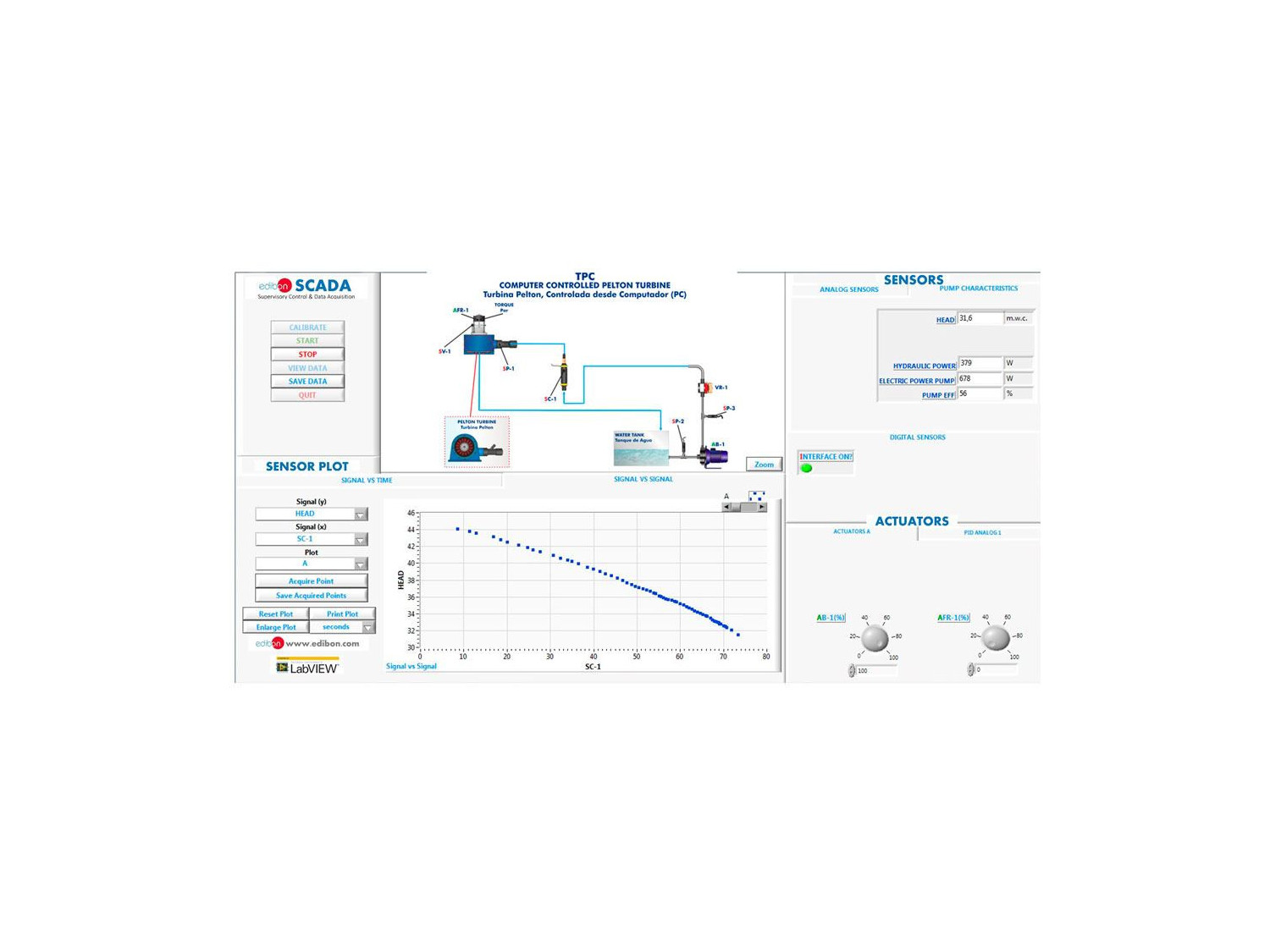

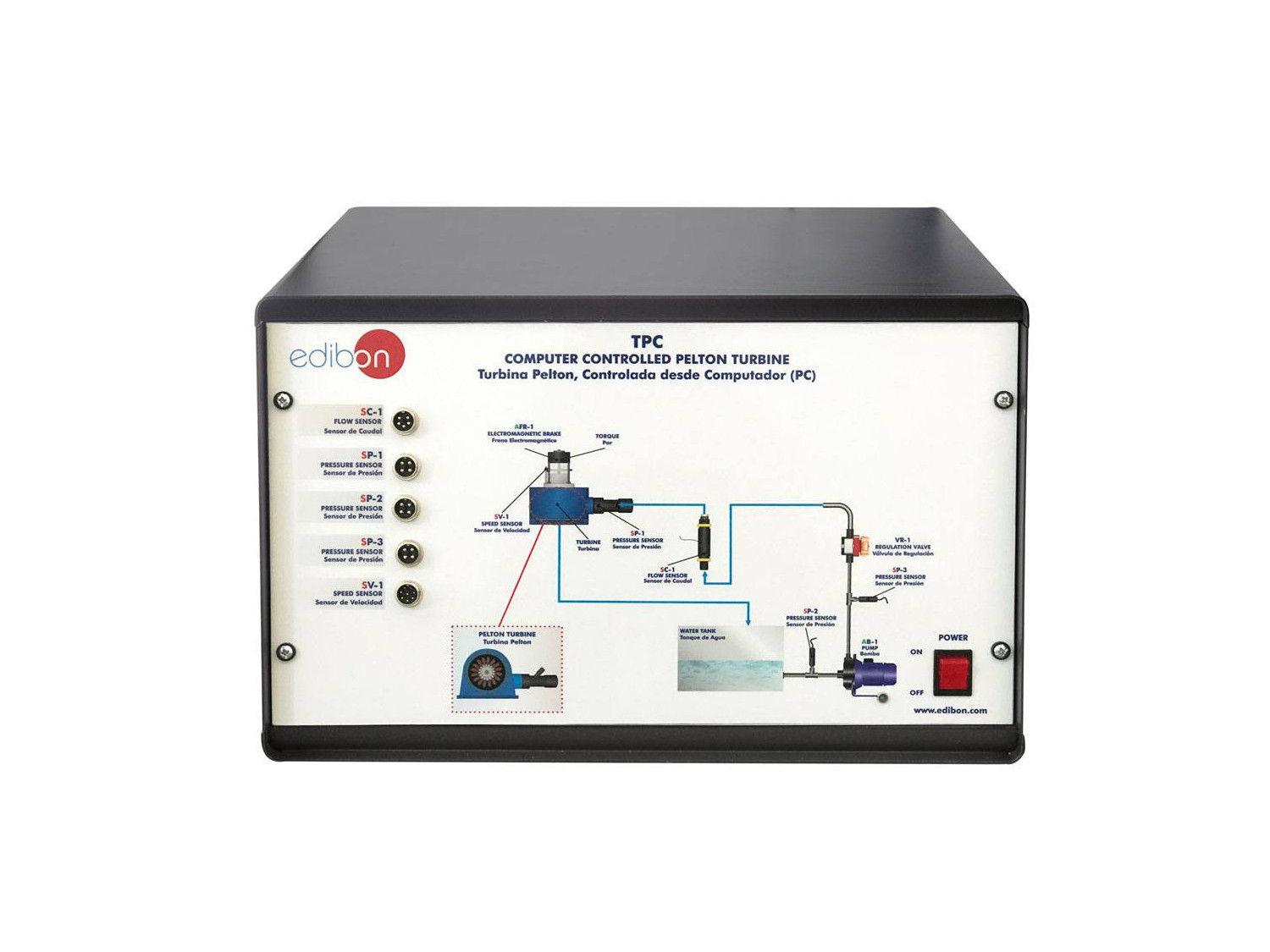

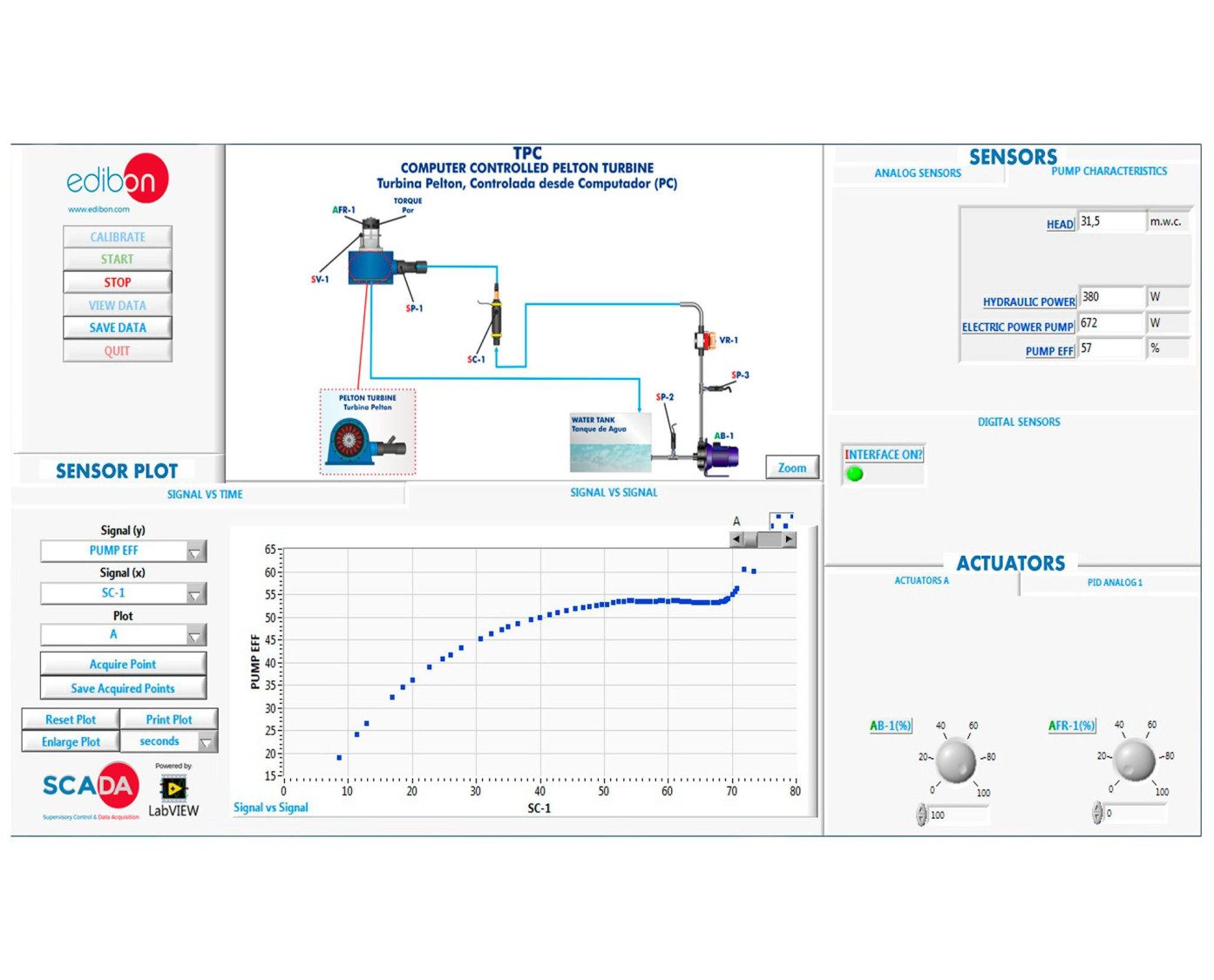

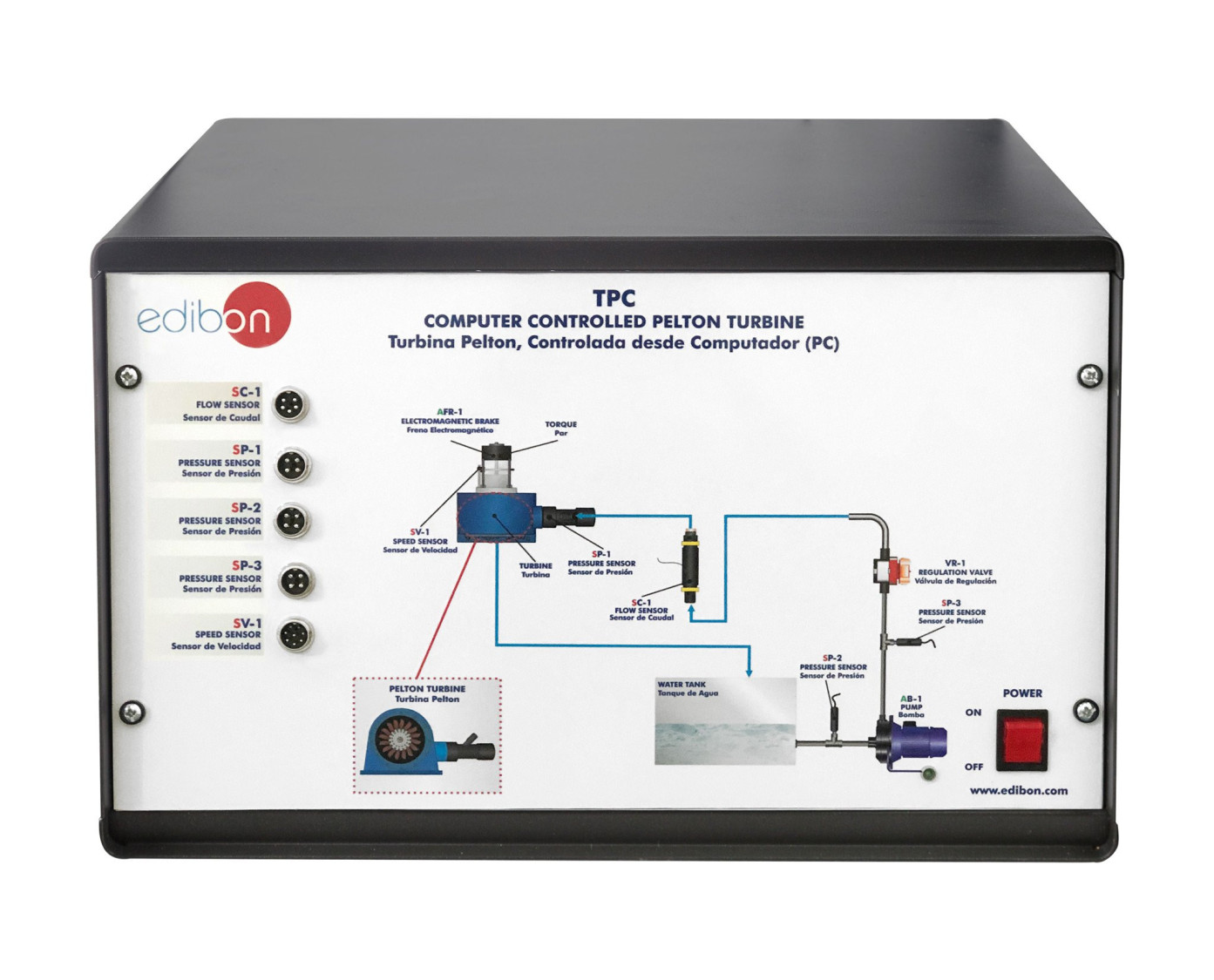

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- To determine the operating characteristics of a Pelton turbine at different speeds.
- Investigation of the conversion of hydraulic energy into mechanical energy.
- Determination of the characteristic curves of a turbine: Power M (n, Ha), Torque Nm (n, Ha), efficiency h (n, Ha).
- Determination of the characteristic curve of a hydraulic pump.
- Determination of the height of a hydraulic turbine.
- Adimensional analysis.
- Calibration of sensors.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
- The Computer Control System with SCADA and PID Control allow a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Control of the TPC unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the TPC unit process.
- By using PLC-PI additional 19 more exercises can be done.
- Several other exercises can be done and designed by the user.
