The "BS2-PLC" has been designed to study the use and applications of temperature sensors as a measure device and how to perform a temperature control through a PLC.

Voir description générale

Description Générale

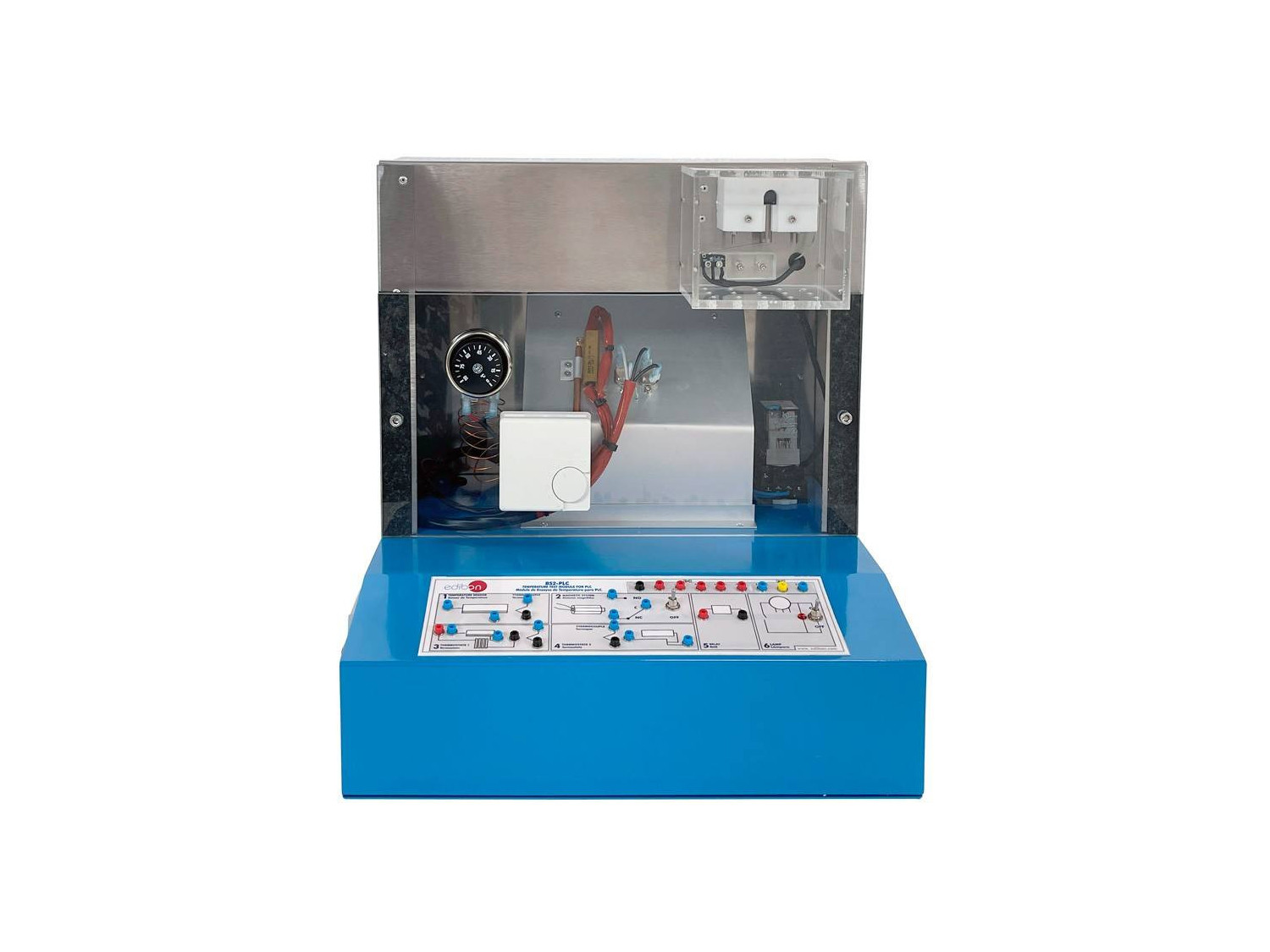

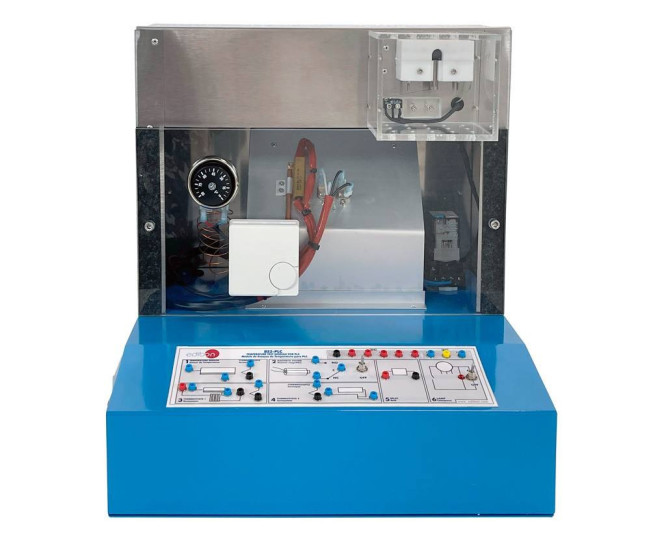

The "BS2-PLC" has been designed to study the use and applications of temperature sensors as a measure device and how to perform a temperature control through a PLC. TThe unit has a half-open space inside which there is a lamp that heats the internal part of the module and a series of temperature sensors of different technologies located in different positions. One of the temperature sensors output signal is conditioned to be connected to the PLC. The temperature inside the module can be controlled by the PLC, depending on the signal obtained from the temperature sensor.

* Available PLC models of different manufacturers: PANASONIC, SIEMENS, OMRON, MITSUBISHI, ALLEN BRADLEY, etc.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. How to use the Curie effect as application of a high temperature thermostatic controller.
  2. Adjustable bimetallic thermostat. To use the bimetallic thermostat as a temperature controller, calculating its hysteresis.
  3. Adjustable bimetallic thermostat. How we can reduce the hysteresis by adding a heating element to the heating circuit.
  4. To use the thermostat based on a bimetallic sensor to control the temperature.
  5. To use the capillary thermostat.
  6. Using the analog inputs and outputs of the PLC to read and write analog signals.
  7. Read the temperature sensor signal with the PLC.
  8. Manual control of the actuator through the PLC.
  9. PID control of the temperature value through the PLC.
  10. Observe the effects of the temperature control to changes in the PID parameters.

ÉLÉMENTS INCLUS
