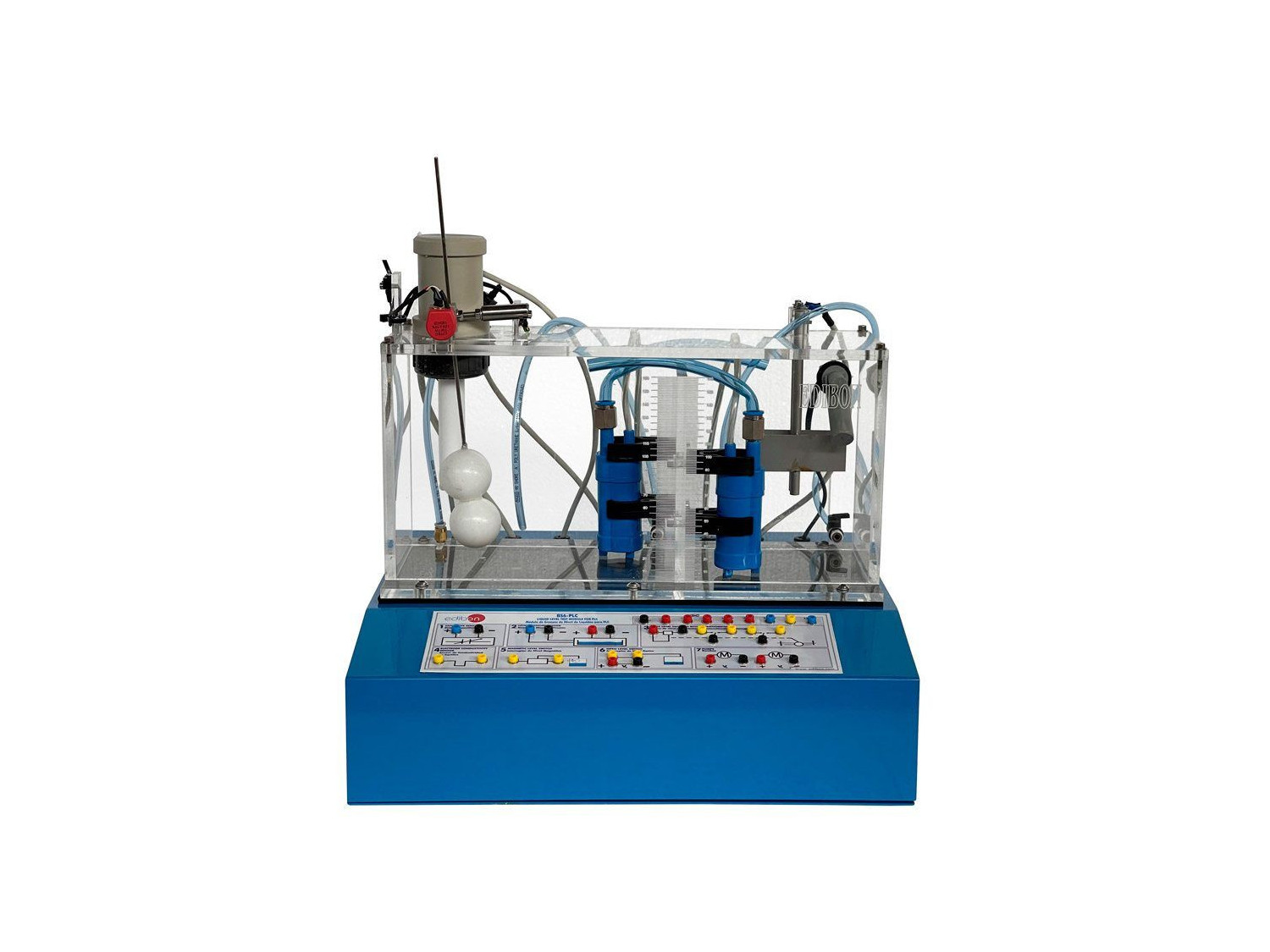

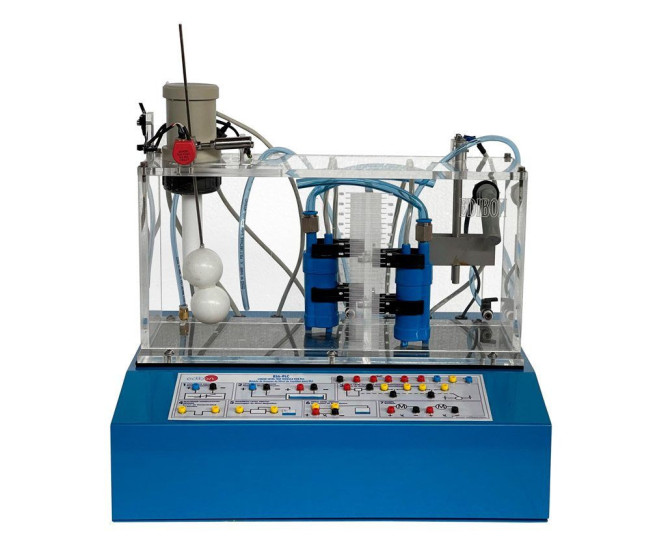

The "BS6-PLC" has been designed to study the liquid level measurement and control techniques of a tank through a PLC.

Voir description générale

Description Générale

The "BS6-PLC" has been designed to study the liquid level measurement and control techniques of a tank through a PLC. This unit is unit with two tanks with sensor of different technology for level measurement. One of the level sensor output signals is conditioned to be connected to the PLC. Each tank has an individual DC pump, which can be used to pump liquid from one tank to another. The level control of liquid can be controlled by PLC depending on the obtained signals from a sensor.

* Available PLC models of different manufacturers: PANASONIC, SIEMENS, OMRON, MITSUBISHI, ALLEN BRADLEY, etc.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. To use a capacitive sensor to measure the liquid level in the tank.
  2. To use the differential pressure sensor as an element to determine the water level in a tank.
  3. To use a changeable resistance fixed to a float system as a liquid level measurement element.
  4. Conduction Sensor. Use of a sensor made up of to steel electrodes to measure the water level of a tank.
  5. Magnetic float level sensor. It detects a precise liquid level in the tank with a magnetic contact.
  6. Control of the module left tank liquid level using an optical level sensor.
  7. Using the analog inputs and outputs of the PLC to read and write analog signals.
  8. Read the tachometer signal with the PLC.
  9. Manual control of the actuator through the PLC.
  10. PID control of the angular speed value through the PLC.
  11. Observe the effects of the angular speed control to changes in the PID parameters.
