MBM1 Mécanisme à Bielle et Manivelle
SYSTEMES INNOVANTS
The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion.
Expansions
Laboratories
NOUVELLES LIÉES
Description Générale
The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to a rigid bar, called connecting rod.
When rotating the crank, the connecting rod moves back and forward. The rotation motion of a crank or crankshaft causes a rectilinear reciprocating motion of a piston or plunger. It is a reversible system through which the connecting rod can be displaced by turning the crank and the other way round. If the connecting rod generates the input motion (as a piston in a car engine does), the crank is forced to rotate.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Demonstration of the action of a simple crank and slotted link mechanism.
- Graphic determination of the relationship between the linear displacement of the sliding block and the angular displacement of the input crank.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Los ejercicios más avanzados pueden incluir la determinación de la velocidad y aceleración del bloque deslizante mediantediferenciación gráfica y comparación con los valores obtenidospor diagramas de velocidad y aceleración.
EQUIPEMENT COMPLEMENTAIRE

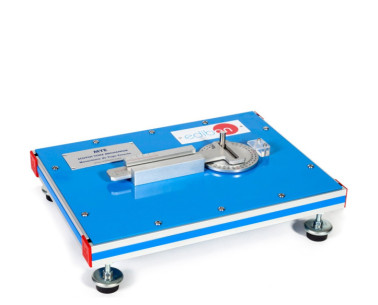

Mécanisme Scotch Yoke

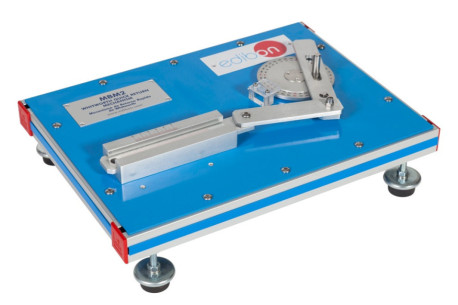

Mécanisme de Retour Rapide Whitworth

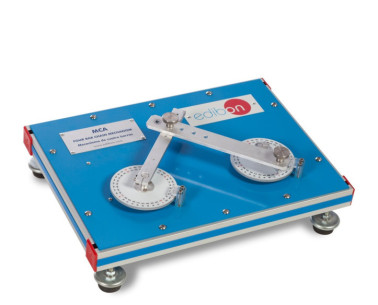

Mécanisme à Quatre Barres

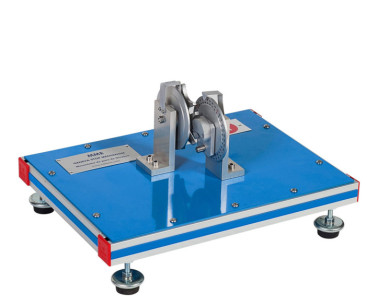

Mécanisme d'Arrêt Genève

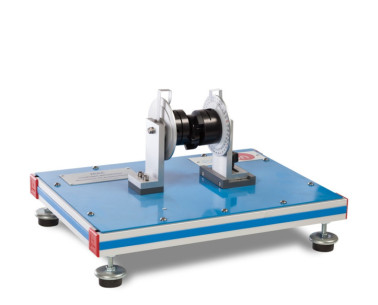

Mécanisme d'Accouplement
Mécanisme Commun Universel

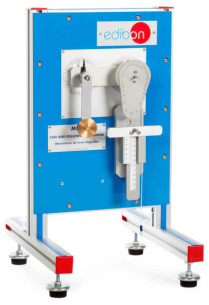

Mécanisme de Came et Suiveur
Mécanisme de Manivelle

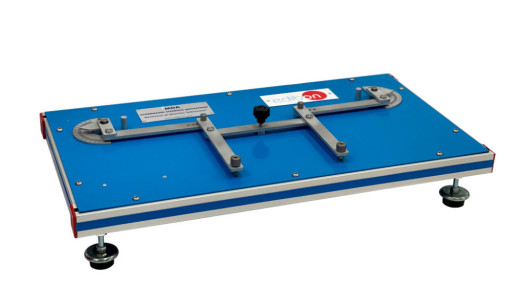

Mécanisme de Direction "Ackermann"

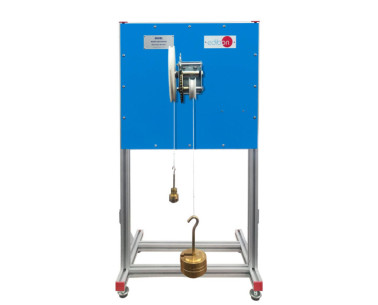

Mécanisme de Levage
Unité de Couplage de Barre
