AEL-BESTA Application de Test de Batteries pour le Stockage d'Énergie

5.5.- STOCKAGE DE L'ÉNERGIE
BATTERY ENERGY STORAGE TEST APPLICATION - AEL-BESTA

SYSTEMES INNOVANTS

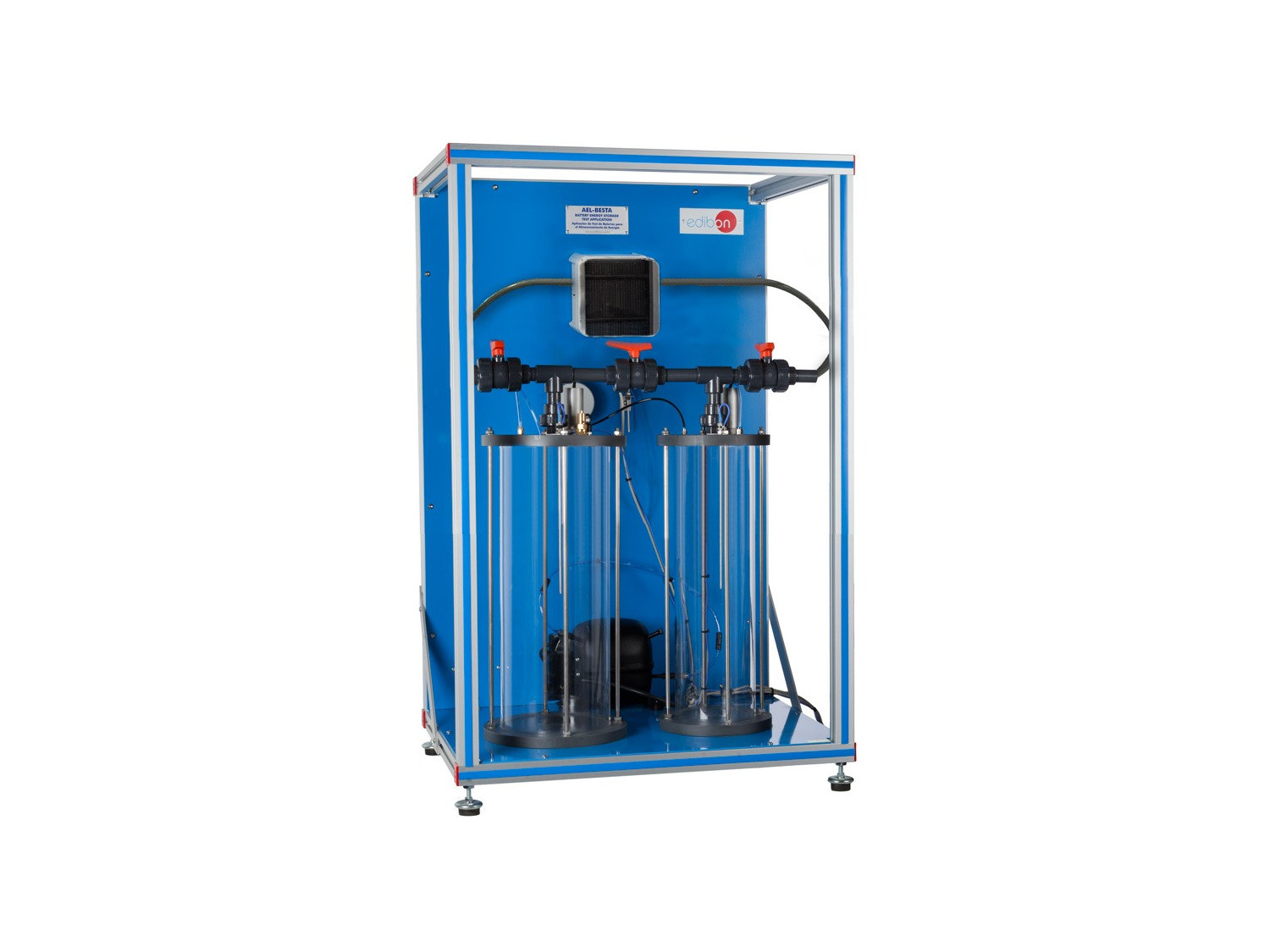

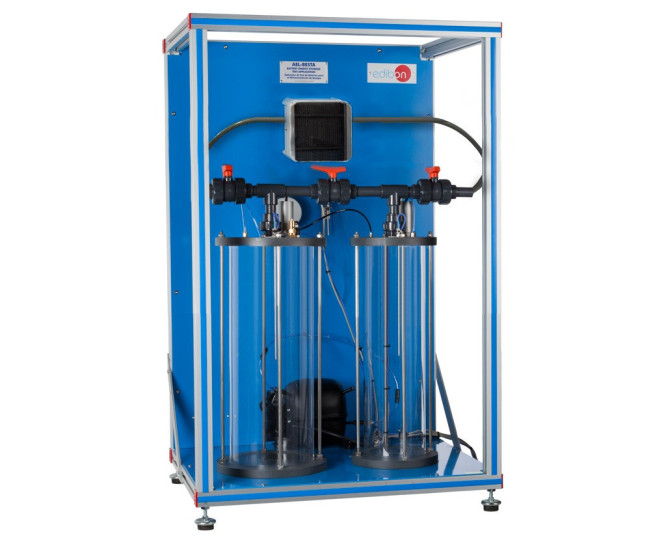

The Battery Energy Storage Test Application, AEL-BESTA, has been designed by EDIBON to perform a complete characterization of the most common types of batteries. The AEL-BESTA is a computerized unit that allows the student to perform all battery tests in an automatic way and manage and save the obtained curves and charts for further analysis and comparisons.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Description Générale

There are different systems to store energy, one of the most usual ways is the rechargeable electric batteries. There are many different types of batteries: lithium-ion, lithium-ion polymer, lead-acid, solid-state, redox flow battery, etc. Every battery has different characteristics that make them appropriate for different applications.

The Battery Energy Storage Test Application, AEL-BESTA, has been designed by EDIBON to perform a complete characterization of the most common types of batteries. The AEL-BESTA is a computerized unit that allows the student to perform all battery tests in an automatic way and manage and save the obtained curves and charts for further analysis and comparisons.

The AEL-BESTA is designed to perform battery discharge curves with the selected output current, analyze the depth of discharge, measure the different voltage values in open-circuit and when the battery is under operation, analyze the real battery capacity for different batteries and compare the capacity of the same battery with different number of charge-discharge cycles to obtain the life cycle curve.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Life-cycle battery tests.
  2. Verification of the battery durability.
  3. External load connection for higher load currents on discharge.
  4. Identification of possible faults in the battery during the tests.
  5. Comparison of different life cycles with different battery models.
  6. Verification of the battery life-cycle.
  7. Verification of the Lithium-Iron-Phosphate battery durability.
  8. Load connection in the Lithium-Iron-Phosphate battery to analyze the discharge.
  9. Load connection in the Redox Flow battery to analyze the discharge.
  10. Verification of the Redox Flow battery durability.
  11. Load connection in the Lead-Acid battery to analyze the discharge.
  12. Verification of the Lead-Acid battery durability.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Several other exercises can be done and designed by the user.
