TECNEL Unité pour l´Étude de l´Électronique de Puissance (avec IGBTS), Contrôlée par Ordinateur (PC)

COMPUTER CONTROLLED TEACHING UNIT FOR THE STUDY OF POWER ELECTRONICS (WITH IGBTS) - TECNEL

SYSTEMES INNOVANTS

The Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS), "TECNEL" is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, DC/AC, DC/DC, AC/AC converters.

Voir description générale

NOUVELLES LIÉES

Description Générale

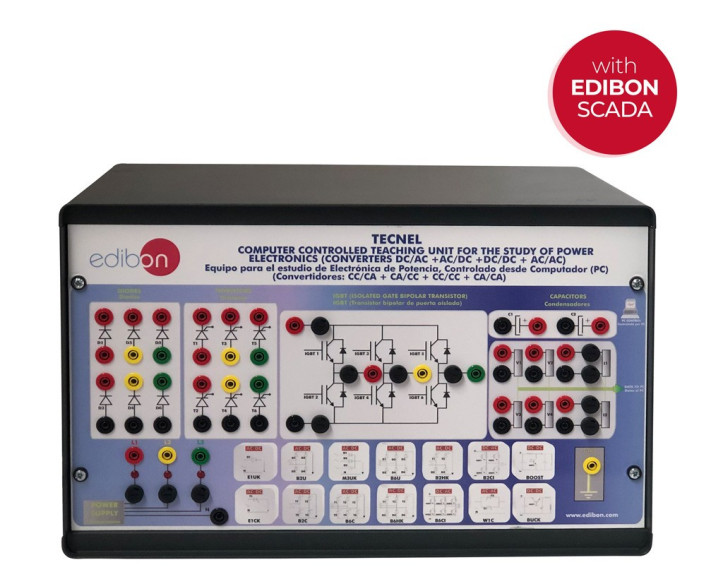

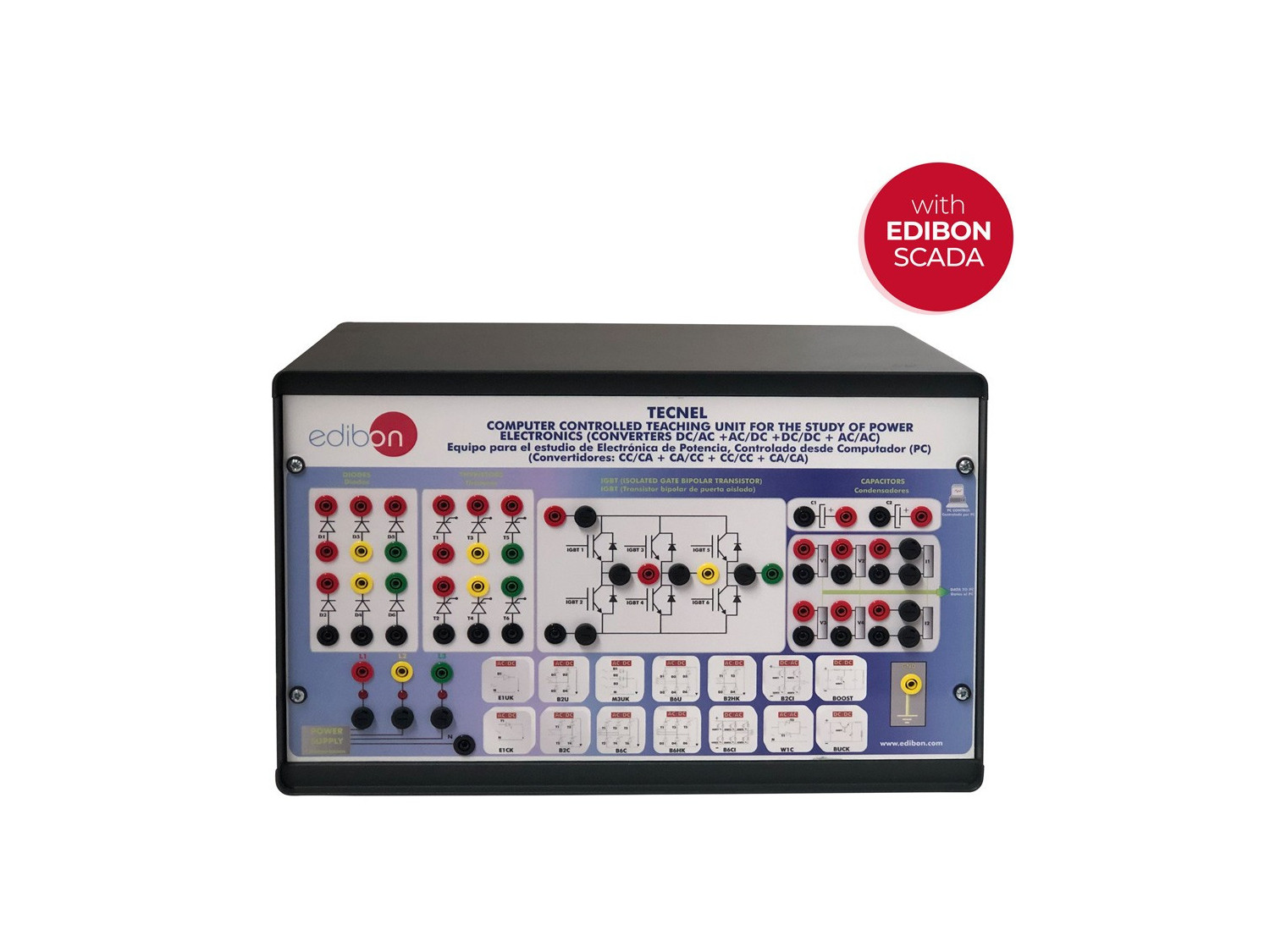

The Computer Controlled Teaching Unit for the Study of Power Electronics (with IGBTS), "TECNEL" is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, DC/AC, DC/DC, AC/AC converters.

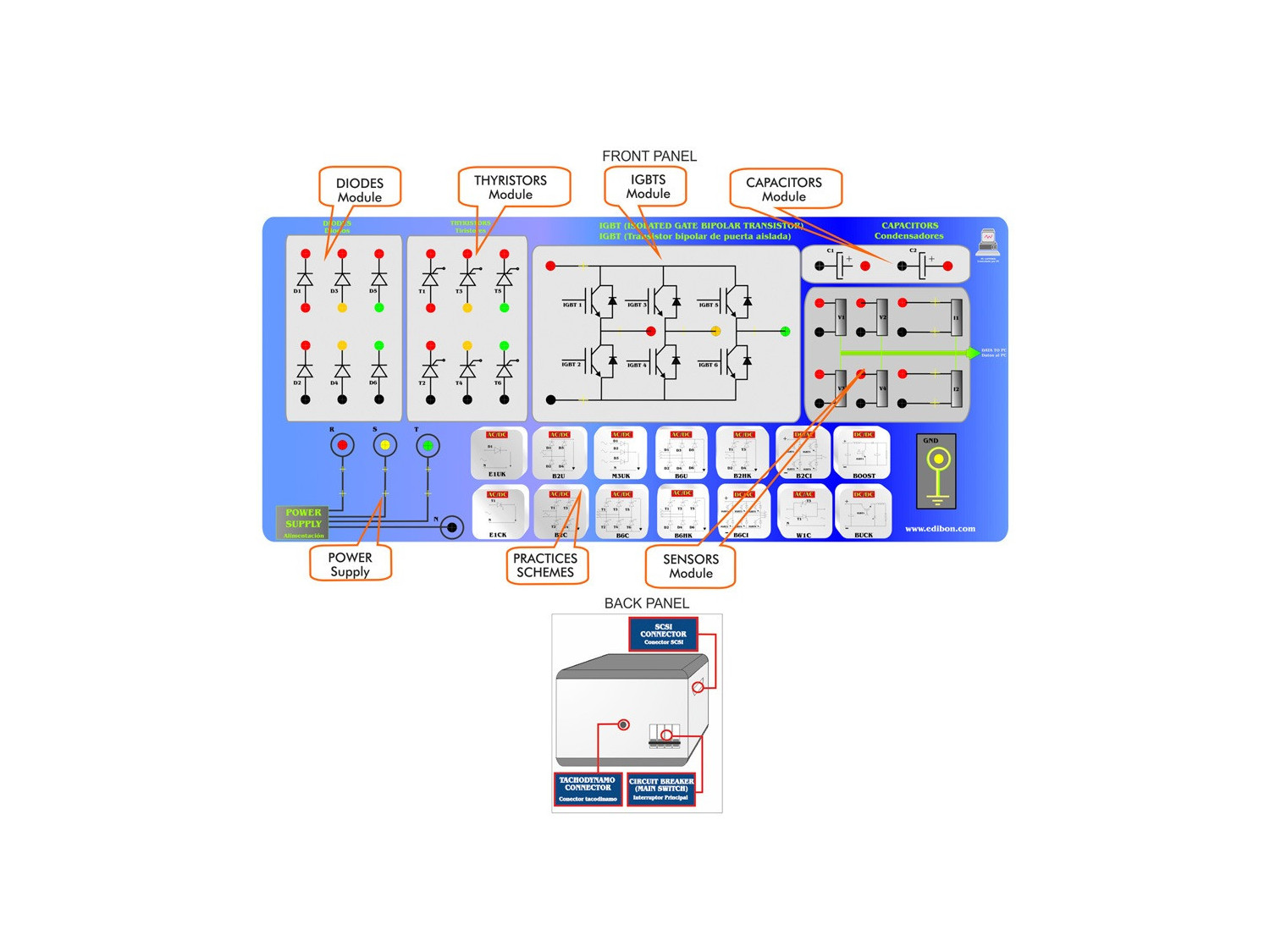

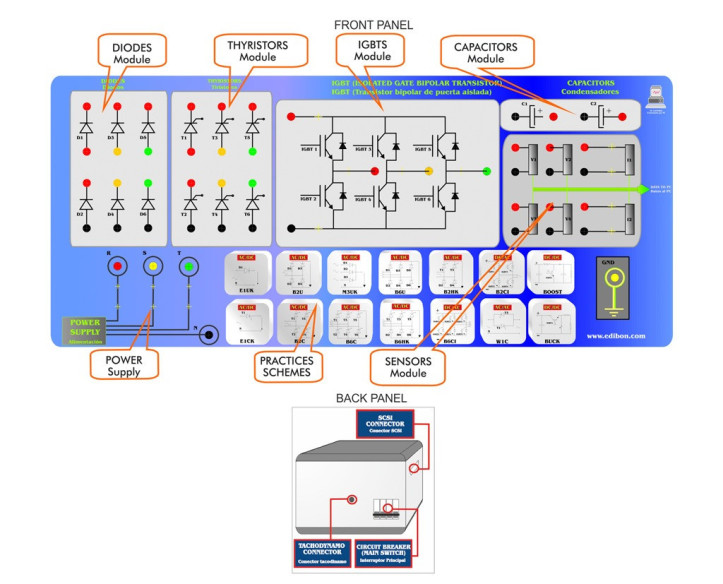

Basically, it consists of three modules of power electronics elements: diodes, thyristors and IGBTS.

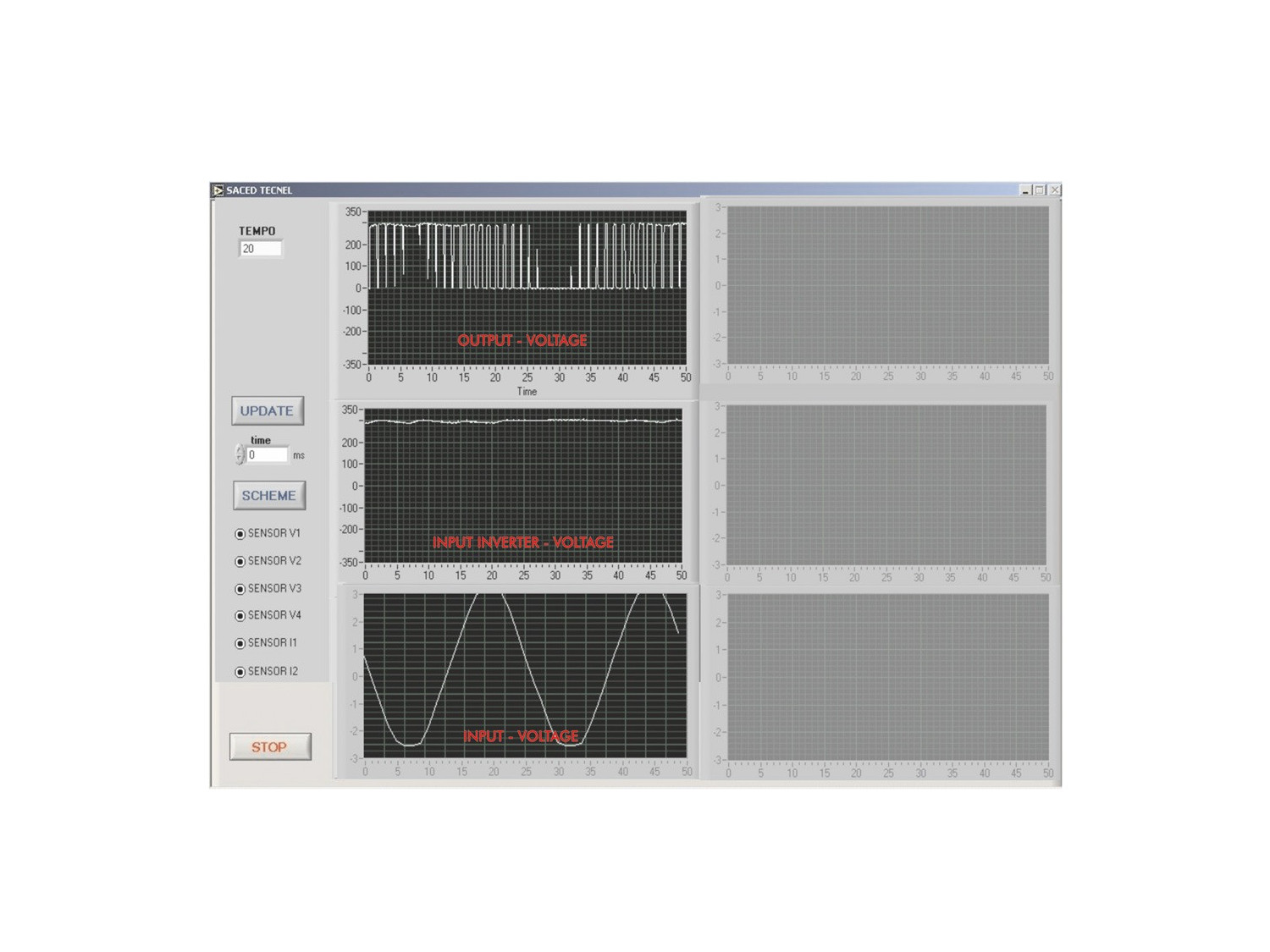

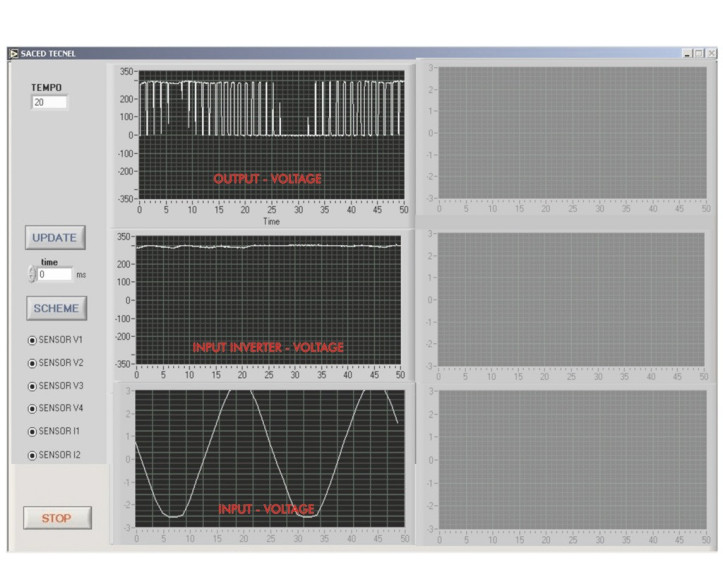

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Single phase half-wave rectifier with load R.
  2. Single phase half-wave rectifier with load R-L.
  3. Single-phase half-wave rectifier with R-L load with free wheeling diode (FWD).
  4. Single-phase full-wave rectifier.
  5. Three-phase half-wave uncontrolled rectifier.
  6. Three-phase full-wave uncontrolled rectifier.
  7. Single-phase half-wave controlled rectifier.
  8. Single-phase full-wave controlled rectifier.
  9. Single-phase full-wave controlled rectifier with a DC motor.
  10. Three-phase full-wave completely controlled.
  11. Single-phase semi-controlled rectifier.
  12. Three-phase full-wave semi-controlled rectifier.
  13. Chopper.
  14. Single-phase square-wave inverter.
  15. Single-phase displaced-phase inverter.
  16. Single-phase inverter. PWM control.
  17. Three-phase inverter. PWM control with R load and R-L load.
  18. Three-phase inverter. PWM control with AC motor.
  19. Alternating regulators: R and R-L load.
  20. Asynchronous three-motor with rotor in short circuit (squirrel cage).

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Several other exercises can be done and designed by the user.
