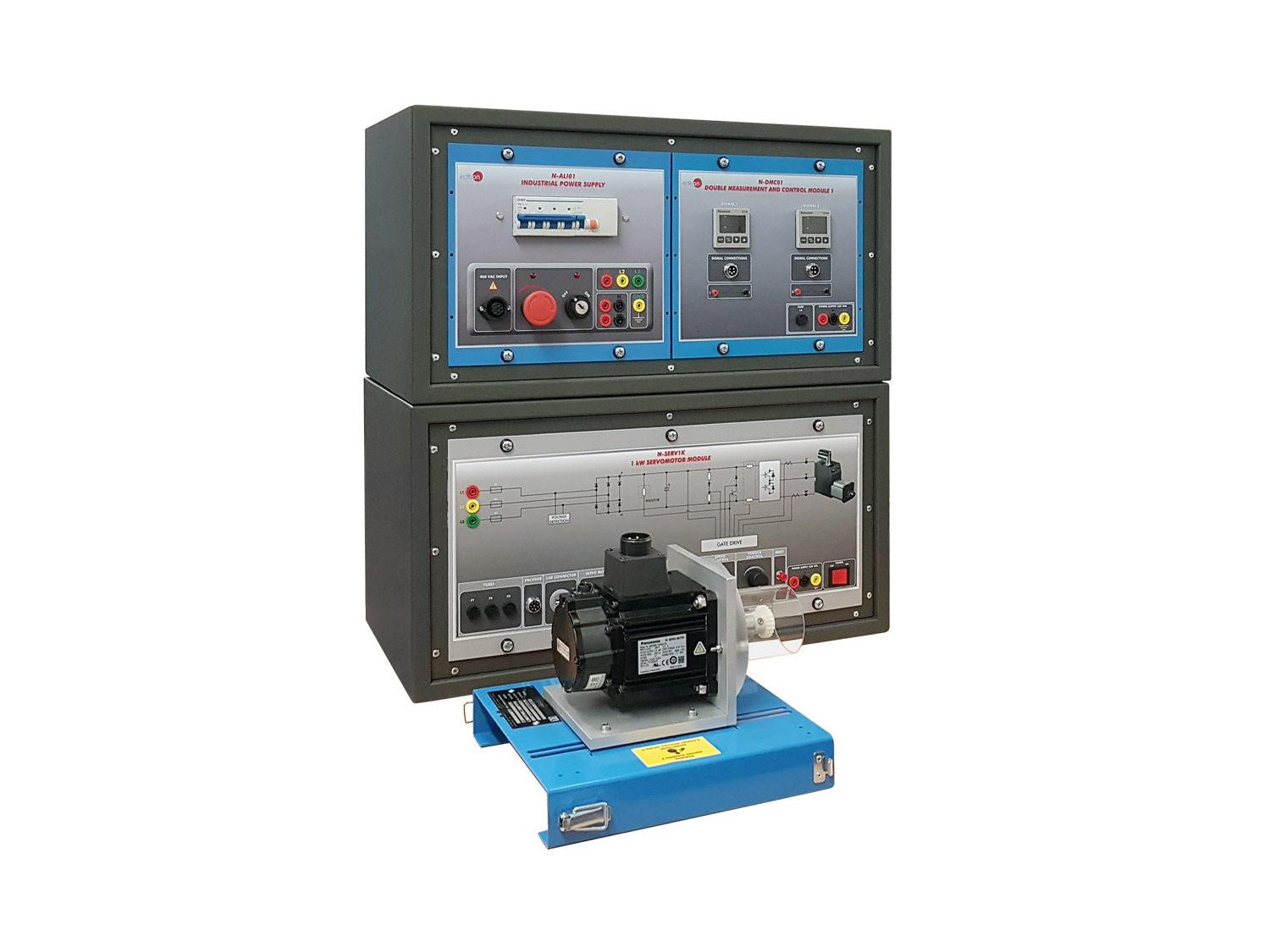

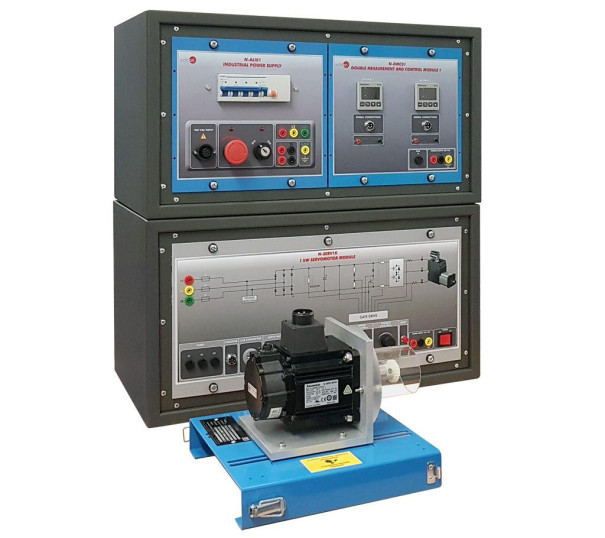

The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.

Voir description générale

NOUVELLES LIÉES

Description Générale

The 1 kW AC Industrial Servomotor Application, "AEL-SERIN/CA-1KW", has been designed to study the working principle and control of industrial servomotors.

The "AEL-SERIN/CA-1KW" allows the user to acquire knowlegde and experience in the control of the mechanical parameters of a servomotor.For this purpose, the application includes a servomotor along with its control module and two digital meters to monitor speed and torque values throughout the whole process.

In addition, once this knowledge has been acquired the user will be able, if desired, to carry out manual tests for rotating electrical machines with the goal of setting different operating conditions to obtain its characteristic curves and parameters.

In order to carry out advanced electrodynamic tests for rotating electrical machines, it is recommended to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA". This advanced software allows monitoring waveforms for voltage, current, torque and speed for the in-depth study of the electrical machines to be tested.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Wiring and starting up the AC servomotor.
  2. Start/Stop operations of the servomotor.
  3. Speed control operation.
  4. Torque control operation.
  5. Warnings through alarm.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Some practical possibilities in case of acquiring at least one electrical machine application:

  1. Start-up of the electrical machine coupled to the servomotor.
  2. Introducing the braking torque.
  3. Monitoring of the electrical and mechanical parameters of the rotating machine under different operating conditions.
  4. Electrodynamic study of the machine.
  5. Obtaining the characteristic curves of the machine by means of manually controlled braking tests (torque-speed, torque-current etc.)

Practical exercises with the recommended Software, "EM-SCADA":

  1. Real time torque monitoring.
  2. Real time speed monitoring.
  3. Real time monitoring of current and voltage RMS values.
  4. Real time monitoring of current and voltage waveforms.
  5. Advanced electrodynamic study of the machine.
  6. Automatic braking test and monitoring of the results.
  7. Obtaining the characteristic curves of the machine (torque-speed, torque-current etc).
  8. Saving and comparison of results.
