UNIT TO STUDY A HYDRODYNAMIC JOURNAL BEARING ASSEMBLY - HJBA

SYSTEMES INNOVANTS

Description Générale

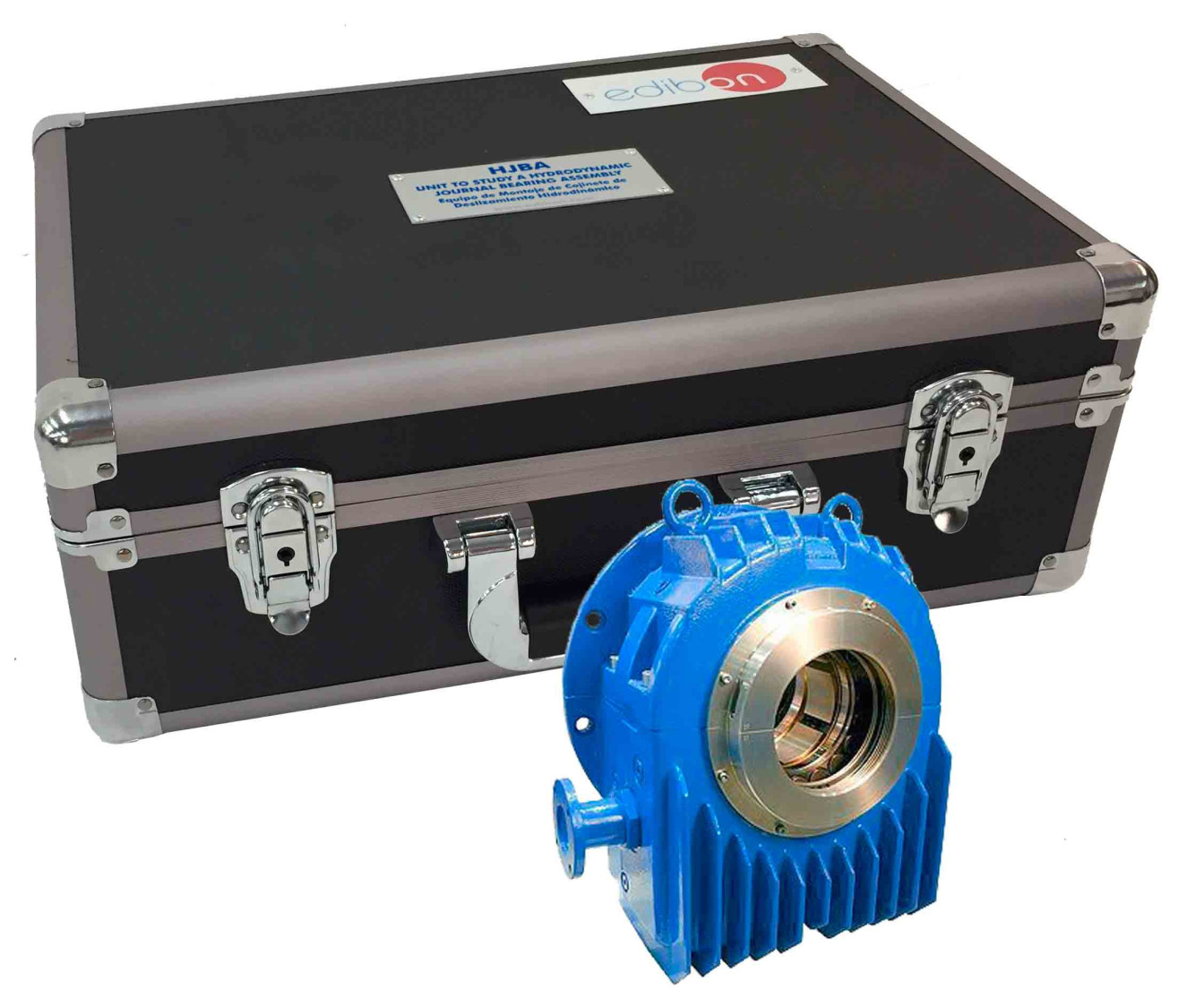

The Unit to Study a Hydrodynamic Journal Bearing Assembly, "HJBA", is a horizontally sectioned hydrodynamic bearing. For an even transfer of the generated forces to the lower part of the bearing case, the bearings in said case are supported by a spherical surface.

The lubrication of the bearing is given by a loose lubrication ring. Commercial mineral oils may be used as lubricants.

The unit contains an auxiliary shaft that allows to make an ideal assembly and check the operation. The unit consists of a floating gasket to seal the shaft by the front face. The contact areas of the half-cases are sealed by using sealant putty, which does not harden, and prevents dirt from coming in from the outside.

The parts are supplied in an aluminum case with adequate protection. Teaching materials are also included, providing all the necessary information to carry out the different actions, information on the operation, structure and field of application of a journal bearing.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the operation of a hydrodynamic journal bearing.
  2. Analysis of the structure of a hydrodynamic journal bearing.
  3. Study and understanding of the sealing components.
  4. Study and analysis of the principles and different types of lubrication.
  5. Study and performance of assembly and disassembly exercises, as well as repair and maintenance.
  6. Reading comprehension of technical drawings and instruction manuals.
