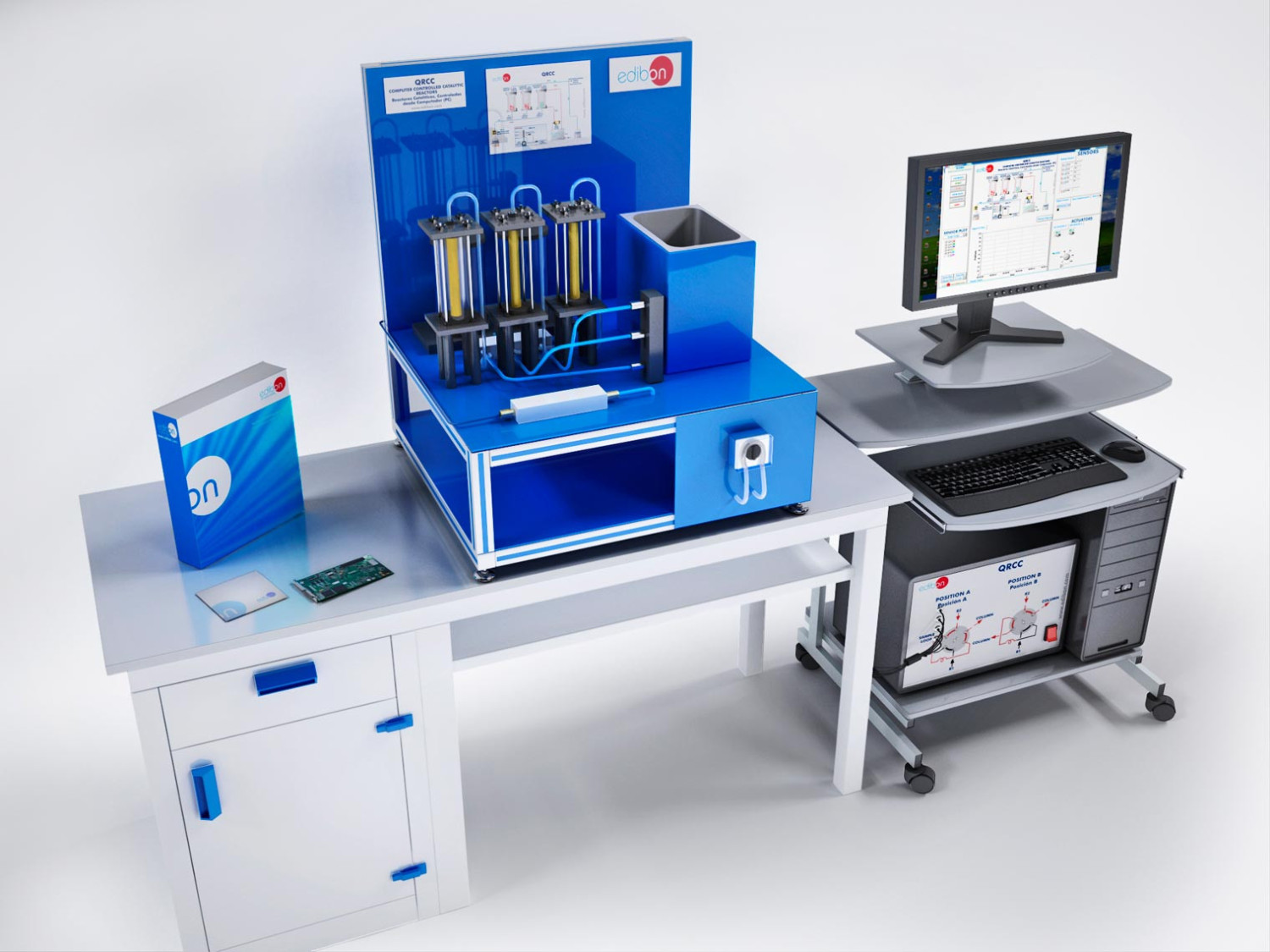

Complete QRCC Unit

COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC
COMPUTER CONTROLLED CATALYTIC REACTORS - QRCC

SYSTEMES INNOVANTS

The Computer Controlled Catalytic Reactors, "QRCC", has been designed by EDIBON to perform the saccharose hydrolysis reaction in a continuous way by using catalytic fixed-bed reactors application.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

EDIBON Cloud Learning

Laboratories

11TV
 Laboratoire de Génie Chimique pour l'enseignement Technique et Professionnel
11HE
 Laboratoire de Génie Chimique pour l'enseignement Supérieur
11PTC
 Laboratoire pour le Centre de Formation Pétrolière

NOUVELLES LIÉES

Collèges Supérieurs de Technologie sur le campus de Baniyas
Collèges Supérieurs de Technologie sur le campus de Baniyas
Aujourd'hui, nous souhaitons partager l'installation que nous avons réalisée aux Collèges Supérieurs de Technologie sur le campus de Baniyas. Nous avons équipé le campus de plusieurs de nos équipements de pointe en ingénierie chimique, y compris notre Tour de Refroidissement de Table Contrôlée...
Lire plus
EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Biocarburants de seconde génération : L'avenir durable chez EDIBON
Biocarburants de seconde génération : L'avenir durable chez EDIBON
Dans un monde où la demande en énergie ne cesse d'augmenter et où les ressources non renouvelables s'épuisent rapidement, la nécessité de trouver des solutions durables et respectueuses de l'environnement n'a jamais été aussi urgente. L'économie circulaire et l'utilisation de la biomasse...
Lire plus
Set up at Universidad de Huelva (Spain)
Set up at Universidad de Huelva (Spain)
Glad to announce one of our latest set-ups at Universidad de Huelva, with a complete installation for the Agroforestry Science department's students and researchers, including AFTC, QRCC, TFRC or MCEN, among others. We are proud to contribute in the technical preparation of future agroforestry...
Lire plus

Description Générale

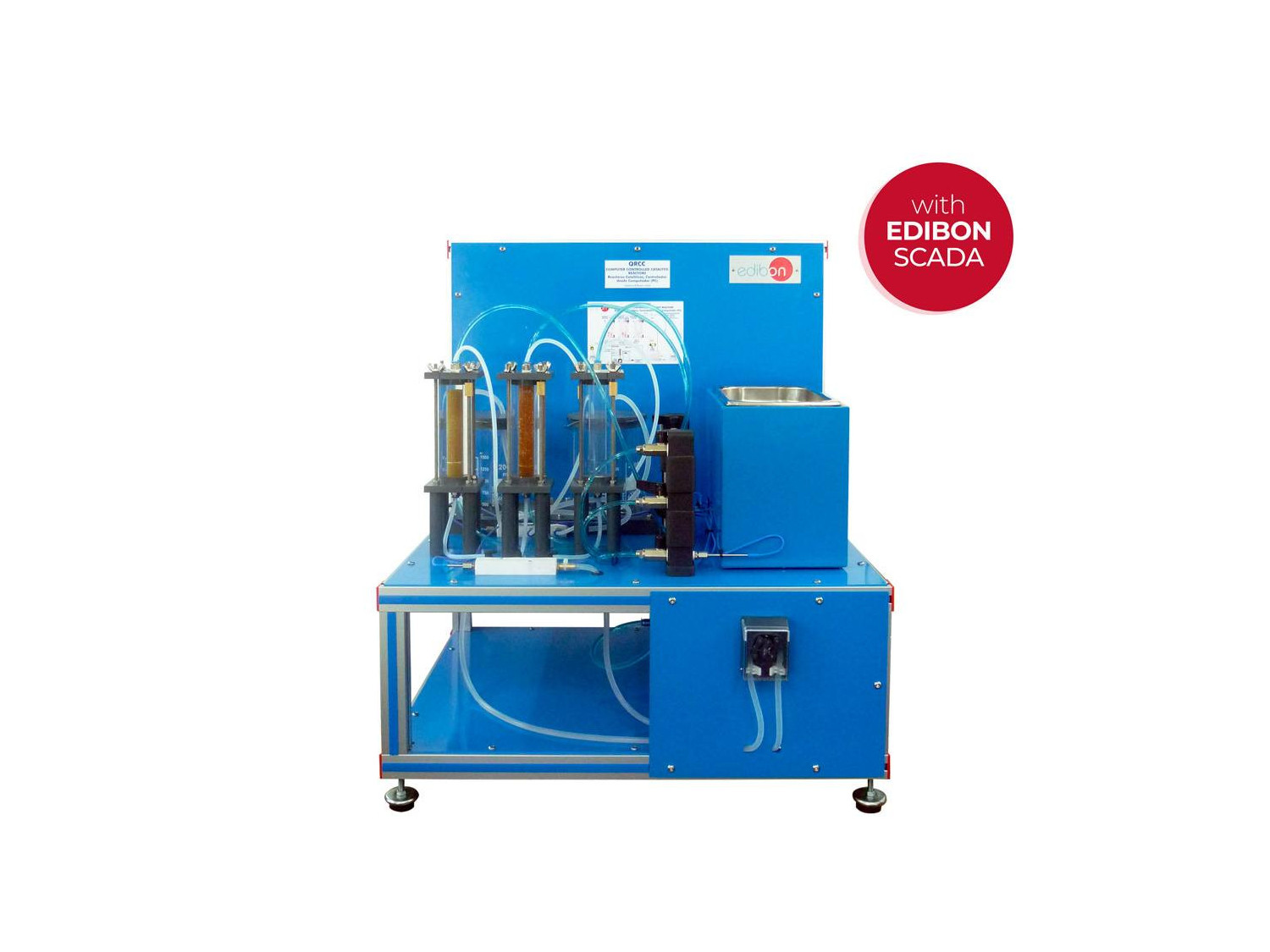

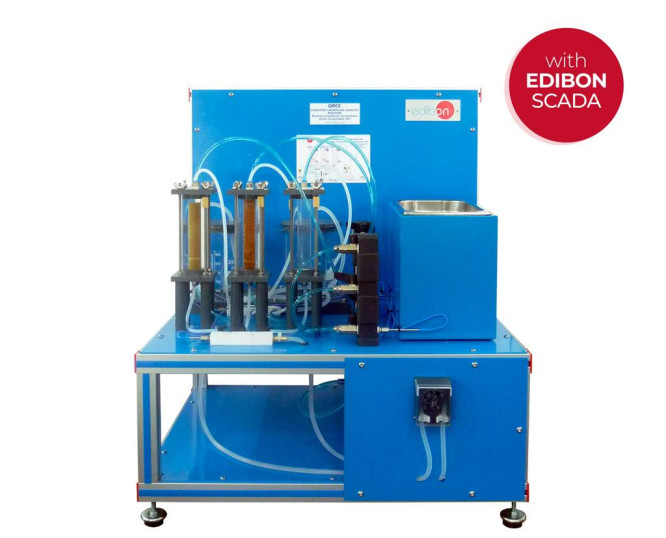

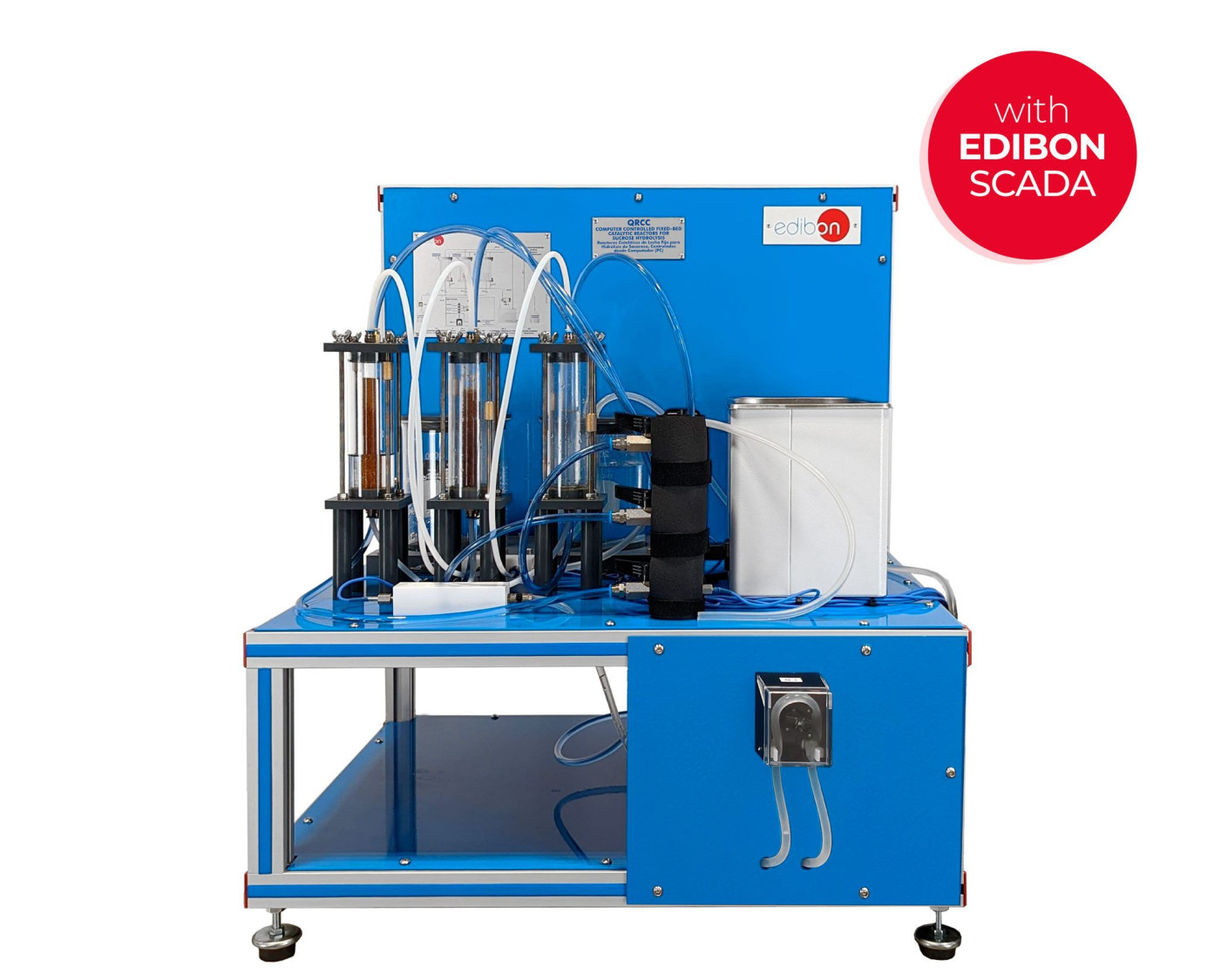

The Computer Controlled Catalytic Reactors, "QRCC", has been designed by EDIBON to perform the saccharose hydrolysis reaction in a continuous way by using catalytic fixed-bed reactors application.

Saccharose hydrolysis is the industrial process to obtain glucose and fructose from saccharose. It is a reversible chemical reaction.

The "QRCC" unit consists of three fixed bed reactors. Two of them are fixed-bed reactors for chemical catalysis, composed of the same chemical catalyst, called ion exchange resins, but with different granulometry between them. The third reactor is a fixed-bed reactor for biological (enzymatic) catalysis, which is prepared for use with an immobilized enzyme through which we will pass our product, in this case sucrose, to proceed to its hydrolysis.

Saccharose hydrolysis is favoured with temperatures around 50 °C – 60 °C. For this purpose the reactors are jacketed and hot water is circulated through them. The temperature of this water is controlled by PID control through the control software.

Feeding saccharose to our reactors is done through a peristaltic pump which allows the regulation of speed through the control software. The resulting solution is pumped to the final-product flask. From this point on it will be analysed with a spectrophotometer that is adapted to "QRCC" unit interface.

As an optional supply, there is the possibility of acquiring the additional recommended element Computer Controlled Flow Injection Analysis (FIA) Unit, "QRCC-IF". This unit is a Flow Injection Analysis system, which is used to measure the conversion degree of the reaction of the saccharose hydrolysis in a continuous way.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Accessoires

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the principles of catalytic fixed-bed reactors.
  2. Effect of the variation in the particle’s size in the effectiveness of a fixed-bed reactor.
  3. Comparison of chemical and biological (enzymic) catalysis.
  4. Checking the influence on different variables (feed flow, temperature of reaction, reagents concentration) on the obtained final product.
  5. Spectrophotometer calibration.
  6. Using the spectrophotometer and product analysis.
  7. Study of the "FIA" Flow Injection Analysis technique and principles (with QRCC-IF optional accessory).
  8. Examination of the reproducibility and sensitivity of the "FIA" analysis method as a function of the flow rate and sample concentration (with QRCC-IF optional accessory).
  9. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Studies of steady and unsteady state catalysis.
  2. Flow characterisation in a fixed-bed.
  3. Mass balances.
  4. Determination of steady state and unsteady state kinetics of a catalytic fixed-bed reactor.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the QRCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the QRCC unit process.
  9. Several other exercises can be done and designed by the user

UNITÉS SIMILAIRES DISPONIBLES
