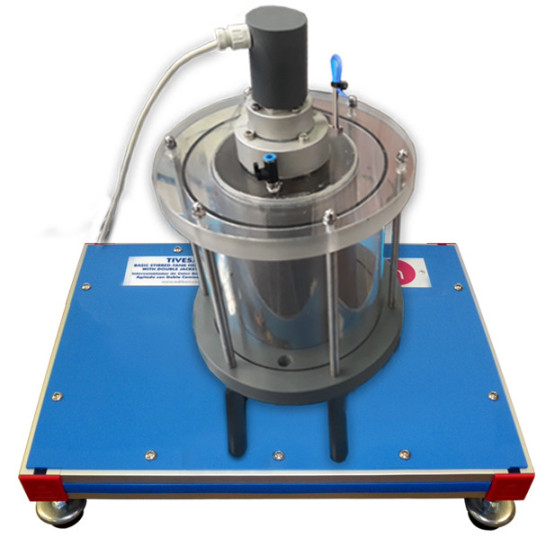

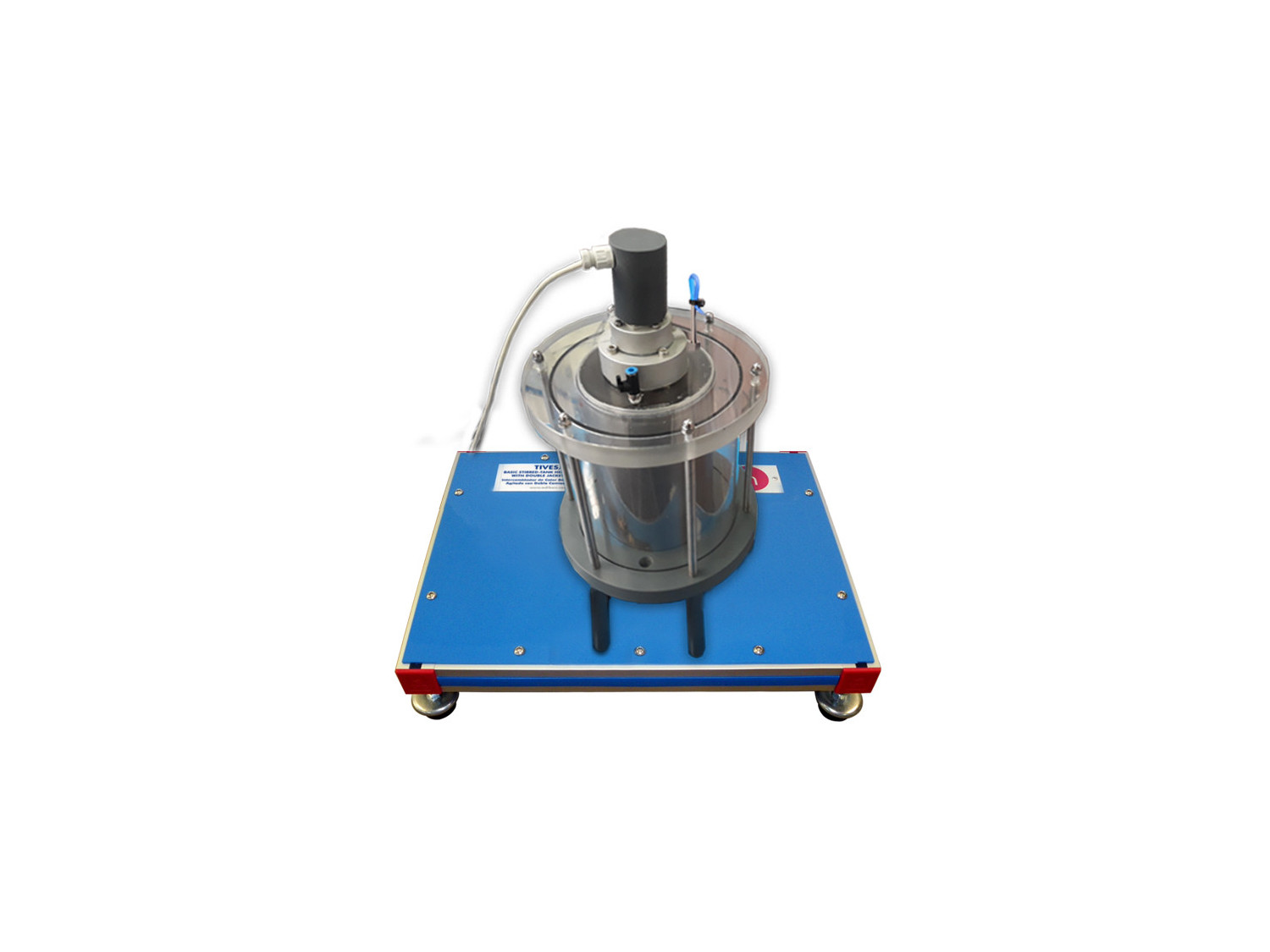

TIVES/SS Echangeur de Chaleur de Base à Double Enveloppe et Serpentin

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

1. Global balance of energy in the tank heat exchanger with double jacket and losses study.
2. Global balance of energy in the the tank heat exchanger with coil and losses study.
3. Determination of the exchanger effectiveness. NTU Method.
4. Influence of the flow on the heat transfer. Calculation of the number of Reynolds.
5. Influence of the vessel stirring on the heat transfer when operating in batches.
6. Influence of the vessel's water volume on the heat transfer when operating in batches.
7. Study of the pressure drop in the exchanger.

Additional practical possibilities:

8. Control system: Temperature sensors calibration.
9. Control system: Flow sensors calibration.
10. Study of the hysteresis of the flow sensor.
