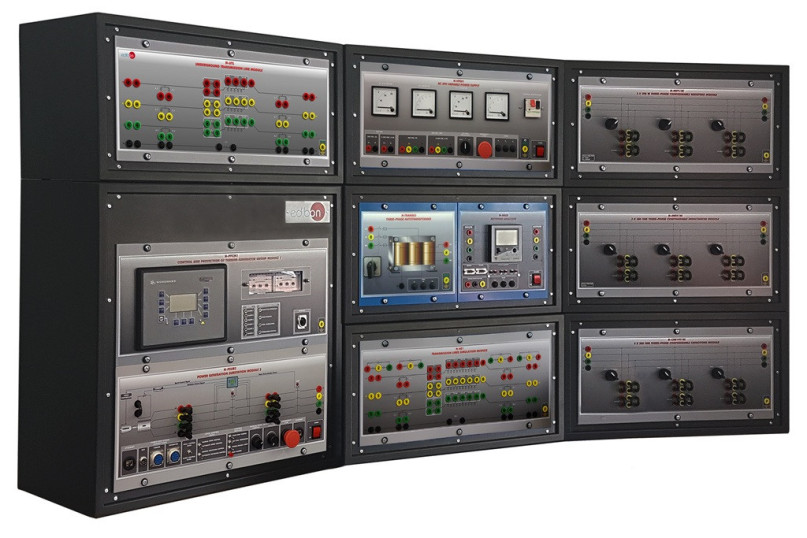

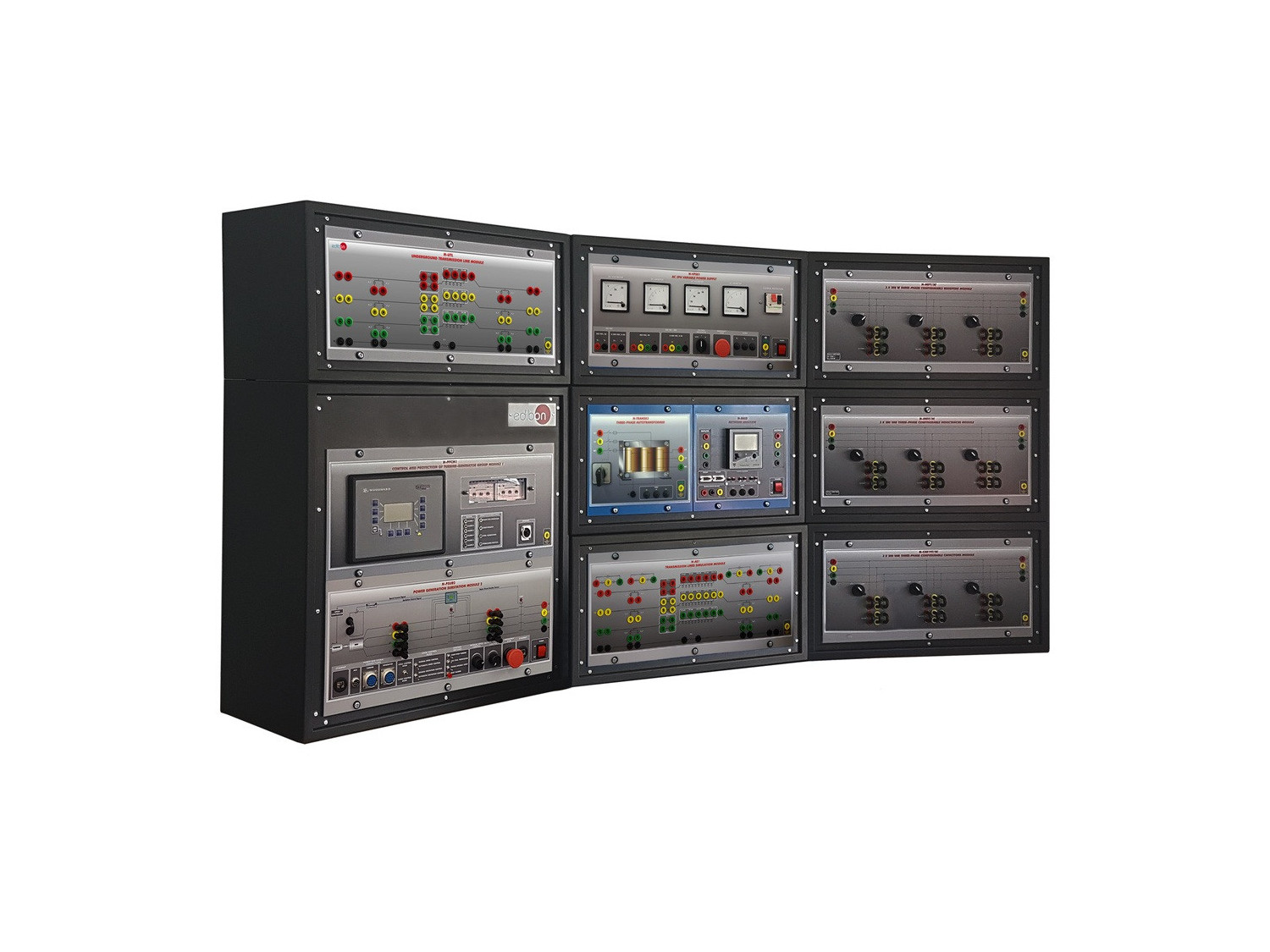

AEL-TI-04 Application de Lignes de Transmission Souterraines

UNDERGROUND TRANSMISSION LINES APPLICATION - AEL-TI-04

SYSTEMES INNOVANTS

The Underground Transmission Lines Application, "AEL-TI-04", has been designed to study the most important characteristics of underground transmission lines such as critical length, capacitive, characteristic impedance, energy losses, etc.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Underground Transmission Lines Application, "AEL-TI-04", has been designed to study the most important characteristics of underground transmission lines such as critical length, capacitive, characteristic impedance, energy losses, etc. Thus, this application allows to compare both aerial and underground transmission lines, their interconnection and the response against different type of loads.

For it, this application includes an underground line module whose electrical parameters are configurable. It has different resistances, inductances and capacitors which allow to simulate different underground transmission lines.

In addition, this application includes a three phase autotransformer module for the stage of energy distribution. Thus, it is included a network analyser to monitor and measure the electrical parameters of the transmission line such as power factor, harmonics, drop voltages, energy losses, etc..

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

Additionally, this application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the cable capacity.
  2. Calculation of the cables critical length.
  3. Determination of the characteristic impedance.
  4. Study of the differences between aerial and underground electrical lines.
  5. Energy losses calculation in underground lines.
  6. Symmetric and asymmetric faults (N-RELT module required).
  7. Analysis of faults with different system configurations of neutral (N-RELT module required).

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF Control system allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of technical education.
  6. Several other exercises can be done and designed by the user.
