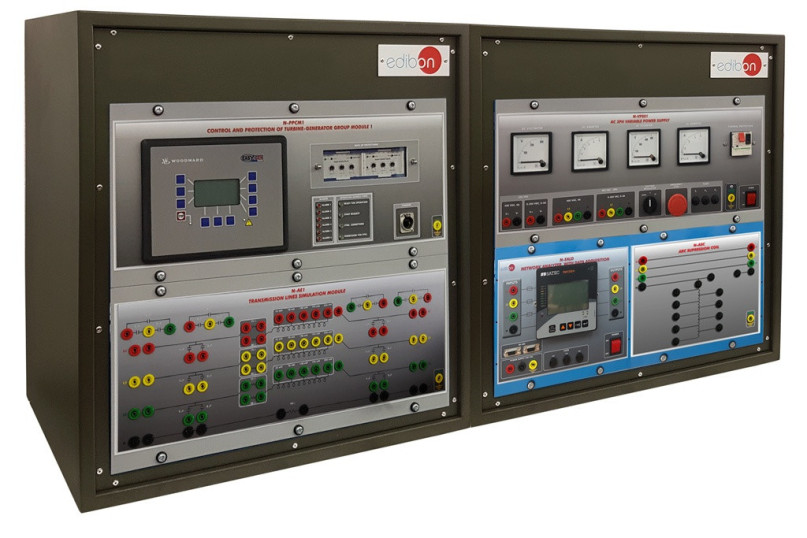

The Arc Suppression Coil Application, "AEL-TI- 03", has been designed by Edibon to show the students how it is possible to neutralize an earth fault current with a Petersen Coil.

Voir description générale

NOUVELLES LIÉES

Description Générale

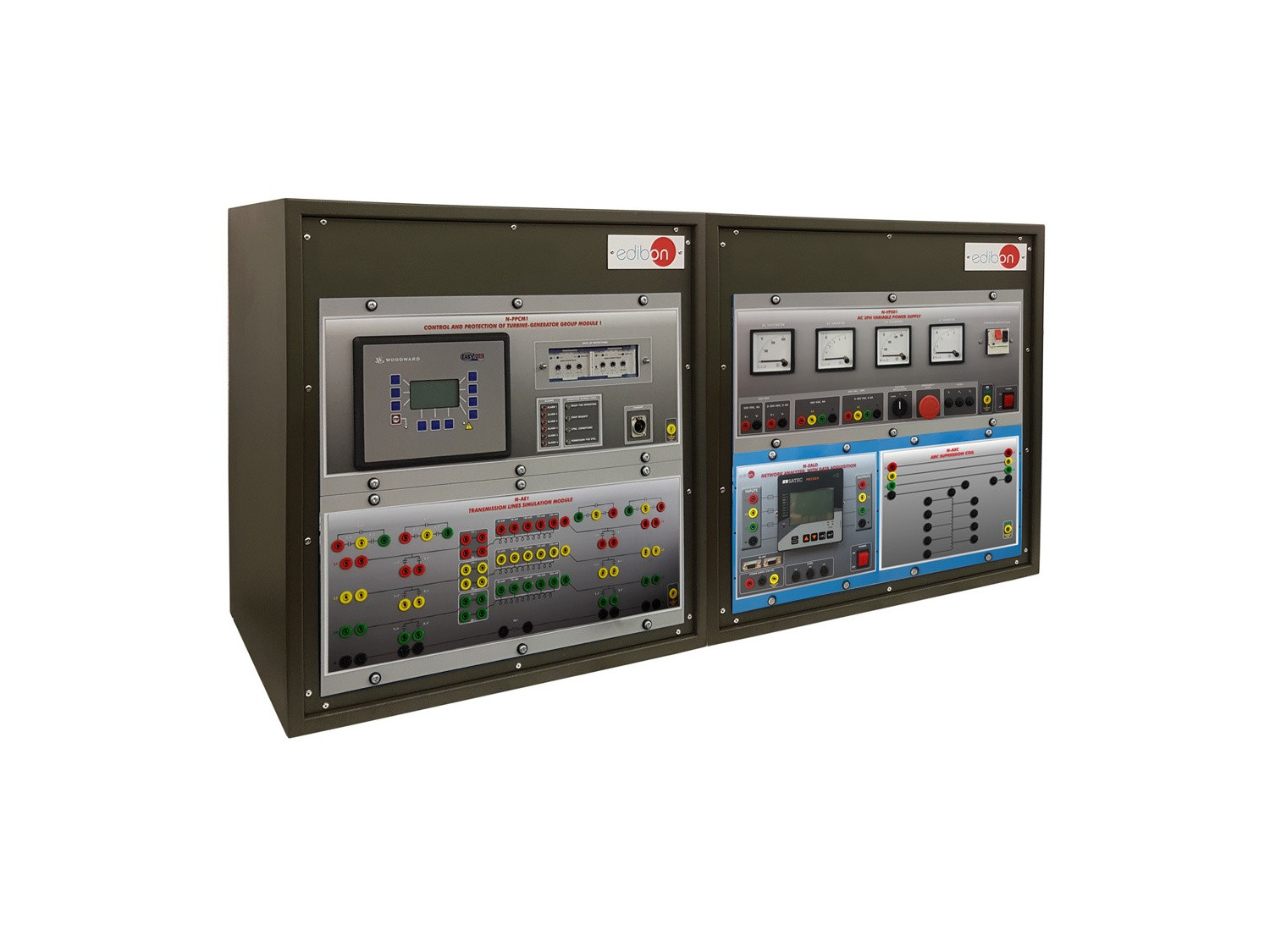

The Arc Suppression Coil Application, "AEL-TI- 03", has been designed by Edibon to show the students how it is possible to neutralize an earth fault current with a Petersen Coil.

For this purpose, this application includes a Petersen Coil module with variable reactance so that it has resonance with the capacity of the line, previously chosen by the user.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Earth-fault on a line with point in isolated neutral.
  2. Responses of the system against earth-fault on a line with earthed neutral.
  3. Compensation of capacitive fault current on a line with resonant neutral.
  4. Response of the system to earth-fault with earthed neutral.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of Technical Education.
  6. Several other exercises can be done and designed by the user.
