AEL-TI-05 Application de Lignes de Transmission en Série et en Parallèle

PARALLEL AND SERIES TRANSMISSION LINES APPLICATION - AEL-TI-05

SYSTEMES INNOVANTS

The Parallel and Series Transmission Lines Application, "AEL-TI-05", has been designed to study the parallel and series interconnection of transmission lines.

Voir description générale

NOUVELLES LIÉES

Description Générale

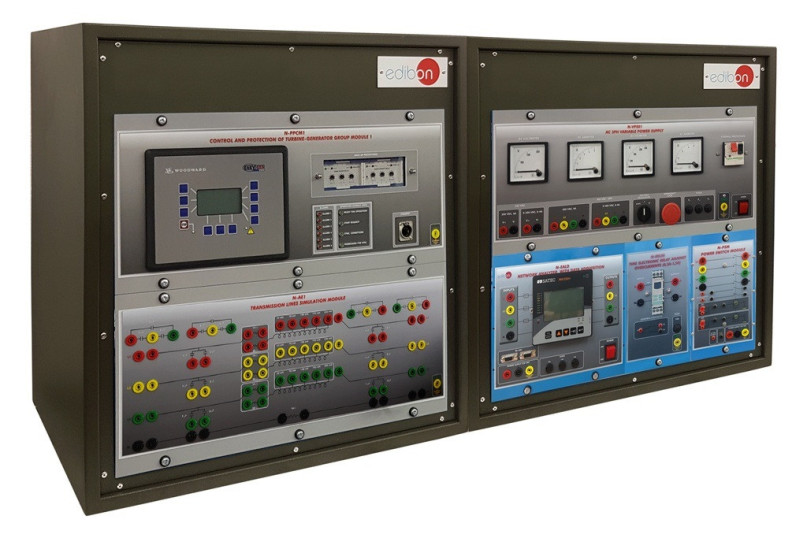

The Parallel and Series Transmission Lines Application, "AEL-TI-05", has been designed to study the parallel and series interconnection of transmission lines. The users will study the relation between these configurations and the implications of them, comparing the energy losses in parallel and series lines connection.

This application includes an aerial transmission line module which consists of configurable resistances, inductances and capacitances. This module allows to configure the electrical parameters of the transmission line such as line resistances and inductances, as well as capacitive effect between line to line and line to ground.

In addition, this application includes a network analyzer module which allows the user analyzing and monitoring, in real time, the most important electrical parameters of the transmission lines such as power factor, harmonics, drop voltages, energy losses, etc.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Measurement of the most important electrical parameters with parallel lines of equal length.
  2. Measurement of the most important electrical parameters with parallel lines of different length.
  3. Measurement of the most important electrical parameters with lines in series of equal length.
  4. Measurement of the most important electrical parameters with lines in series of different length.
  5. Calculus of energy losses in series transmission lines.
  6. Calculus of energy losses in parallel transmission lines.
  7. Calculus of drop voltage in series transmission lines.
  8. Calculus of drop voltage in parallel transmission lines.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of technical education.
  6. Several other exercises can be done and designed by the user.
