COMPUTER CONTROLLED HYDROLOGIC STUDIES UNIT - ESHC(2x1m)/S

SYSTEMES INNOVANTS

The Computer Controlled Hydrologic Studies Unit, "ESHC(2x1m)/S", allows the work in an autonomous way for the study of the behaviorof the water inside the soil being able to carry out a wide variety of experiments thanks to the specifications of the equipment.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Computer Controlled Hydrologic Studies Unit, "ESHC(2x1m)/S", allows the work in an autonomous way for the study of the behaviorof the water inside the soil being able to carry out a wide variety of experiments thanks to the specifications of the equipment.

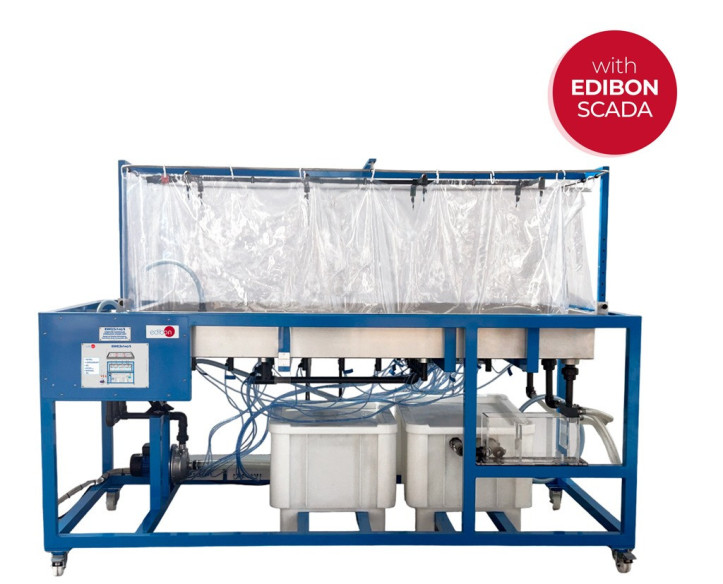

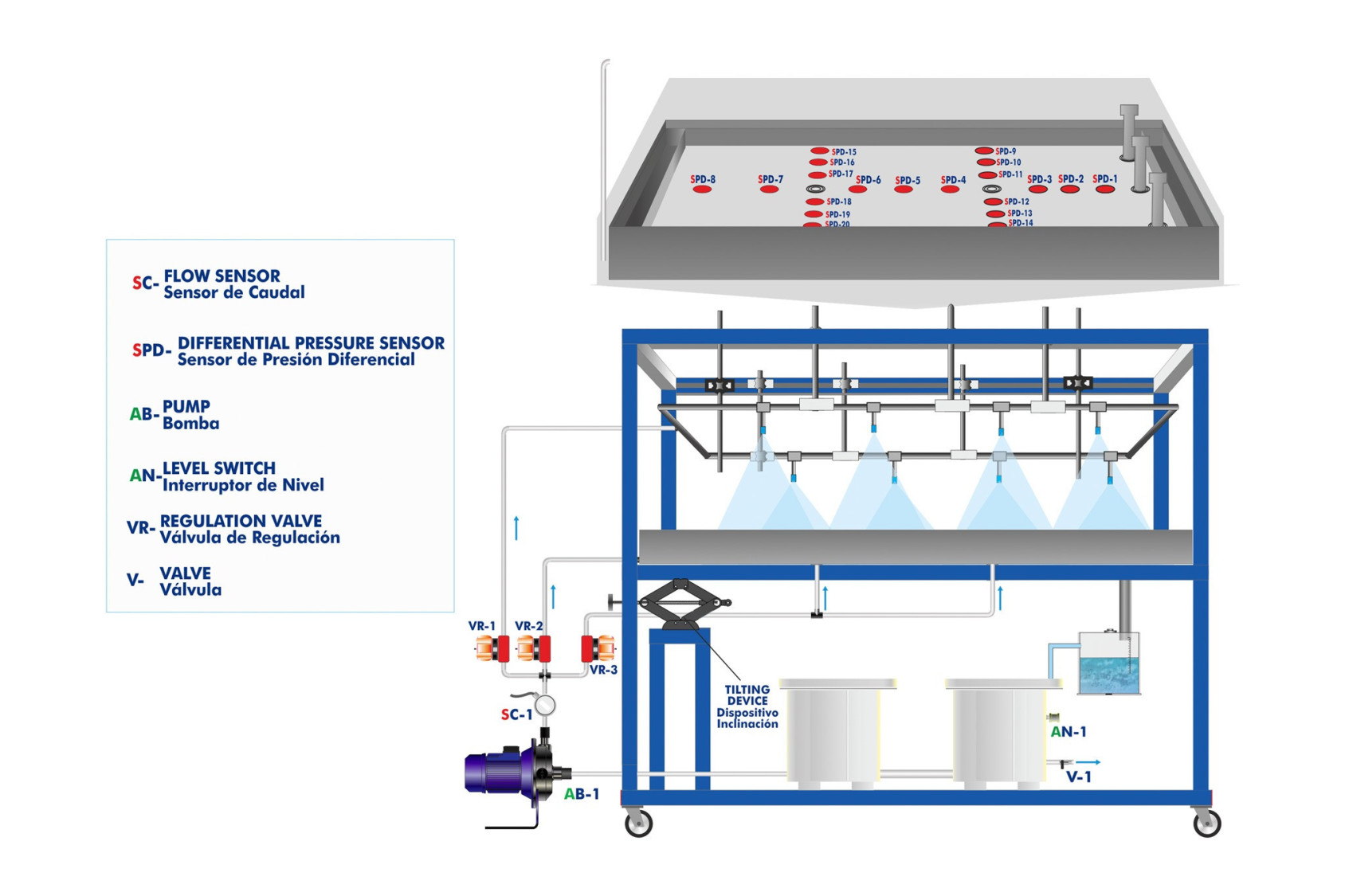

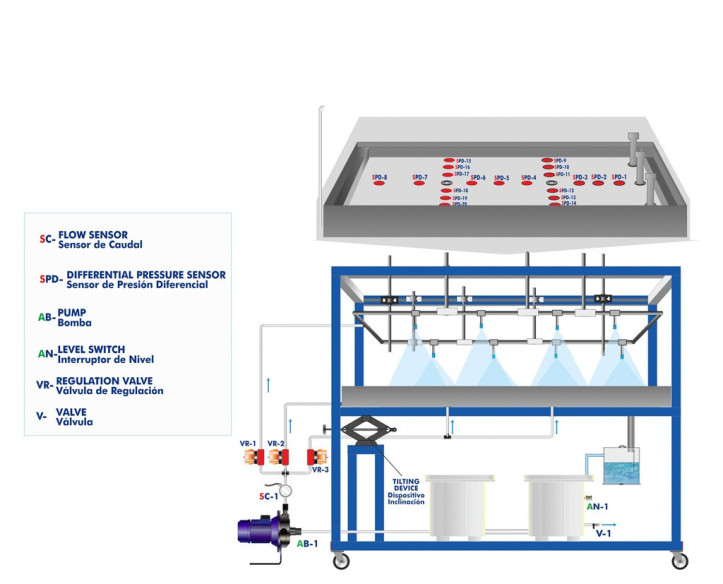

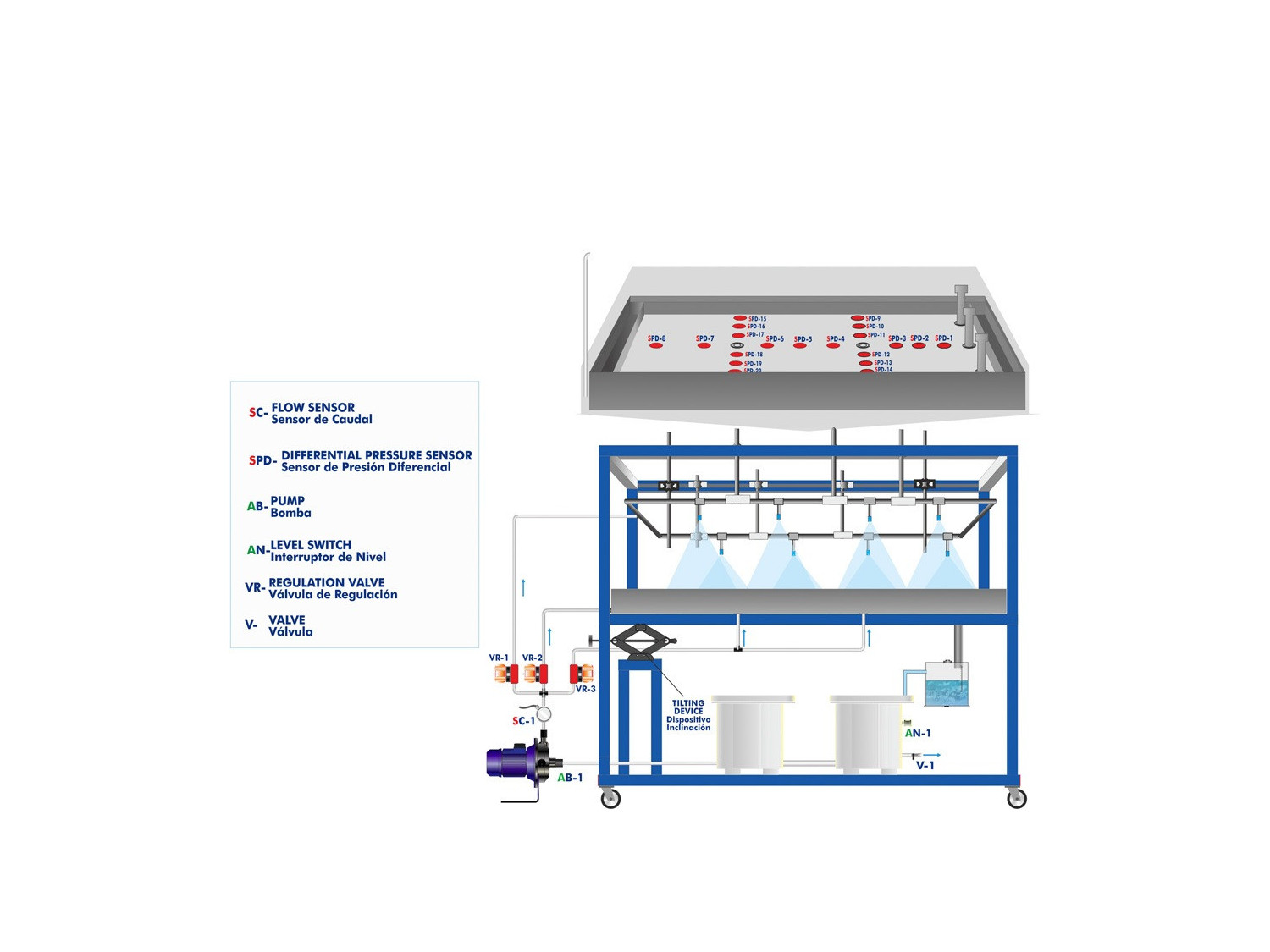

The equipment consists of a closed water circuit allowing the operation continuously or discontinuously, an important parameter whenstudying processes such as water level distribution around a well (stationary process) or water infiltration after precipitation (non-stationaryprocess) using a single piece of equipment. The closed circuit consists of a water tank, a computer controlled pumping, flow sensor,different flooding devices over the test area and a drainage system to recover the water.

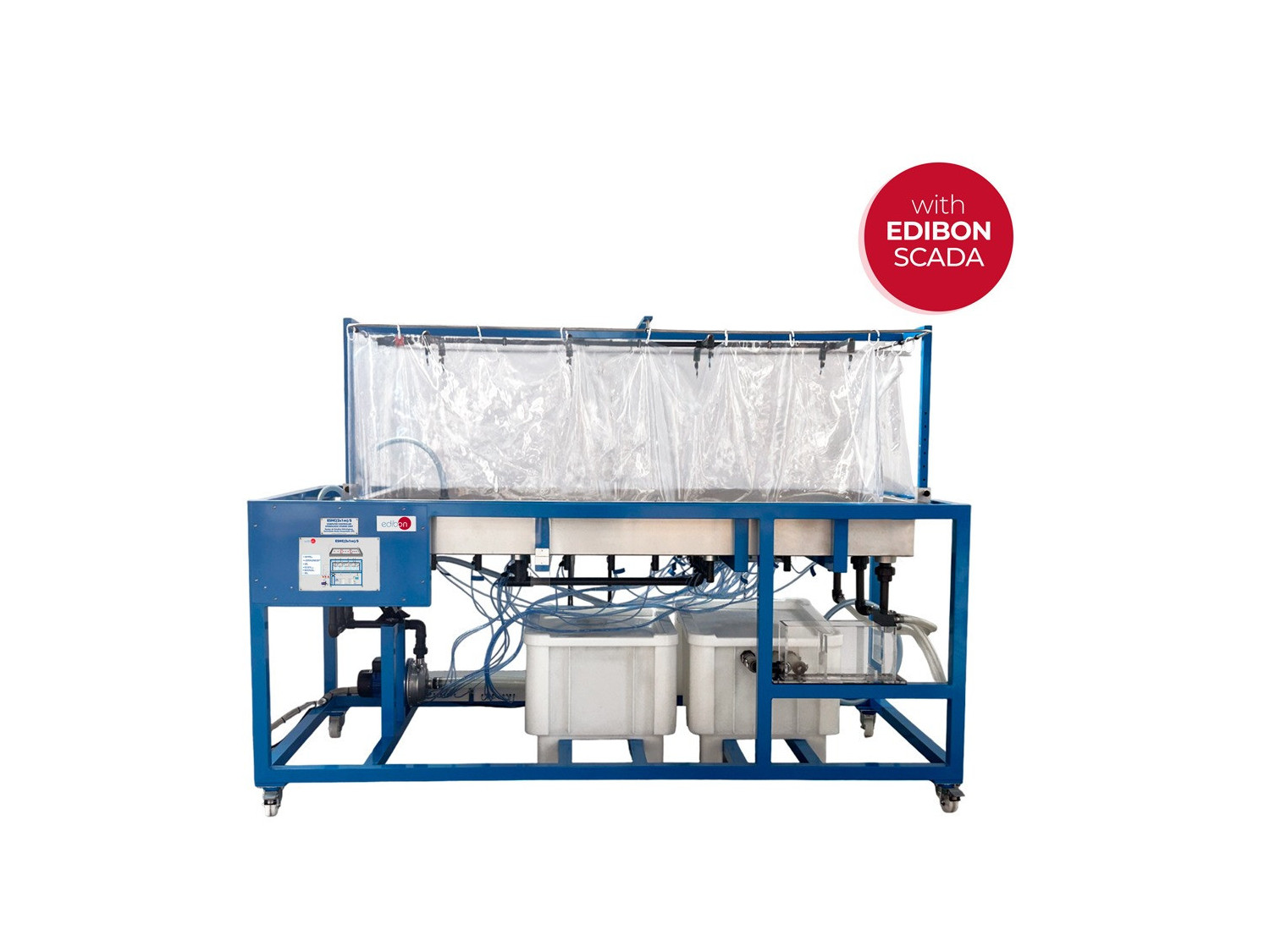

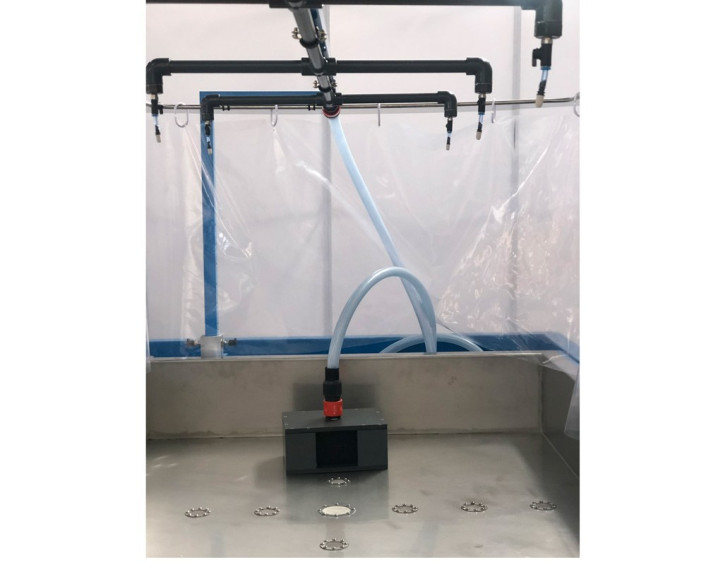

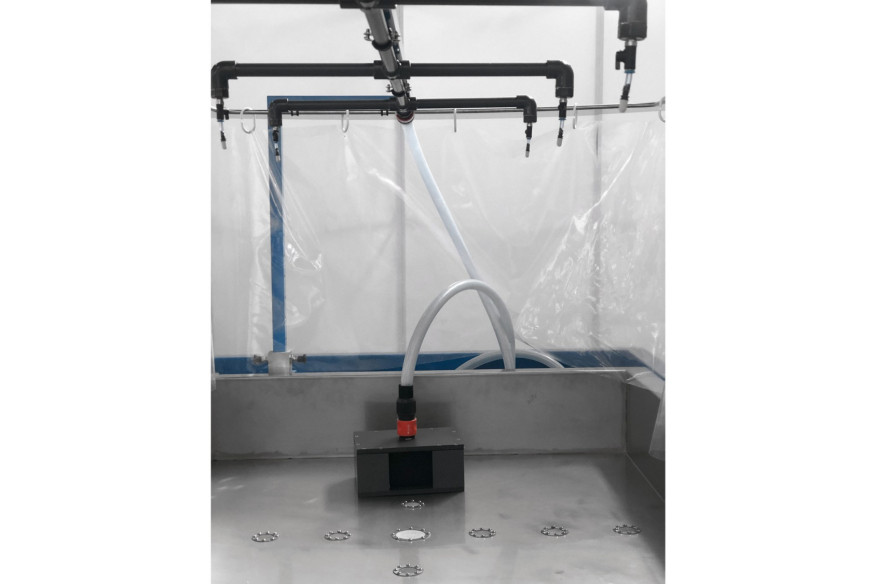

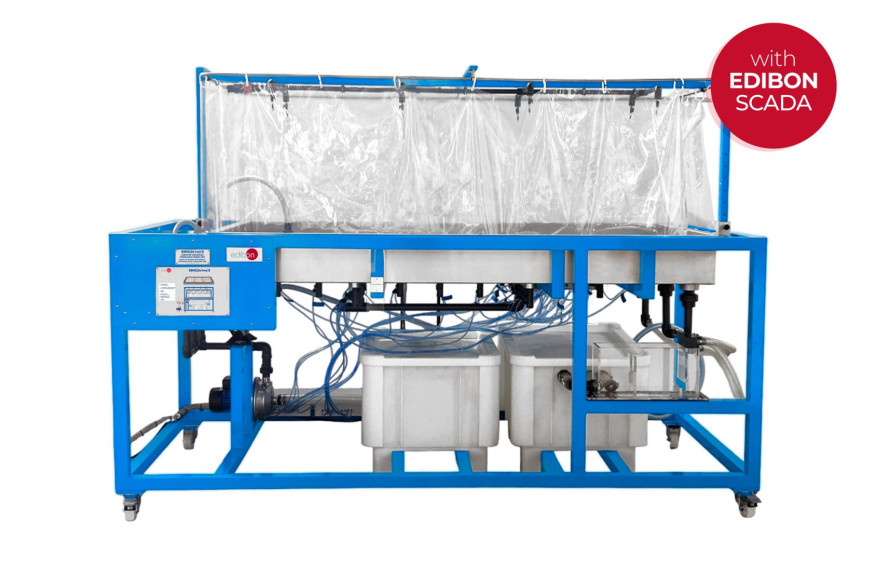

The main element of the equipment is a stainless steel test tank that can be filled with different types of sand and whose inclination can beregulated by a lifting system. The sand tank has numerous pressure taps in the lower part that allow the study of the water level with thehelp of pressure sensors.

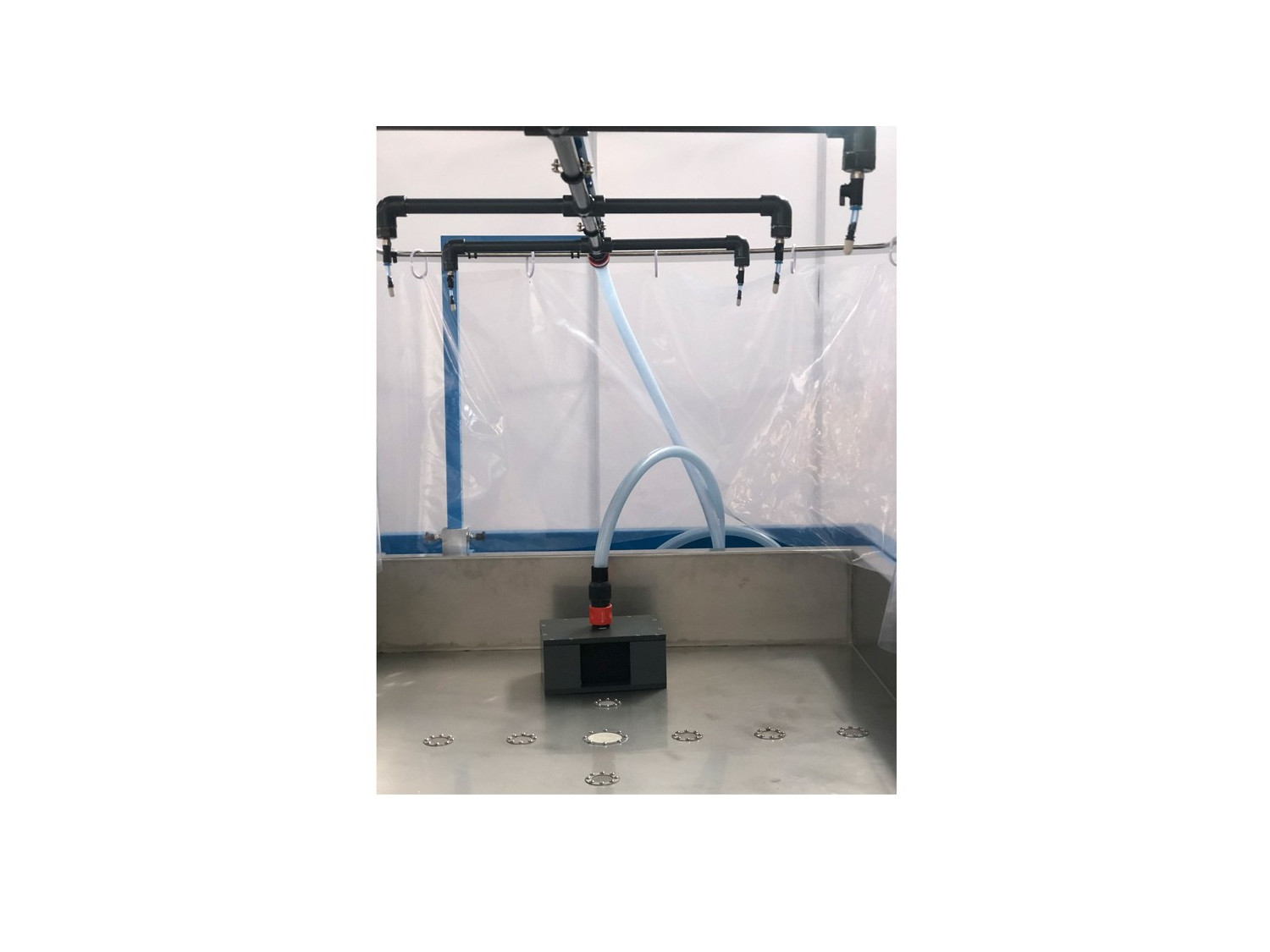

In addition, water can be supplied to the test tank by different precipitation devices consisting of: 8 adjustable valves (simulating rain), froman inlet tank (simulating a river) or from two lateral French wells (simulating groundwater).

The main advantage offered by this equipment is its versatility, allowing a high number of tests to be carried out, realistically simulating asoil with a very reduced space occupation and without special requirements.

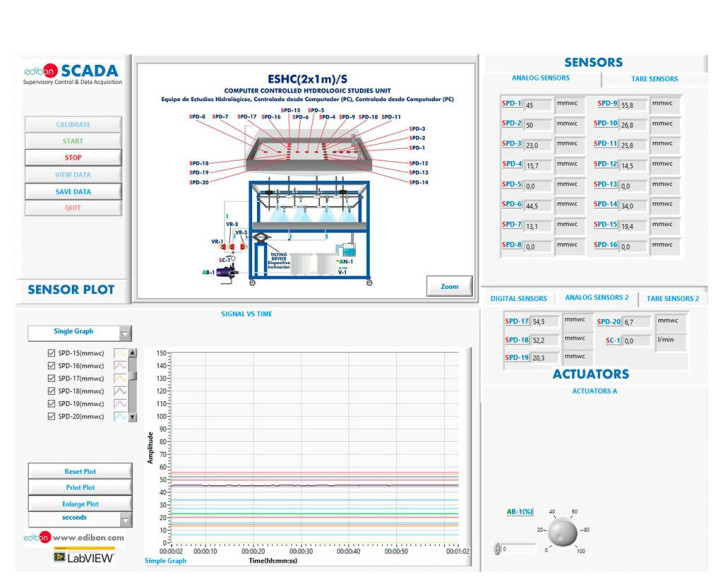

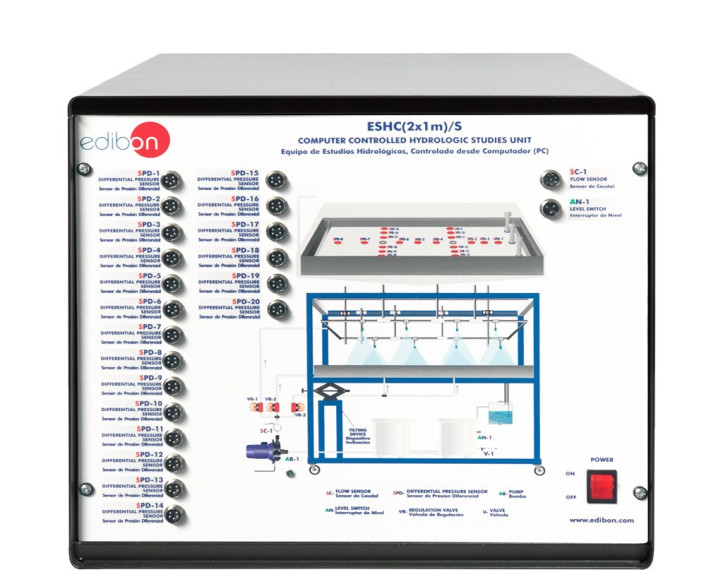

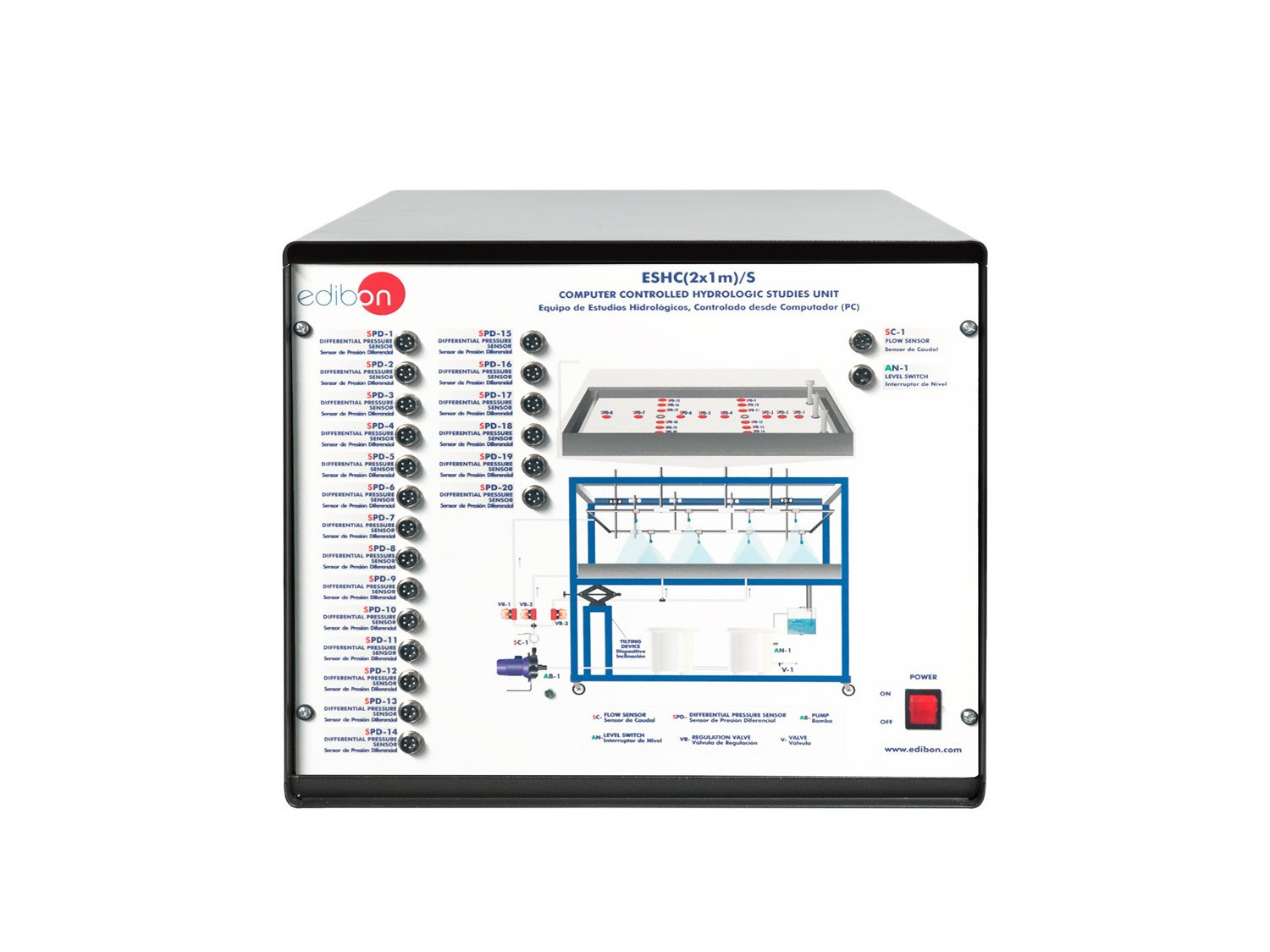

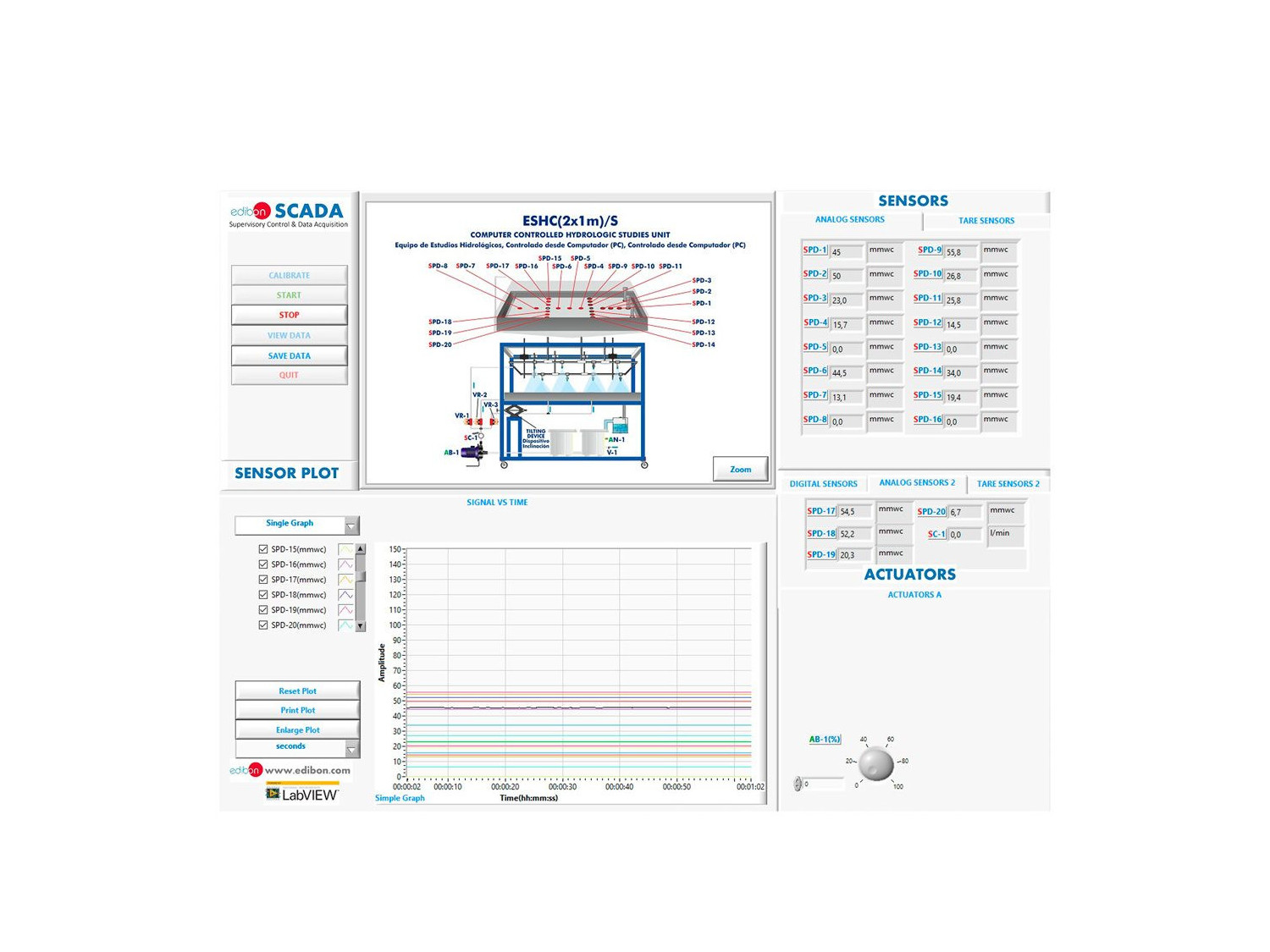

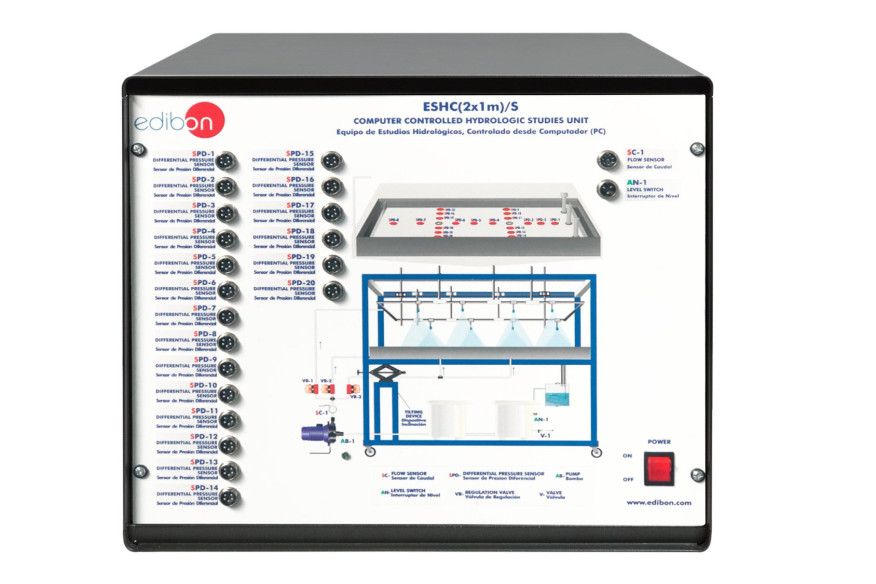

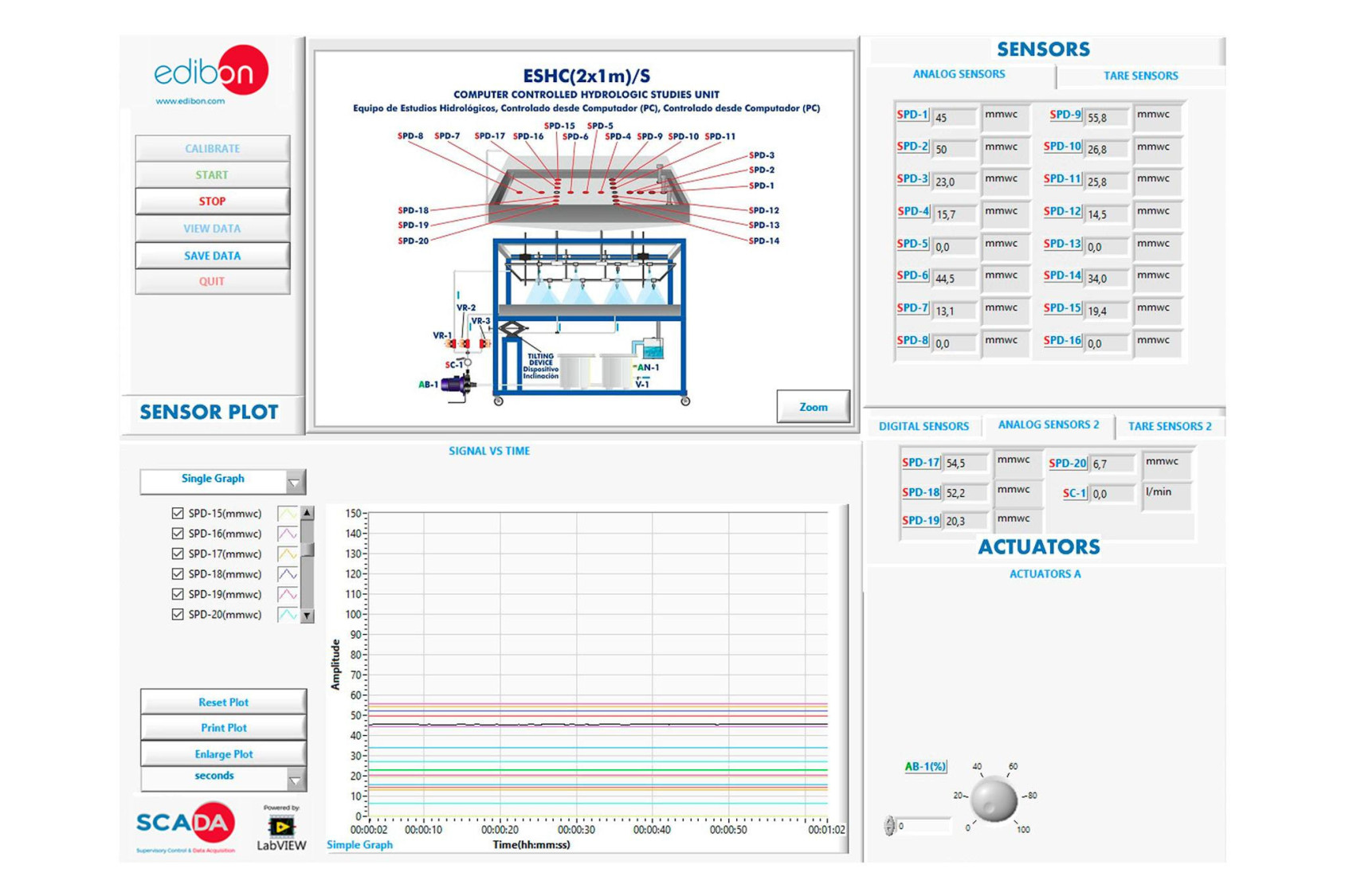

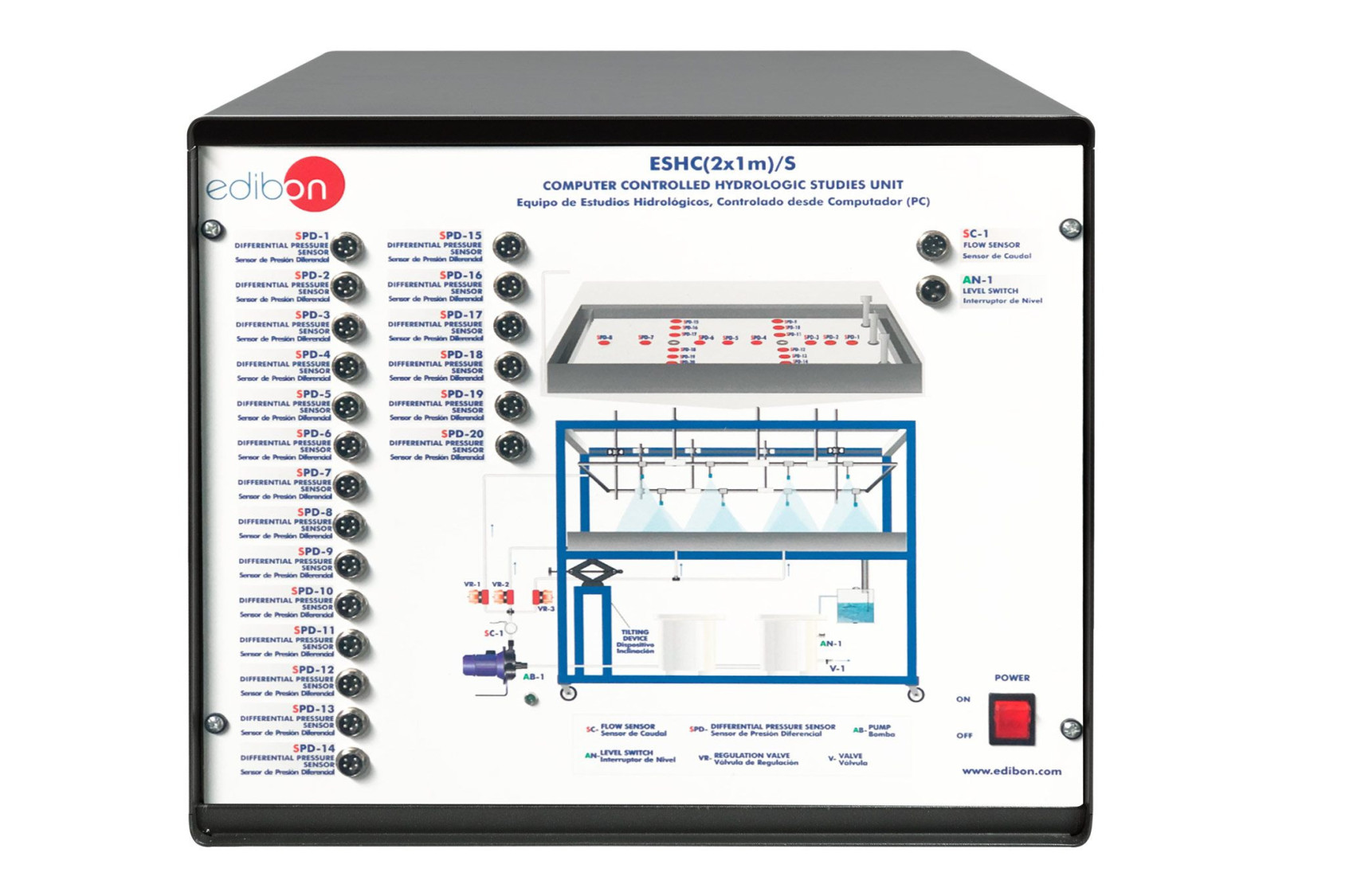

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of hydrographs as a function of the intensity and durationof the discharge.
  2. Study of the accumulation capacity of the soil.
  3. Study of soil infiltration.
  4. Study of a terrain flooding.
  5. Study of the drainage of a flooded area.
  6. Soil compactness study.
  7. Study of surface river formations.
  8. Study of sediment transport.
  9. Study of erosion in a riverbed.
  10. Understanding groundwater flow and water table.
  11. Study of the suction cone of a well.
  12. Calibration sensors.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously.
  2. To view all results in real time in the classroom by means of aprojector or an electronic whiteboard.
  3. Open Control, Multicontrol and Real Time Control.
  4. This unit allows intrinsically and/or extrinsically to change thespan, gains, proportional, integral, derivative parameters, etc, inreal time.
  5. The Computer Control System with SCADA allows a real industrialsimulation.
  6. This unit is totally safe as uses mechanical, electrical/electronic,and software safety devices.
  7. This unit can be used for doing applied research.
  8. This unit can be used for giving training courses to Industries evento other Technical Education Institutions.
  9. Control of the ESHC(2x1m)/S unit process through the controlinterface box without the computer.
  10. Visualization of all the sensors values used in the ESHC(2x1m)/Sunit process.
  11. By using PLC-PI additional 19 more exercises can be done.
  12. Several other exercises can be done and designed by the user.
