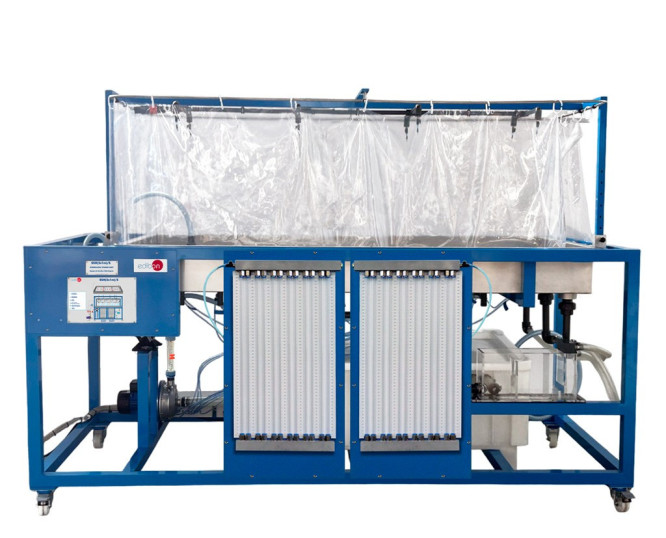

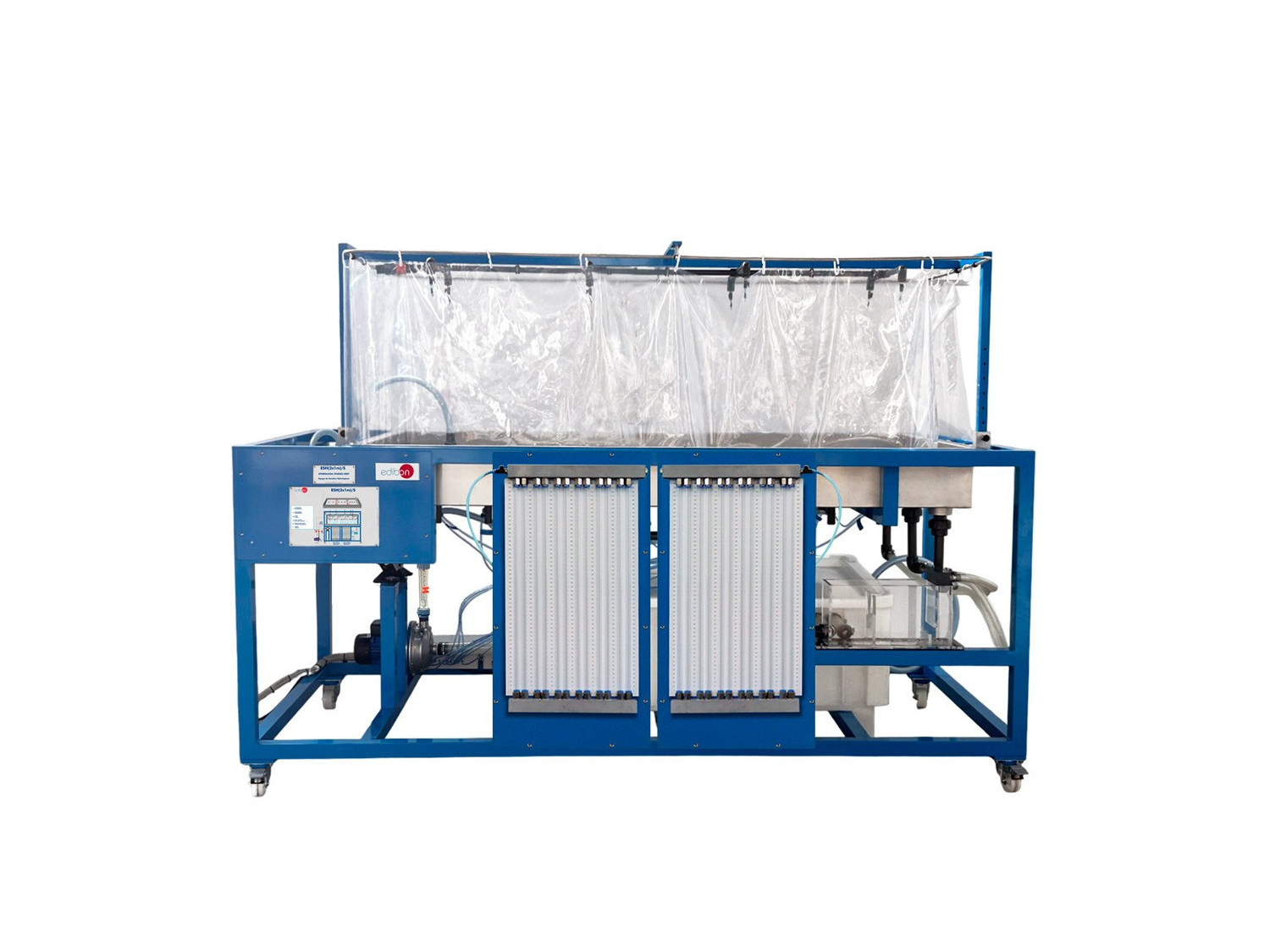

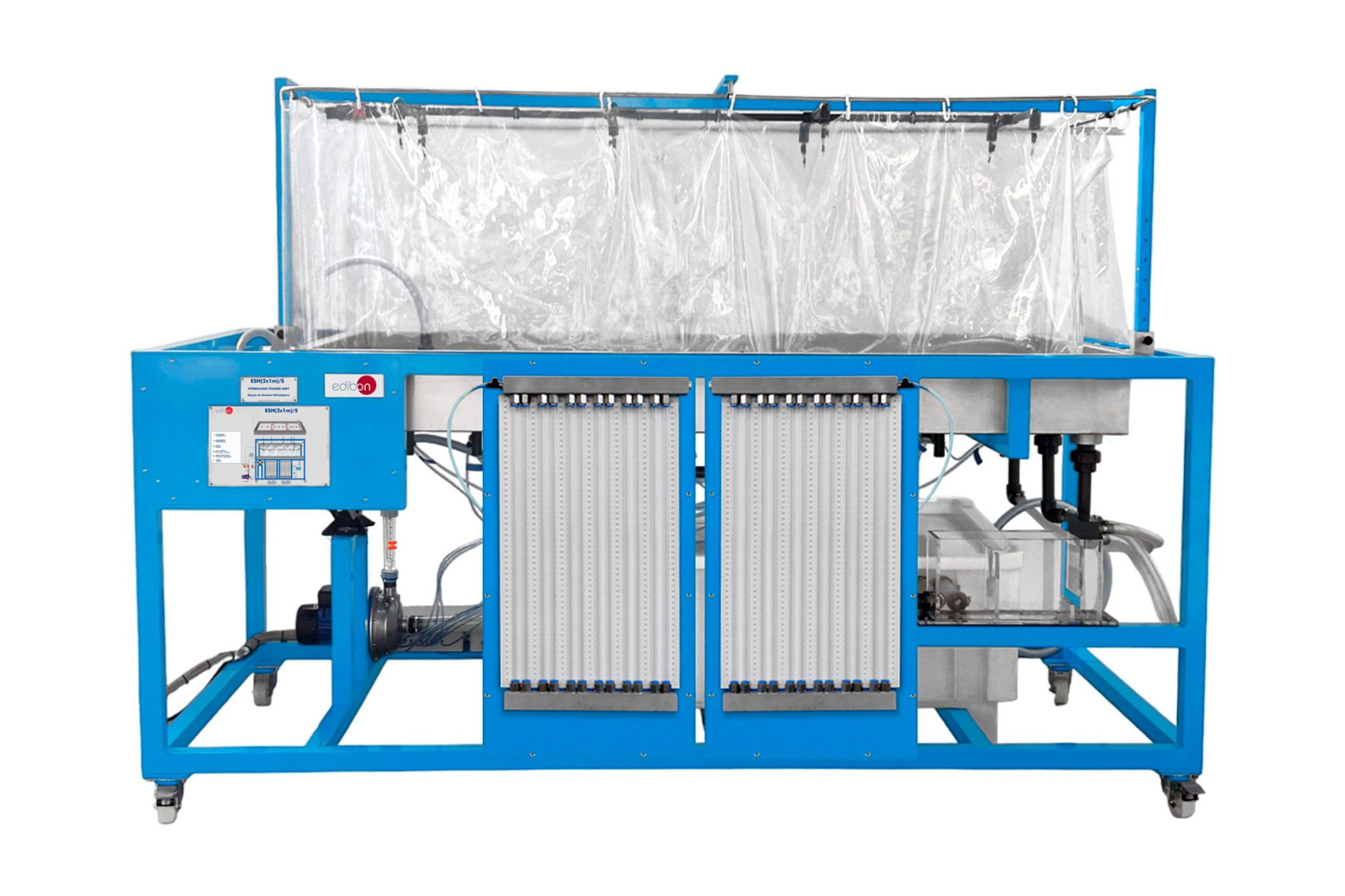

ESH(2x1m)/S Unité d'Études Hydrologiques

HYDROLOGIC STUDIES UNIT - ESH(2x1m)/S

SYSTEMES INNOVANTS

The Hydrologic Studies Unit, "ESH(2x1m)/S", is an equipment that allows the work in an autonomous way for the study of the behavior of the water inside the soil being able to carry out a wide variety of experiments thanks to the specifications of the equipment.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Hydrologic Studies Unit, "ESH(2x1m)/S", is an equipment that allows the work in an autonomous way for the study of the behavior of the water inside the soil being able to carry out a wide variety of experiments thanks to the specifications of the equipment.

The equipment consists of a closed water circuit allowing the operation continuously or discontinuously, an important parameter when studying processes such as water level distribution around a well (stationary process) or water infiltration after precipitation (non-stationary process) using a single piece of equipment. The closed circuit consists of a water tank, a pump, a flowmeter, different flooding devices over the test area and a drainage system to recover the water.

The main element of the equipment is a stainless steel test tank that can be filled with different types of sand and whose inclination can be regulated by a lifting system. The sand tank has numerous pressure taps in the lower part that allow the study of the water level with the help of a panel of pressure gauges.

In addition, water can be supplied to the test tank by different precipitation devices consisting of: 8 adjustable valves (simulating rain), from an inlet tank (simulating a river) or from two lateral French wells (simulating groundwater).

The main advantage offered by this equipment is its versatility, allowing a high number of tests to be carried out, realistically simulating a soil with a very reduced space occupation and without special requirements.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of hydrographs as a function of the intensity and duration of the discharge.
  2. Study of the accumulation capacity of the soil.
  3. Study of soil infiltration.
  4. Study of a terrain flooding.
  5. Study of the drainage of a flooded area.
  6. Soil compactness study.
  7. Study of surface river formations.
  8. Study of sediment transport.
  9. Study of erosion in a riverbed.
  10. Understanding groundwater flow and water table.
  11. Study of the suction cone of a well.
