EG6B Unité d'Énergie Géothérmique (haute enthalpie)

SYSTEMES INNOVANTS

The Geothermal (high enthalpy) Energy Unit, "EG6B", developed by EDIBON, has the aim of introducing the student in a renewable energy, increasingly important.

Voir description générale

Description Générale

The Geothermal (high enthalpy) Energy Unit, "EG6B", developed by EDIBON, has the aim of introducing the student in a renewable energy, increasingly important.

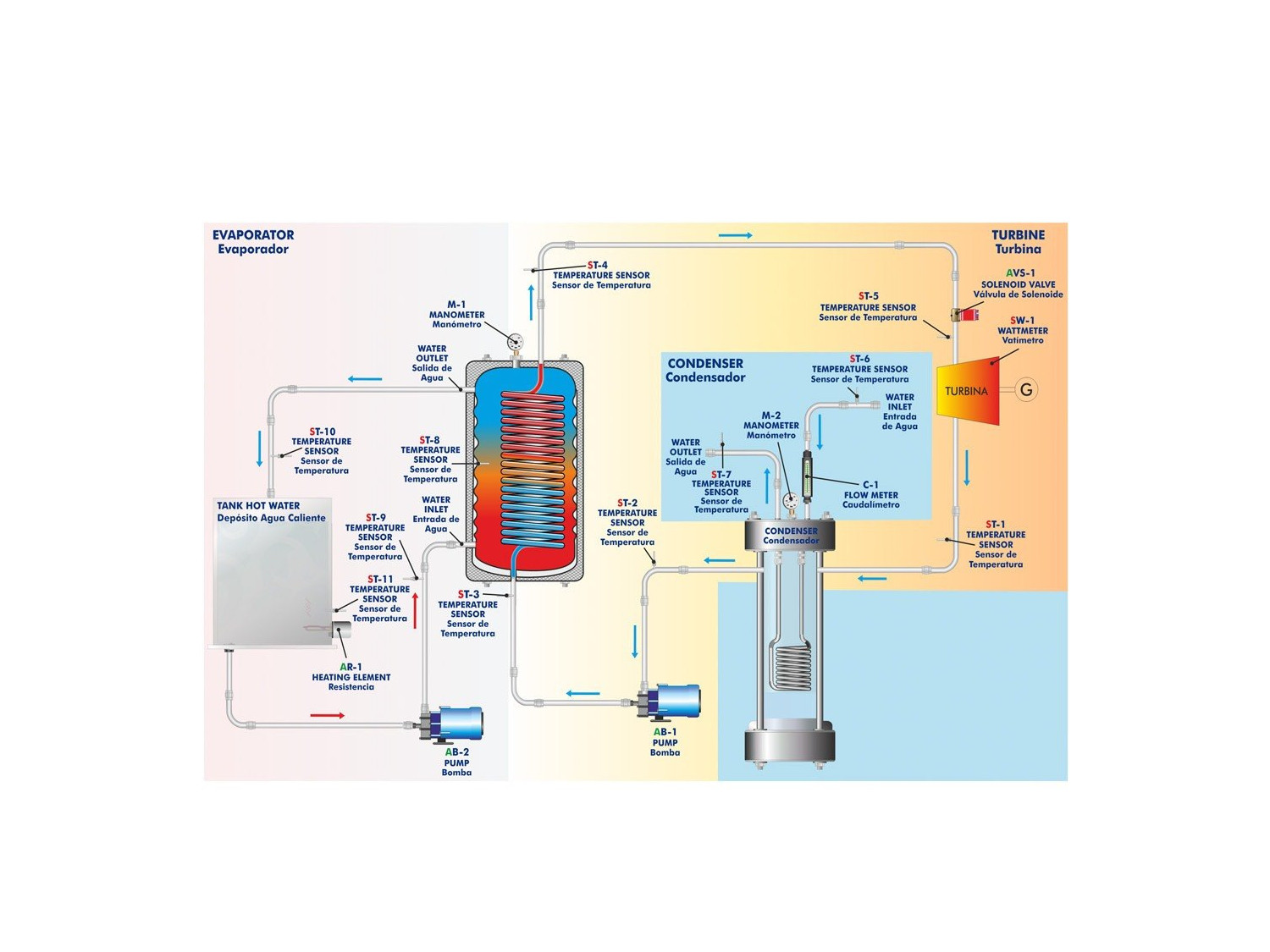

This unit simulates the steam produced in the well, by using a steam generator. Then the steam produced moves a turbine by means of a steam injector, which impacts against the blades of the turbine and generates work.

According to the energy which the steam (flow, temperature and pressure) has, there will be more or less work produced by the turbine.

This mechanical work is converted into electrical energy by an electric generator suppling a load.

The unit is supplied with suitable instrumentation and meters to monitor the most representative parameter measurements.

The output energy supply an electric generator connected to a resistor. The power is measured by means a wattmeter.

The steam flow is an important variable and is measured by means of the condensed steam volume during a determined time.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. To familiarize the student with the Geothermal energy and all the stages of the process.
  2. Study the system with different steam temperatures.
  3. Study the system with different steam flows.
  4. Study the system with different steam pressures.
  5. Obtaining the characteristic curves of the steam turbine.
  6. Turbine efficiency.
  7. Thermal balances.
  8. To measure the electricity generated.
  9. Determination of thermal efficiency.
  10. Study of the specific steam consumption of the turbine.
  11. Determination of the total efficiency of the unit in function of the input energy and the consumption of the load.
  12. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several other exercises can be done and designed by the user.
