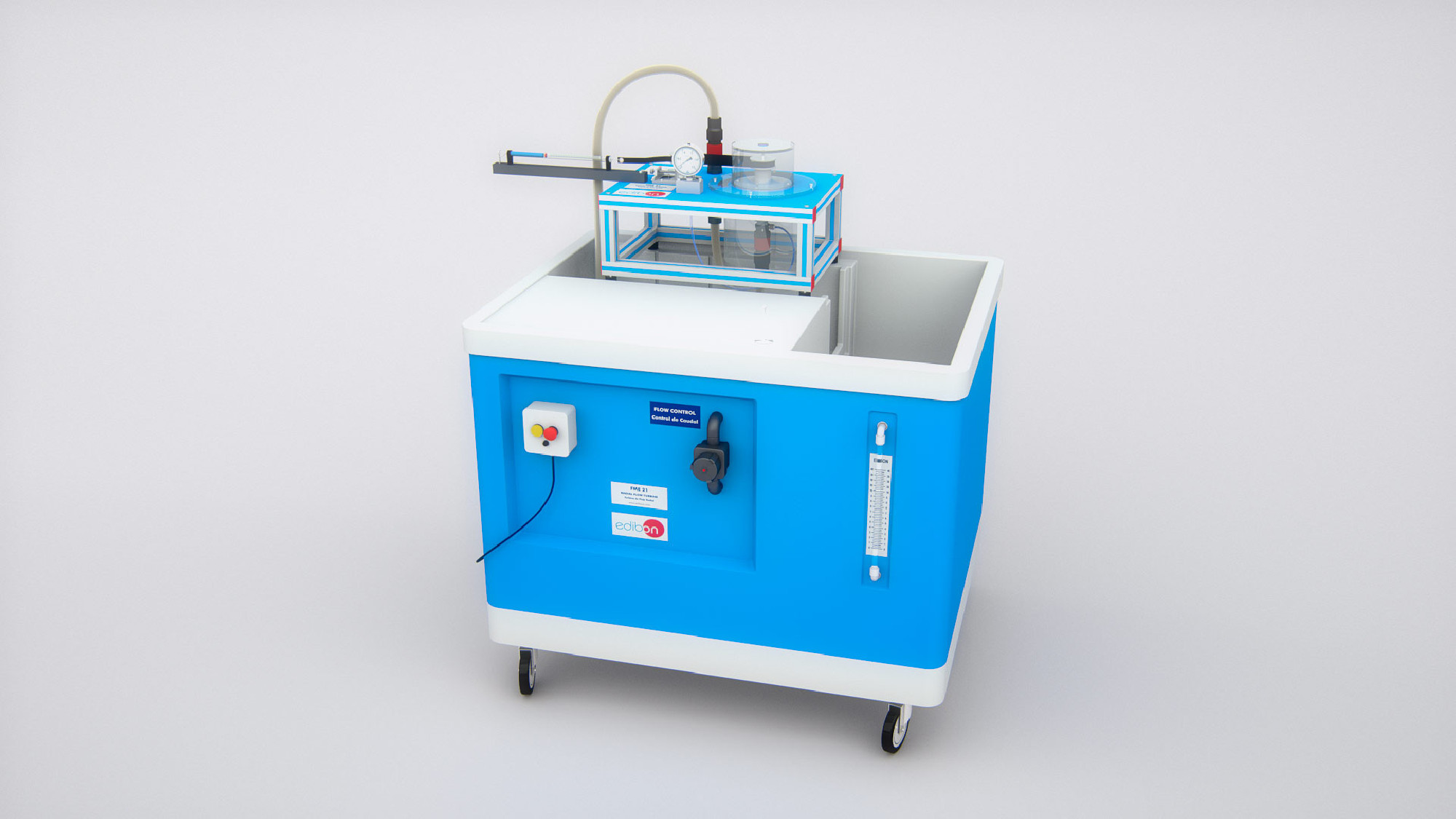

FME21 Unit with service unit FME00

RADIAL FLOW TURBINE - FME21
RADIAL FLOW TURBINE - FME21

SYSTEMES INNOVANTS

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

This unit consist of a miniature Radial Turbine with two nozzles at 180° with respect to the perpendicular direction at the rotating axis. A Bourdon type manometer is placed at the inlet nozzle.

A band brake connected to a dynamometer allows to control the load given to the turbine.

A tachometer determines the velocity measurement.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Flow calculation.
  2. Obtaining of the M (n, Ha), N(n, Ha), h (n, Ha) curves.
  3. Obtaining of the M (n, Q), Nm (n, Q), h (n, Q) curves.
  4. Adimensionalization.
