HTLS150/150C Tunnel Hydrodynamique Fermé à Basse Vitesse, 150X150 mm, Contrôlé par Ordinateur (PC)
SYSTEMES INNOVANTS
The Computer Controlled Closed Hydrodynamic Tunnel for Low Speed, 150 x 150 mm, "HTHS150/150C", allows to test the hydrodynamics of bodies designed to work submerged in water and, with a correct design of the experiment, to study the aerodynamics of objects flying in air.
NOUVELLES LIÉES
Description Générale

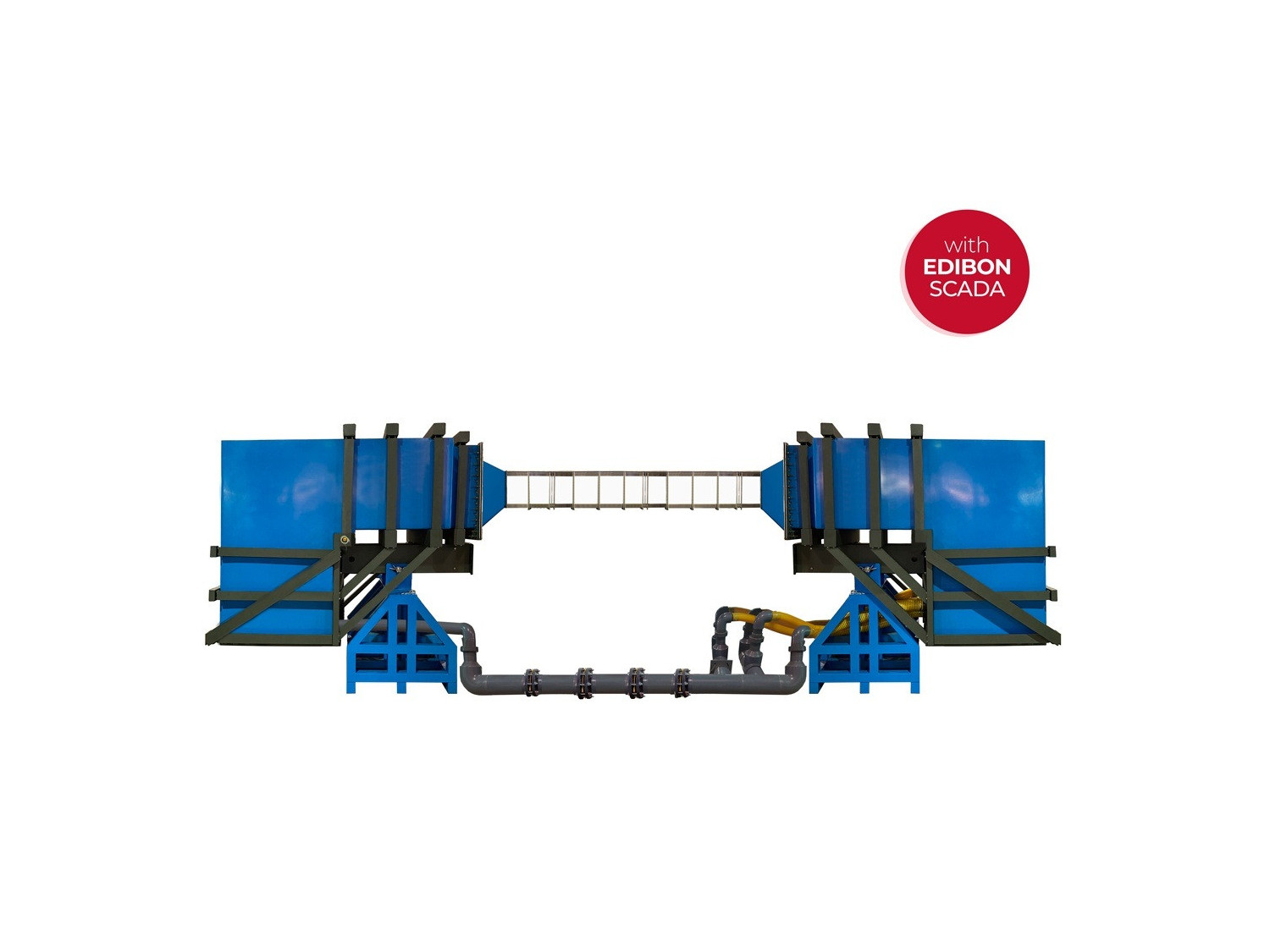

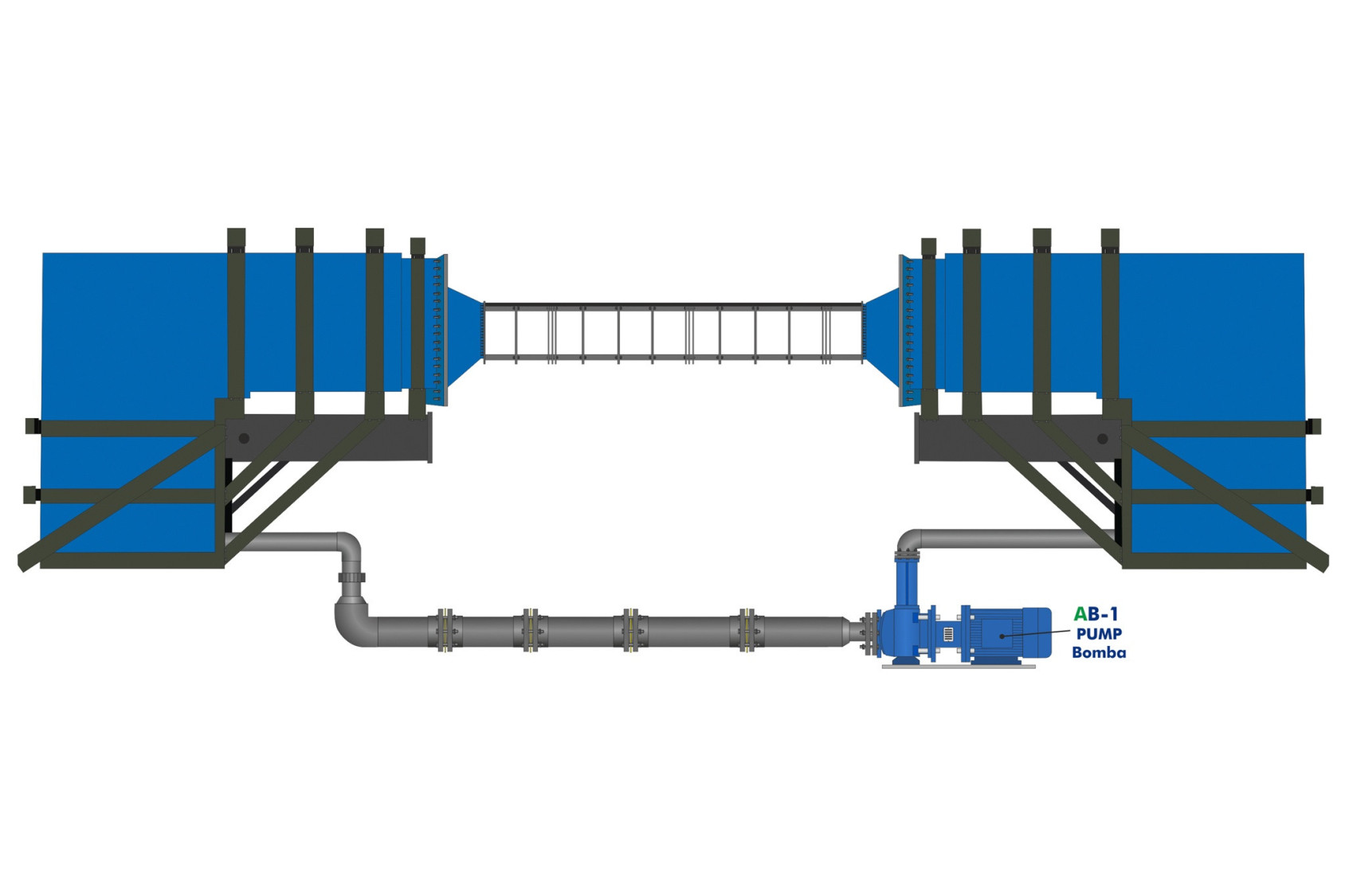

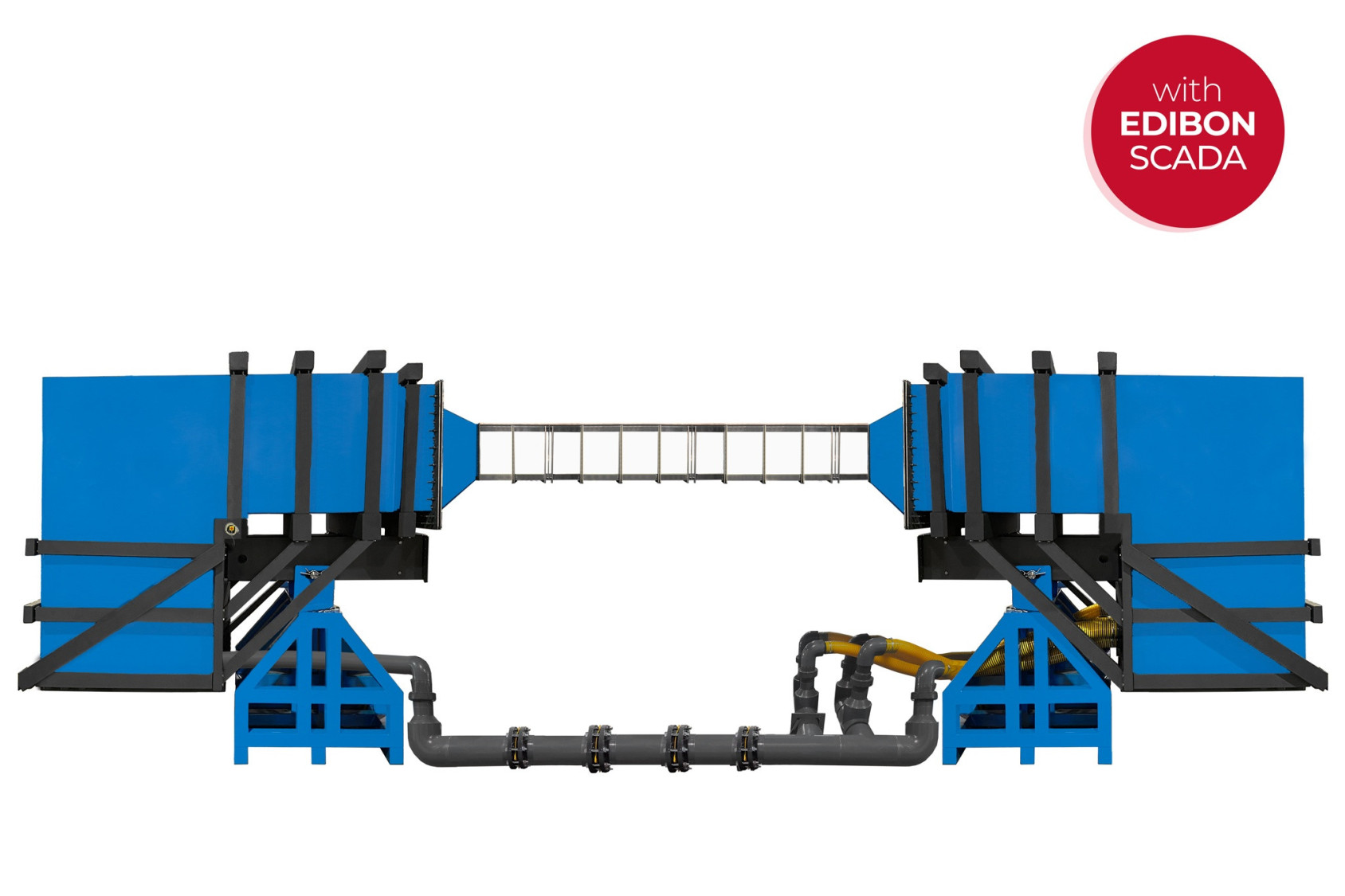

The Computer Controlled Low Speed Hydrodynamic Tunnel, 150 x 150 mm, "HTLS150/150C", is a hydrodynamic tunnel in a closed water circuit flowing in the vertical plane. The water is circulated by a computer controlled variable speed pump. Different models and accessories are available, allowing a complete study of the hydrodynamics.
The unit includes several sections to reduce flow interference.
The working area consists of a constant section section, where the models are mounted for testing. It is manufactured with fused silica (quartz) windows on the front, back and top face for optical testing. This section includes a Pitot tube in its upper part to study static pressure, dynamic pressure and total pressure. It also includes a removable screen at the inlet to increase the turbulence of the flow.

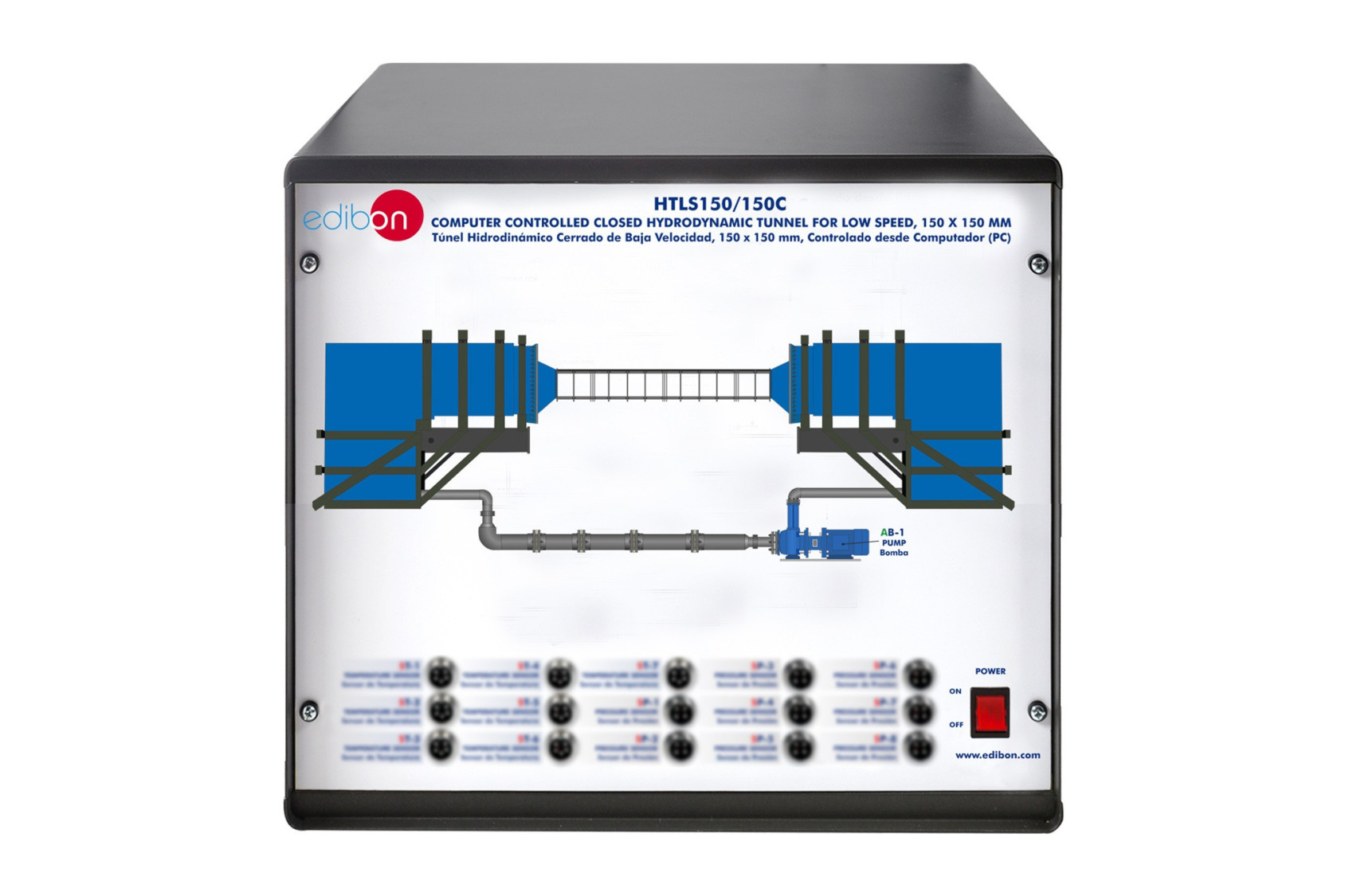

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Extensive study of hydrodynamics and water flow studies.
- Study of flow visualization.
- Study of static pressure, dynamic pressure and total pressure using a Pitot tube.
- Study of the measurement of velocity using a Pitot tube.
- Study of turbulent and laminar flow.
- Study of cavitation in different models.
- Calibration of sensors.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
Additional practical possibilities to be carried out with the recommended additional elements (Not included):
- Visualization of flows around different resistor bodies:
- Sphere Drag Model (HTLS7/150) (requires element HTLS150/150C-TARC).
- Hemisphere Drag Model (HTLS8/150) (requires element HTLS150/150C-TARC).
- Circular Plate Drag Model (HTLS9/150) (requires element HTLS150/150C-TARC).
- Ring Drag Model (HTLS10/150) (requires element HTLS150/150C-TARC).
- Square Plate Drag Model (HTLS11/150) (requires element HTLS150/150C-TARC).
- Cylinder Drag Model (HTLS12/150) (requires element HTLS150/150C-TARC).
- Paraboloid Drag Model (HTLS13/150) (requires element HTLS150/150C-TARC).
- Dimpled Sphere Drag Model (HTLS14/150) (requires element HTLS150/150C-TARC).
- Wing Drag Model (HTLS15/150) (requires element HTLS150/150C-TARC).
- Airplane Drag Model (HTLS16/150) (requires element HTLS150/150C-TARC).
- Determination of the hydrodynamic drag coefficient and lift coefficient in different models:
- Sphere Drag Model (HTLS7/150) (requires element HTLS150/150C-TARC).
- Hemisphere Drag Model (HTLS8/150) (requires element HTLS150/150C-TARC).
- Circular Plate Drag Model (HTLS9/150) (requires element HTLS150/150C-TARC).
- Ring Drag Model (HTLS10/150) (requires element HTLS150/150C-TARC).
- Square Plate Drag Model (HTLS11/150) (requires element HTLS150/150C-TARC).
- Cylinder Drag Model (HTLS12/150) (requires element HTLS150/150C-TARC).
- Paraboloid Drag Model (HTLS13/150) (requires element HTLS150/150C-TARC).
- Dimpled Sphere Drag Model (HTLS14/150) (requires element HTLS150/150C-TARC).
- Wing Drag Model (HTLS15/150) (requires element HTLS150/150C-TARC).
- Airplane Drag Model (HTLS16/150) (requires element HTLS150/150C-TARC).
- Measurement of hydrodynamic drag and lift forces in different models:
- Sphere Drag Model (HTLS7/150) (requires element HTLS150/150C-TARC).
- Hemisphere Drag Model (HTLS8/150) (requires element HTLS150/150C-TARC).
- Circular Plate Drag Model (HTLS9/150) (requires element HTLS150/150C-TARC).
- Ring Drag Model (HTLS10/150) (requires element HTLS150/150C-TARC).
- Square Plate Drag Model (HTLS11/150) (requires element HTLS150/150C-TARC).
- Cylinder Drag Model (HTLS12/150) (requires element HTLS150/150C-TARC).
- Paraboloid Drag Model (HTLS13/150) (requires element HTLS150/150C-TARC).
- Dimpled Sphere Drag Model (HTLS14/150) (requires element HTLS150/150C-TARC).
- Wing Drag Model (HTLS15/150) (requires element HTLS150/150C-TARC).
- Airplane Drag Model (HTLS16/150) (requires element HTLS150/150C-TARC).
- Study of static pressure, dynamic pressure and total pressure with the Pitot tube (HTLS11/150).
- Study of the static pressure, dynamic pressure and total pressure with the Wake Survey Rake (HTLS12/150).
Other possibilities to be done with this unit:
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
- The Computer Control System with SCADA and allow a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Control of the HTLS150/150C unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the HTLS150/150C unit process.
- Several other exercises can be done and designed by the user.
EQUIPEMENT COMPLEMENTAIRE
8.5.- CANAUX HYDRAULIQUES
CFC
Canal de section rectangulaire dans lequel circule l’eau, avec des parois transparentes qui permettent d’observer tous les tests. L’eau est prélevée du réservoir de stockage au moyen d’une pompe hydraulique, avec régulation de vitesse, et est...
8.5.- CANAUX HYDRAULIQUES

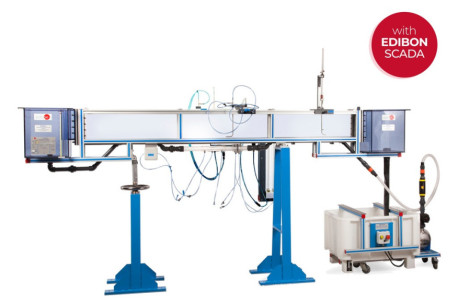

CF
Canaux de Fluides (section: 80X300 mm)
Canal de section rectangulaire dans lequel circule l’eau, avec des parois transparentes qui permettent d’observer tous les tests. L’eau est prélevée du réservoir de stockage au moyen d’une pompe hydraulique, avec régulation de vitesse, et est...
8.5.- CANAUX HYDRAULIQUES

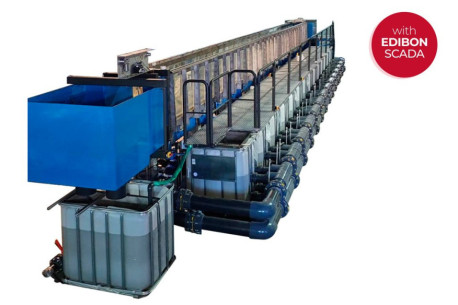

CFGC
Canaux de Fluides, Contrôlés par Ordinateur (PC)
Les Canaux d´Fluides, Contrôlés par Ordinateur (PC),"CFGC", sont des canaux hydrodynamiques pour des tests hydrauliques multiples. Ils sont constitués d'un canal de section rectangulaire dont les parois sont en verre trempé transparent et dans...
8.5.- CANAUX HYDRAULIQUES

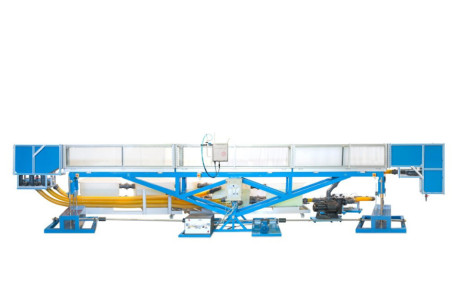

CFG
Canaux de Fluides
Les Canaux d’Écoulement, "CFG", sont des canaux hydrodynamiques permettant d’effectuer de nombreux tests hydrauliques. Ils se composent d’un canal de section rectangulaire avec des parois transparentes en verre trempé à travers lesquelles l’eau...
8.5.- CANAUX HYDRAULIQUES

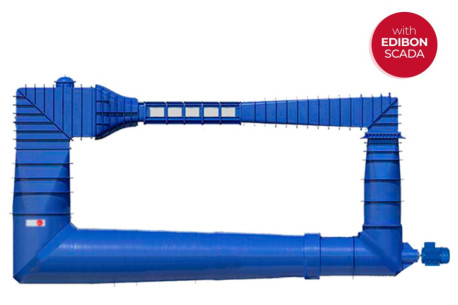

HTHS150/150C
Tunnel Hydrodynamique Fermé à Haute Vitesse, 150X150 mm, Contrôlé par Ordinateur (PC)
The Computer Controlled Closed Hydrodynamic Tunnel for High Speed, 150 x 150 mm, "HTHS150/150C", is a closed circuit cavitation tunnel with water flowing in the vertical plane. The water is circulated by a computer controlled variable speed axial...
13.1.- HYDROLOGIE ET HYDROGEOLOGIE
CAS
Canal Ouvert de Sédimentation
Le Canal Ouvert de Sédimentation, "CAS", conçu par EDIBON, se compose d’un canal inclinable monté sur une plaque de base, soutenu par deux supports, avec un réservoir de décharge et une pompe de recirculation. Ce réservoir se trouve dans le...
13.1.- HYDROLOGIE ET HYDROGEOLOGIE
HVFLM-2
Unité de Visualisation de Flux et de Lit Mobile (section de travail : 2000X610 mm)
L'Unité de Visualisation de Flux et de Lit Mobile (section de travail: 2000x610 mm), "HVFLM-2", peut être utilisée principalement dans deux domaines d'étude. Le premier est l'étude des lits mobiles, qui sont liés aux cours d'eau et aux structures...
13.1.- HYDROLOGIE ET HYDROGEOLOGIE
HVFLM-4
Unité de Visualisation de Lit et d'Écoulement Mobile (section de travail : 4000x610 mm)
The Mobile Bed and Flow Visualization Unit (working section: 4000 x 610 mm), "HVFLM-4", may be used mainly in two study fields. The first one is the investigation of mobile beds, which are related to water courses and civil engineering structures....
8.4.- VISUALISATION DE FLUX

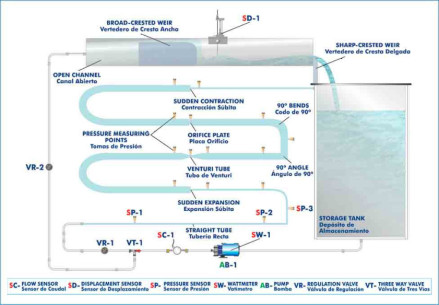

WFPC
