HTHS150/150C Tunnel Hydrodynamique Fermé à Haute Vitesse, 150X150 mm, Contrôlé par Ordinateur (PC)
SYSTEMES INNOVANTS
The Computer Controlled Closed Hydrodynamic Tunnel for High Speed, 150 x 150 mm, "HTHS150/150C", allows the study of complete hydrodynamics. In addition, being sealed and being able to reduce or increase its internal static pressure, it allows cavitation studies to be carried out.
NOUVELLES LIÉES
Description Générale

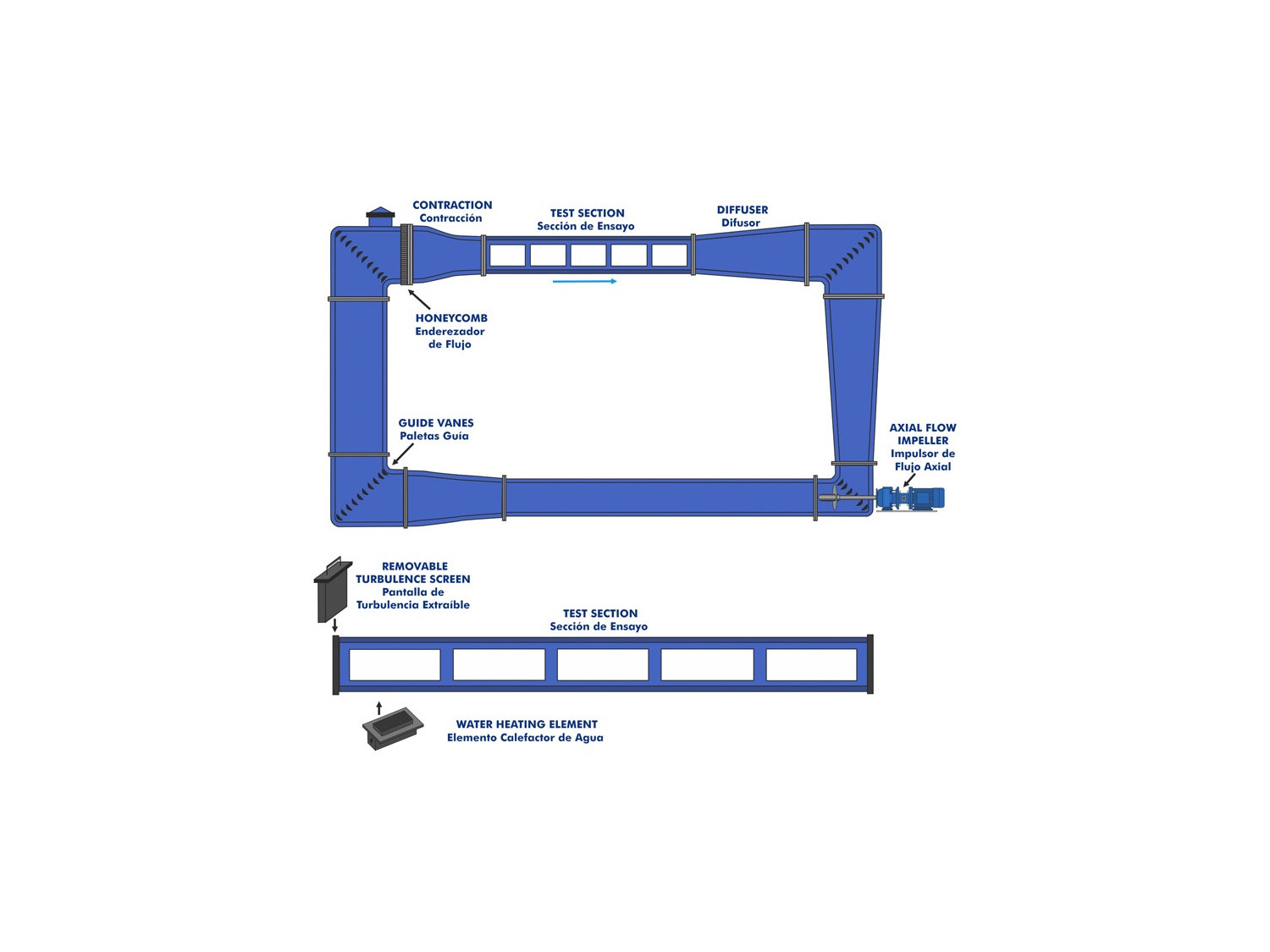

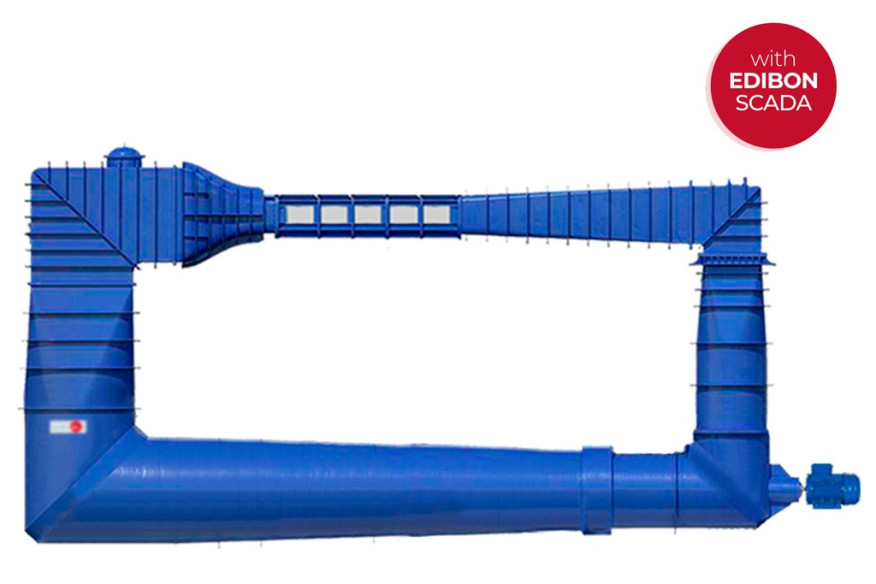

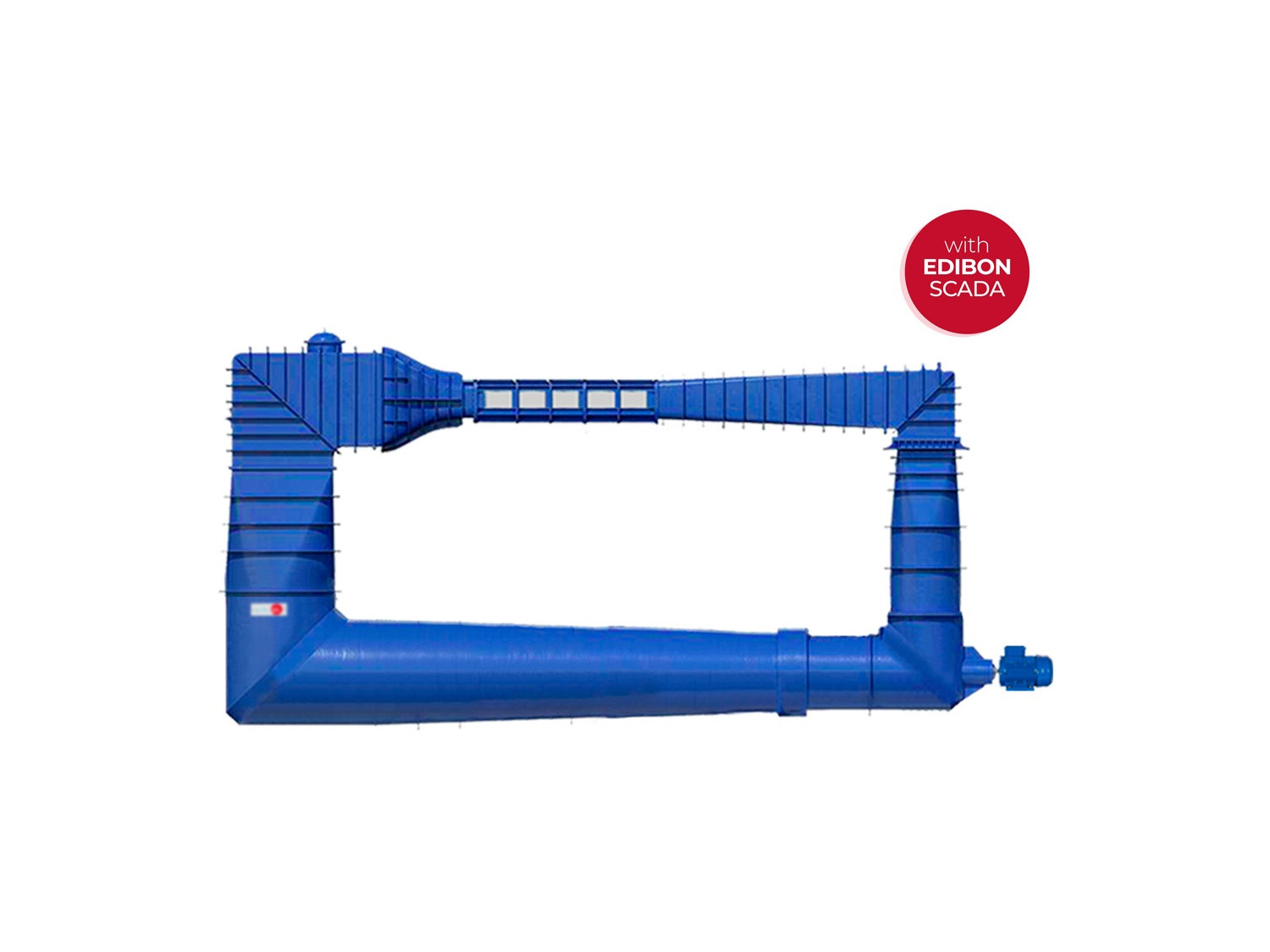

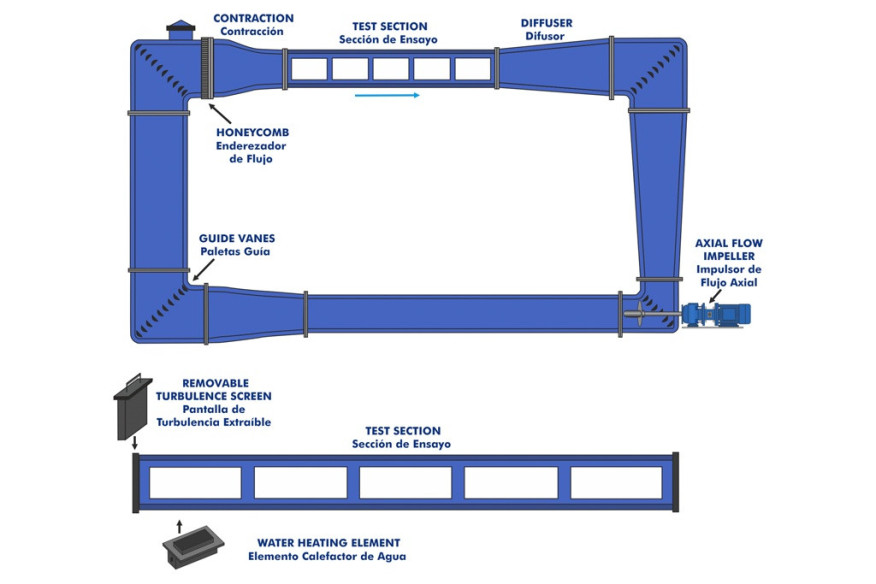

The Computer Controlled Closed Hydrodynamic Tunnel for High Speed, 150 x 150 mm, "HTHS150/150C", is a closed circuit cavitation tunnel with water flowing in the vertical plane. The water is circulated by a computer controlled variable speed axial propeller pump located at the bottom of the tunnel.
The unit includes several tunnel sections to reduce flow interference. A contraction upstream of the working area with a perfectly studied contraction curve contour ensures a well-developed water flow in the working area.
A honeycomb flow stabilizer is located in the section upstream of the shrinkage for greater flow uniformity in the working area.
The working area is located downstream of the shrinkage. It consists of a constant section section, where the models for testing are mounted. It is made with fused silica (quartz) windows on the front, back and top face for optical testing. This section includes a Pitot tube in its upper part to study static pressure, dynamic pressure and total pressure. It also includes a removable screen at the inlet to increase the turbulence of the flow.
A diffuser is included at the tunnel outlet to avoid the generation of turbulence that can damage the quality of the flow in the working area.

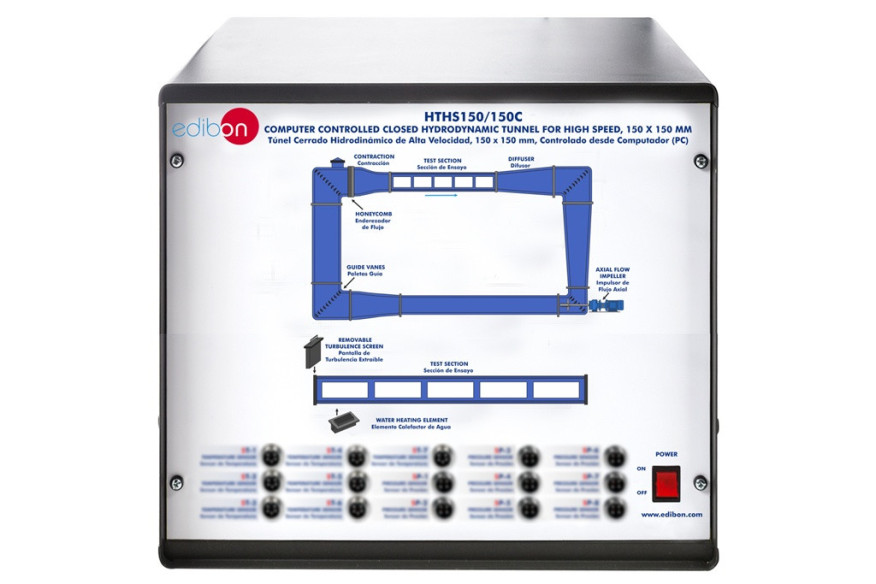

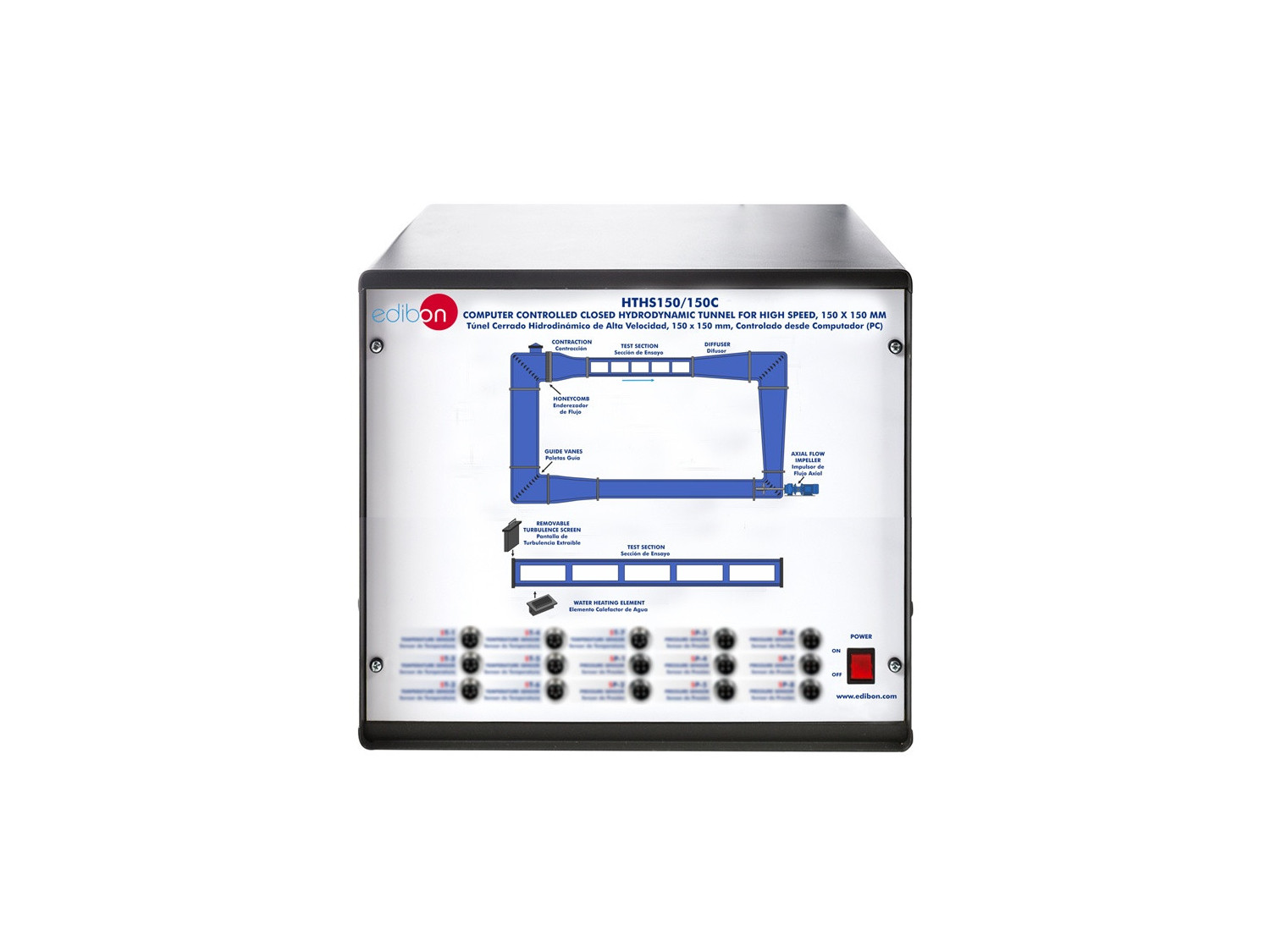

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Extensive study of hydrodynamics and water flow studies.
- Study of flow visualization.
- Study of static pressure, dynamic pressure and total pressure using a Pitot tube.
- Study of the measurement of velocity using a Pitot tube.
- Study of turbulent and laminar flow.
- Calibration of sensors.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
Additional practical possibilities to be carried out with the recommended additional elements (Not included):
- Study of cavitation in different models.
- Thrust and torque measurement.
- Study of cavitation as a function of the number of propeller blades.
- Study of the noise production inherent to cavitation.
- Study of the pressure fluctuations due to cavitation.
- Performance losses due to cavitation.
Other possibilities to be done with this unit:
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
- The Computer Control System with SCADA and allow a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
- Control of the HTHS150/150C unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the HTHS150/150C unit process.
- Several other exercises can be done and designed by the user.
