N-M14 Module Optoélectronique

OPTOELECTRONICS MODULE - N-M14

SYSTEMES INNOVANTS

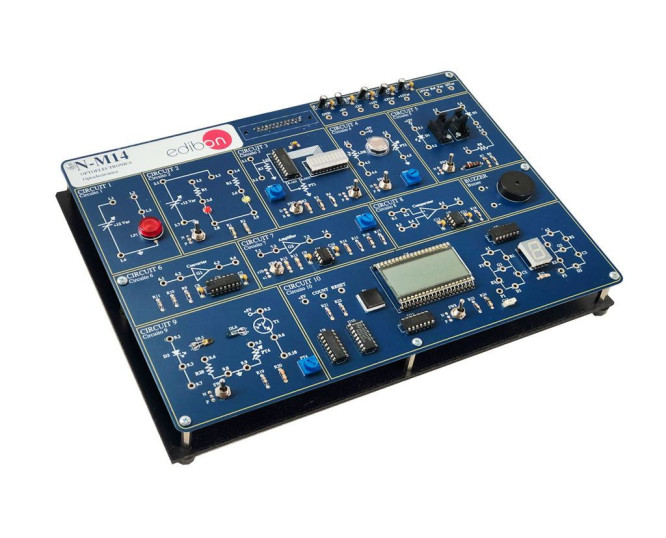

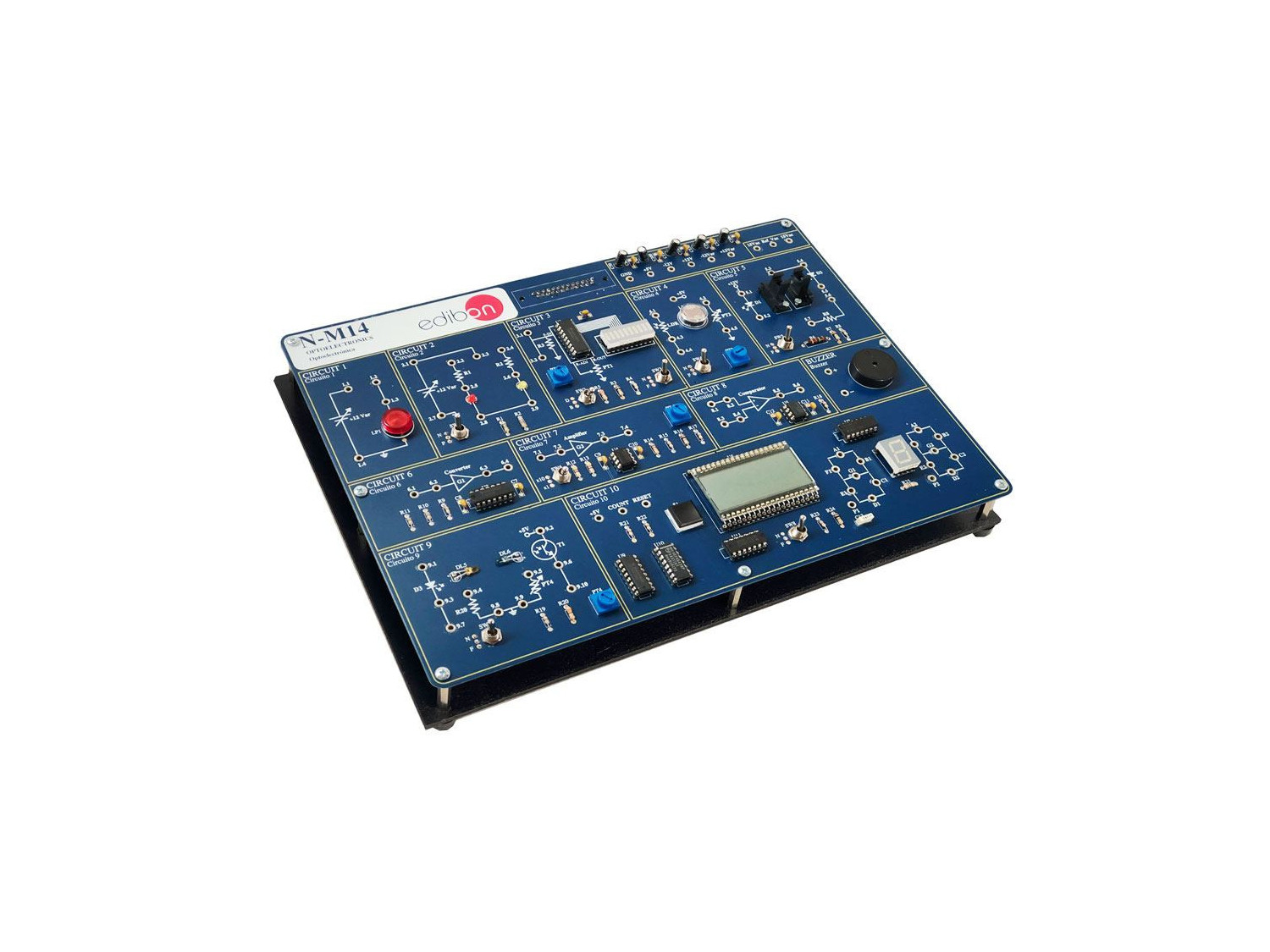

With Optoelectronics Module, "N-M14", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

Voir description générale

NOUVELLES LIÉES

Description Générale

Optoelectronics is the link between optical systems and electronic systems. Optoelectronic components are those whose operation is directly related to light.

They are semiconductor devices capable of producing light radiation within the human visible spectrum or outside the human visible spectrum (infrared). Also included are components which are sensitive to light and whose operation is governed by light.

Among the optoelectronic components are: LEDs, photodiodes, luminescent displays, optocouplers, phototransistors, liquid crystal displays, fluorescent displays.

With Optoelectronics Module, "N-M14", designed by EDIBON, the main light emitters and liquid crystal displays (LCD), photoconductive cells, fibre optics, infrared, etc. can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Light transmitters and liquid crystal display (LCD):

  1. Light transmitters.
  2. Bargraph.
  3. LCD display and 7-segment display.
  4. Faults study in light transmitters and liquid crystal display.
  5. Theoretical/practical exercises.

Photo-conducting cells:

  1. Light dependent resistors.
  2. Alarm.
  3. Faults study on the photo-conducting cell.
  4. Theoretical/practical exercises.

Fiber optics:

  1. Fiber optics practice.
  2. Faults study using fiber optics.
  3. Theoretical/practical exercises.

Infrared:

  1. Circuit with infrared diodes.
  2. Faults study of the infrared diodes.
  3. Theoretical/practical exercises.
Voir plus

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Several other exercises can be done and designed by the user.
