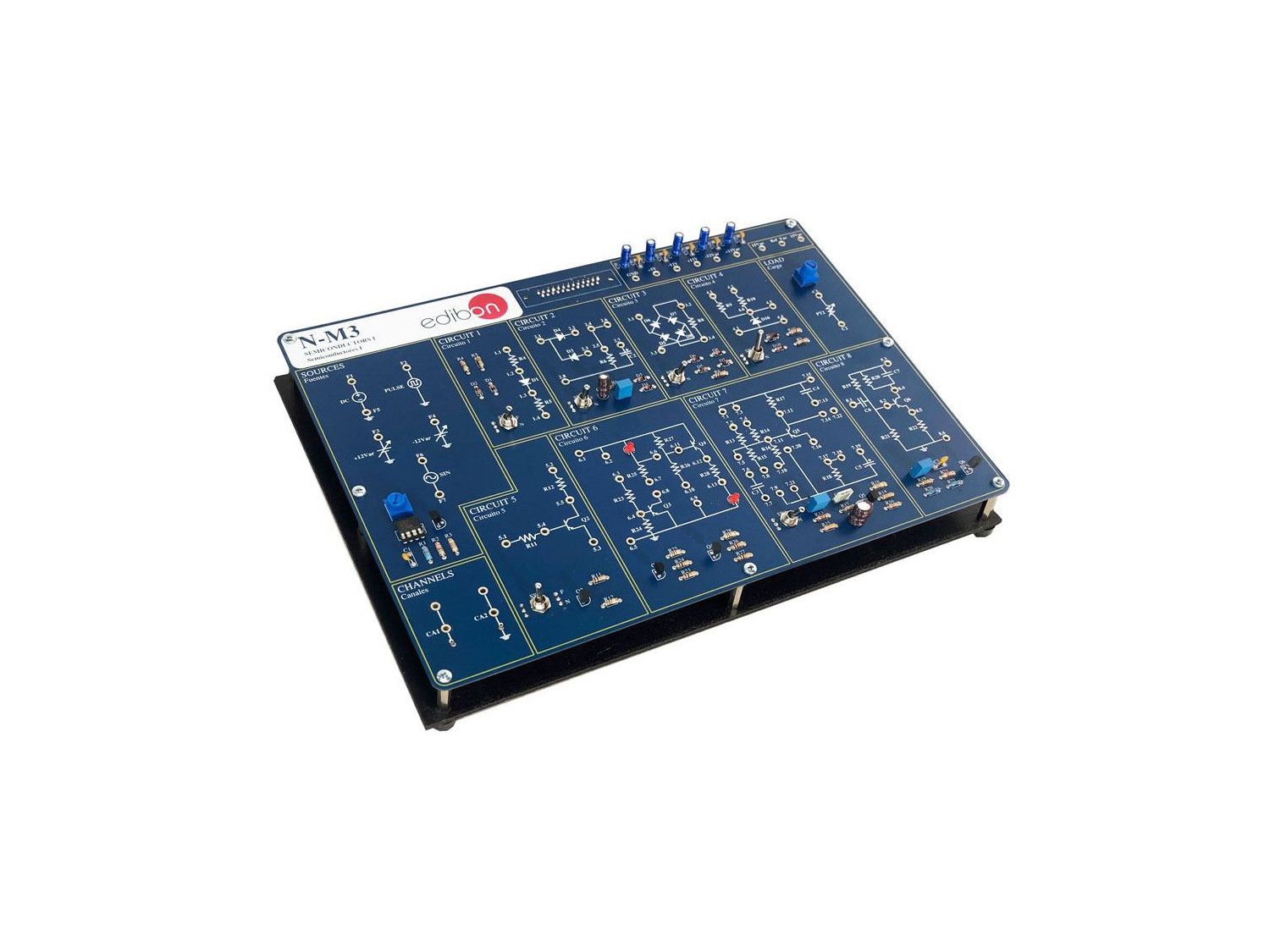

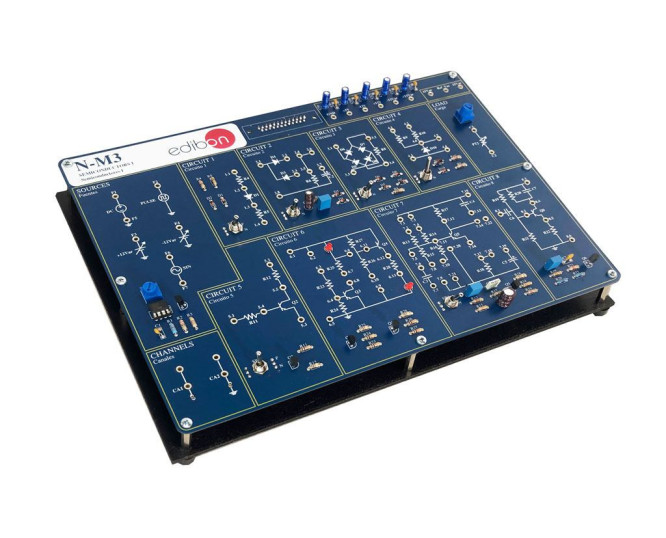

N-M3 Module de Semi-conducteurs I

SEMICONDUCTORS I MODULE - N-M3

SYSTEMES INNOVANTS

With Semiconductors I Module, "N-M3", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

Voir description générale

NOUVELLES LIÉES

Description Générale

Semiconductors are materials characterized by a resistivity lower than an insulator and higher than a conductor. There are different types of semiconductors, among which we could highlight diodes as extrinsic semiconductors (formed by more than one atom).

With Semiconductors I Module, "N-M3", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Characteristics of the PN junction:

  1. Study of the diode.
  2. Faults study in diodes.
  3. Theoretical/practical exercises.

The diode as a rectifier element:

  1. Half wave rectifier.
  2. Faults study in Rectifier circuit.
  3. Bridge rectifier.
  4. Faults study in bridge rectifier.
  5. Theoretical/practical exercises.

The Zener diode:

  1. Voltage regulator with a Zener diode.
  2. Faults study in Zener circuit.
  3. Theoretical/practical exercises.

Study and characteristics of the transistor:

  1. Study of the transistor.
  2. Faults study in the transistor.
  3. Theoretical/practical exercises.

Transistor characteristics operating as a switch:

  1. Study of the transistor as a switch.
  2. Theoretical/practical exercises.

Common emitter amplifier:

  1. Study of the common emitter NPN amplifier.
  2. Faults study in amplifier circuit.
  3. Study of the common emitter PNP amplifier.
  4. Theoretical/practical exercises.
Voir plus

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Voltage doubler.
  2. Power supply filtering.
  3. Several other exercises can be done and designed by the user.
