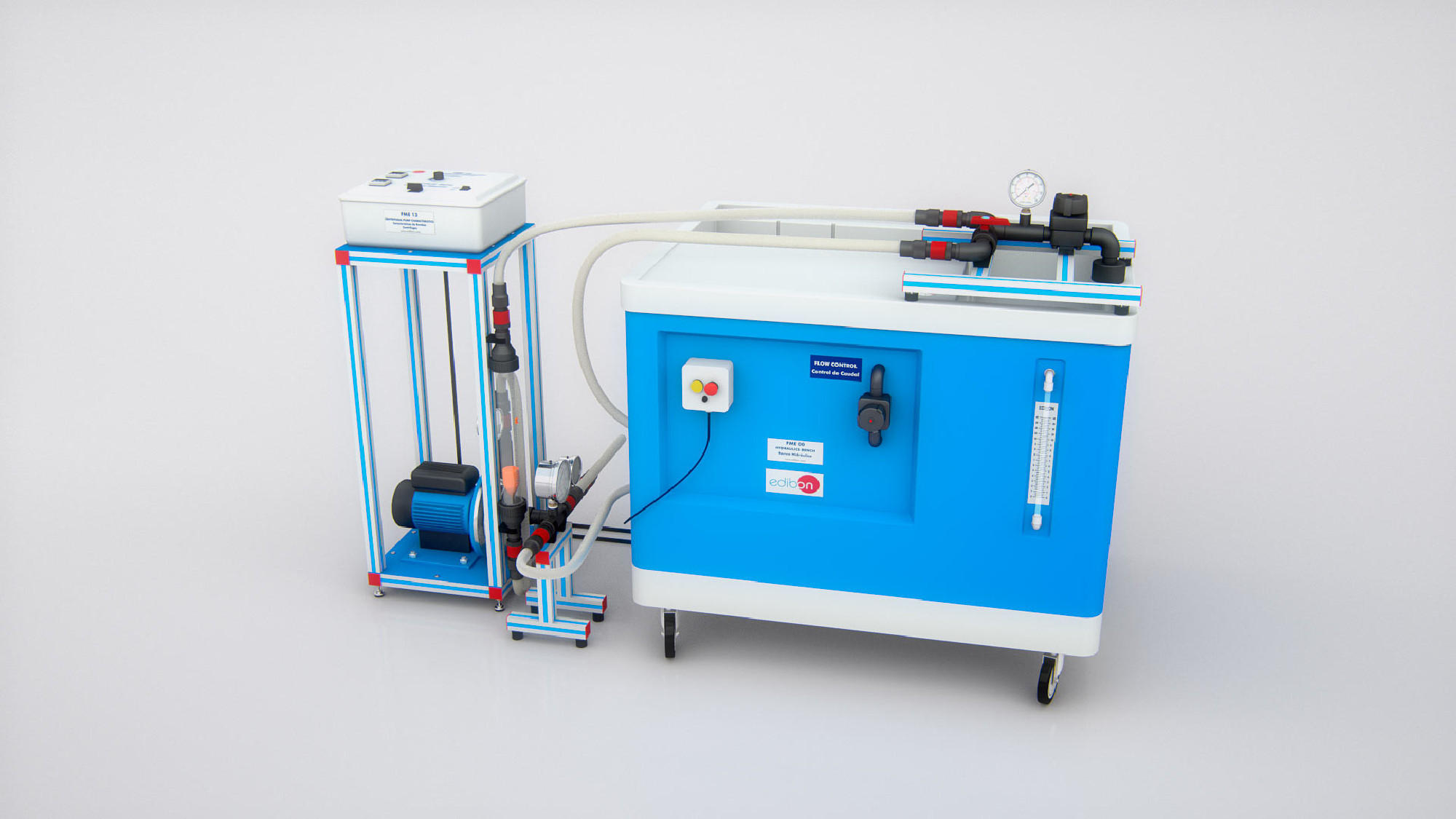

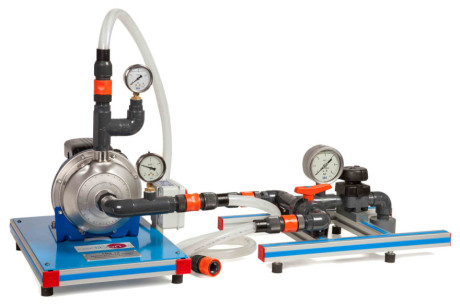

Complete FME13 Unit

CENTRIFUGAL PUMP CHARACTERISTICS - FME13

FME13 Unit with service unit FME00

CENTRIFUGAL PUMP CHARACTERISTICS - FME13
CENTRIFUGAL PUMP CHARACTERISTICS - FME13

SYSTEMES INNOVANTS

The Centrifugal Pump Characteristics, "FME13", designed by EDIBON, allows the study of several centrifugal pump characteristics such as efficiency, series/parallel couplings, etc.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Centrifugal Pump Characteristics, "FME13", designed by EDIBON, allows the study of several centrifugal pump characteristics such as efficiency, series/parallel couplings, etc.

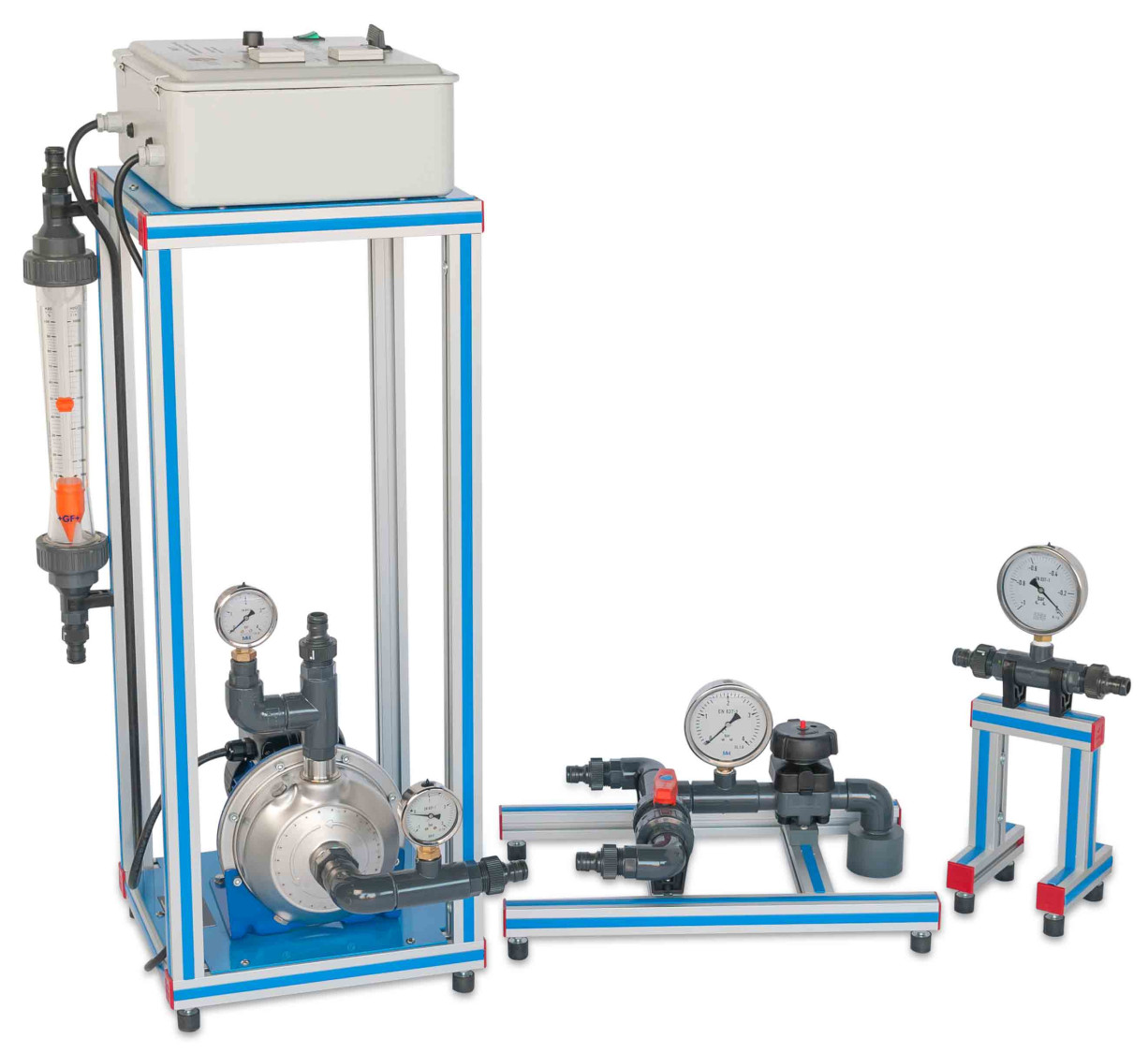

The unit has a centrifugal pump with similar characteristics to the one in the Hydraulics Bench (FME00) and the Basic Hydraulic Feed System (FME00/B). It is armed with two Bourdon-type pressure manometers placed at the pump’s inlet and outlet. There is another one in the discharge accessory supplied with the unit.

The pump is driven by a three-phase asynchronous motor whose speed can be varied by a speed variator.

The unit has visualization display that allows to know the rpm and the power consumed.

It is included a discharge accessory, with manometer, flow control valve and diffuser.

The variator’s control panel allows to vary the pump speed and the start.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Obtaining of the curves H (Q), N (Q), Eff% (Q) of a centrifugal pump.
  2. Making of the map of a centrifugal pump.
  3. Representation of the adimensional curves H*, N* and rpm*.
  4. Series coupling of two pumps of similar characteristics.
  5. Series coupling of two pumps of different characteristics.
  6. Parallel coupling of two pumps of similar characteristics.
  7. Parallel coupling of two pumps of different characteristics.

ÉLÉMENTS REQUIS
