ATBB Banc d'Essais Aérodynamiques
SYSTEMES INNOVANTS

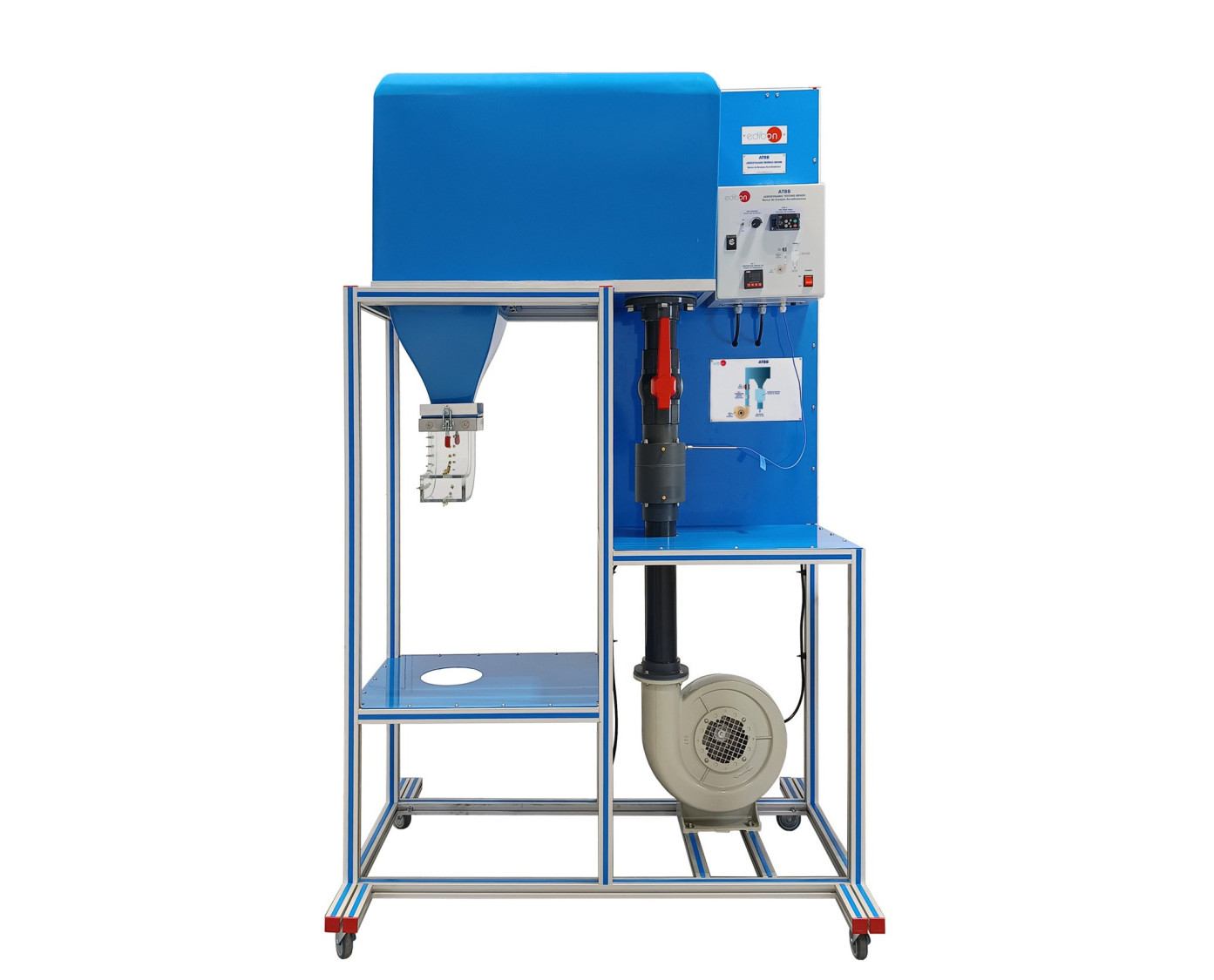

The Aerodynamic Testing Bench, "ATBB", has two main components: a radial fan with speed control and a working section where the different accessories for the tests are fixed.
NOUVELLES LIÉES
Description Générale
The Aerodynamic Testing Bench, "ATBB", has two main components: a radial fan with speed control and a working section where the different accessories for the tests are fixed.
The radial blower impels the air through an air intake pipe to a rectifier that stabilizes the air, eliminates the turbulences and makes the air flow that reaches the working section be homogeneous. The air leaves the rectifier by a nozzle, where its speed is accelerated, and it is injected into the working chamber.
Accessories that allow different experiments can be attached to the working section in a comfortable and simple way.
After the working section, the air is driven to an air outlet pipe.
There are up to 45 measuring points in which the pressure can be measured, both along the circuit and in the accessories. For pressure measurements the Manometer Panel. 16 Manometer tubes, "ATB/MB", is required. The manometer panel is connected to the pressure taps by flexible hoses fitted with quick-release couplings.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
ATB/BL. Model to Study the Boundary Layer:
- Properties of the boundary layer of the fluid when falling upon a flat plate.
- Influence of surface roughness on the formation of a boundary layer.
- Measurement of the flow speed with a Pitot tube.
ATB/DF. Model to Study the Drag Forces:
- Measurement of drag forces on bodies immersed in an air flow.
- Calculation of drag coefficients on bodies immersed in an air flow.
- Pressure distribution on a cylinder immersed in an air flow.
- Study of the conservation of momentum.
ATB/CE. Model to Study the Coanda Effect:
- Study of an air flow that follows the curvature of a surface and demonstration of the Coanda effect.
- Study of the operation of a flip-flop.
ATB/VS. Model to Visualize Streamlines:
- Visualization of streamlines by smoke injection.
- Visualization of air streamlines through a cylinder.
- Visualization of air streamlines through an orifice plate (different cross section).
- Visualization of air streamlines through an airfoil with adjustable angle of attack.
- Air flow separation.
ATB/BP. Model to Study Bernoulli’s Principle:
- Application of the continuity equation and Bernoulli’s principle.
- Calculation of the dynamic pressure and the flow velocity from the measured data using Bernoulli’s principle.
ATB/PDB. Pressure Distribution in a Pipe Bend:
- Study of the air flow development at a 90º pipe bend.
- Representation of the pressure distribution at a 90º pipe bend.
- Determination of the static pressure.
ATB/FJ. Model to Study a Free Jet:
- Study of the behavior of a free jet.
- Recording the pressure curve at the outlet of a parallel flow in stationary surroundings.
- Representation of velocity profiles at several distances along the jet and the development of the jet diffusion.
ATB/SS. Pressure Distribution in a Streamlined Shape:
- Study of the pressure distribution around a streamlined shape.
EQUIPEMENT COMPLEMENTAIRE
8.6.- AÉRODYNAMIQUE
TAS25/100C
La Soufflerie Supersonique Contrôlée par Ordinateur (PC), "TAS25/100C", est une soufflerie ouverte pour l'étude des propriétés aérodynamiques de différents corps de traînée exposés aux écoulements subsoniques et supersoniques. La circulation de...
8.6.- AÉRODYNAMIQUE

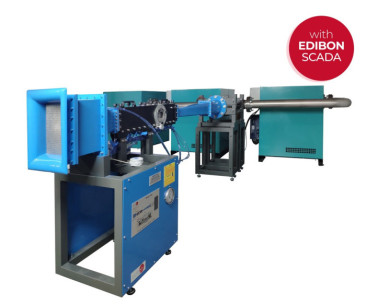

TAS25/100C-3B
Soufflerie Supersonique Contrôlée par Ordinateur (Trois Compresseurs)
The Computer Controlled Supersonic Wind Tunnel (Three Blowers), "TAS25/100C-3B", is an open wind tunnel for the study of theaerodynamic properties of different drag bodies subject to subsonic and supersonic flows. Airflows through three vacuum...
8.6.- AÉRODYNAMIQUE

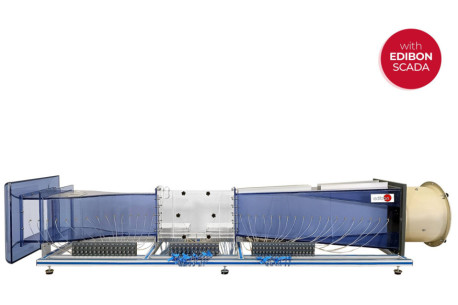

TA50/250C
Tunnel Aérodynamique, 50x250 mm, Contrôlé par Ordinateur (PC)
Le Tunnel Aérodynamique, 50x250 mm, Contrôlé par Ordinateur (PC), "TA50/250C", est une soufflerie conçue pour étudier l'aérodynamique subsonique dans un tunnel en circuit ouvert et avec un écoulement subsonique incompressible. L'air est aspiré par...
8.6.- AÉRODYNAMIQUE

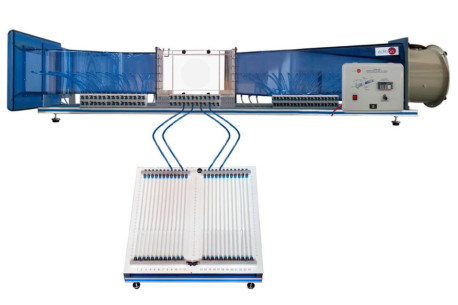

TA50/250
Tunnel Aérodynamique, 50 x 250 mm
The Aerodynamic Tunnel, 50 x 250 mm, "TA50/250", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan located at the discharge end of the...
8.6.- AÉRODYNAMIQUE
TA300/300C
Tunnel Aérodynamique, 300 x 300 mm, Contrôlé par Ordinateur (PC)
Le Tunnel Aérodynamique, 300 x 300 mm, Contrôlé par Ordinateur (PC) , 300 x 300 mm, "TA300/300C", est une soufflerie conçue pour étudier l’aérodynamique subsonique dans un tunnel en boucle ouverte et avec un flux subsonique incompressible. L’air...
8.6.- AÉRODYNAMIQUE

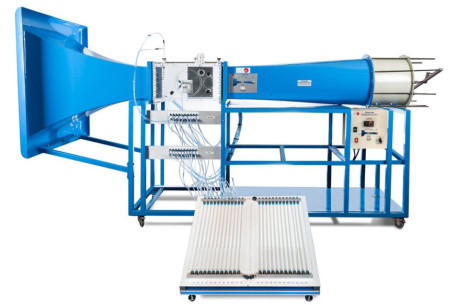

TA300/300
Tunnel aérodynamique, 300 x 300 mm
The Aerodynamic Tunnel, 300 x 300 mm, "TA300/300", is a wind tunnel designed to study subsonic aerodynamics in a tunnel in open circuit and with incompressible subsonic flow. Air is drawn by a variable speed fan located at the discharge end of the...
8.6.- AÉRODYNAMIQUE

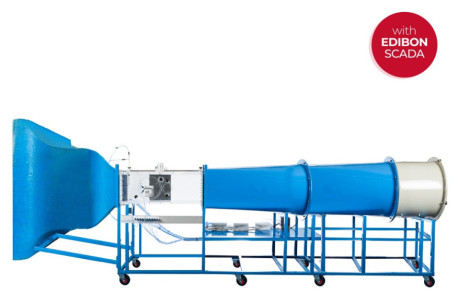

TA610/915C
Tunnel Aérodynamique, 610X915 mm, Contrôlé par Ordinateur (PC)
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
8.6.- AÉRODYNAMIQUE

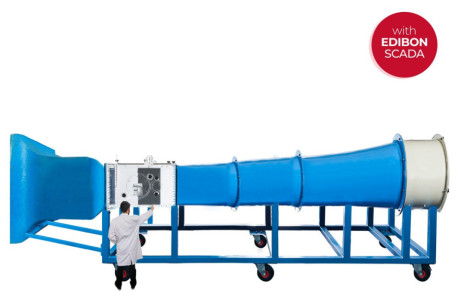

TA1000/1000C
Tunnel Aérodynamique, 1000X1000 mm, Contrôlé par Ordinateur (PC)
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
8.6.- AÉRODYNAMIQUE
TA1200/1200C
Tunnel Aérodynamique, 1200X1200 mm, Contrôlé par Ordinateur (PC)
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
8.6.- AÉRODYNAMIQUE

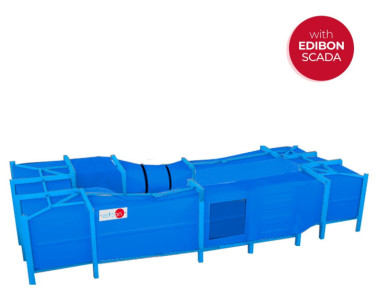

TACL2000/2000C
Tunnel Aérodynamique Fermé, 2000X2000 mm, Contrôlé par Ordinateur (PC)
Aerodynamics is the part of fluid mechanics that studies the motion of gases and the forces or reactions to which the bodies they interact with are subjected. Aerodynamics is not only important by itself but also as a complement to aeronautics....
8.4.- VISUALISATION DE FLUX
TAVF180/100
Tunnel Aérodynamique pour la Visualisation de l'écoulement
The Flow Visualization Aerodynamic Tunnel, "TAVF180/100", consists of a vertical conduction in which an upward flow of air and smoke is induced, which passes through different models allowing to study the behavior of the flow around it. Thus it is...
8.6.- AÉRODYNAMIQUE

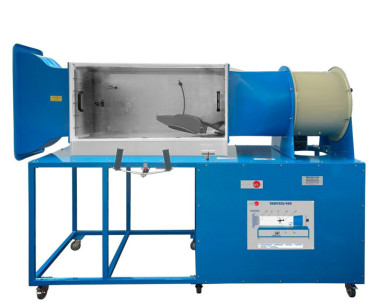

TADV225/450
