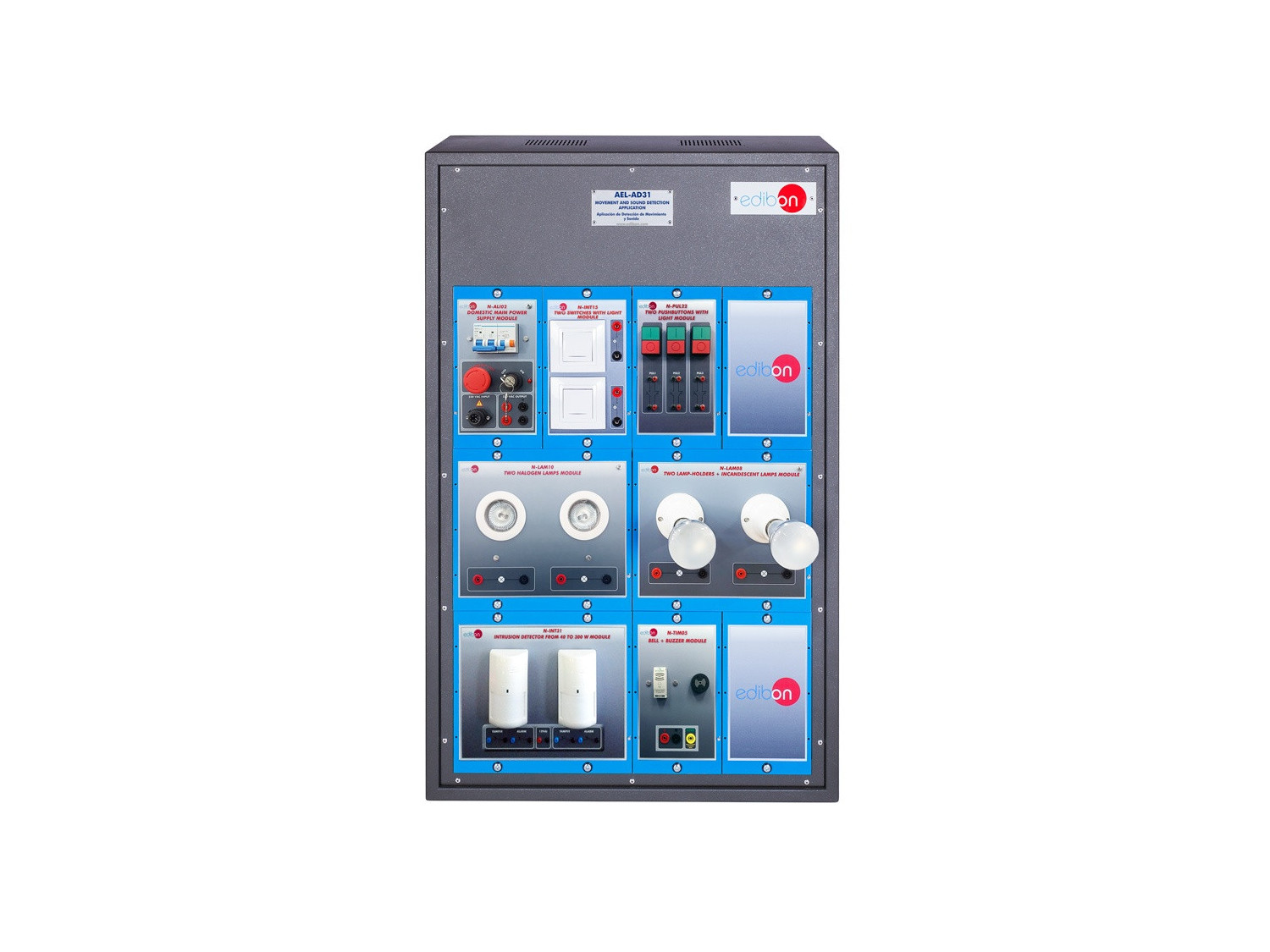

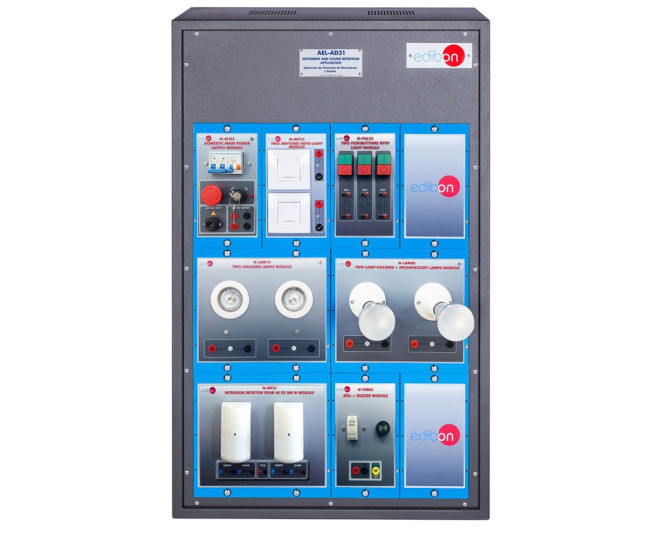

AEL-AD31 Application de Détection de Mouvement et Son
The Movement and Sound Detection Application, "AEL-AD31", is an application designed to understand the operation of the most common intrusion detector.
The Movement and Sound Detection Application, "AEL-AD31", is an application designed to understand the operation of the most common intrusion detector. The intrusion detector of this application consists of a device made up of magnets, which can be located in windows or doors. So when it detects the opening of a window or door, it sends an alarm signal.
It can also send the alarm signal when it detects sound above a threshold. To check the operation of this device, the application includes a bell, two halogen lamps, two switches with light, two incandescent lamps and two pushbuttons with light. In other words, the sensor can be connected to any of these elements to simulate real situations, so the student can understand its operation.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Movement and sound detection controlled through switches.
- Movement and sound detection controlled through push-buttons.
- Testing of the intrusion sensor.
- Simulate an intrusion through the intrusion detector and the bell + buzzer module.
