AEL-CM2 Application de Démarreurs et Commutateurs de Vitesses de Moteurs Asynchrones

APPLICATION OF MANUAL STARTERS AND VELOCITY COMMUTATORS WITH ASYNCHRONOUS MOTORS - AEL-CM2

SYSTEMES INNOVANTS

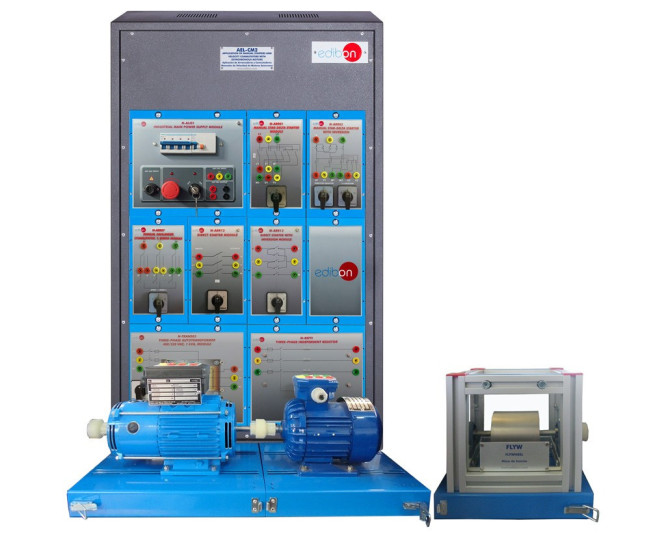

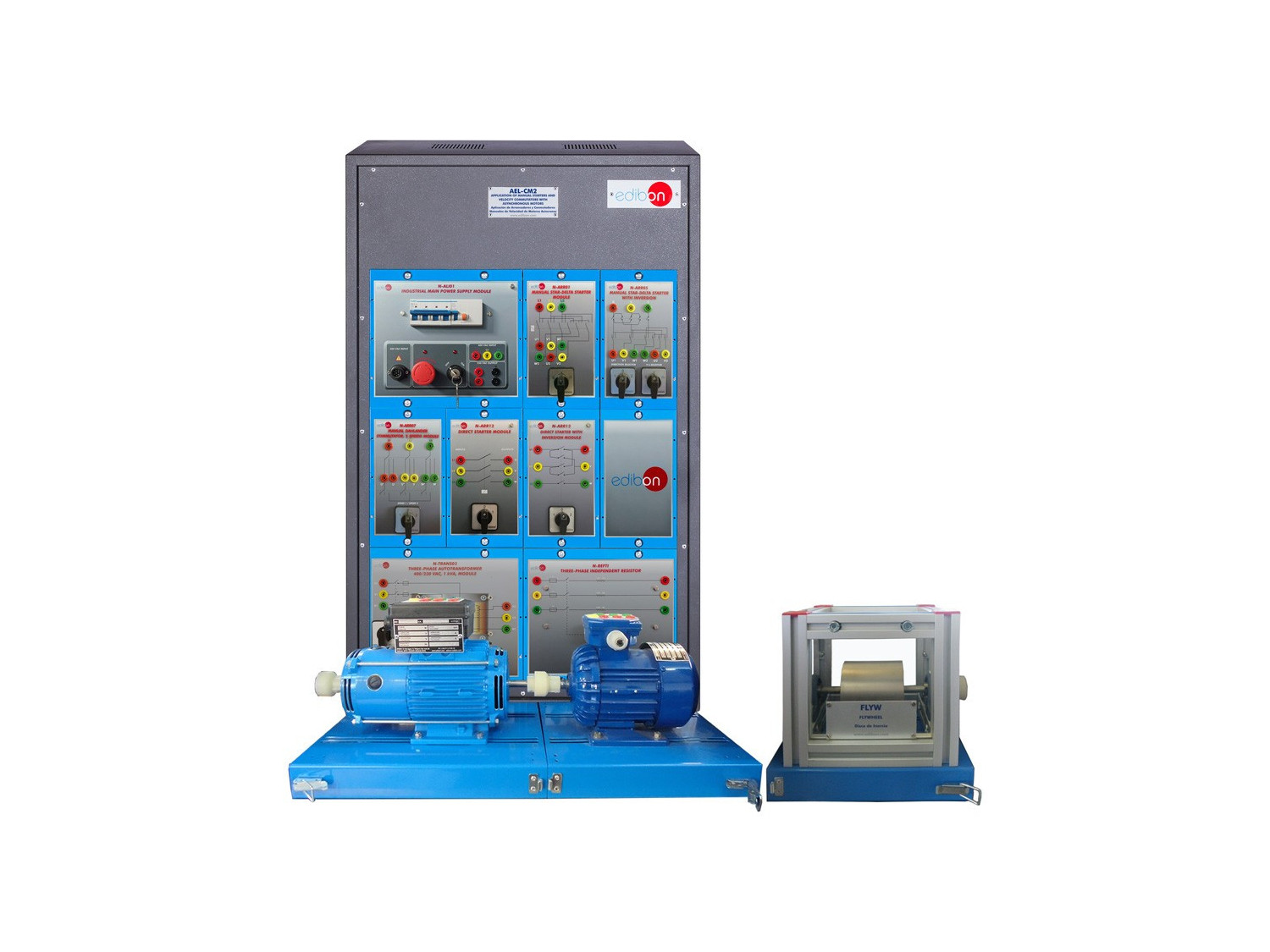

The Application of Manual Starters and Velocity Commutators with Asynchronous Motors, "AEL-CM2 ", has been designed by EDIBON to study how Dahlander and Three-Phase Induction Motor with Wound Rotor are wired and controlled.

Voir description générale

NOUVELLES LIÉES

Description Générale

The Application of Manual Starters and Velocity Commutators with Asynchronous Motors, "AEL-CM2 ", has been designed by EDIBON to study how Dahlander and Three-Phase Induction Motor with Wound Rotor are wired and controlled. Besides, this application shows the most important methods of motor operations used in the industry, such as changing the rotation direction, manual star-delta starter, direct starter, direct starter with inversion, manual Dahlander commutator, starting with resistors, etc.

This application includes a series of elements which allow study in depth all issues mentioned before.

In addition, this application has a flywheel with the purpose of simulate a dynamic load in the motors and to check how they work in this situation.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Checking the working of the main power supply.
  2. Manual Star-Delta starter of asynchronous three-phase induction motor with wound rotor.
  3. Manual start and reverse operation of asynchronous three-phase induction motor with wound rotor.
  4. Manual Star-Delta with inversion circuit of asynchronous three-phase induction motor with wound rotor.
  5. Manual soft starter with resistors of asynchronous three-phase induction motor with wound rotor.
  6. Manual start and reverse operation of Dahlander motor.
  7. Manual speed variation of a Dahlander motor.
  8. Manual speed variation of a Dahlander motor with inversion.
