AEL-CM3 Application d'Opérations de Contrôle Automatique II

AUTOMATIC CONTROL OPERATIONS II APPLICATION - AEL-CM3

SYSTEMES INNOVANTS

The Automatic Control Operations II Application, "AEL-CM3", has been designed by EDIBON in order to instruct the students about the most important operations of alternating current motors.

Voir description générale

NOUVELLES LIÉES

Description Générale

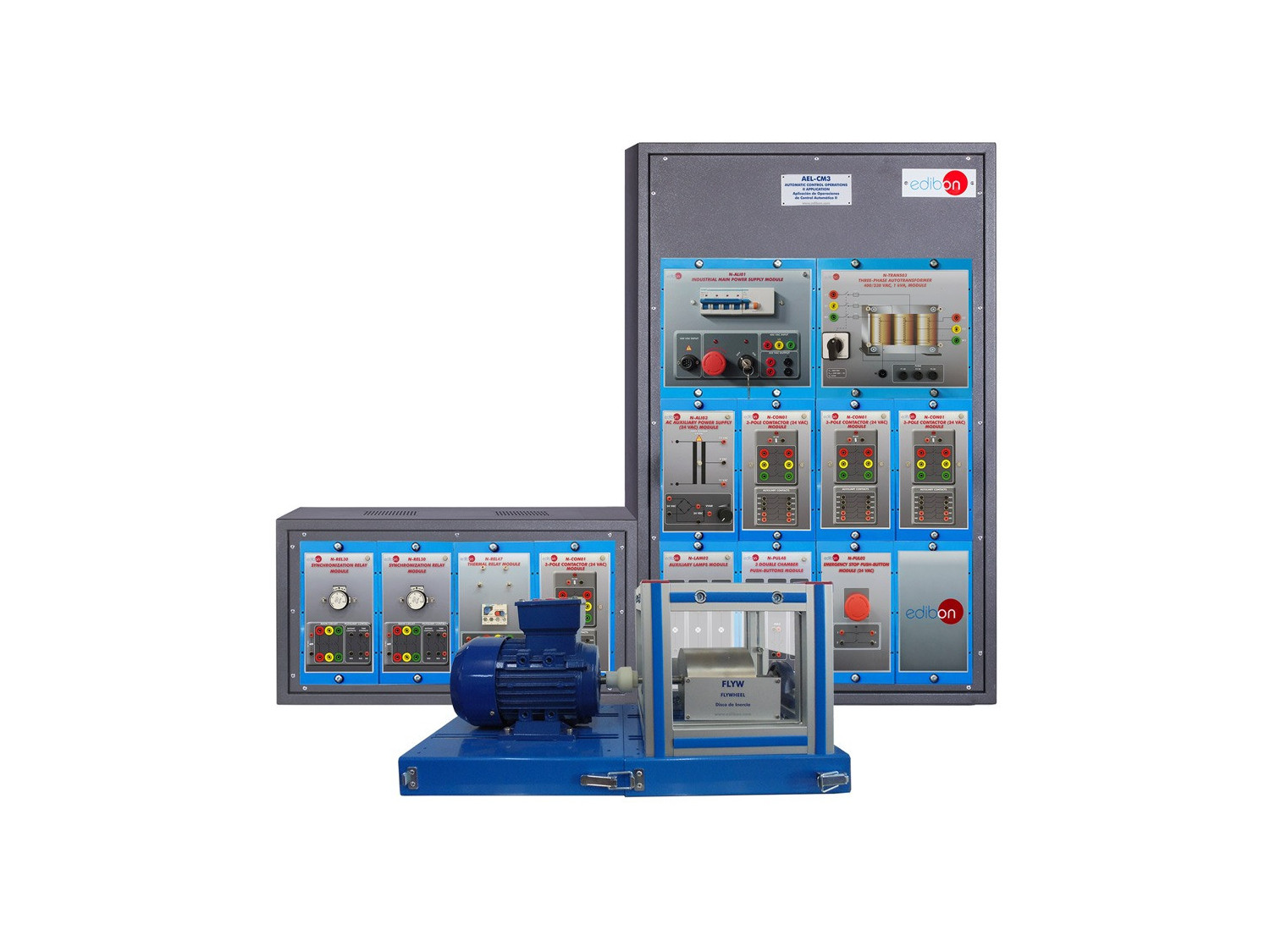

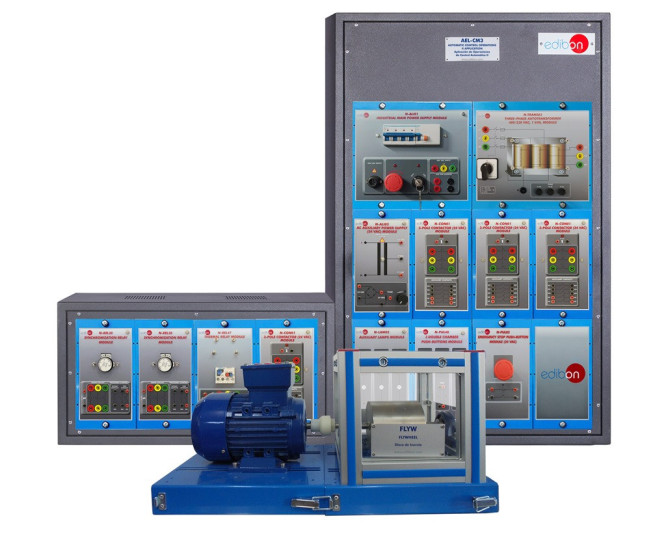

The Automatic Control Operations II Application, "AEL-CM3", has been designed by EDIBON to study automatic operations with Three- Phase Induction Motors of Squirrel Cage.

The student will learn how carry out logic wirings with several relays, timers and circuit breakers to get direct starting, star/delta start or run investment operations. With this application the student will learn how control the induction motor developing logic wirings. This application includes a flywheel to simulate different load conditions in the electrical machine. The flywheel is coupled to the motor shaft in order to produce a higher moment of inertia.

Moreover, the "AEL-CM3" will show the students to realize auxiliary wirings for emergency situations while the motor is working.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Checking the main power supply.
  2. Checking the auxiliary power supply.
  3. Checking the lamps.
  4. Study of the basic control elements of three-phase induction motor.
  5. Thermal relay operation.
  6. Manual star-delta circuit of three-phase induction motor .
  7. Automatic star-delta circuit of three-phase induction motor with timers.
  8. Manual starting and reversing operation of the induction motor.
  9. Automatic Star/Delta reversing circuit of three-phase induction motor with timers
