PROTECTION RELAYS CONTROL APPLICATION - AEL-AE5

SYSTEMES INNOVANTS

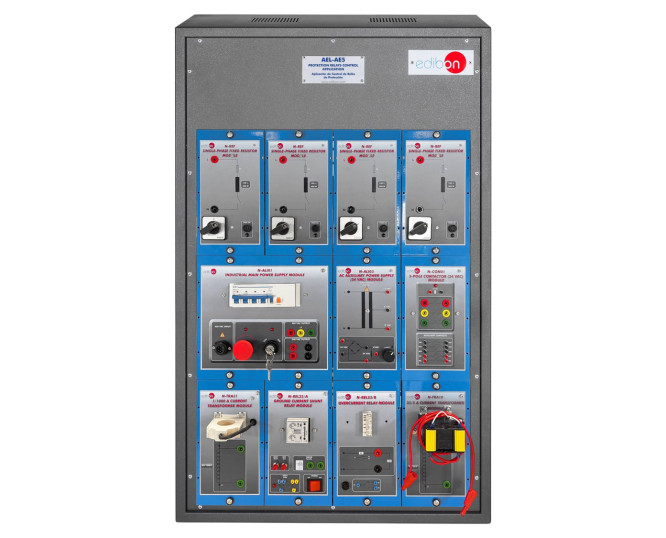

The Protection Relays Control Application, "AEL-AE5", is designed with the aim to understand the working of protection relays.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Laboratories

4TV
 Laboratoire d'électricité pour l'enseignement Technique et Professionnel
4HE
 Laboratoire d'électricité pour l'enseignement Supérieur
11PTC
 Laboratoire pour le Centre de Formation Pétrolière

NOUVELLES LIÉES

What is Industry 4.0?

What is Industry 4.0?

Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lire plus

Description Générale

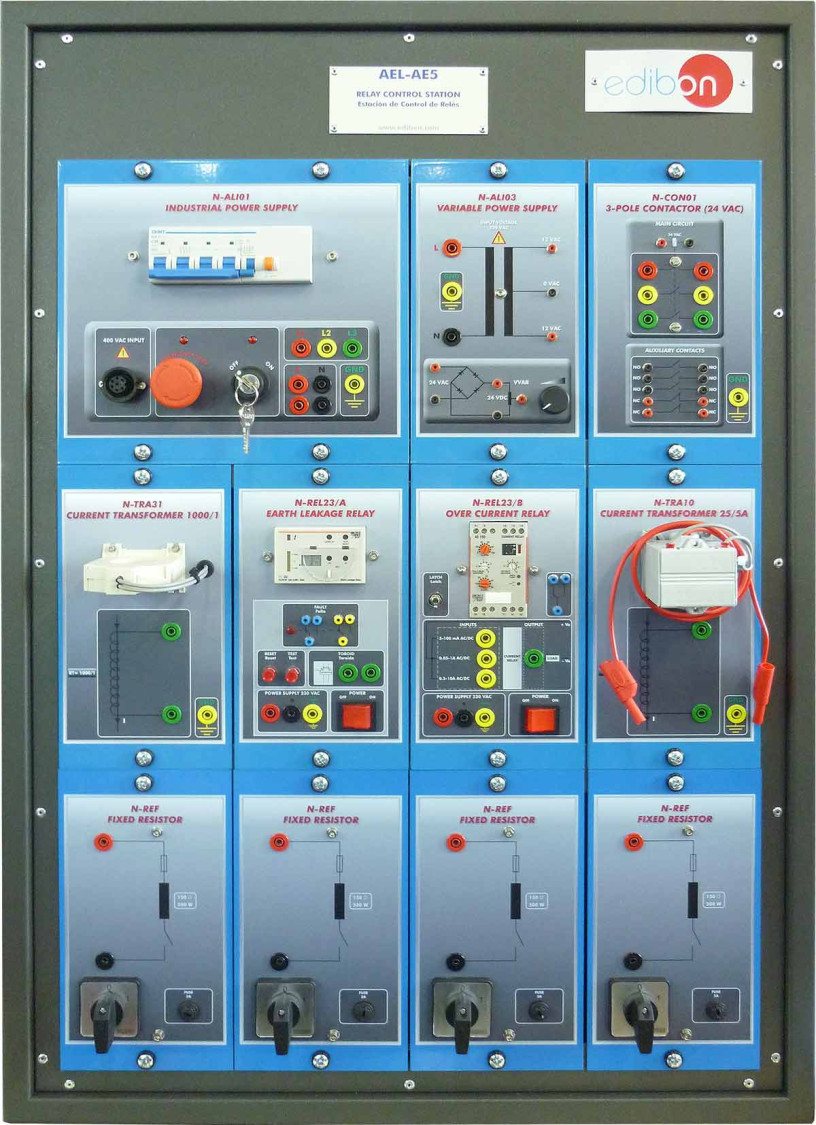

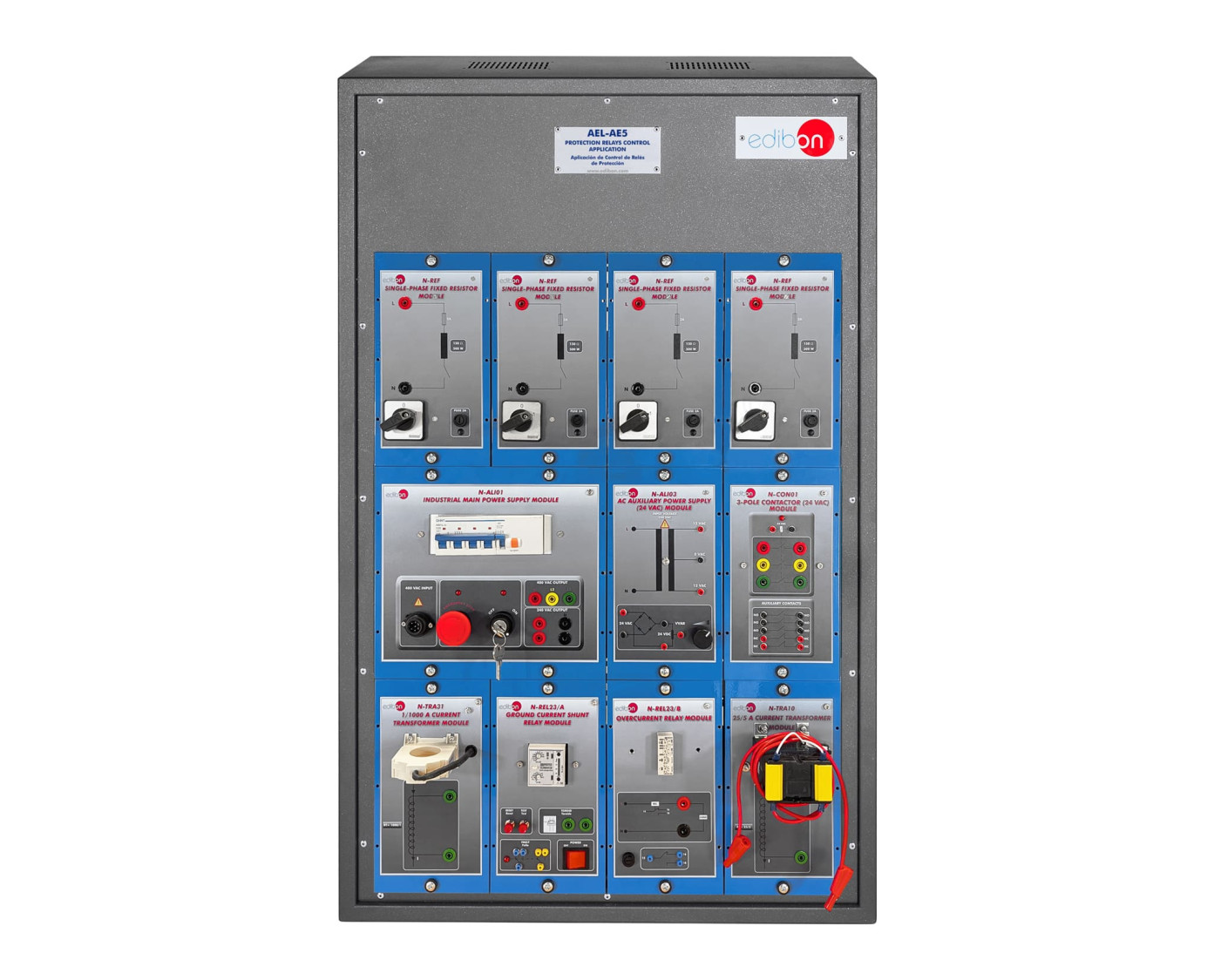

The Protection Relays Control Application, "AEL-AE5", is designed with the aim to understand the working of protection relays. This application is formed by the next kind of relays: over current relays, which open the circuit when it detects a high level of current previously configured, and the leakage grounding relay, is capable to detect possible leakages to ground.

To measure the currents, it is included current protection transformers, and to control the system, a three-pole contactor.

Thus, the student can understand the working of the protection relays and simulate some scenes, such as, leakage grounding, through the elements included in this application.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Checking the woking of the main power supply.
  2. Checking the woking of the auxiliary power supply.
  3. Start up of a three-phase contactor.
  4. Calculation of the transformation ratio of a toroid.
  5. Start up of an overcurrent relay.
  6. Start up of an earth leakage relay.
