TIR Unité d'Introduction de Réfrigération
SYSTEMES INNOVANTS
With simple and clear experiments, the Introduction to Refrigeration Unit, "TIR", designed by EDIBON, allows the familiarization with the operation and handling of a refrigeration system and offers a basic introduction to refrigeration.
NOUVELLES LIÉES
Description Générale

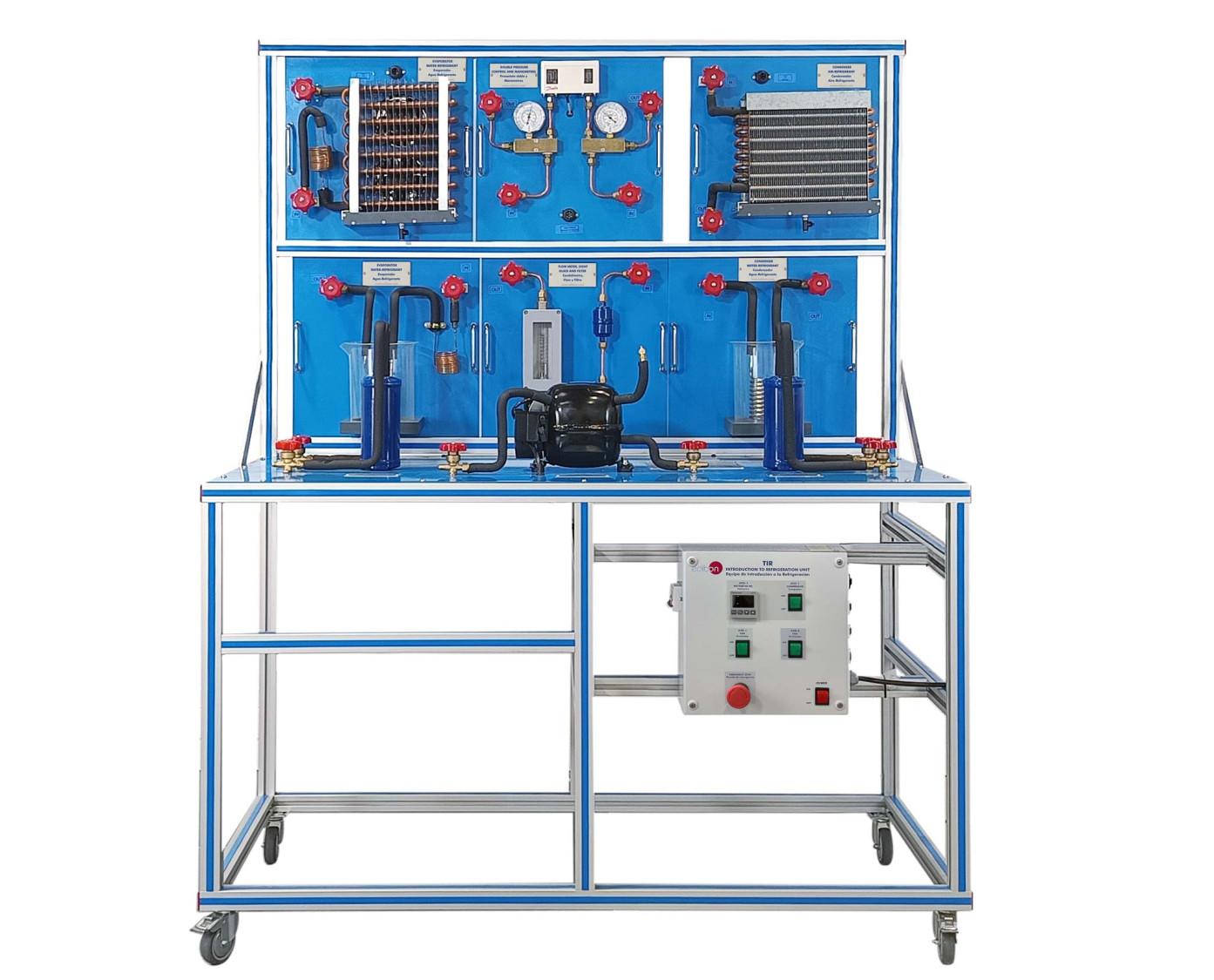

The Introduction to Refrigeration Unit, "TIR", is a unit with exchangeable sets in which the components are mounted on plates and quickly connected by flexible hoses.
The unit consists of a frame with a compressor, a refrigerant accumulator tank to ensure an adequate flow of refrigerant in the circuit and a liquid separator to prevent liquid from entering the compressor. Six exchangeable sets can also be placed in the frame at the same time and allow for the construction of simple compression refrigeration systems, connecting the sets and elements by cables and flexible hoses.
The sets are formed by the components mounted on plates and are ready to be easily mounted on the frame.
The experimental unit includes all the components required for a fully operational refrigeration circuit, such as compressor, condenser, evaporator and a capillary tube as expansion element. Other additional accessories in refrigeration systems are also included: double pressure control and manometers to protect the compressor against too high or too low pressure, flow meter, sight glass and filter.
The unit allows for different combinations of components, since there are two condensers and two evaporators, one acting as an air-refrigerant heat exchanger and the other as a water-refrigerant heat exchanger.
The frame contains a control and indication panel where the power absorbed by the compressor is displayed and where the compressor and the different fans can be controlled.
Pressures, flow rates, power consumption by the compressors and the most important characteristic variables of refrigeration circuits are displayed. Temperature is measured with thermometers belonging to the laboratory.
To fill and drain the system, the T/KIT1 element, Maintenance Kit containing Vacuum Pump, Hoses and Manometers is required.
To detect any refrigerant leaks in the unit we recommend the element T/KIT2, Maintenance Kit containing Leakage Detector.
To repeatedly fill and drain the system without losing the refrigerant, the use of the T/KIT3 Maintenance Kit containing the Refrigerant Filling and Evacuation Module is required.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Construction of simple refrigeration circuits with different components.
- Identification and study of the main components of a compression refrigeration plant.
- Study of the basics of a simple refrigeration circuit.
- Identification and visualization of the changes in the refrigerant state.
- Understanding of the thermodynamic cycle.
- Study of the different modes of operation in a refrigeration circuit:
- Cooling air.
- Heating the air.
- Generating refrigeration water.
- Generating hot water.
- Representation of the refrigeration circuit in the process diagram.
- Representation of the thermodynamic process in the Ph diagram.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Evaluation of refrigeration capacity and heat fluxes for different operation modes.
- Development of practical exercises: Draining and filling the refrigeration system (requires the accessory T/KIT3).
- Properties of the R-513a refrigerant.
- Ph diagram for the R-513a refrigerant.
EQUIPEMENT COMPLEMENTAIRE
9.10.3.- INSTALLATIONS ET MAINTENANCE
TEMT
The Temperature Measurement Training Unit, "TEMT", allows to compare the response of several devices to measure the temperature for different flows and different installation position of these devices.The unit includes four different measuring...
9.10.3.- INSTALLATIONS ET MAINTENANCE
TAMR
Unité de Montage et d'Entretien dans les Installations de Réfrigération
The Assembly and Maintenance in Refrigeration Systems Unit, "TAMR", has been designed to teach the students the planning, implementation and checking of processes related to the assembly, startup and maintenance of refrigeration systems.The fully...
9.10.3.- INSTALLATIONS ET MAINTENANCE

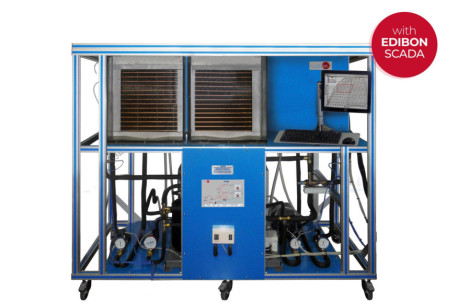

TCFRC
Unité de Régulation de la Puissance et des Défauts dans les Installations de Réfrigération, Contrôlée par Ordinateur (PC)
The purpose of the Computer Controlled Capacity Control and Faults in Refrigeration Systems, "TCFRC", is to investigate different methods of capacity control and to simulate 18 different typical faults in refrigeration systems.The efficient...
9.10.3.- INSTALLATIONS ET MAINTENANCE

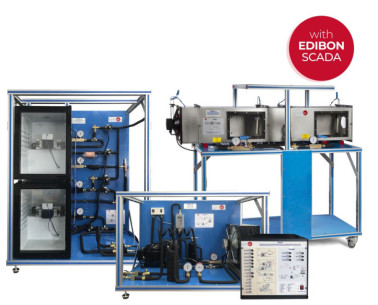

TRAMC
Unité Modulaire de Réfrigération et de Climatisation, Contrôlée par Ordinateur (PC)
The minimum supply consists of two main elements: the TRAMC Unit Base, "TRAMC-UB", and at least one of the required elements described below. The models are interconnected by special refrigerant hoses.The main components of the TRAMC Unit Base,...
9.10.3.- INSTALLATIONS ET MAINTENANCE

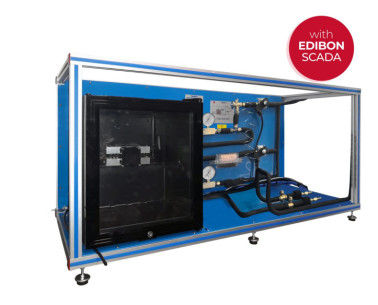

TRAMC/1
Modèle de Réfrigération Domestique
The minimum supply consists of two main elements: the TRAMC Unit Base, "TRAMC-UB", and at least one of the required elements described below.The models are interconnected by special refrigerant hoses.The main components of the TRAMC Unit Base,...
9.10.3.- INSTALLATIONS ET MAINTENANCE

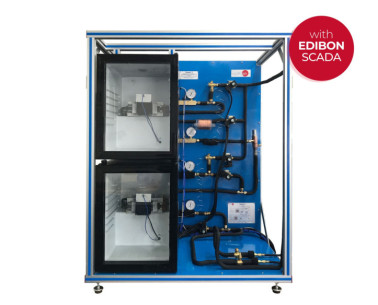

TRAMC/2
Modèle d'Installation de Réfrigération Avec Étape de Réfrigération et de Congélation
The minimum supply consists of two main elements: the TRAMC Unit Base, "TRAMC-UB", and at least one of the required elements described below.The models are interconnected by special refrigerant hoses.The main components of the TRAMC Unit Base,...
9.10.3.- INSTALLATIONS ET MAINTENANCE

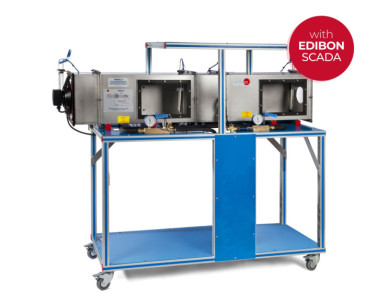

TRAMC/3
Modèle de Système de Climatisation Simple pour Le Refroidissement de Pièces
The minimum supply consists of two main elements: the TRAMC Unit Base, "TRAMC-UB", and at least one of the required elements described below. The models are interconnected by special refrigerant hoses.The main components of the TRAMC Unit Base,...
9.10.3.- INSTALLATIONS ET MAINTENANCE

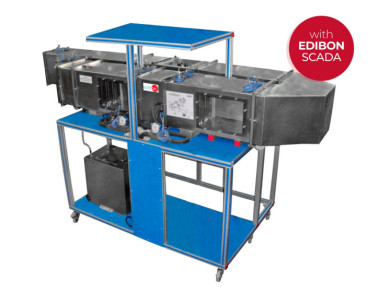

TRAMC/4
