TIAC Unité d'Essai de Tube d'Impédance Acoustique / et d'Isolation Acoustique, Contrôlée par Ordinateur (PC)

COMPUTER CONTROLLED ACOUSTIC IMPEDANCE TUBE/ACOUSTIC INSULATION TEST UNIT - TIAC

SYSTEMES INNOVANTS

This unit has been designed to provide students with an easy and simple method for understanding and investigating the relative acoustic properties of several materials. It demonstrates acoustic attenuation of a range of building materials as carpet, cork and fibre board.

Voir description générale

NOUVELLES LIÉES

Description Générale

This unit has been designed to provide students with an easy and simple method for understanding and investigating the relative acoustic properties of several materials. It demonstrates acoustic attenuation of a range of building materials as carpet, cork and fibre board.

The unit is very useful for the teaching of students in different areas as: Sound and Vibration, Mechanics, Aeronautics, Building, Architecture, Health and Safety, etc.

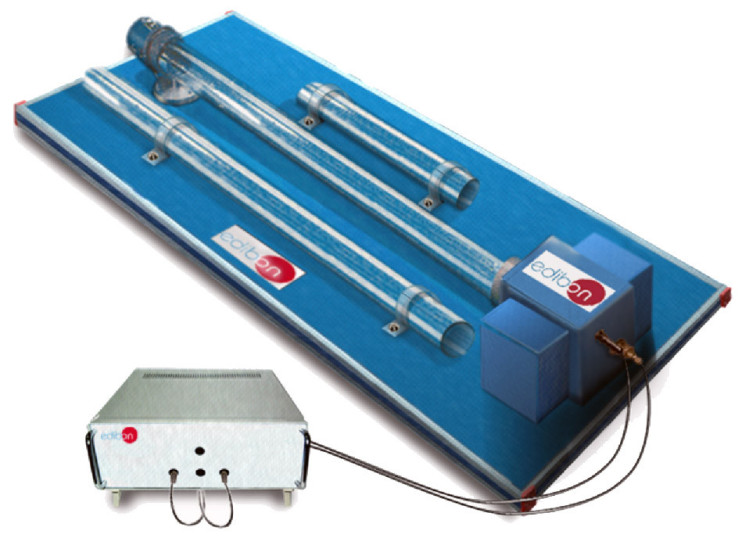

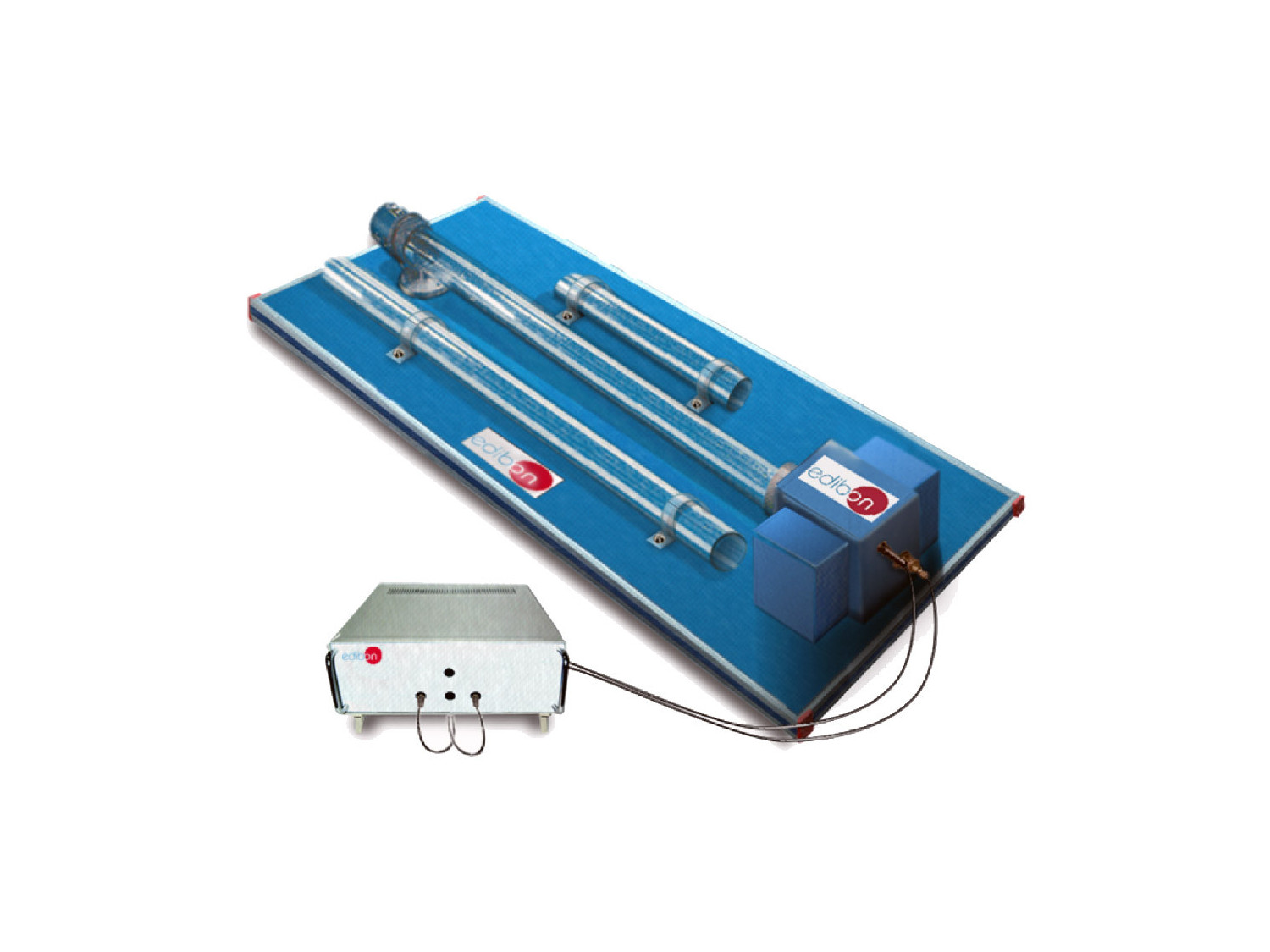

An acoustic standing wave unit driven by two loudspeakers and a separate console mounted power amplifiers.

A small microphone traveling in the transparent plastic tube allows the acoustic signal to be fed to the console mounted microphone amplifiers.

The transparent plastic tube combine with a scale and marker allow the microphone axial position to be measured.

Several test samples allow a wide range of tests on differing materials. This unit is supplied with the necessary instrumentation and sensors for controlling and measuring the most representative parameters.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study and investigation of the relative acoustic properties of different materials.
  2. Determination of the sound absorption coefficient for many of the normal building lining materials such as carpet, cork, fibre board and many of the better acoustic attenuating materials.
  3. Determination of the sound absorption coefficient of the these and some poor absorbers at a range of frequencies between approximately 300 and 4000 Hz.
  4. Determination of the speed of sound in air at ambient temperature and comparison of this with the calculated value.
  5. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously.
To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  1. Open Control, Multicontrol and Real Time Control.
This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  1. The Computer Control System with SCADA allows a real industrial simulation.
  2. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  3. This unit can be used for doing applied research.
  4. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  5. Control of the TIAC unit process through the control interface box without the computer.
  6. Visualization of all the sensors values used in the TIAC unit process.
