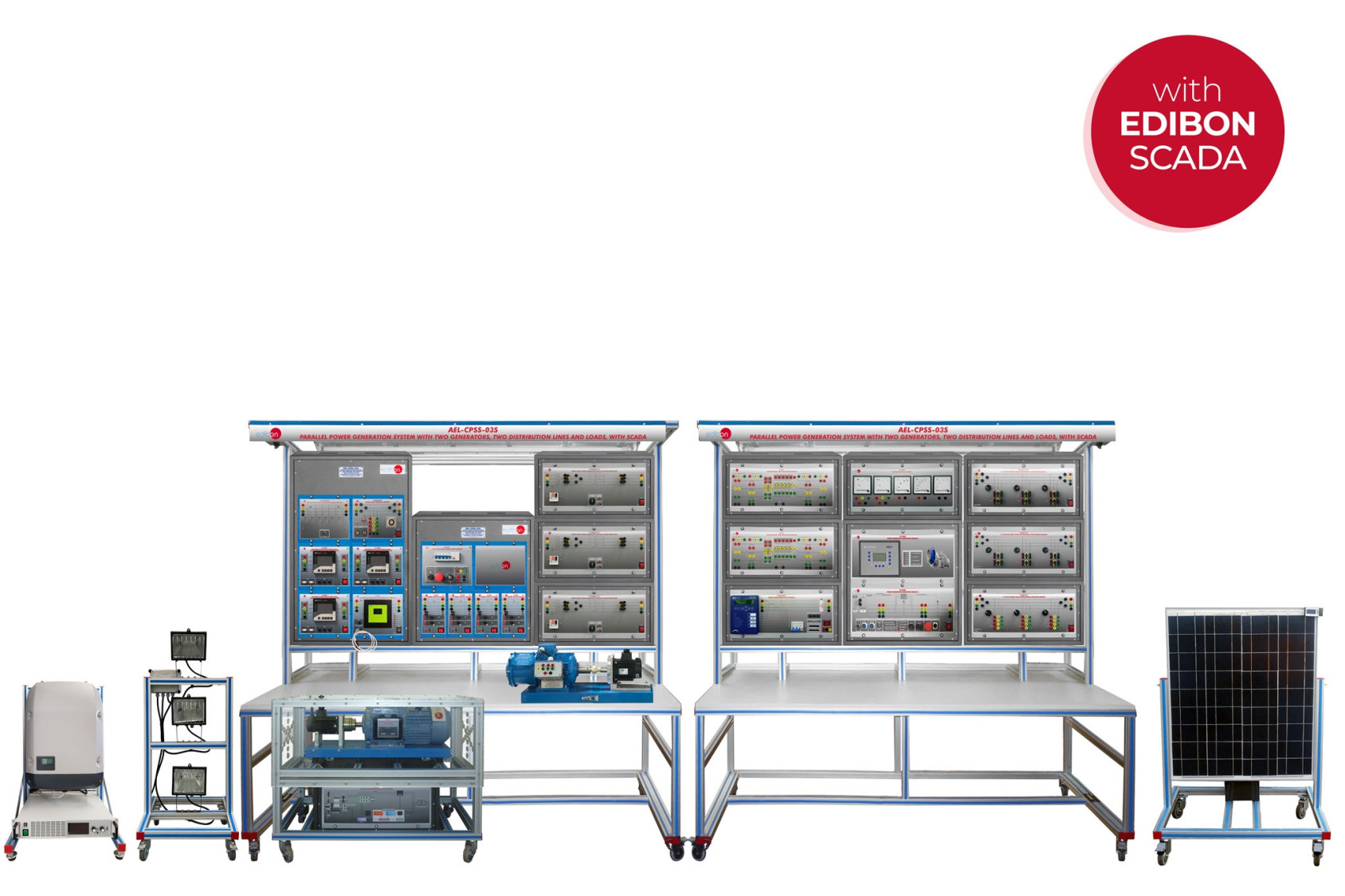

AEL-CPSS-03S Système d'alimentation avec 2 Générateurs Parallèles, 2 Lignes de Distribution et Charges,avec SCADA

PARALLEL POWER GENERATION SYSTEM WITH TWO GENERATORS, TWO DISTRIBUTION LINES AND LOADS, WITH SCADA - AEL-CPSS-03S

SYSTEMES INNOVANTS

A Smart Grid is an advanced electrical grid that uses analog information, digital information and communications technology to gather and act on information about the behavior of suppliers and consumers, in an automated way to improve the efficiency, reliability, economics, and sustain ability of the production and distribution of electricity.

Voir description générale

NOUVELLES LIÉES

Description Générale

A Smart Grid is an advanced electrical grid that uses analog information, digital information and communications technology to gather and act on information about the behavior of suppliers and consumers, in an automated way to improve the efficiency, reliability, economics, and sustain ability of the production and distribution of electricity.

The AEL-CPSS-03S is an application that reflects the most important operations carried out in the actual Smart Grids Power Systems.

  • Generation:

Parallel operations with different renewable energy sources.

Real time monitoring and control the demanded energy and the energy production.

Automatic control operations of synchronization.

Parallel operations of hydroelectric, wind turbine and conventional energy sources.

  • Transmission:

Transmission and distribution flow powers.

Energy losses.

Distribution transformer with voltage regulator.

Parallel distribution lines.

  • Consumption:

Active, capacitive and inductive loads.

Automatic power factor compensation.

Feeder protection relay.

This application shows different operations of an entire power system, from the energy is generated until it reaches the final consumer.

In the generation field, the students will learn how work different generation systems from three different sources: conventional energy source like carbon, fuel, gas, etc., hydroelectric source, wind source.

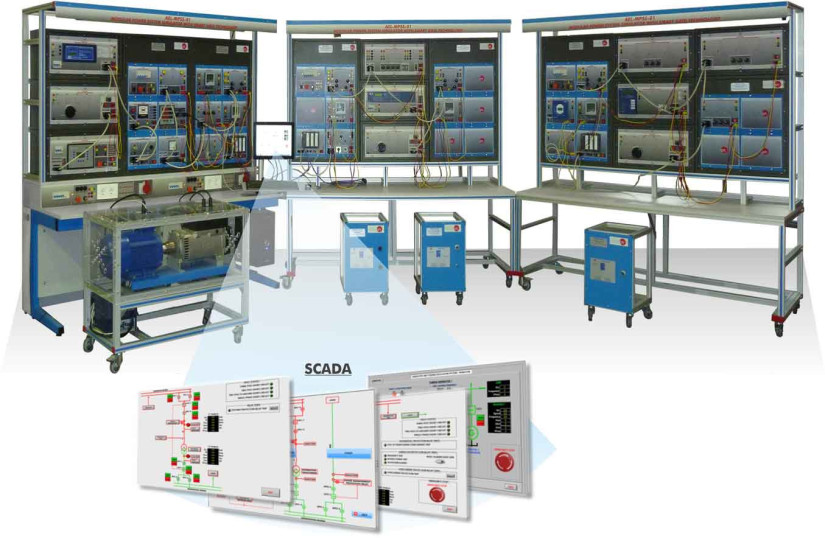

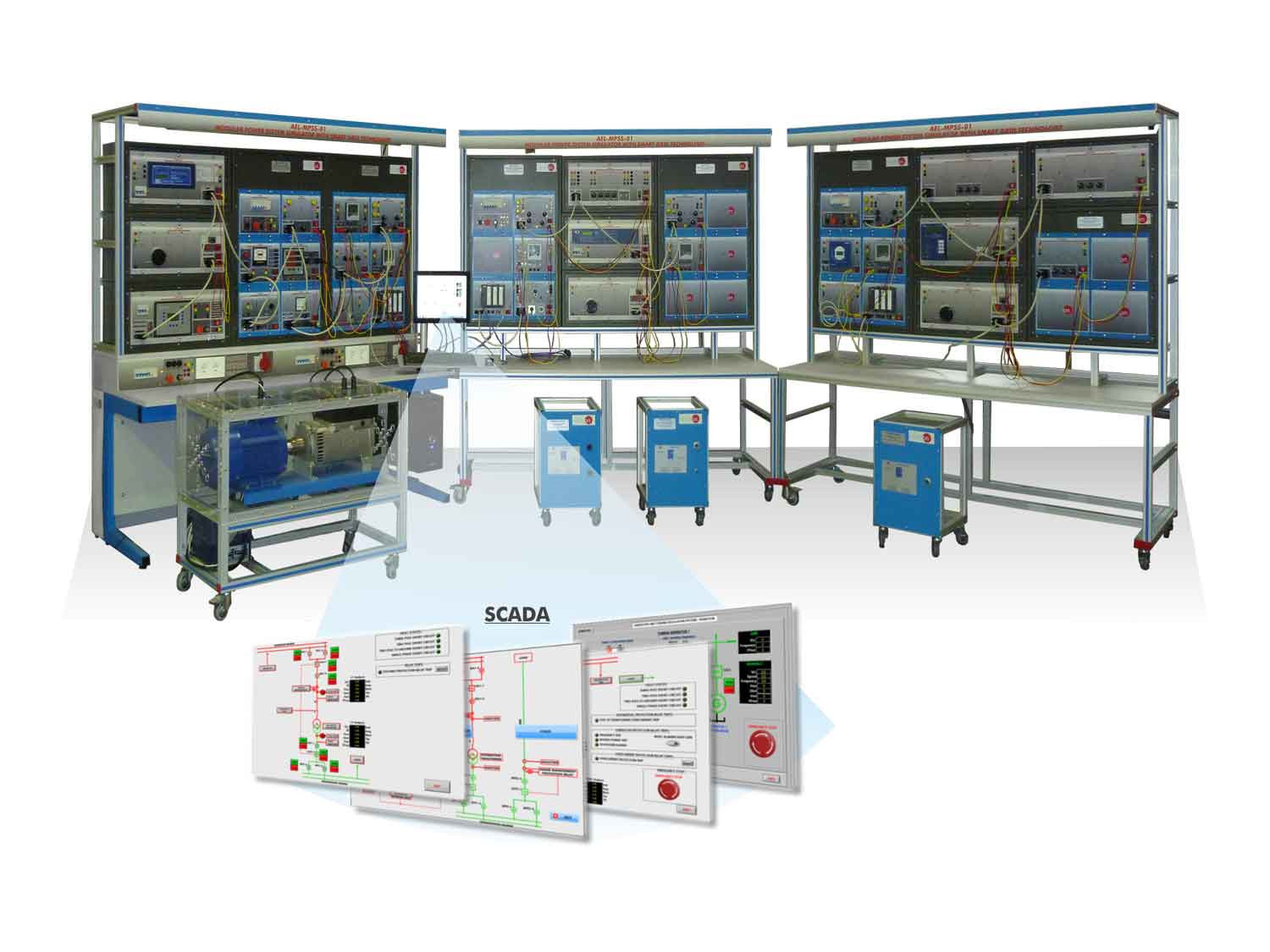

The AEL-CPSS-03S includes a SCADA Control System that will allows the users supervise, control and manage the generation, transmission and consumption electrical system:

  • Disconnector and circuit breakers control.
  • Data Acquisition of all electrical parameters of the system.
  • Manual and automatic control of the generators.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Some practical exercises possibilities:

  1. Study of Synchronous Machines.
  2. Study of Asynchronous Machines.
  3. Study of parallel operation with synchronous generator and the grid.
  4. Study of parallel operation with asynchronous machine and the grid.
  5. Study of parallel operation of synchronous generator and asynchronous machine.
  6. Study of micro-grids.
  7. Study of Power Factor Compensation.
  8. Study of brushless motors.
  9. Study of Photovoltaic Grid Plants.
  10. Study of Transformers.
  11. Study of Protection Relays.
  12. Study of drop voltages in function of the power transmission.
  13. Study of different short-circuits.
